    The HIMA X-CPU 01 processor module is a core control unit developed by the German company HIMA for the industrial safety field, belonging to its mature safety automation product system. This module is designed with high reliability, strong real-time performance, and excellent safety performance as its core design goals. It is specifically designed to meet the control requirements of critical safety applications such as emergency shutdown systems (ESD), fire and gas detection systems (FGS), and safety instrumented systems (SIS) in industrial processes, providing core control guarantees that comply with international safety standards for industrial production processes.

    • ¥32355.00
      ¥36580.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.750KG
    • Quantity:
    • (Inventory: 99999)
Description

The HIMA X-CPU 01 processor module is a core control unit developed by the German company HIMA for the industrial safety field, belonging to its mature safety automation product system. This module is designed with high reliability, strong real-time performance, and excellent safety performance as its core design goals. It is specifically designed to meet the control requirements of critical safety applications such as emergency shutdown systems (ESD), fire and gas detection systems (FGS), and safety instrumented systems (SIS) in industrial processes, providing core control guarantees that comply with international safety standards for industrial production processes.

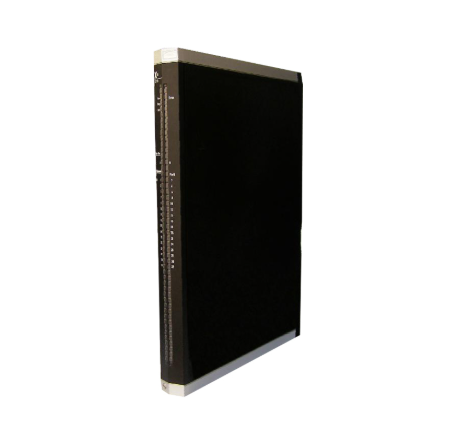

HIMA X-CPU 01 processor module

Module Overview

The HIMA X-CPU 01 processor module is a core control unit developed by the German company HIMA for the industrial safety field, belonging to its mature safety automation product system. This module is designed with high reliability, strong real-time performance, and excellent safety performance as its core design goals. It is specifically designed to meet the control requirements of critical safety applications such as emergency shutdown systems (ESD), fire and gas detection systems (FGS), and safety instrumented systems (SIS) in industrial processes, providing core control guarantees that comply with international safety standards for industrial production processes.

As the "brain" of the safety instrumented system, the X-CPU 01 module integrates advanced processor architecture, redundant design, and comprehensive fault diagnosis mechanism. It can operate continuously and stably in complex industrial environments, effectively avoiding safety accidents caused by control unit failures and reducing production risks. At the same time, it is compatible with HIMA series I/O modules and communication modules, and has good system scalability and compatibility.

Core Features

2.1 High security level design

The X-CPU 01 module strictly follows international safety standards and has passed the SIL 3 certification of the IEC 61508 standard, making it a high-level safety control unit in the field of industrial safety. It adopts a dual design of hardware redundancy and software fault tolerance. The core processor and key circuits have fault self detection function, which can monitor the running status of the module in real time. When a fault is detected, it can quickly trigger a safety response to ensure that the system can maintain a safe state in case of a fault and avoid the occurrence of dangerous scenarios.

2.2 Strong real-time performance and computing capability

The module is equipped with a high-performance 32-bit microprocessor, which has powerful computational processing capabilities and can quickly execute complex control logic, data processing, and safety interlock algorithms. Its instruction execution cycle is short, and it can achieve microsecond level response for safety related control tasks, ensuring that in the event of abnormal industrial process parameters, it can quickly make judgments and output control instructions, effectively shortening the system response time and providing strong support for the safety boundary of industrial production.

2.3 Improved redundancy and fault tolerance mechanisms

To enhance system reliability, X-CPU 01 supports hot redundancy configuration and can form a redundant system with another module of the same model. In redundant mode, two modules synchronize data in real time. When the main module fails, the backup module can switch to the working state without disturbance or delay, ensuring the continuity of the control process and avoiding production interruptions or safety risks caused by module failures.

2.4 Flexible communication and expansion capabilities

The module integrates multiple industrial standard communication interfaces, including Ethernet (PROFINET, EtherNet/IP, etc.), fieldbus (PROFIBUS DP, Modbus, etc.), which can easily achieve data exchange with upstream and downstream devices (such as sensors, actuators, upper monitoring systems) and support the construction of distributed control architectures. At the same time, it is compatible with the full range of HIMA digital I/O, analog I/O, and special function modules, and can flexibly configure the system scale according to actual application needs to meet the control requirements of different industrial scenarios.

2.5 Convenient diagnostic and maintenance functions

The X-CPU 01 module has comprehensive self diagnostic functions, which can monitor key components such as processors, memory, communication interfaces, and power supplies in real time. The module panel indicator lights and upper software can clearly display fault information, including fault type, occurrence time, and location, helping operation and maintenance personnel quickly locate the fault point and shorten maintenance time. In addition, the module supports online programming and configuration download, which can complete program updates without interrupting system operation, improving operation and maintenance efficiency.


Key technical parameters

security level

IEC 61508 SIL 3; EN 50156 SIL 3

Processor specifications

32-bit high-performance microprocessor with a clock frequency of ≥ 200MHz

Memory configuration

Program memory ≥ 16MB, data memory ≥ 8MB, supports memory expansion

communication interface

2 Ethernet interfaces (supporting PROFINET/EtherNet/IP), 1 PROFIBUS DP interface, and 1 Modbus RTU interface

I/O expansion capability

Supports up to 32 expansion racks and can connect to the full range of HIMA I/O modules

Power demand

DC 24V, voltage range 18V-32V, power consumption ≤ 15W

Working temperature range

-20℃~+60℃

Storage temperature range

-40℃~+85℃

Protection level

The module itself is IP20 (to be used in conjunction with a control cabinet that meets the IP rating)

Redundant support

Support 1:1 hot redundancy configuration, switching time<10ms


Typical application scenarios

The HIMA X-CPU 01 processor module, with its high security level and reliable performance, is widely used in industrial fields with extremely high security requirements. Typical scenarios include:

1. Petrochemical industry: Emergency Shutdown System (ESD) used in processes such as crude oil extraction, refining, and chemical synthesis. When parameters such as pressure, temperature, and liquid level exceed the standard, it quickly cuts off the feed and closes valves to prevent accidents such as explosions and leaks; Simultaneously applied to fire and gas detection systems (FGS), achieving real-time monitoring and linkage control of combustible gases, toxic gases, and fires.

2. Power industry: used for boiler safety monitoring system (FSSS) and turbine protection system (ETS) in thermal power plants and nuclear power plants, ensuring stable combustion of boilers, safe operation of turbines, and avoiding shutdowns or safety accidents caused by equipment failures.

3. Oil and gas transportation industry: used for safety control of long-distance oil and gas pipelines, realizing real-time monitoring of pipeline pressure and flow. When pipeline leakage, abnormal pressure and other situations occur, emergency shut-off valve action is triggered to prevent oil and gas leakage and secondary disasters.

4. Pharmaceutical industry: used for safety control in the drug production process, ensuring that the production environment meets GMP standards, while preventing production interruptions or drug quality issues caused by equipment failures, and ensuring the safety and stability of the production process.

5. Metallurgical industry: used for safety interlock control in steel and non-ferrous metal smelting processes, such as safety control of blast furnace gas recovery systems, safety protection of converter steelmaking processes, etc., to avoid safety accidents in high temperature and high pressure environments.


Summary of module advantages

-Safe and reliable: SIL 3 high safety level certification, redundant design and perfect fault diagnosis mechanism ensure system safety and stability in extreme situations.

-Excellent performance: High performance processors bring strong computing power and microsecond level real-time response, meeting the control requirements of complex industrial scenarios.

-Flexible Expansion: Rich communication interfaces and wide compatibility with I/O modules, supporting distributed system construction and flexible configuration according to needs.

-Convenient operation and maintenance: Comprehensive fault diagnosis and online configuration functions reduce the difficulty of operation and maintenance, and shorten the time for fault handling.

-Brand Guarantee: As a well-known brand in the global industrial safety automation field, HIMA's products have undergone long-term market validation and have a comprehensive technical support and after-sales service system.


Precautions for use

1. The module needs to be installed in a control cabinet that meets the protection level requirements, avoiding direct contact with dust, moisture, and corrosive gases to ensure that the working environment meets the technical parameter requirements.

2. When wiring, it is necessary to strictly follow the product manual specifications to ensure that the power polarity and communication line connection are correct, and to avoid module damage caused by wiring errors.

When performing redundant configuration, it is necessary to ensure that the firmware versions and configuration programs of the two modules are consistent to ensure the reliability of redundant switching.

4. Regularly maintain and inspect the module, including cleaning the surface of the module, checking the tightness of the wiring terminals, viewing diagnostic information through the upper software, and promptly discovering and handling potential faults.

5. Module firmware and configuration software updates must be operated by professional technicians to ensure that the update process complies with safety regulations and avoids system failures caused by program abnormalities.
