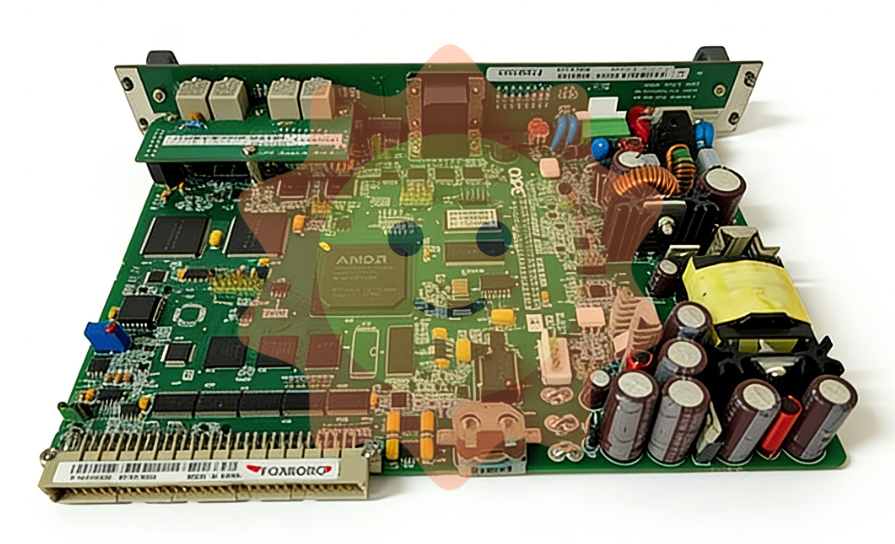

  • FOXBORO 0399143 SY-0301060R SY-1025115C/SY-1025120E Sensor
    ❤ Add to collection
  • FOXBORO 0399143 SY-0301060R SY-1025115C/SY-1025120E Sensor

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO 0399143, SY-0301060R, SY-1025115C, and SY-1025120E are all industrial grade sensors under the Schneider Electric Foxboro brand, covering multiple measurement categories such as pressure, temperature, and liquid level. They are the core sensing devices for achieving "physical quantity electrical signal" conversion in process automation systems. This series of sensors is designed specifically for harsh industrial environments, using high-precision sensitive components and reinforced packaging technology to accurately capture core parameters such as on-site temperature, pressure, and liquid level, and convert them into standard electrical signals to be transmitted to control systems such as DCS and PLC, providing reliable data support for monitoring, control, and optimization of the production process.

    • ¥17343.00
      ¥19964.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.450KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO 0399143, SY-0301060R, SY-1025115C, and SY-1025120E are all industrial grade sensors under the Schneider Electric Foxboro brand, covering multiple measurement categories such as pressure, temperature, and liquid level. They are the core sensing devices for achieving "physical quantity electrical signal" conversion in process automation systems. This series of sensors is designed specifically for harsh industrial environments, using high-precision sensitive components and reinforced packaging technology to accurately capture core parameters such as on-site temperature, pressure, and liquid level, and convert them into standard electrical signals to be transmitted to control systems such as DCS and PLC, providing reliable data support for monitoring, control, and optimization of the production process.




FOXBORO 0399143 SY-0301060R SY-1025115C/SY-1025120E Sensor

Product Overview

FOXBORO 0399143, SY-0301060R, SY-1025115C, and SY-1025120E are all industrial grade sensors under the Schneider Electric Foxboro brand, covering multiple measurement categories such as pressure, temperature, and liquid level. They are the core sensing devices for achieving "physical quantity electrical signal" conversion in process automation systems. This series of sensors is designed specifically for harsh industrial environments, using high-precision sensitive components and reinforced packaging technology to accurately capture core parameters such as on-site temperature, pressure, and liquid level, and convert them into standard electrical signals to be transmitted to control systems such as DCS and PLC, providing reliable data support for monitoring, control, and optimization of the production process.

The series of products are widely compatible with Foxboro I/A Series, Evo ™ With mainstream control systems and compatibility with third-party automation platforms, it has become the preferred sensing device for key industries such as petrochemicals, power energy, and chemical pharmaceuticals, thanks to its high stability, wide range adaptation, and strong environmental adaptability, helping to achieve visual and refined management of production processes.

Core model and specification parameters

2.1 Model Classification and Core Applications

model

Core measurement types

Typical application scenarios

FOXBORO 0399143

Industrial pressure measurement

Pipeline pressure monitoring, equipment pressure control, hydraulic system pressure feedback

SY-0301060R

Measurement of medium and high temperature

Reactor temperature monitoring, steam pipeline temperature collection, industrial furnace temperature detection

SY-1025115C

Liquid/solid level measurement

Tank level monitoring, reactor level control, water tank level detection

SY-1025120E

Multi parameter comprehensive measurement (pressure+temperature)

Multi parameter monitoring of oil and gas transmission pipelines, chemical reaction systems, and power equipment

2.2 General specification parameters

-Power supply voltage: universal 24V DC (wide range supports 12-36V DC), some models support 220V AC (50/60Hz)

-Output signal: Standard 4-20mA DC analog signal, supports HART 7.0 protocol (intelligent type), some models can choose 0-10V DC or digital signal (Modbus RTU)

-Measurement accuracy: ± 0.075% FS for pressure, ± 0.1 ℃ (-20 ℃ to+200 ℃)/± 0.2 ℃ (+200 ℃ to+800 ℃) for temperature, ± 0.1% FS for liquid level

-Response time: Pressure class ≤ 10ms, temperature class ≤ 50ms (thermocouple type)/≤ 100ms (thermistor type), liquid level class ≤ 20ms

-Working temperature range: Sensor body -40 ℃ to+125 ℃, measuring medium temperature range is divided into -200 ℃ to+180 ℃ (low temperature type), -50 ℃ to+800 ℃ (medium high temperature type) according to different models

-Protection level: IP67/IP68 shell, IP65 process connection part, suitable for humid and dusty industrial environments

-Process connection: Threaded connection (M20 × 1.5 NPT 1/2)、 Flange connection (DN25-DN100, PN1.6-PN42), supporting customized connection methods

2.3 Exclusive parameters for each model

-FOXBORO 0399143 (pressure sensor): optional measurement range from 0-1MPa to 0-100MPa, overload capacity of 200% FS, long-term stability of ≤± 0.1% FS/year, using diffused silicon sensitive elements

-SY-0301060R (temperature sensor): using K-type thermocouple/PT100 thermistor, measuring range of -50 ℃ to+800 ℃, insertion depth of 50-500mm optional, armor material 316L stainless steel

-SY-1025115C (liquid level sensor): optional measurement range from 0-1m to 0-30m, using ultrasonic/radar measurement principle, blind zone ≤ 0.2m, strong anti-interference ability (not affected by medium viscosity and density)

-SY-1025120E (multi parameter sensor): pressure range 0-5MPa to 0-50MPa, temperature range -20 ℃ to+300 ℃, integrated dual sensing element, synchronized output of pressure and temperature signals, signal isolation ≥ 1000V DC


Performance characteristics

-High precision and long-term stability performance: Using imported high-precision sensitive components and digital signal processing technology, pressure sensors achieve a measurement accuracy of ± 0.075% FS, and temperature sensors maintain an accuracy of ± 0.1 ℃ over a wide range. Through temperature compensation algorithm and aging correction technology, the long-term stability is ≤ ± 0.1% FS/year, reducing calibration frequency and lowering operation and maintenance costs.

-Strong environmental adaptability: The shell is made of 316L stainless steel or polytetrafluoroethylene material, with a protection level of IP67/IP68, and can operate stably in humid, dusty, and corrosive media environments. The pressure sensor has a 200% FS overload capacity, and the temperature sensor adopts armor protection, which can withstand vibration (10-500Hz, 10g) and impact (50g, 11ms), and is suitable for extreme industrial working conditions.

-Intelligent Communication and Diagnosis: Supports the HART 7.0 intelligent communication protocol, and can remotely read sensor working status, measurement data, and fault information through a handheld device or configuration software to achieve parameter configuration and calibration. Equipped with self diagnostic function, it automatically outputs fault signals (such as 22mA DC) when component drift or line faults occur, making it easy to quickly locate the problem.

-Flexible adaptation and installation: Rich range selection and multiple process connection methods can be customized according to different working conditions. The sensor has a compact size, and some models support multiple installation methods such as side installation and top installation, which are suitable for narrow installation spaces and reduce the workload of pipeline renovation.

-High reliability and safety: Through IEC 61508 SIL 2 functional safety certification, some models have explosion-proof certification (Ex d IIB T4 Gb/Ex ia IIB T6 Ga), which can be used in flammable and explosive hazardous areas. The circuit adopts anti short circuit and anti overvoltage design to avoid damage to the sensor caused by external faults.


Working principle

This series of sensors is based on different measurement principles to achieve precise perception and signal conversion of physical quantities. The core working mechanism is classified according to measurement types as follows:

4.1 Pressure Sensor (0399143)

Using the principle of diffusion silicon piezoresistive effect, when the measured pressure is applied to the isolation membrane of the sensitive element, the membrane undergoes slight deformation, causing the resistance of the diffusion silicon resistance bridge arm attached to its surface to change, thereby causing the bridge to output a voltage signal proportional to the pressure. The voltage signal is filtered and amplified by an internal signal conditioning circuit, converted into a digital signal by an A/D converter, and then output as a standard 4-20mA DC analog signal through a D/A converter. Intelligent sensors achieve the superposition and transmission of digital and analog signals through HART chips, supporting remote communication and parameter configuration.

4.2 Temperature Sensor (SY-0301060R)

According to the type, there are two principles: thermocouple type utilizes thermoelectric effect, and two different materials of metal conductors form a closed loop. When there is a temperature difference between the measuring end and the reference end, a thermoelectric potential is generated in the loop, and the magnitude of the thermoelectric potential is proportional to the temperature difference. After signal amplification, a standard signal is output; The thermal resistance type utilizes the positive temperature coefficient characteristic of metal resistors, and the resistance value of PT100 increases with temperature. The resistance change is measured by a constant current source circuit, converted into a voltage signal corresponding to temperature, and then regulated to output a standard signal.

4.3 Liquid level sensor (SY-1025115C)

Adopting the principle of ultrasonic/radar measurement: The ultrasonic type emits ultrasonic pulses to the liquid surface through a sensor probe, and the ultrasonic waves are reflected by the liquid surface and received by the probe. Based on the propagation time and speed of the ultrasonic waves, the distance between the probe and the liquid surface is calculated, and then converted into a liquid level height signal; The radar type emits high-frequency electromagnetic waves, utilizes the reflection characteristics of electromagnetic waves at different media interfaces, measures the round-trip time of electromagnetic waves, and calculates the liquid level based on the propagation speed. It is not affected by media temperature, pressure, or viscosity, and has higher measurement stability.

4.4 Multi parameter sensor (SY-1025120E)

Integrated pressure and temperature measurement unit, the pressure unit adopts the principle of diffused silicon, and the temperature unit adopts the principle of PT100 thermistor. The signals collected by the two sensitive components are processed by independent signal conditioning circuits, and then synchronously output through a data fusion chip. It can simultaneously output 4-20mA signals corresponding to pressure and temperature, or superimpose two digital signals on a single analog signal through the HART protocol to achieve efficient transmission of multiple parameters.

  • User name Member Level Quantity Specification Purchase Date
  • Satisfaction :
No evaluation information
  • Yokogawa AIP830 Single Circuit Operation Keyboard
  • Yokogawa RAMC flowmeter selection and troubleshooting
  • YASKAWA GA500 frequency converter troubleshooting
  • TRACO TIS600 power supply
  • Sigmatek ETV-0851 Control Panel Troubleshooting
  • Allen Bradley Quest AN-X2-AB-DHRIO Remote I/O Adapter Integration and Troubleshooting
  • Meggitt RPS6U power supply
  • Kongsberg RCU500 Controller Integration and Fault Diagnosis Guide
  • KBAC series frequency converter installation and fault diagnosis guide
  • EXOR effectiveness View eV058 series HMI industrial panel
  • Emerson OCR3000 Controller Troubleshooting Guide
  • Emerson Ovation OCR1100 Controller Maintenance and Troubleshooting
  • Elmo G-TUB30 Driver Troubleshooting Guide
  • Troubleshooting and Optimization of Basler A400 Series Camera
  • Troubleshooting and Maintenance of Automated Logic I/O Expansion Module
  • Troubleshooting and Maintenance of Aerotech UNIDEX 100 Controller
  • ADVANEST R6144 calibration source troubleshooting
  • Troubleshooting and Calibration of ABB Millmate Tension Gauge
  • ABB NGC8206 natural gas chromatograph troubleshooting and maintenance
  • ABB AO2040-CU Ex Explosion proof Analyzer Troubleshooting
  • ABB PFEA113 Tension Controller Troubleshooting Guide
