  • FOXBORO 873EC-JIPFGZ Industrial Control Module
    ❤ Add to collection
  • FOXBORO 873EC-JIPFGZ Industrial Control Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO 873EC-JIFGZ is a high-end industrial control module launched by Schneider Electric's Foxboro brand. As the core control unit in the field of process automation, it is widely compatible with Foxboro I/A Series distributed control systems (DCS) and Evo ™ New generation control system. This module focuses on precise control of key parameters in industrial sites and collaborative management of multiple devices. It integrates full functional features such as signal acquisition, logical operation, control output, and fault diagnosis. It can implement closed-loop control of core production parameters such as temperature, pressure, flow rate, and liquid level, while achieving efficient data exchange with intelligent devices on site.

    • ¥17343.00
      ¥19964.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.450KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO 873EC-JIFGZ is a high-end industrial control module launched by Schneider Electric's Foxboro brand. As the core control unit in the field of process automation, it is widely compatible with Foxboro I/A Series distributed control systems (DCS) and Evo ™ New generation control system. This module focuses on precise control of key parameters in industrial sites and collaborative management of multiple devices. It integrates full functional features such as signal acquisition, logical operation, control output, and fault diagnosis. It can implement closed-loop control of core production parameters such as temperature, pressure, flow rate, and liquid level, while achieving efficient data exchange with intelligent devices on site.

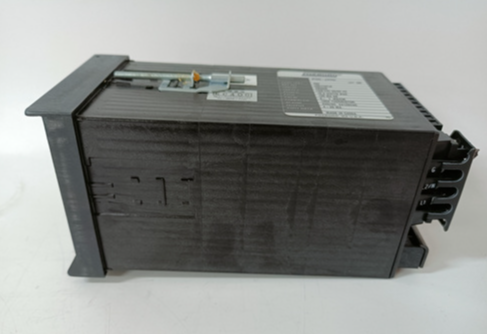

FOXBORO 873EC-JIPFGZ Industrial Control Module

Product Overview

FOXBORO 873EC-JIFGZ is a high-end industrial control module launched by Schneider Electric's Foxboro brand. As the core control unit in the field of process automation, it is widely compatible with Foxboro I/A Series distributed control systems (DCS) and Evo ™ New generation control system. This module focuses on precise control of key parameters in industrial sites and collaborative management of multiple devices. It integrates full functional features such as signal acquisition, logical operation, control output, and fault diagnosis. It can implement closed-loop control of core production parameters such as temperature, pressure, flow rate, and liquid level, while achieving efficient data exchange with intelligent devices on site.

The module adopts industrial grade reinforced design, integrating high reliability hardware architecture and flexible software configuration capabilities. It can operate stably in harsh industrial environments such as high temperature, high humidity, high dust, and strong electromagnetic interference, providing precise and reliable control support for the production process of key industries such as petrochemicals, power energy, and fine chemicals. It is the core equipment to ensure production continuity and improve product quality.


Specification parameters

2.1 Electrical Parameters

-Power supply voltage: dual redundant power supply design, main and backup switching time ≤ 10ms, typical power supply 24V DC, wide range support 18-36V DC, compatible with industrial standard DC power supply system

-Power consumption: No load power consumption ≤ 3W, full load operation power consumption ≤ 12W, with intelligent power consumption adjustment function, automatically reducing energy consumption in light load scenarios

-Control signal input: Supports 8 analog inputs (4-20mA DC/1-5V DC), 16 digital inputs (dry contact/PNP/PNP optional), input impedance ≥ 1M Ω

-Control signal output: 6-channel analog output (4-20mA DC, load capacity 0-500 Ω), 12 channel digital output (relay contact/transistor output optional, relay capacity 250V AC/5A)

-Control accuracy: Analog control accuracy ± 0.05% FS, digital response error ≤ 1ms, meeting high-precision process control requirements

2.2 Communication and operational parameters

-Communication interface: 1 RJ45 Ethernet interface (supporting 10/100Mbps adaptive), 2 RS-485 serial ports, 1 FOUNDATION fieldbus H1 interface, supporting hot swappable maintenance

-Compatibility Protocol: Native support for mainstream industrial protocols such as HART 7.0, Modbus RTU/TCP, FOUNDATION fieldbus H1, OPC UA, etc., and protocol support can be expanded through firmware upgrades

-Computing capability: 32-bit high-performance ARM processor with a main frequency of 800MHz, supporting real-time processing of over 1000 IO variables, and flexible configuration of control cycles within the range of 1ms-100ms

-Storage capacity: 512KB program storage Flash, 8MB data storage RAM, supports control strategy local backup and breakpoint resume

2.3 Environmental and Physical Parameters

-Working temperature: -40 ℃ to+85 ℃ (wide temperature industrial grade), supports -20 ℃ to+70 ℃ fanless natural heat dissipation operation

-Storage temperature: -55 ℃ to+100 ℃, suitable for extreme transportation and storage environments

-Environmental adaptability: humidity 5% -95% (no condensation), anti vibration level IEC 60068-2-6 (10-500Hz, 10g), anti impact level IEC 60068-2-27 (50g, 11ms)

-Protection level: Module body IP20 (installed inside the control cabinet), wiring terminal IP65 (equipped with a dedicated waterproof terminal box)

-Physical dimensions: 140mm x 180mm x 80mm (length x width x height), standard 3U rack installation size, compatible with 19 inch industrial control cabinets

-Weight: Approximately 1.2kg, including a total weight of 1.5kg for the installation bracket


Performance characteristics

-High precision closed-loop control capability: Equipped with various advanced control algorithms such as PID, fuzzy control, and cascade control, it supports custom control logic programming, with an analog control accuracy of ± 0.05% FS, enabling precise control of complex industrial processes. Equipped with 16 bit high-precision A/D and D/A conversion chips, it can keenly capture subtle signal fluctuations and ensure precise output of control instructions.

-Full redundancy and high reliability design: Adopting dual redundant power supply, key chip hot backup, and communication link redundancy design, the system automatically switches when a single component fails, with a switching time of ≤ 10ms and no risk of control interruption. Through IEC 61508 SIL 2 functional safety certification, the mean time between failures (MTBF) exceeds 1 million hours, meeting the reliability requirements of critical industrial scenarios.

-Multi protocol flexible integration: compatible with various mainstream industrial protocols such as HART, Modbus, FOUNDATION fieldbus, etc. Ethernet and serial interfaces can work independently at the same time, seamlessly integrating with intelligent transmitters, actuators, PLCs, and monitoring systems from different manufacturers, reducing the difficulty of cross brand system integration. Support dynamic protocol switching, communication configuration adjustment can be completed without restarting the module.

-Comprehensive diagnosis and warning function: It has a four fold diagnostic mechanism including module self diagnosis, IO channel fault diagnosis, communication link monitoring, and on-site equipment status diagnosis. It can monitor key indicators such as power supply voltage, chip temperature, and signal integrity in real time. When abnormalities occur, it will immediately trigger dual alarms through indicator lights and communication messages, and upload fault location information for quick troubleshooting.

-Convenient configuration and maintenance: Supports graphical programming through Foxboro Control Studio configuration software, providing a rich library of control modules and logic blocks to reduce development difficulty. The module supports online configuration download and firmware upgrade, and maintenance operations can be completed without shutting down. Equipped with clear LED status indicators to visually display power, operation, communication, and fault status.


Working principle

The FOXBORO 873EC-JIPFGZ industrial control module has the core workflow of "signal acquisition logic operation control output state feedback", and achieves precise control of industrial processes through the coordination of hardware circuits and software algorithms. The specific mechanism is as follows:

1. Signal acquisition and preprocessing: The module connects on-site sensors, transmitters, and other devices through analog and digital input channels, and connects the electrical signals converted from physical quantities such as temperature and pressure to the internal signal conditioning circuit. This circuit filters, isolates, and amplifies signals to eliminate electromagnetic interference and signal attenuation in industrial environments. Then, a high-precision A/D converter converts analog signals into digital signals and transmits them to the core processor.

2. Control logic operation: The core processor performs real-time operation on the collected digital signals based on the control strategy (such as PID control algorithm) downloaded in advance through configuration software. During the calculation process, the processor compares the actual measured value with the set value, calculates the optimal control quantity based on the control algorithm, and dynamically adjusts the calculation parameters with reference to the feedback status of the on-site equipment to ensure the stability of the control effect.

3. Control instruction output: After the operation is completed, the processor sends the control quantity to the D/A converter, converts it into standard analog control signals such as 4-20mA, or sends switch quantity instructions through the digital output channel to drive the actuators such as regulating valves, frequency converters, solenoid valves, etc., to adjust the production process parameters. The output signal has short-circuit protection and overcurrent protection functions to avoid damage to the module caused by actuator failure.

4. Data communication and status feedback: The module interacts with the DCS control station and monitoring system through Ethernet or serial port interface, uploads real-time collected data, control status and fault information, and receives instructions such as setting value adjustment and control mode switching issued by the control station. For smart devices that support the HART protocol, the module can synchronously read device diagnostic information and parameters, achieving bidirectional communication.

5. Self diagnosis and fault handling: The module continuously monitors its own hardware status (power supply, processor, IO channel) and external communication links during operation. When signal abnormalities, communication interruptions, or hardware failures are detected, the internal fault handling mechanism is immediately triggered. Fault channel switching is achieved through redundant design, and fault information is uploaded to the communication network through alarm output. At the same time, the corresponding fault indicator lights are lit to assist operation and maintenance personnel in locating the problem.
