Description

ABB 216EA62 and its supporting models 1MRB150083R1/F and 1MRB178066R1/F are highly available redundant system modules in the field of industrial automation. The core function is to build a controller redundancy architecture, which synchronizes data in real time and seamlessly switches between primary and backup modules to ensure that when the primary module fails, the backup module can immediately take over control tasks and avoid industrial production process interruptions. This series of modules belongs to the ABB MasterPiece 200/1 redundant control system and is a key guarantee equipment for scenarios that require extremely high production continuity, such as large petrochemical plants, nuclear power plant auxiliary control systems, and urban water supply hubs. It can significantly enhance the system's risk resistance and reduce economic losses caused by equipment failures.

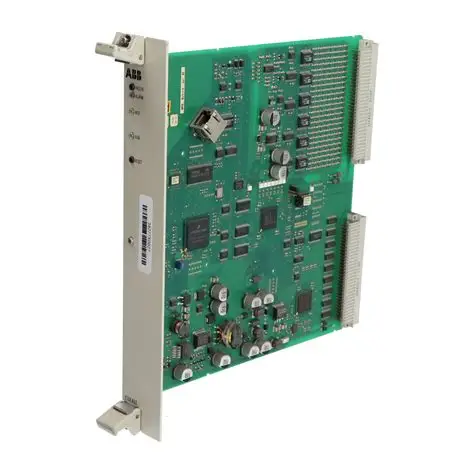

ABB 216EA62 1MRB150083R1/F 1MRB178066R1/F 216EA62 Redundant system modules

Product core positioning

ABB 216EA62 and its supporting models 1MRB150083R1/F and 1MRB178066R1/F are highly available redundant system modules in the field of industrial automation. The core function is to build a controller redundancy architecture, which synchronizes data in real time and seamlessly switches between primary and backup modules to ensure that when the primary module fails, the backup module can immediately take over control tasks and avoid industrial production process interruptions. This series of modules belongs to the ABB MasterPiece 200/1 redundant control system and is a key guarantee equipment for scenarios that require extremely high production continuity, such as large petrochemical plants, nuclear power plant auxiliary control systems, and urban water supply hubs. It can significantly enhance the system's risk resistance and reduce economic losses caused by equipment failures.


 Key technical parameters

Redundant architecture

Support 1:1 hot standby redundancy (parallel operation of primary and backup modules, real-time data synchronization), with switch mode being interference free switch (switch time ≤ 50ms)

Processor configuration

216EA62 adopts a 16 bit industrial grade dual core processor with a main frequency of 40MHz, and redundant supporting chipsets of 1MRB150083R1/F and 1MRB178066R1/F are used to enhance data synchronization efficiency

Storage capacity

Program memory: 256KB EEPROM (automatic synchronization of main and backup module programs); Data storage: 128KB RAM (with dual backup batteries, data retention for ≥ 120 hours in case of power failure)

Input/output capability

Single module supports 12 digital inputs (DC 24V, response time ≤ 0.8ms) and 12 digital outputs (DC 24V, maximum load current 1.2A/channel); Up to 24 I/O submodules can be connected through redundant expansion buses

Communication interface

2 RS485 differential communication interfaces (supporting Modbus RTU protocol, adjustable communication rate of 9600-115200bps, redundant communication interfaces for primary and backup modules); 1 dedicated redundant synchronization bus interface (synchronization rate 1Mbps)

Control cycle

The basic control cycle is 8ms, the critical control task cycle can be set to 3ms, and the redundant synchronization cycle is ≤ 1ms to ensure the consistency of primary and backup data

Power specifications

Working power supply: DC 24V (± 20%), single module power consumption of about 5W; supports dual power input redundancy (two independent 24V DC power supplies, automatic switching)

Environmental adaptability

Working temperature -30 ° C -75 ° C, storage temperature -40 ° C -85 ° C, relative humidity 5% -95% (non condensing), anti electromagnetic interference level IEC 61000-6-3

Physical specifications

The size of 216EA62 (length x width x height) is approximately 160mm x 110mm x 45mm. 1MRB150083R1/F and 1MRB178066R1/F are compact chip modules (size 30mm x 25mm x 5mm), both of which adopt plug-in design and are compatible with ABB standard 3U redundant rack

Compatibility

Compatible with all ABB MasterPiece 200/1 series I/O modules (such as AI810 analog input module, AO810 analog output module), supporting communication with ABB Process Portal redundant monitoring software


Core functions and advantages

1. High reliability redundant switching

Adopting a 1:1 hot standby redundancy architecture, the main and backup modules run in parallel in real time, and millisecond level synchronization of control programs, process data, and I/O status is achieved through a dedicated redundant synchronization bus (synchronization rate of 1Mbps) to ensure that the status of the main and backup modules is completely consistent. When the main module experiences hardware failure (such as processor failure, power failure) or software abnormality (such as program runaway), the backup module can switch to the main control state without disturbance within ≤ 50ms, and the actuator action does not fluctuate during the switching process, and the production process is not interrupted. For example, in the control of petrochemical reaction kettle, the temperature deviation before and after switching can be controlled within ± 0.2 ° C.

Equipped with a dual fault detection mechanism: at the hardware level, the power supply, processor, and communication interface status of the main and backup modules are monitored in real-time through independent fault detection circuits; At the software level, the module's operating status is determined through periodic heartbeat detection (with a detection cycle of 100 μ s), ensuring that faults are detected in a timely manner and avoiding accidental or missed switching.

2. Comprehensive redundancy design

In addition to core control module redundancy, it also supports power redundancy (dual independent 24V DC power supply, when one power supply fails, the other automatically takes over, switching time ≤ 10ms), communication interface redundancy (dual RS485 interfaces, main and backup interfaces can communicate with field devices simultaneously, single interface failure does not affect data transmission), I/O expansion redundancy (connected to I/O submodules through redundant expansion bus, single I/O module failure can automatically switch to backup I/O channel), building a "control power communication I/O" full link redundancy, completely eliminating the risk of single point failure.

1MRB150083R1/F and 1MRB178066R1/F are dedicated redundant supporting chipsets responsible for encrypting and synchronizing primary and backup data, as well as fault logic judgment. They ensure error free synchronization of data through hardware level data verification (CRC32 verification algorithm), and also have anti-interference encoding function to avoid data interference and tampering during redundant bus transmission.

3. Efficient control and flexible expansion

The 216EA62 is equipped with a 16 bit dual core processor, where one core is responsible for control operations and the other core focuses on redundant synchronization. The two work in parallel, ensuring both control operation efficiency (basic control cycle of 8ms) and the timeliness of redundant synchronization (synchronization cycle ≤ 1ms). Supports multiple types of control algorithms, including PID closed-loop control, fuzzy control, and batch control, to meet the needs of complex industrial scenarios such as multivariable coupled chemical reaction control.

Support flexible access to I/O submodules through redundant expansion buses. A single redundant system can expand up to 24 I/O modules, covering signal types such as digital, analog, and pulse. The expansion process does not require interruption of system operation (supports hot swapping), making it easy to expand according to production needs in the future. For example, in urban sewage treatment plants, water quality monitoring I/O modules can be added at any time without stopping the sewage treatment process.

4. Convenient operation and status monitoring

The front of the module is equipped with redundant status indicator lights (main and backup status lights, synchronization status lights, fault lights), which can intuitively judge the operating status of the redundant system: "main module status light is always on+backup module status light flashes" indicates normal redundant operation, "backup module status light is always on+main module status light is off" indicates that it has been switched to the backup module, "fault light flashes" indicates synchronization abnormality, which is convenient for maintenance personnel to quickly locate problems.

Support remote monitoring of redundant system status through ABB Process Portal monitoring software, which can view real-time information such as CPU load, memory usage, synchronization delay time, fault records, etc. of the main and backup modules. At the same time, it supports remote configuration of redundant parameters (such as switching threshold, synchronization period), download control program (automatic synchronization program of the main and backup modules), reducing on-site operation and maintenance workload. For example, in remote power substations, operation and maintenance personnel can complete parameter adjustment and program updates of redundant modules in the central control room.
