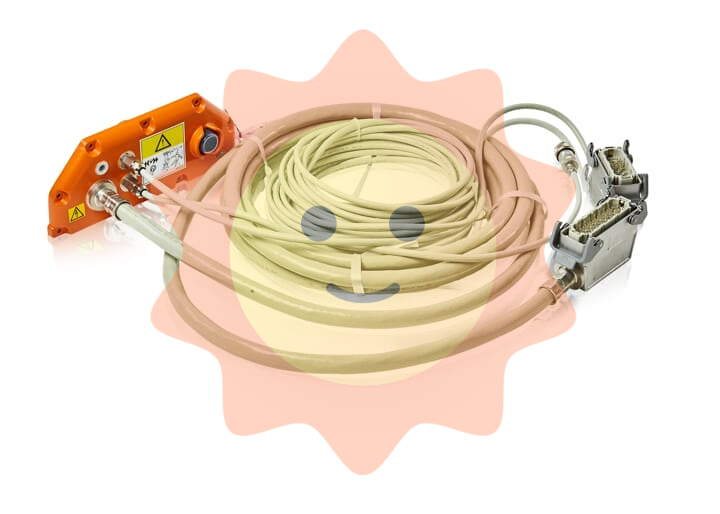

ABB 3HAC10847-1 Ethernet on front,Harness

ABB 3HAC10847-1 Ethernet on front,Harness

Ordering

Replacement Product ID (NEW):3HAC022296-001

Country or Territory of Origin:Sweden

Invoice Description:Ethernet on front,Harness

Minimum Order Quantity:1 piece

Selling Unit of Measure:piece

Order Multiple:1 piece

Made To Order:No

External Classifications and Standards

Customs Tariff Number:85444290

Part Type:New

WEEE Category:Product Not in WEEE Scope

Dimensions

Product Net Weight:0.122 kg

Gross Weight:0.122 kg

Product Overview

ABB 3HAC10847-1 is an integrated wiring harness designed specifically for pre Ethernet connections in industrial automation equipment. Its core function is to enable fast and stable communication between ABB robots (such as IRB series), industrial control cabinets, and external Ethernet devices (such as switches, HMI, remote I/O modules). Its notable feature is that the Ethernet interface is pre installed, making it easy to access the network without disassembling the device casing. At the same time, the wiring harness adopts a customized structural design, accurately adapting to the interface specifications and installation layout of ABB equipment, effectively simplifying the wiring process and reducing on-site debugging time.

This wiring harness integrates Ethernet transmission lines, shielding layers, and specialized connectors, with characteristics such as anti-interference, wear resistance, and easy installation. It is widely used in scenarios such as automotive manufacturing, electronic processing, and mechanical automation that require high convenience and stability in equipment communication connections. It is a key component for achieving networked interconnection of equipment in ABB automation systems.

Specification parameters

Basic Information

Model: 3HAC10847-1 Type: Front Ethernet Integrated Wiring Harness Applicable Equipment: ABB Robots (IRB 120/2600/4600, etc.), Industrial Control Cabinets

Dedicated communication interface for ABB equipment, non universal wiring harness

Electrical performance

Rated voltage: 300V AC/DC (effective value) Test voltage: 1500V AC (1min, no breakdown) Characteristic impedance: 100 Ω± 15% (1-100MHz) Attenuation constant: ≤ 0.12dB/m (10MHz), ≤ 0.35dB/m (100MHz)

Impedance matching ensures stable transmission of Ethernet signals, low attenuation supports long-distance communication

Transmission performance

Transmission rate: 10/100/1000Mbps (adaptive) Support protocols: EtherNet/IP, Profinet TCP/IP, Modbus TCP Maximum transmission distance: 100m (at 1000Mbps)

Meet the requirements of industrial real-time control for transmission rate and delay (delay ≤ 0.8 μ s/m)

Structural parameters

Cable specifications: 4-core shielded twisted pair (CAT 5e/CAT 6), single core conductor material is tinned copper (wire diameter 0.51mm), shielding layer: aluminum foil+tinned copper braided mesh (coverage ≥ 95%), outer sheath: polyurethane (PUR), thickness 0.8mm-1.0mm, connector: one end is ABB dedicated front interface (10 pin locking type), the other end is RJ45 shielded joint (with dust cover)

CAT 6 cable version supports gigabit speed, RJ45 connector with locking buckle to prevent detachment

Environmental adaptability

Working temperature: -40 ℃ to 85 ℃ (PUR sheath) Storage temperature: -50 ℃ to 90 ℃ Oil resistance: Complies with IEC 60811-2-1 standard (resistant to mineral oil and cutting fluid) Protection level: IP67 (connector part, with sealing gasket) Bending performance: Static bending radius ≥ 8 x cable outer diameter, dynamic bending radius ≥ 15 x cable outer diameter

Adapt to industrial workshop oil pollution, humidity, and frequent vibration scenarios

Physical specifications

Wire harness length: 1.0m/2.0m/5.0m (standard length, customizable) Cable outer diameter: 6.2mm-7.5mm Weight: 0.12kg/m (1.0m length approximately 0.12kg) Color: Standard gray (customizable orange, used to distinguish Ethernet signals)

The installation spacing between devices and switches with different lengths is suitable for on-site wiring

Security and Certification

Flame retardant rating: UL 94 V-0, IEC 60332-1-2 Environmental certification: RoHS 2.0 (lead-free, halogen-free) Industrial certification: CE, UL, ATEX (explosion-proof Zone 2 optional)

Meets industrial safety regulations and can be used in ordinary areas and mildly hazardous environments

Performance characteristics

Front interface, convenient installation: One end of the wiring harness is compatible with the front Ethernet interface of ABB equipment, which can be plugged in and unplugged without opening the equipment control cabinet, greatly reducing the time for equipment networking and debugging; The RJ45 connector is designed with a dust cover and locking buckle, which can protect the interface from dust pollution when not in use and prevent accidental detachment when in use.

High anti-interference ability: Adopting CAT 5e/CAT 6 shielded twisted pair and a double-layer shielding structure of "aluminum foil+tinned copper braided mesh", the shielding coverage rate exceeds 95%, which can effectively resist electromagnetic interference (EMI) and radio frequency interference (RFI) generated by industrial field frequency converters and motors, ensuring that the error rate of Ethernet signal transmission is less than 10 ⁻¹ ².

High speed and stable transmission: The CAT 6 cable version supports gigabit Ethernet rates, with precise impedance control of 100 Ω± 15% to reduce signal reflection; Low attenuation design (attenuation ≤ 0.35dB/m at 100MHz), capable of stably transmitting gigabit signals within a distance of 100m, meeting the requirements of real-time robot control and high-definition visual inspection data transmission.

Durability and environmental adaptability: PUR outer sheath has excellent wear resistance (wear resistance level ≥ 800000 times of reciprocating friction), oil resistance and aging resistance, and its service life in the workshop environment with oil stains and cutting fluid splashes can reach more than 10 years; The protection level of the connector part reaches IP67, which can resist short-term water immersion and dust intrusion, and adapt to humid working conditions.

Customization and Compatibility: Supports customizing wire harness lengths (0.5m-10m) based on device installation spacing, and is compatible with mainstream ABB robots and control cabinet models without the need for additional adapter accessories; The RJ45 connector complies with the TIA/EIA-568-C standard and can be connected to third-party industrial Ethernet switches (such as Huawei and Hirschmann switches) to enhance system compatibility.

Application scenarios

ABB Robot Front Networking: Used as a front Ethernet interface for small and medium-sized robots such as IRB 120 and IRB 2600, connecting to workshop industrial switches to achieve real-time data exchange between robots and upper computers (such as MES systems), transmitting production task instructions and robot operating status data, and adapting to scenarios such as electronic component assembly and precision polishing.

Convenient communication of industrial control cabinet: Installed on the front panel of ABB industrial control cabinet, it can connect HMI or portable debugging computer without opening the cabinet, making it convenient for on-site engineers to download programs and debug parameters of PLC and frequency converter (such as ACS 880) inside the control cabinet, reducing the number of cabinet openings and reducing the risk of dust intrusion.

Remote I/O module connection: In distributed control scenarios, it is used to connect ABB remote I/O modules (such as IMDS014) with central switches, quickly achieve networked access of I/O modules through front-end interfaces, transmit sensor collected data and control instructions, and adapt to large-scale equipment layout scenarios such as automotive welding production lines and lithium battery assembly lines.

Visual inspection system interconnection: Connect ABB robot vision systems (such as 2D/3D vision sensors) with Ethernet switches to transmit high-definition image data and visual positioning instructions. The gigabit transmission rate of CAT 6 cables ensures real-time transmission of image data, meeting high-precision application requirements such as robot vision guidance assembly and defect detection.

Communication of equipment in harsh environments: In high-temperature areas of metallurgical workshops and oil contaminated environments of automotive painting workshops, as a connecting harness between ABB equipment and networks, PUR sheaths and IP67 connectors can resist high temperatures, oil stains, and humidity, ensuring stable networking of equipment under harsh working conditions and guaranteeing production continuity.
