Description

In DCS control system architectures such as ABB AC800M, the 408368B IAM module plays the core role of the "analog signal acquisition front-end". Its core value lies in solving the weak signal amplification, interference suppression, and standardization conversion problems of analog signals in industrial sites, providing accurate and stable digital data for controllers.

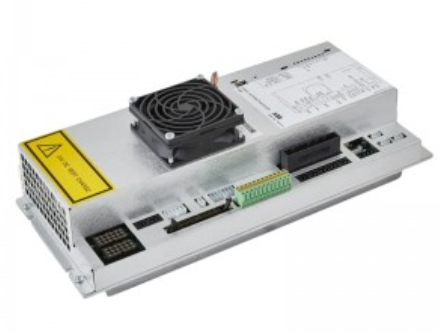

ABB 408368B IAM module

Product positioning and core values

In DCS control system architectures such as ABB AC800M, the 408368B IAM module plays the core role of the "analog signal acquisition front-end". Its core value lies in solving the weak signal amplification, interference suppression, and standardization conversion problems of analog signals in industrial sites, providing accurate and stable digital data for controllers. Specific positioning can be carried out from three levels:

1. Accurate acquisition and amplification of weak signals: The analog signals output by industrial field sensors are mostly weak signals (such as 4-20mA current signals, 0-10V voltage signals, Pt100 resistance signals, etc.), which are easily affected by transmission distance and electromagnetic interference. This module uses a built-in high-precision signal conditioning circuit to perform low-noise amplification and linear correction on weak signals, ensuring the accuracy of signal acquisition.

2. Standardized conversion and transmission of signals: Convert the collected analog signals (current, voltage, resistance, etc.) into digital signals recognizable by the controller, and achieve high-speed communication with the controller through PROFIBUS DP or ABB dedicated bus. The transmission delay is controlled in milliseconds to ensure the real-time execution of control instructions and provide data basis for precise control of the production process.

3. Flexible expansion and reliable monitoring of the system: adopting modular and standardized design, it can be directly mounted on ABB standard I/O racks, supporting seamless compatibility with other I/O modules and controllers in the system, and meeting the I/O point expansion needs of control systems of different scales; At the same time, it has a complete self diagnostic function, real-time monitoring of module operation status, and improves system operation and maintenance efficiency.


Core functional features

The 408368B IAM module is designed based on the rigorous operational requirements of the process industry, integrating ABB's technical accumulation in the field of analog signal processing, and has the following outstanding functional features:

-Multi type signal compatibility and adaptation: supports multiple types of analog input signals, including 4-20mA DC current signal, 0-5V/0-10V DC voltage signal, Pt100/Pt1000 platinum resistance signal, K/E thermocouple signal, etc; Each channel can independently configure the signal type through software, without changing the hardware, and adapt to the signal output requirements of different sensors.

-High precision and high stability acquisition: using a 16 bit AD (analog-to-digital) conversion chip, the current/voltage signal acquisition accuracy can reach ± 0.1% FS (full range), and the temperature signal acquisition accuracy can reach ± 0.2 ℃ (Pt100, 0-100 ℃); Built in temperature compensation circuit can offset the impact of environmental temperature changes on acquisition accuracy, ensuring performance stability during long-term operation.

-Industrial grade anti-interference design: Each channel adopts optoelectronic isolation and signal shielding technology, with an isolation voltage of up to 2500V AC, effectively suppressing common mode interference and differential mode interference in industrial sites; The module complies with the IEC 61000-4 series electromagnetic compatibility standards and can operate stably in complex electromagnetic environments such as motor start stop and high-voltage equipment operation, avoiding signal distortion caused by interference.

-Comprehensive diagnosis and fault warning: equipped with channel level fault diagnosis function, it can monitor abnormal situations such as sensor disconnection, short circuit, and signal over range in real time; Upload fault information (such as channel number and fault type) to the controller and upper computer monitoring system through the bus. At the same time, the LED indicator lights on the module surface intuitively display the working status of each channel, making it easy for operation and maintenance personnel to quickly locate faults.

-Convenient installation and configuration: Supports 35mm DIN rail installation and rack mounted installation, compatible with standard industrial control cabinets; By using ABB Control Builder M programming software for parameter configuration (such as signal type, sampling period, alarm threshold, etc.), online configuration and modification are supported without stopping the machine, improving system debugging and maintenance efficiency.


Key technical parameters

Module Model

ABB 408368B

ABB official unique model identification, used for selection and procurement

Number of input channels

8 independent analog input channels

Support simultaneous acquisition of signals from 8 sensors, with mutual isolation between channels

Support signal types

4-20mA DC, 0-5V DC, 0-10V DC, Pt100/Pt1000, K/E type thermocouple

Covering mainstream analog signal types in industrial sites

Collection accuracy

Current/voltage: ± 0.1% FS; Pt100: ± 0.2 ℃ (0-100 ℃); Thermocouple: ± 0.5 ℃

High collection accuracy ensures data reliability

AD conversion resolution

16 bits

High precision conversion to reduce signal quantization errors

sampling period

10ms/channel (configurable, range 1ms-100ms)

Support adjusting sampling speed according to demand, balancing real-time performance and system load

isolation method

Optoelectronic isolation between channels, isolation voltage 2500V AC (1 minute)

Strong anti-interference ability, protecting module and system security

power input

DC 24V ±10%

Wide voltage input, suitable for industrial field power environment

Working temperature range

-20℃ ~ 60℃

Adapt to high and low temperature industrial environments

communication interface

Supports PROFIBUS DP, ABB S800 I/O bus

Realize high-speed data exchange with controllers such as AC800M

Protection level

IP20 (module body)

Suitable for installation inside control cabinets to prevent solid foreign objects from entering


Applicable industries and typical application scenarios

The 408368B IAM module, with its characteristics of multi signal compatibility, high-precision acquisition, and strong anti-interference, is widely used in the analog signal acquisition process of various process industries. The core applicable industries and scenarios are as follows:

1. Petrochemical industry: In the production process of petroleum refining, chemical synthesis, etc., it is used to collect temperature (thermocouple signal), pressure (4-20mA pressure transmitter signal), liquid level (0-10V liquid level sensor signal) and raw material flow signal of the reaction kettle, and transmit the data to the AC800M controller to achieve temperature and pressure closed-loop control of the reaction process, ensuring stable production process and avoiding safety accidents caused by overheating and overpressure.

2. Power and energy industry: In the boiler control system of thermal power plants, collect boiler drum liquid level (4-20mA signal from differential pressure transmitter), superheated steam temperature (Pt100 signal), and furnace pressure signal; In the substation, transformer oil temperature (K-type thermocouple signal) and bus voltage (0-5V voltage signal) are collected to provide data support for the safe operation and load regulation of the power system.

3. Metallurgical building materials industry: In the process of blast furnace ironmaking in steel plants, collect blast furnace wall temperature (Pt1000 signal), hot blast furnace pressure (4-20mA signal), and gas flow signal; In the control system of the rotary kiln in the cement plant, the temperature of the kiln body (thermocouple signal) and the flow rate signal of the raw material slurry are collected to achieve precise control of the metallurgical and building material production processes, and to improve product quality and production efficiency.

4. Water treatment industry: In the aeration system of sewage treatment plants, dissolved oxygen concentration (4-20mA dissolved oxygen meter signal), inlet pH value (0-5V pH meter signal), and sludge level signal are collected in the aeration tank; In the dosing system of the water treatment plant, raw water turbidity signals are collected to provide data for automatic dosing and aeration control of the water treatment process, ensuring that the effluent quality meets the standard.

5. Pharmaceutical industry: In the fermentation tank control system for drug production, the fermentation liquid temperature (Pt100 signal), pH value (4-20mA pH transmitter signal), and dissolved oxygen signal are collected, and the parameters of the fermentation process are accurately controlled through the controller to ensure the stability and safety of drug production, in compliance with GMP (Good Manufacturing Practice for Drugs) requirements.


Precautions for use

To ensure the long-term stable operation of the 408368B IAM module and the entire control system, the following specifications must be strictly followed during installation, wiring, debugging, and maintenance:

-Installation environment specifications: The module should be installed in a well ventilated, dust-free, non corrosive gas, and non strong electromagnetic radiation control cabinet, avoiding direct sunlight and rainwater erosion; The temperature inside the control cabinet should be controlled between -20 ℃~60 ℃, and the relative humidity should not exceed 95% (without condensation); The installation distance between modules and strong interference equipment such as frequency converters and high-power contactors should not be less than 20cm. If necessary, metal shielding plates should be added to reduce electromagnetic interference.

-Wiring operation specifications: Before wiring, the module power supply and on-site sensor power supply must be cut off to avoid damage to the module or sensor caused by live wiring; Strictly distinguish the power terminal, signal input terminal, and common terminal according to the module terminal diagram. Pay attention to the positive and negative polarity of the current signal, and distinguish the positive and negative poles of the thermocouple signal from the type of compensation wire (such as K-type compensation wire for K-type thermocouples). Reverse connection is strictly prohibited; The sensor cable needs to be shielded twisted pair, with a single end reliable grounding of the shielding layer (grounding resistance less than 4 Ω), and laid separately from the power cable to reduce interference.

-Debugging configuration specification: Before debugging, it is necessary to confirm that the module model is compatible with the control system (such as AC800M), and configure the module parameters through Control Builder M software, including the signal type, sampling period, alarm threshold (such as signal upper limit and lower limit) of each channel; After the configuration is completed, perform a single point test to simulate sensor signals using a standard signal source and check the consistency between the data collected by the module and the standard signal; When conducting multi-channel testing, it is necessary to ensure that there is no crosstalk between the signals of each channel and that the collected data is stable.

-Daily maintenance points: Regularly check the status of the module LED indicator lights every week, and determine the module's operating status through the indicator lights (power light, communication light, channel status light). If a channel status light is abnormal, it should be promptly investigated; Clean the dust on the surface of the module and wiring terminals every month to avoid poor contact caused by dust accumulation; Check the fastening of the wiring terminals once a quarter, especially on sites with high vibration, and re tighten the screws; Regularly check the fluctuation of data collected by the module through the upper computer, and analyze whether there is sensor or module performance degradation.

-Fault handling specification: When the module experiences data distortion during data collection, first check if the sensor is functioning properly (using a multimeter to measure the sensor output signal), then check if the wiring is secure and if the shielding is good; If there is a communication failure, it is necessary to check the communication cable, bus address configuration, and bus connector status; If all module indicator lights are off, check the power input and fuse (if any); When replacing a module, it is necessary to ensure that the new module model and firmware version are consistent with the original module. After replacement, the configuration parameters should be re imported and tested.
