  • ABB PM866 controller
    ❤ Add to collection
  • ABB PM866 controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    In the ABB AC800M DCS control system architecture, the PM866 controller occupies a core dominant position, and its core value lies in integrating system resources, executing control logic, and ensuring the accuracy and safety of the production process.

    • ¥84575.00
      ¥95674.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:6.470KG
    • Quantity:
    • (Inventory: 99999)
Description

In the ABB AC800M DCS control system architecture, the PM866 controller occupies a core dominant position, and its core value lies in integrating system resources, executing control logic, and ensuring the accuracy and safety of the production process.

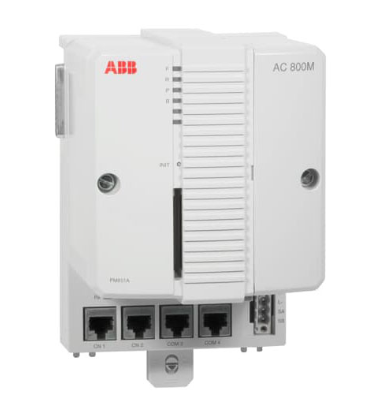

ABB PM866 controller

Product positioning and core values

In the ABB AC800M DCS control system architecture, the PM866 controller occupies a core dominant position, and its core value lies in integrating system resources, executing control logic, and ensuring the accuracy and safety of the production process. Its specific positioning can be expanded from three levels:

1. Centralized processing center for system data: As the "brain" of the control system, the PM866 controller receives various production data collected by scattered I/O modules (such as analog input modules and digital output modules) on site through industrial buses (such as PROFIBUS DP, EtherNet/IP, etc.), and performs high-speed calculations and logical judgments through multi-core processors to achieve real-time monitoring and status evaluation of the production process.

2. Precise execution of complex control algorithms: Supports various complex control algorithms such as PID (proportional integral derivative), fuzzy control, predictive control, etc., which can achieve precise control for multi variable and strongly coupled production processes in process industries (such as chemical reactions and boiler combustion), ensuring that key process parameters such as temperature, pressure, and flow are stable within the set range, and improving product quality and production efficiency.

3. Core guarantee for system reliability and scalability: It has the ability of hot plugging and redundant configuration (power redundancy, CPU redundancy). When a unit fails, it can achieve uninterrupted switching to avoid production interruption; Supporting modular expansion, I/O modules and communication interfaces can be flexibly added or removed according to the system size to meet the control requirements of different production scenarios. At the same time, it is compatible with third-party devices to enhance system integration flexibility.


Core functional features

The PM866 controller is designed based on the stringent control requirements of medium to large industrial systems, integrating ABB's cutting-edge technology in the field of industrial control, and has the following outstanding functional features:

-High performance multi-core computing capability: Equipped with a high-performance multi-core processor, the main frequency can reach over 1.2GHz, with fast computing speed and support for multitasking parallel processing. It can simultaneously execute thousands of control logics and complex algorithms, with data processing cycles as short as milliseconds, ensuring fast response to production processes and meeting high-frequency control requirements.

-Comprehensive redundancy guarantee mechanism: supports multiple redundancy configurations such as CPU redundancy, power redundancy, bus redundancy, etc., with a redundancy switching time of less than 10ms, achieving "disturbance free switching" and ensuring the continuous operation of the control system; Built in hardware watchdog and software fault tolerance mechanism, can monitor its own running status in real time, and automatically trigger fault alarm and redundant switching when abnormalities occur.

-Rich communication and integration capabilities: equipped with multiple industrial Ethernet interfaces and serial communication interfaces, supporting mainstream industrial communication protocols such as PROFINET, EtherNet/IP, Modbus TCP, PROFIBUS DP, etc; It can seamlessly integrate with ABB AC800M series I/O modules, third-party PLCs, SCADA systems, and MES systems to achieve bidirectional data transmission and collaborative control of the system.

-Powerful programming and debugging support: Supports multiple programming languages of IEC 61131-3 standard (such as ladder diagram LD, function block diagram FBD, structured text ST, sequential function diagram SFC), and develops, compiles, and downloads control programs through ABB Control Builder M programming software; Equipped with online debugging, breakpoint debugging, variable monitoring and other functions, it facilitates engineers to quickly troubleshoot program problems and improve development efficiency.

-Industrial grade reliability and environmental adaptability: Adopting industrial grade components and sealed protection design, the working temperature range covers -20 ℃~60 ℃, and the humidity adaptability range is 5%~95% (no condensation); It has good anti vibration and anti impact performance (in accordance with IEC 60068-2 series standards), and can work stably in complex industrial environments such as motor start stop and high-voltage equipment operation.


Key technical parameters

Controller Model

ABB PM866

ABB official unique model identification, used for selection and procurement

Processor configuration

Multi core processor, clock speed ≥ 1.2GHz

High computational performance, supporting multitasking parallel processing

Memory configuration

RAM:≥2GB; Flash:≥1GB

Adequate memory ensures program operation and data storage

control cycle

Minimum control cycle ≤ 1ms

Quickly respond to changes in the production process and achieve precise control

Support programming languages

IEC 61131-3(LD/FBD/ST/SFC/IL)

Compliant with international standards, flexible and convenient programming

communication interface

2 Gigabit Ethernet ports, 1 PROFIBUS DP interface, 1 RS232 interface

Support multiple communication protocols to meet system integration requirements

redundant function

Supports CPU redundancy, power redundancy, and bus redundancy, with a switching time of less than 10ms

High reliability, ensuring continuous operation of the system

power input

DC 24V ± 10% or AC 100V~240V

Wide voltage input, suitable for different industrial power sources

Working temperature range

-20℃ ~ 60℃

Adapt to high and low temperature industrial environments

Protection level

IP20 (module body)

Suitable for installation inside control cabinets to prevent solid foreign objects from entering

Installation method

35mm DIN rail installation or rack mounted installation

Meet the requirements of industrial standardized installation


Applicable industries and typical application scenarios

The PM866 controller, with its high computing performance, high reliability, and strong scalability, is widely used in automation control systems for medium and large-scale process industries. The core applicable industries and scenarios are as follows:

1. Petrochemical industry: In the atmospheric and vacuum distillation units of large refineries, the PM866 controller serves as the core control unit, receiving on-site data collected by I/O modules such as temperature, pressure, and flow rate. It controls the heating furnace temperature, tower top pressure, and side line extraction volume through PID algorithm to ensure the stability of the distillation process; In chemical synthesis equipment, multi variable coordinated control of reaction kettle temperature, pressure, liquid level, and raw material feeding amount is achieved to avoid overheating and overpressure and ensure production safety.

2. Power and energy industry: In the boiler control system of thermal power plants, the PM866 controller is responsible for coordinating and controlling the coal feed rate, air feed rate, and water feed rate. Through complex control algorithms, it maintains stable boiler drum liquid level, steam temperature, and pressure, and improves boiler combustion efficiency; In the centralized control system of wind power plants, the operation status monitoring and output adjustment of multiple wind turbines are achieved, and the power generation data is uploaded to the grid dispatch system to ensure stable power output.

3. Metallurgical building materials industry: In the process of converter steelmaking in steel plants, the PM866 controller collects data such as converter temperature, furnace gas composition, and oxygen supply flow rate, and adjusts the oxygen supply intensity and slag forming agent addition through dynamic control models to achieve precise control of steel composition; In the clinker calcination system of cement plants, the rotary kiln speed, coal injection rate, and air volume are controlled to ensure stable calcination temperature and improve clinker quality.

4. Municipal engineering industry: In the self-control system of large-scale sewage treatment plants, the PM866 controller receives analog signals such as dissolved oxygen, pH value, sludge concentration, etc., controls the operation of equipment such as aeration fans, dosing pumps, and mud scrapers, realizes the automation control of various sewage treatment processes, and ensures that the effluent water quality meets the standards; In urban water supply systems, monitoring the water intake, purification, and pressurization processes of water plants, adjusting the output of water pumps according to the pressure of the pipeline network, and ensuring stable water supply pressure.

5. Pharmaceutical industry: In the sterile fermentation workshop of drug production, the PM866 controller achieves precise control of fermentation tank temperature, pH value, dissolved oxygen, stirring speed and other parameters, ensuring that the fermentation process complies with GMP standards through strict program logic; In the drug freeze-drying production line, the temperature, vacuum degree, and sublimation time of the freeze-drying machine are controlled to ensure the quality and stability of the drug.


Precautions for use

To ensure the long-term stable operation of the PM866 controller and the entire DCS system, the following specifications must be strictly followed during installation, commissioning, operation, and maintenance:

-Installation environment specifications: The controller should be installed in a well ventilated, dust-free, non corrosive gas, and non strong electromagnetic radiation control cabinet, avoiding direct sunlight and rainwater erosion; The temperature inside the control cabinet should be controlled between -20 ℃~60 ℃, and the relative humidity should not exceed 95% (without condensation); The installation distance between the controller and strong interference equipment such as frequency converters and high-power power supplies should not be less than 30cm. If necessary, metal shielding plates should be added to reduce electromagnetic interference; Avoid severe vibrations during installation to prevent damage to components such as processors and memory.

-Electrical connection specifications: Before wiring, the main power supply of the system must be cut off to avoid damage to the controller caused by live wiring; Strictly distinguish the power terminal, communication interface terminal, and I/O bus terminal according to the controller terminal diagram. Pay attention to the positive and negative polarity of power wiring, and distinguish between phase and neutral wires for AC power supply. Reverse connection is strictly prohibited; Shielded twisted pair cables should be used for communication cables and I/O bus cables, and the shielding layer should be reliably grounded at one end (with a grounding resistance of less than 4 Ω); The wiring terminals need to be tightened with a torque wrench according to the specified torque (usually 2.5N · m~5N · m) to prevent poor contact from causing heating or communication interruption.

-Debugging configuration specification: Before debugging, it is necessary to confirm that the controller model matches the system requirements and check whether the hardware connection is correct; Configure controller parameters through Control Builder M software, including IP address, communication protocol, redundancy mode, control cycle, etc; When writing control programs, modular design principles should be followed to facilitate later maintenance and modification; During the initial debugging stage, a no-load test is required to verify the stability of the program logic and communication link, and then gradually connect the on-site I/O module for load testing to ensure that the control effect meets the process requirements.

-Key points of operation and maintenance: Establish a controller operation log, record the controller's operating status, CPU usage, memory usage, and fault information daily; Regularly check the working parameters of the controller through the upper computer monitoring system. If the CPU usage rate continues to exceed 80% or the memory usage rate exceeds 90%, the control program should be optimized in a timely manner; Check the status of the controller indicator light every week. If a fault occurs and the indicator light stays on, it is necessary to read the fault code through software and troubleshoot it; Clean the dust on the surface of the controller and the cooling fan every quarter to ensure good heat dissipation; Regularly backup control programs and configuration parameters to avoid program loss.

-Fault handling specification: When a controller malfunctions and alarms, redundant switching should be used to ensure the continuous operation of the system before troubleshooting the faulty controller; If it is a communication failure, it is necessary to check the communication cables, interface configuration, and bus connectors; If it is a hardware failure (such as processor damage or memory failure), it is necessary to replace the controller with the same model, import the configuration parameters and control program again after replacement, and conduct functional testing; During the fault handling process, it is strictly prohibited to arbitrarily modify the control program and key parameters to avoid causing new system problems.
