Description

In ABB robot and servo control systems, the 3HAC025562-001/06 capacitor unit plays a key role in "energy buffering and voltage stability core". Its core value lies in stabilizing the fluctuation of DC bus voltage through energy storage and filtering, providing continuous and stable power supply for the power module.

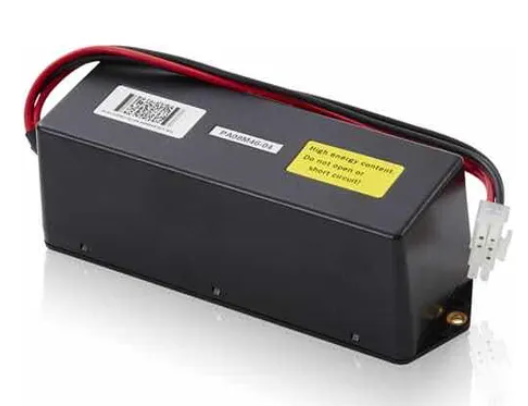

ABB 3HAC025562-001/06 capacitor unit

Product positioning and core values

In ABB robot and servo control systems, the 3HAC025562-001/06 capacitor unit plays a key role in "energy buffering and voltage stability core". Its core value lies in stabilizing the fluctuation of DC bus voltage through energy storage and filtering, providing continuous and stable power supply for the power module. Specific positioning can be carried out from three levels:

1. Stable DC bus voltage: When the robot starts and stops, experiences sudden load changes, or moves at high speeds, the drive system will generate instantaneous high currents, causing severe fluctuations in the DC bus voltage. This capacitor unit can stabilize the bus voltage within the set range by quickly charging and discharging, absorbing or releasing electrical energy, avoiding system shutdown caused by low voltage or device damage caused by high voltage.

2. Power compensation and energy saving: During the operation of the robot, when the power module is in an energy feedback state (such as when the robot brakes and decelerates), the capacitor unit can quickly absorb the feedback electrical energy and store it; When the module requires instantaneous high-power output, the stored electrical energy is released to supplement the insufficient power supply of the grid, reduce the load impact of the grid, and improve the energy utilization efficiency of the system.

3. Harmonic filtering and interference suppression: The power module generates a large amount of harmonics during high-frequency switching, which can interfere with the entire control system through the DC bus. The capacitor unit has good high-frequency filtering characteristics, which can effectively suppress harmonic signals, reduce interference with sensitive electronic components in the control system, and ensure the stability of signal transmission and accurate execution of control instructions.


Core functional features

3HAC025562-001/06 capacitor unit is designed based on the rigorous operational requirements of ABB robot system, integrating advanced capacitor manufacturing technology and industrial grade reliability design, and has the following outstanding functional features:

-Excellent energy storage and charge discharge performance: using metalized polypropylene film capacitor core, with high dielectric constant and low equivalent series resistance (ESR) characteristics, fast charge discharge response speed, energy absorption and release can be completed in milliseconds, meeting the requirements of instantaneous high-power oscillation of robots; The capacitance is stable, with low capacity decay rate under rated working conditions, ensuring consistent performance over long-term use.

-Wide temperature range and long lifespan design: using high temperature resistant capacitor materials and sealed packaging technology, the working temperature range covers -40 ℃~85 ℃, which can adapt to the temperature changing environment inside the robot control cabinet; Through optimized thermal management design, the working temperature of capacitors is effectively reduced, the service life is extended, and the average service life under rated conditions can reach over 100000 hours, reducing equipment maintenance costs.

-Perfect safety protection mechanism: Built in pressure relief valve and self-healing protection structure. When the internal pressure of the capacitor rises due to overvoltage, overheating or aging, the pressure relief valve can release the pressure in a timely manner to avoid safety hazards such as bursting; The self-healing structure can achieve fault point isolation through the evaporation of the metallization layer when the capacitor partially breaks down, ensuring the continuous operation of the capacitor and improving system reliability.

-High compatibility and standardized installation: specifically designed for the drive unit of ABB's specific series of robots (such as IRB 4600, IRB 6700, etc.), the electrical parameters and mechanical dimensions are completely matched, and the original components can be directly replaced, achieving "plug and play"; Using standardized terminal interfaces and fixed hole positions, installation is convenient and there is no need to modify the structure of the control cabinet.

-Low loss and high stability: The dielectric loss tangent (tan δ) of the capacitor is low, resulting in low energy loss under high-frequency conditions and reducing self heating; It has good anti vibration and anti impact performance, and can withstand the vibration and impact generated during the operation of the robot (in accordance with the IEC 60068-2 series standards), ensuring stable performance in harsh industrial environments.


Key technical parameters

Model identification

3HAC025562-001/06

ABB official unique model code, used for product identification and procurement

Capacitor type

Metallized polypropylene film capacitor

High energy storage density, low loss, suitable for high-frequency working conditions

Rated capacity

470μF ±10%

Core energy storage parameters ensure voltage stability effect

rated voltage

DC 900V

Adapt to the DC bus voltage requirements of robot drive systems

mA rms

10A rms (at 10kHz)

Ability to withstand high-frequency ripple and ensure filtering effectiveness

Equivalent series resistance (ESR)

≤ 50m Ω (at 10kHz)

Low ESR ensures fast charge discharge response and low losses

Tangent value of dielectric loss angle

tanδ ≤0.001(1kHz,25℃)

Low dielectric loss, reducing self heating

Working temperature range

-40℃ ~ 85℃

Adapt to the high and low temperature environment inside the robot control cabinet

Installation method

Bolt fixation (M6 thread)

Ensure installation stability under vibration environment

Overall dimensions

Diameter 60mm x height 100mm (excluding terminals)

Adapt to the installation space inside the robot control cabinet

safety standards

Compliant with IEC 60384-16 and UL 810 standards

Meet the requirements for industrial safety use


Applicable industries and typical application scenarios

The 3HAC025562-001/06 capacitor unit, as a specialized component of ABB robot drive system, has a high degree of binding with the application field of robots. Its core applicable industries and scenarios are as follows:

1. Automotive manufacturing industry: Suitable for ABB IRB 6700 and other heavy-duty robots, used for processes such as automotive body welding and chassis assembly. During high-speed robot movement and sudden load changes, this capacitor unit can stabilize the DC bus voltage, ensuring the stability of welding current and the accuracy of assembly actions, avoiding welding defects or assembly errors caused by voltage fluctuations.

2. Electronic and electrical industry: Used for electronic component assembly, chip soldering, and other scenarios of high-precision robots such as ABB IRB 4600. Its excellent filtering performance can reduce the interference of harmonics on the robot control system, ensure the positioning accuracy of the robot end effector, and meet the requirements of small installation gaps for electronic components.

3. Logistics and warehousing industry: Suitable for ABB palletizing robots and sorting robots. Under high-frequency start stop conditions such as cargo handling and palletizing, the capacitor unit can absorb braking feedback energy, reduce power grid impact, stabilize voltage, ensure the consistency of robot movement speed, and improve the automation efficiency of warehousing and logistics.

4. Metal processing industry: used for ABB robot laser cutting, polishing and other operation systems. During laser cutting, the high-speed trajectory movement of the robot requires instantaneous high-power output from the power module, and the capacitor unit can quickly release stored energy to ensure cutting speed and trajectory accuracy; In polishing operations, a stable voltage supply can ensure the uniformity of polishing force.

5. Aerospace industry: Adapt ABB high-precision robots for the assembly and inspection of aerospace components. Its high stability and long lifespan characteristics can meet the strict requirements for equipment reliability in the aerospace industry, avoid production interruptions caused by capacitor failures, and ensure the consistency of component assembly quality.


Precautions for use

The 3HAC025562-001/06 capacitor unit directly affects the stability and safety of the robot drive system. During installation, replacement, and maintenance, the following specifications must be strictly followed:

-Installation environment specifications: The capacitor unit should be installed in a well ventilated location inside the robot control cabinet, avoiding direct proximity to high-temperature components such as power modules and resistors. The installation distance should not be less than 15cm to ensure good heat dissipation; The control cabinet should avoid the intrusion of dust, oil stains, and corrosive gases. The ambient temperature should be controlled between -40 ℃ and 85 ℃, and the relative humidity should not exceed 95% (without condensation); The installation location should be far away from the vibration source. If unavoidable, shock-absorbing pads should be installed.

-Electrical operation specifications: Before installation or replacement, the main power supply of the robot system must be cut off, and a dedicated discharge tool must be used to discharge the DC bus capacitor (discharge time not less than 5 minutes). It is strictly prohibited to touch the capacitor terminal in an undischarged state to avoid high-voltage electric shock; When wiring, it is necessary to strictly distinguish between the positive and negative poles of the capacitor, corresponding to the positive and negative poles connected to the DC bus. It is strictly prohibited to connect them in reverse. The wiring terminals should be tightened with a torque wrench according to the specified torque (usually 8N · m) to prevent poor contact from causing heating.

-Selection and replacement specifications: When replacing capacitor units, products that are completely identical to the original model (3HAC025562-001/06) must be selected. It is strictly prohibited to replace capacitors with different capacities and rated voltages, otherwise it may cause damage to the power module or system instability; Before replacing, it is necessary to confirm the production date and status of the new capacitor to avoid using expired or stored capacitors for too long (more than 2 years), as long-term storage of capacitors may cause capacity decay.

-Daily maintenance points: Regularly inspect the appearance of the capacitor unit every week. If any bulging, deformation, leakage, or terminal oxidation corrosion is found in the capacitor housing, the machine should be stopped immediately for replacement; Monitor the stability of the DC bus voltage through the robot control system every month. If the voltage fluctuation exceeds ± 5%, check whether the capacitor performance has deteriorated; Clean the dust on the surface of the capacitor every quarter to ensure good heat dissipation, and check the fastening of the wiring terminals.

-Fault handling specifications: When the robot encounters alarms such as "abnormal DC bus voltage" and "power module failure", the capacitor unit should be included in the investigation scope. The capacitance and ESR value of the capacitor should be measured by professional instruments. If the parameters exceed the allowable range, they should be replaced in a timely manner; The replaced waste capacitors must be disposed of according to the regulations for industrial hazardous waste, and are strictly prohibited from being discarded at will to avoid electrolyte leakage and environmental pollution.
