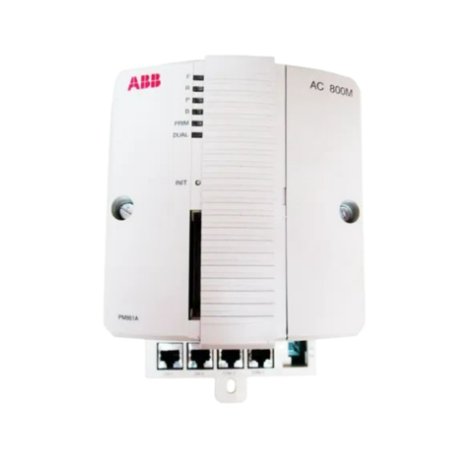

Basic overview of module

ABB AC800M PM891 (order number 3BSE053240R1) is the core controller module in the ABB AC800M series distributed control system (DCS), designed specifically for high reliability and precision control requirements in the industrial automation field. As one of the high-end models of the AC800M family, this module is widely used in control scenarios of key industrial processes such as power, chemical, petroleum, metallurgy, and papermaking due to its powerful computing power, flexible expansion characteristics, and excellent anti-interference performance. It provides core support for the stable operation, efficiency improvement, and safety guarantee of production processes.

The AC800M series controller is designed with the concept of "modularity, standardization, and high integration", with the PM891 module as the main model. It is not only compatible with ABB's full range of I/O modules and communication modules, but also supports multiple industrial communication protocols, making it easy to integrate into existing automation systems and achieve seamless integration with upstream and downstream equipment, reducing system integration costs and complexity.

Core performance characteristics

1. Powerful computational processing capability

The PM891 controller is equipped with a high-performance 32-bit microprocessor with a clock frequency of several hundred megahertz, providing excellent instruction execution efficiency. It integrates a large capacity cache and local memory internally, capable of processing thousands of control loops and I/O point data simultaneously. It supports complex control algorithms such as PID, fuzzy control, model predictive control, etc., and can meet the real-time control requirements of large industrial devices with multiple variables and strong coupling systems. The control cycle can be as low as milliseconds, ensuring fast response and precise execution of control instructions.

2. High reliability and redundant design

The reliability requirements for controllers in industrial sites are extremely high, and the PM891 module adopts redundant design from hardware to software to ensure continuous operation. In terms of hardware, it supports controller redundancy (1:1 hot standby), power redundancy, and communication redundancy configurations. When the main controller fails, the backup controller can automatically switch without disturbance, with a switching time as short as milliseconds, ensuring uninterrupted production processes; In terms of software, it has automatic program backup, fault self diagnosis, and alarm functions, which can monitor the real-time running status of modules (such as CPU load, memory usage, communication links, etc.), timely detect and report fault information, and facilitate quick troubleshooting and handling by operation and maintenance personnel.

3. Flexible expansion and compatibility

This module adopts a modular architecture design and achieves high-speed data exchange with I/O modules, communication modules, etc. through ABB's dedicated backplane bus. Supports connecting all types of AC800M series I/O modules (such as digital input/output modules, analog input/output modules, pulse modules, etc.), and the number of I/O points can be flexibly expanded according to actual needs, supporting up to thousands of I/O configurations; At the same time, it is compatible with mainstream industrial communication protocols such as PROFINET, Modbus, EtherNet/IP, and PROFIBUS-DP, and can be interconnected with devices such as PLCs, SCADA systems, smart meters, and frequency converters to meet the communication needs of different industrial scenarios.

4. Excellent anti-interference performance

In response to the complex electromagnetic environment of industrial sites, the PM891 module adopts multiple anti-interference designs: in terms of hardware, it uses shielded enclosures, isolation circuits, and surge protection technology to effectively resist electromagnetic radiation, voltage fluctuations, and instantaneous pulse interference; The software has mechanisms such as data verification and error retransmission to ensure the stability and accuracy of data transmission. The module complies with international industrial electromagnetic compatibility (EMC) standards and can operate stably in a wide temperature range of -20 ℃~60 ℃ and harsh environments with high humidity and high dust, adapting to various industrial site usage conditions.

5. Convenient programming and operation

The PM891 controller supports development using ABB's dedicated Control Builder M programming software, which combines graphical programming (such as function block diagrams FBD, ladder diagrams LD, structured text ST, etc.) with structured programming. The interface is user-friendly and easy to operate, making it convenient for engineers to quickly design, debug, and modify control logic. At the same time, the software has functions such as online monitoring, parameter modification, and program download. Operations personnel can remotely access the controller through Ethernet or dedicated communication interfaces to achieve real-time monitoring and remote maintenance of equipment, reducing operation and maintenance costs.

Key technical parameters

Basic Information

Order Number

3BSE053240R1

Basic Information

Belonging series

ABB AC800M

processor

CPU specifications

High performance 32-bit microprocessor with a clock frequency of ≥ 400MHz

Memory configuration

program memory

≥ 8MB (expandable)

Memory configuration

Data memory

≥ 16MB (high-speed RAM)

control performance

control cycle

Minimum 1ms, supports multi task priority scheduling

control performance

Maximum I/O points

Support ≥ 4096 points (according to the configuration of the expansion module)

control performance

Support control algorithms

PID、PI、PD、 Fuzzy control, custom algorithms, etc

communication interface

Standard interface

1 Ethernet interface (RJ45), 1 debugging interface

communication interface

extended interface

Support expanding PROFINET, Modbus and other interfaces through communication modules

Power requirements

input voltage

24V DC（±10%）

Power requirements

power consumption

Typical power consumption ≤ 15W

environmental conditions

Operating Temperature

-20℃~60℃

environmental conditions

relative humidity

5%~95% (no condensation)

environmental conditions

Protection level

IP20 (module itself), installed inside the control cabinet

redundant function

Support redundant types

Controller 1:1 hot standby, power redundancy, communication redundancy

Typical application scenarios

1. Power industry: used for boiler combustion control in thermal power plants, speed control of steam turbine units, and comprehensive automation systems in substations, to achieve precise control of power generation and transmission processes, ensuring stable operation and efficient energy utilization of the power system.

2. Chemical industry: Applied to closed-loop control of process parameters such as temperature, pressure, and liquid level in chemical reaction vessels, as well as process control of material ratio and reaction time, to meet the requirements of high safety and stability in chemical production, and to avoid safety accidents and product quality problems caused by parameter fluctuations.

3. Petroleum industry: In oil field extraction, oil and gas gathering and transportation, and refining processes, control of pumping unit operation, oil and gas flow regulation, and temperature and pressure control of refining equipment are achieved to meet the special environmental requirements of high temperature, high pressure, flammability, and explosiveness in the petroleum industry.

4. Metallurgical industry: used for process control of blast furnace ironmaking, converter steelmaking, and steel rolling production lines in steel plants, such as blast furnace temperature control, steel composition adjustment, steel rolling speed and tension control, etc., to improve metallurgical production efficiency and product quality.

5. Paper industry: Control key parameters such as pulp concentration, speed, and moisture content in the paper production line to achieve full process automation control from pulp making to finished paper production, ensuring the stability and consistency of paper quality.

Installation and usage precautions

-The module should be installed in a control cabinet that meets the protection level requirements, avoiding direct exposure to dust, water vapor, corrosive gases, and strong electromagnetic radiation environments. At the same time, ensure good ventilation inside the control cabinet to prevent module performance degradation or failure due to overheating.

-During the installation process, it is necessary to strictly follow the requirements of ABB's official manual for wiring, ensure that the positive and negative poles of the power supply and communication lines are connected correctly, and avoid module damage caused by wiring errors; After the wiring is completed, insulation testing should be carried out to prevent short circuit faults.

-When configuring redundant controllers, it is necessary to ensure that the hardware models, firmware versions, and control programs of the primary and backup controllers are completely consistent, and to configure dedicated redundant communication links to ensure the reliability and non-interference of redundant switching.

-In daily operation and maintenance, the running status of the module should be monitored regularly through Control Builder M software, and parameters such as CPU load, memory usage, and communication links should be checked. Dust on the surface of the module and inside the control cabinet should be cleaned in a timely manner to ensure stable operation of the equipment.

-The firmware upgrade of the module must strictly follow the upgrade process provided by ABB. Before the upgrade, backup of the control program and configuration parameters should be done to avoid program loss or configuration errors during the upgrade process.
