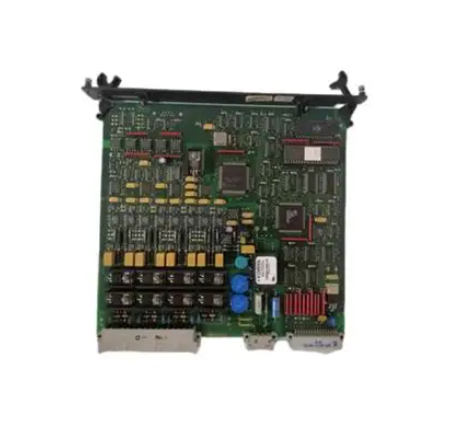

Alstom AMS42 POWER SUPPLY BOARD

Alstom AMS42 POWER SUPPLY BOARD

Product Overview

The Alstom AMS42 power board is a core power supply module designed by Alstom specifically for industrial automation control systems, rail transit traction systems, and power equipment. It is responsible for accurately converting input voltage into the stable voltage required within the equipment. This product integrates advanced power conversion technology and multiple protection mechanisms, with core advantages such as wide input voltage range, high output stability, and strong anti-interference ability. It can provide continuous and reliable power supply for precision components such as control units, sensors, and actuators in complex industrial environments. It is a key core component in Alstom's series of automation equipment and related supporting systems.

As an important component of customized power solutions, the AMS42 power board strictly follows industrial grade product design standards, adapts to various harsh working environments, and is widely used in fields such as rail transit, power plants, and industrial manufacturing that require extremely high power supply reliability, laying a solid power supply foundation for the stable operation of the system.

Core functions

1. Wide range voltage adaptation and precise conversion

Supporting wide range AC or DC input, it can flexibly adapt to diverse power supply needs according to different application scenarios. Through an internal high-precision conversion circuit, the input voltage is stably converted into the DC output voltage required by the device. The output voltage accuracy error is small and the fluctuation range is narrow, ensuring the stable operation of downstream precision electronic components.

2. Multiple security protections, reliable operation

Built in comprehensive protection mechanisms, covering core functions such as overload protection, short circuit protection, overvoltage protection, and over temperature protection. When there is a power supply abnormality or load failure, it can quickly respond and cut off the power supply circuit or limit the output current, effectively avoiding damage to the power board itself and downstream equipment due to faults, greatly improving the safety and reliability of system operation.

3. Strong anti-interference ability and excellent environmental adaptability

Adopting advanced electromagnetic compatibility (EMC) design, it has strong anti electromagnetic interference capability and can effectively resist interference signals such as electromagnetic radiation and voltage surges in industrial sites. At the same time, the product has a wide temperature working range and can operate stably in complex environments such as high and low temperatures and high humidity, adapting to various harsh industrial conditions.

4. Status monitoring and fault alarm

Equipped with real-time monitoring function of power operation status, the working status (such as normal power supply, overload, overheating, etc.) can be fed back to the system main control unit through the signal interface. When a malfunction occurs, an alarm signal can be issued in a timely manner to facilitate the quick detection and handling of problems by operation and maintenance personnel, reducing the risk of system shutdown.

Key technical parameters

Product Model

Alstom AMS42

Product Type

Industrial grade dedicated power board

Input voltage range

AC 70-276V or DC 70-276V (wide voltage adaptation)

Input frequency range

42-460Hz (compatible with AC broadband input)

Typical output voltage

DC ± 12V (symmetrical output, accuracy ± 1%)

Rated output power

9W (rated condition)

power consumption

≤30VA

Working temperature range

-25 ℃~+55 ℃ (no condensation, no freezing)

Storage temperature range

-40 ℃~+85 ℃ (no condensation, no freezing)

relative humidity

≤ 95% (non condensing)

Protection level

IP20 (terminal section); IP30 (internal components)

insulation class

Compliant with IEC 60664-1/60664-3 standard, rated insulation voltage AC 250V

Electromagnetic compatibility standards

Compliant with DIN EN 61000-6-4 and DIN EN 61000-6-2 standards

Installation method

DIN rail installation (compliant with IEC 60715 standard)

connection method

Screw terminal connection, compatible with wire specifications of 0.2~4mm ² (rigid)/0.2~2.5mm ² (flexible)

Product advantages

-Wide voltage and wide frequency adaptation, strong universality: supports 70-276V AC/DC wide range input, compatible with 42-460Hz AC frequency, can flexibly adapt to power supply conditions in different regions and scenarios, without the need for additional configuration of adapter power supply, excellent universality.

-Stable and precise output, reliable power supply: Symmetrical output of DC ± 12V voltage, accuracy controlled within ± 1%, small fluctuations, low ripple, can provide high-quality power supply for precision electronic components, ensuring stable operation of downstream equipment.

-Comprehensive multiple protections and high safety: Integrated with multiple protection functions such as overload, short circuit, overvoltage, and overheating, it responds quickly to faults, effectively isolates fault risks, avoids equipment damage, and enhances overall system safety.

-Excellent environmental adaptability and strong anti-interference ability: The wide temperature working range is suitable for harsh industrial environments, and advanced electromagnetic compatibility design can resist strong electromagnetic interference, ensuring continuous and stable power supply under complex working conditions.

-Easy installation and maintenance, low operation and maintenance costs: using standardized DIN rail installation, screw terminal connection is firm and easy to disassemble and assemble; The product has high stability and low failure rate, significantly reducing the workload and cost of operation and maintenance.

Application scenarios

As an industrial grade dedicated power supply module, Alstom AMS42 power board is widely used in fields with strict requirements for power supply quality due to its high reliability and strong environmental adaptability. Typical scenarios include:

1. In the field of rail transit: power supply for traction system control units and signal monitoring modules such as subways and high-speed trains;

2. Power industry: power supply for automation monitoring systems and relay protection devices in power plants and substations;

3. Industrial automation: power supply for production line control systems, sensors, and actuators in industries such as metallurgy, chemical engineering, and cement;

4. Precision measuring equipment: stable power supply for industrial measuring instruments and data acquisition modules;

5. Other industrial scenarios: specialized power supply for various industrial control cabinets and embedded systems.
