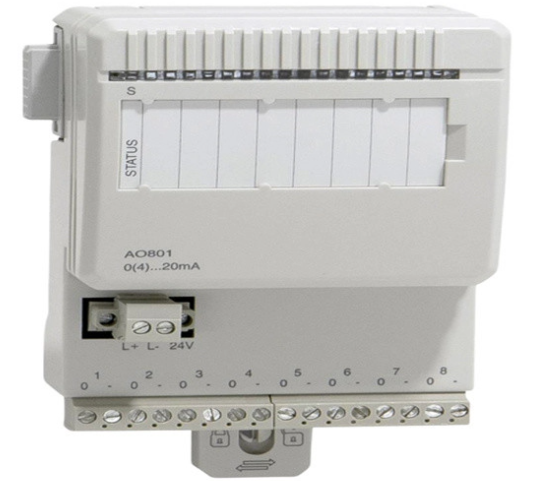

ABB AO801 Analog Output Module

ABB AO801 Analog Output Module

Product positioning and core values

In the ABB AC800M DCS control system architecture, the AO801 analog output module plays the core role of "control instruction conversion and execution drive". Its core value lies in solving the conversion problem between digital control signals and analog execution signals, and transmitting the precise control intention of the controller to the on-site execution mechanism. The specific positioning can be carried out from three levels:

1. Accurate conversion of digital signals to analog signals: Receive digital control instructions issued by AC800M controllers (such as PM866), convert them into continuous analog signals (current or voltage) through built-in high-precision D/A conversion circuits, with high linearity and small errors in the conversion process, ensuring accurate transmission of control instructions.

2. Stable driving and control of actuators: The output analog signal can directly drive various industrial actuators, such as pneumatic/electric actuators for regulating valves, speed control terminals for frequency converters, speed controllers for motors, etc. By changing the magnitude of the output signal, continuous adjustment of the actuator action amplitude or operating parameters can be achieved, forming a closed-loop control of the production process.

3. Security guarantee and status feedback of the system: It has safety mechanisms such as output short-circuit protection and overcurrent protection. When the actuator or circuit fails, it can quickly cut off the output or limit the current to avoid damage to the module and actuator; Simultaneously supporting the feedback of module operation status (such as output values and fault information) to the controller for system monitoring and troubleshooting.

Core functional features

The AO801 analog output module is designed based on the strict control requirements of process industry, integrating ABB's technical accumulation in the field of analog signal processing, and has the following outstanding functional characteristics:

-Multi type signal output and flexible configuration: Supports 4-20mA DC current signal and 0-10V DC voltage signal output. Each channel can independently configure the output type and range through software, without the need to replace hardware; Some models support 1-5V voltage signal output, adapting to different types of actuators to enhance module versatility.

-High precision output and fast response: using a 16 bit D/A conversion chip, the output accuracy can reach ± 0.1% FS (full range), and the linear error is less than 0.05% FS, ensuring the accuracy of the control signal; The output response time is less than 1ms, which can quickly follow the changes in controller instructions and meet high-frequency regulation requirements, such as precise temperature control in chemical reaction processes.

-Industrial grade anti-interference and isolation protection: Each output channel adopts optoelectronic isolation and signal shielding technology, with an isolation voltage of up to 2500V AC, effectively suppressing common mode interference and differential mode interference in industrial sites; The module complies with the IEC 61000-4 series electromagnetic compatibility standards and can operate stably in complex electromagnetic environments such as motor start stop and high-voltage equipment operation, avoiding output signal distortion.

-Comprehensive fault diagnosis and protection: equipped with channel level fault diagnosis function, it can monitor output faults such as short circuit, overcurrent, and line disconnection in real time; When a fault occurs, the module immediately triggers an alarm and uploads the fault information to the controller, while automatically switching the output to a safe value (such as the lower limit of 4mA) to ensure the safety of the production process; Built in over temperature protection mechanism to prevent module damage due to overheating.

-Convenient installation and system integration: Supports 35mm DIN rail installation and AC800M standard I/O rack installation, suitable for standardized layout of industrial control cabinets; Seamless communication with controllers such as PM866 through ABB S800 I/O bus, supporting hot swapping function, allowing module replacement without system shutdown and reducing production interruption time.

Key technical parameters

Module Model

ABB AO801

ABB official unique model identification, used for selection and procurement

Number of output channels

8 independent analog output channels

Support simultaneous control of 8 actuators and isolation between channels

Support output types

4-20mA DC, 0-10V DC, 1-5V DC (configurable)

Covering mainstream analog output signal types in industrial sites

output accuracy

±0.1% FS（25℃），±0.2% FS（-20℃~60℃）

Maintain high-precision output within a wide temperature range to ensure control effectiveness

D/A conversion resolution

16 bits

High precision conversion to reduce quantization errors in control signals

Output response time

≤ 1ms (from instruction issuance to stable output)

Quickly respond to control instructions to meet dynamic adjustment requirements

Maximum output current

30mA/channel (4-20mA mode)

Capable of driving high-power actuators with strong adaptability

isolation method

Optoelectronic isolation between channels, isolation voltage 2500V AC (1 minute)

Strong anti-interference ability, protecting the safety of modules and actuators

power input

DC 24V ±10%

Wide voltage input, suitable for industrial field power environment

Working temperature range

-20℃ ~ 60℃

Adapt to high and low temperature industrial environments

communication interface

ABB S800 I/O bus, supports PROFIBUS DP

Realize high-speed data exchange with AC800M series controllers

Protection level

IP20 (module body)

Suitable for installation inside control cabinets to prevent solid foreign objects from entering

Installation method

35mm DIN rail installation or AC800M I/O rack installation

Meet the requirements of industrial standardized installation

Applicable industries and typical application scenarios

The AO801 analog output module, with its multi type output, high-precision control, and strong anti-interference characteristics, is widely used in the execution of control instructions in various process industries. The core applicable industries and scenarios are as follows:

1. Petrochemical industry: In the atmospheric and vacuum distillation unit of petroleum refining, the AO801 module receives control instructions from the PM866 controller, outputs 4-20mA signals to drive the heating furnace fuel regulating valve and the tower top pressure regulating valve, accurately controls the fuel supply and tower top reflux, and maintains stable distillation temperature and pressure; In chemical synthesis equipment, analog signals are output to control the feed control valve of the reaction kettle and the speed regulator of the agitator, achieving precise adjustment of the raw material feed rate and stirring speed, ensuring the stability of the reaction process.

2. Power and energy industry: In the boiler control system of thermal power plants, the AO801 module outputs signals to drive the coal feeding control valve, water feeding control valve, and air supply fan baffle. According to the controller instructions, the coal feeding amount, water feeding amount, and air feeding amount are adjusted to maintain the boiler steam drum liquid level, steam temperature, and pressure within the set range; In the reactive power compensation system of the substation, a 0-10V signal is output to control the switching of the capacitor bank, achieving precise adjustment of the power factor of the power grid.

3. Metallurgical and building materials industry: In the converter steelmaking process of steel plants, the AO801 module outputs analog signals to control the oxygen supply regulating valve and slag forming agent feed pump. Based on the parameters calculated by the controller, the oxygen supply flow rate and slag forming agent addition amount are adjusted to achieve precise control of the composition of molten steel; In the raw material homogenization system of the cement plant, a 4-20mA signal is output to drive the raw material proportioning control valve, which controls the ratio of each component of the raw material to ensure uniform composition of the raw material.

4. Water treatment industry: In the aeration system of large sewage treatment plants, the AO801 module receives controller instructions, outputs signals to drive the aeration fan frequency converter and dosing pump, adjusts the fan speed and dosing amount according to the dissolved oxygen concentration, and achieves efficient and energy-saving operation of sewage treatment; In the chlorination system of the water plant, an analog signal is output to control the dosage of the chlorination machine, ensuring that the residual chlorine content in the effluent meets the standard.

5. Pharmaceutical industry: In the fermentation workshop of drug production, the AO801 module outputs signals to drive the temperature regulating valve, pH value regulating dosing pump, and stirrer speed controller of the fermentation tank, accurately controlling the temperature, pH value, and stirring speed of the fermentation process, in compliance with GMP specifications; In the drug refining production line, output analog signals to control the reflux regulating valve of the distillation tower, adjust the reflux ratio to ensure the purity of the drug.
