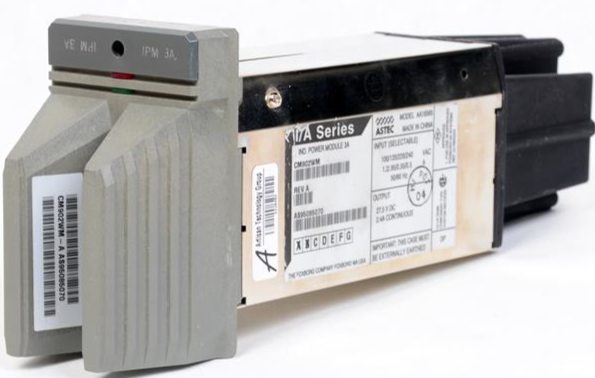

  • FOXBORO CM902WM control module
    ❤ Add to collection
  • FOXBORO CM902WM control module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO CM902WM is a high-precision I/O control module developed by Foxboro Corporation in the field of industrial automation. As a key component of the FOXBORO I/A Series distributed control system, its core positioning is to achieve precise acquisition, high-speed processing, and reliable output of on-site signals, providing stable control execution guarantee for industrial production processes. This module, with its modular design and strong environmental adaptability, can seamlessly integrate into complex industrial scenarios such as power, petrochemicals, and water treatment, solving the pain points of traditional control modules in anti-interference, response speed, and reliability. It is an important bridge connecting on-site equipment and upper level control systems.

    • ¥17946.00
      ¥17968.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.184KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO CM902WM is a high-precision I/O control module developed by Foxboro Corporation in the field of industrial automation. As a key component of the FOXBORO I/A Series distributed control system, its core positioning is to achieve precise acquisition, high-speed processing, and reliable output of on-site signals, providing stable control execution guarantee for industrial production processes. This module, with its modular design and strong environmental adaptability, can seamlessly integrate into complex industrial scenarios such as power, petrochemicals, and water treatment, solving the pain points of traditional control modules in anti-interference, response speed, and reliability. It is an important bridge connecting on-site equipment and upper level control systems.


FOXBORO CM902WM control module

Product Overview

FOXBORO CM902WM is a high-precision I/O control module developed by Foxboro Corporation in the field of industrial automation. As a key component of the FOXBORO I/A Series distributed control system, its core positioning is to achieve precise acquisition, high-speed processing, and reliable output of on-site signals, providing stable control execution guarantee for industrial production processes. This module, with its modular design and strong environmental adaptability, can seamlessly integrate into complex industrial scenarios such as power, petrochemicals, and water treatment, solving the pain points of traditional control modules in anti-interference, response speed, and reliability. It is an important bridge connecting on-site equipment and upper level control systems.


Core technical specifications

Module Core Attributes

8-channel isolated input module, supporting analog/digital signal input

Independent electrical isolation between channels to avoid signal crosstalk

Power supply parameters

AC version: 79-180 VAC, 50/60Hz; DC version: 24V DC ± 10%

The DC version supports a wide voltage range and adapts to fluctuating power grid environments

Signal input range

Analog quantity: 4-20mA DC, 0-10V DC; Digital quantity: dry contact, PNP/NPN level

Compatible with mainstream industrial sensor signal types, no additional signal converter required

Memory configuration

300 KB non-volatile flash memory, 128 KB running memory

Flash memory can permanently store configuration parameters, and data will not be lost after power failure

communication interface

Main interface: Modbus TCP/IP (RJ45 port); Backup interface: FBM series dedicated communication cable (DB9 interface)

Support dual communication link redundancy to enhance data transmission reliability

Processing performance

Instruction execution speed ≤ 50 microseconds/piece, signal sampling period ≥ 1ms

Meet the requirements of high-frequency signal acquisition and fast control

environmental parameters

Working temperature: -40 ° C~70 ° C; Storage temperature: -55 ° C~85 ° C; Relative humidity: 5%~95% (no condensation)

Adapt to high temperature, severe cold, and high humidity industrial environments without the need for additional temperature control equipment

Physical specifications

Standard version: 380 × 350 × 20 mm; Compact version: 330 × 350 × 65 mm; Weight: 1.6kg ± 0.1kg

Compact version suitable for installation of control cabinets with limited space

Protection level

Module body IP20, wiring terminal IP40

It needs to be installed in a closed control cabinet to prevent dust and liquid from entering


Core functional features

CM902WM achieves multi-dimensional functional advantages through hardware optimization and software collaboration, and can accurately match the complex requirements of industrial control. The specific characteristics are as follows:

1. Fully isolated design, outstanding anti-interference ability

The module adopts a three-level electrical isolation technology of "channel module system", and each input channel is equipped with an independent isolation chip and signal conditioning circuit. The isolation voltage can reach 2500V AC (1 minute), effectively suppressing common mode interference, differential mode interference, and electromagnetic radiation interference commonly found in industrial sites. In strong electromagnetic environments such as chemical and electrical engineering, the stability of signal acquisition can be ensured to avoid control errors caused by interference. At the same time, isolation design can also prevent on-site fault signals from being transmitted to the control system, playing a role in protecting core equipment.

2. High speed parallel processing, fast control response

Equipped with a high-performance RISC processor, it supports parallel acquisition and processing of multi-channel signals, and can start the next channel operation without waiting for a single channel to complete. The instruction execution speed reaches microsecond level. For scenarios that require high-frequency control, such as load regulation in power systems and temperature control in chemical reactors, the module can complete the entire process of signal acquisition, computation, and output within 1ms, which is much faster than the response speed of traditional modules. In addition, the module adopts a contactless electronic switch design, which completely solves the problem of mechanical contact jitter and ensures accurate output of control signals.

3. High precision measurement and control, strong data reliability

In terms of measurement accuracy, the error of the analog input channel is ≤± 0.1% FS, and the response time of the digital input is ≤ 10 μ s, which can accurately capture subtle changes in the on-site signal. The timing function adopts a semiconductor integrated circuit timer, which is not affected by environmental temperature (error within the range of -40 ° C~70 ° C ≤ ± 0.01%) and vibration, and can achieve millisecond level precise timing control. The counting function supports 0-10kHz pulse signal acquisition, with pulse loss detection and overflow alarm functions, suitable for scenarios such as flow metering and equipment speed monitoring.

4. A comprehensive self diagnostic system for convenient operation and maintenance

The module has built-in all-round self diagnostic function, which can monitor the power status, communication link, channel signal integrity, and internal circuit faults in real time, and provide dual feedback of fault information through status indicator lights and system logs. Specific diagnostic capabilities include: power overvoltage/undervoltage detection, communication interruption alarm, channel short circuit/open circuit recognition, internal temperature protection, etc. Operations personnel can view the location and cause of faults through the SMDH (System Management Display) environment of the FOXBORO I/A Series system, and complete preliminary diagnosis without disassembling the module. For common faults such as loose FBM identification codes, they can be quickly restored through simple operations to reduce downtime.

5. Flexible compatibility and convenient system integration

As a standard module of the FOXBORO I/A Series system, CM902WM can seamlessly integrate with the CP controller and AW operation station of the system, supporting direct configuration of parameters through configuration software. Meanwhile, through the Modbus TCP/IP communication interface, it can also be compatible with third-party PLCs (such as Siemens S7 series, Rockwell ControlLogix series) and SCADA systems. The module supports online configuration download function, and there is no need to stop the system running when modifying parameters. Simply perform the "GENERAL DOWNLOAD" operation after completing the configuration in the engineer environment to take effect, greatly improving the flexibility of system transformation.


Typical application areas

CM902WM, with its stable performance and flexible configuration, has been widely applied in multiple industrial fields and has become a core device in critical control processes. The specific application scenarios are as follows:

1. Power industry: precise control of power generation and transformation

In thermal power plants, CM902WM is mainly used for flow and pressure signal acquisition in boiler feedwater systems, as well as temperature monitoring in turbine lubricating oil systems. Through precise signal feedback, combustion efficiency optimization and equipment protection are achieved. In the substation automation system, the module is responsible for collecting key parameters such as transformer oil temperature and bus voltage, supporting linkage with relay protection devices to ensure stable operation of the power grid. Its wide temperature range design can adapt to the harsh environment of outdoor control cabinets in substations.

2. Oil and gas: reliable operation in high-risk environments

In refineries and drilling platforms, modules are used to collect pressure and liquid level signals from reaction vessels, as well as flow data from pipelines. They support explosion-proof installation in explosion-proof areas (requiring specialized explosion-proof enclosures). In the monitoring of long-distance natural gas pipelines, its anti-interference ability can ensure stable signal transmission under high-voltage electric fields and complex terrain, providing accurate data support for leak detection and pressure regulation.

3. Water treatment industry: full chain coverage of process monitoring

In a water treatment plant, the module is responsible for collecting signals such as sedimentation tank liquid level, filter inlet and outlet pressure, and dosing pump flow rate to achieve automated control of the water purification process; The sewage treatment plant uses its counting function to monitor the speed of the sludge dewatering machine, and adjusts the sludge discharge volume based on the liquid level signal to ensure treatment efficiency. Its multi-channel design can reduce the number of modules and lower system integration costs.

4. Marine Engineering and Public Facilities: Adaptability to Complex Environments

In offshore oil platforms and LNG receiving stations, the wide temperature and humidity adaptability of CM902WM can cope with high salt spray and high humidity environments in the ocean, providing control support for the platform's power supply system and loading and unloading equipment. In urban transportation hubs and building automation, modules are used for temperature collection of air conditioning systems, status monitoring of water supply and drainage pumps, and energy-saving operation and intelligent regulation of public facilities.


Installation and operation specifications

The installation and operation quality of CM902WM directly affects its operational stability, and the following specifications must be strictly followed to avoid faults caused by improper human operation:

1. Installation environment requirements

-The installation location should be in a well ventilated control cabinet, avoiding direct sunlight, rainwater erosion, and corrosive gases (such as H2S, SO2) erosion. The indoor corrosive gas content should meet the requirements of H2S<0.01ppm and SO2<0.05ppm.

-The temperature inside the control cabinet should be maintained at -40 ° C~70 ° C, with a relative humidity of 5%~95% (no condensation). It is recommended to equip it with a cooling fan or air conditioning equipment to ensure that the module temperature does not exceed 70 ° C.

-Avoid installing close to strong electromagnetic interference sources such as high-voltage cables and frequency converters. The distance between the module and the interference source should be ≥ 1m. If it cannot be avoided, shielding measures should be taken.

2. Installation steps

1. Cabinet preparation: Ensure that the grounding resistance of the control cabinet is less than 5 Ω, the installation rail complies with the IEC 60715 standard (35mm DIN rail), and the rail flatness error is ≤ 2mm/m.

2. Module fixation: Align the module buckle with the guide rail and gently push it in until you hear a "click" sound, confirming that the module is firmly fixed. When installed vertically, the distance between the bottom of the module and other devices should be ≥ 5cm to ensure sufficient heat dissipation space.

3. Wiring operation: Connect power, signal, and communication cables according to the module terminal diagram. The power cord should use copper core wire of 2.5mm ² or more, and the signal cable is recommended to use shielded twisted pair, with the shielding layer grounded at one end. When wiring, it is necessary to distinguish between analog and digital channels to avoid channel damage caused by misconnection.

4. Installation of identification code: Insert the FBM identification code (LETTERBUG) into the designated interface of the module to ensure good contact. Loose installation may cause the system to not recognize the module.

5. Pre power on inspection: Use a multimeter to measure the power supply voltage and confirm that it meets the module specifications (AC 79-180V or DC 24V ± 10%). Check for short circuits or virtual connections in the wiring.

3. Key points of communication configuration

-Modbus TCP/IP configuration: Set the module IP address, subnet mask, and gateway in the system configuration software to ensure they are on the same network segment as the controller. The default baud rate is 9600bps, with no checksum, 8 data bits, and 1 stop bit.

-FBM communication configuration: Use a dedicated FBM communication cable to connect the module to the CP controller, with a cable length of ≤ 100m. If the cable length exceeds 100m, a signal amplifier is required. Confirm the bus status as "A ENABLE" or "B ENABLE" on the PIO Bus Display screen to avoid bus faults.

-Redundant configuration: If dual communication links are used, the "bus automatic switching" function should be enabled in the configuration. When the main bus fails, it can automatically switch to the backup bus with a switching time of ≤ 100ms to ensure uninterrupted communication.
