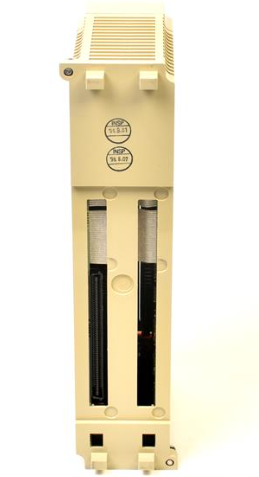

YASKAWA CP-9200SH/SVA servo controller

YASKAWA CP-9200SH/SVA servo controller

Product Overview

The YASKAWA CP-9200SH/SVA servo controller is a high-performance servo control module launched by Yaskawa Electric, belonging to the CP-9200SH automation platform series, designed specifically for high-precision, high dynamic response multi axis motion control scenarios. This product integrates advanced control algorithms, high-speed digital signal processing technology, and reliable hardware structure, which can achieve precise control of servo motor position, speed, and torque. It is the core component of synchronous motion control in complex industrial automation systems. Its modular design enables seamless integration into the CP-9200SH rack system, with a single module supporting 4-axis control. Through multi module expansion, it can achieve system level control of up to 44 axes. Even though it has been discontinued by manufacturers, it still maintains important value in the synchronous servo axis control of legacy systems. At the same time, the product has good compatibility and can seamlessly integrate with various servo motors and control systems, providing core driving support for the efficient and stable operation of industrial automation production lines.

Specification parameters

The specification parameters of YASKAWA CP-9200SH/MVA servo controller cover key dimensions such as electrical performance, control capability, installation size, and environmental adaptability, as follows:

-Electrical parameters: Input voltage ranging from 200VAC to 240VAC, output power of 2.0kW, maximum output current of 9.6A; power supply from CP-9200SH backplane, output frequency up to 50kHz.

-Control capability: Single module supports 4-axis control, system level expandable to 44 axes; Supports four control modes: position, speed, torque, and differential; The position control accuracy can reach ± 0.01 °, the speed control accuracy is ± 0.02% of the rated speed, the response frequency is 2kHz, and the response time is in the millisecond range.

-Communication interface: Built in CPU bus for internal communication, external support for various industrial communication protocols such as CANopen, EtherCAT, Modbus, etc., can seamlessly connect with upper computers such as PLC and motion controllers; Equipped with rich I/O interfaces, including 16 digital inputs, 16 digital outputs, 4 analog inputs, and 2 analog outputs.

-Physical dimensions and weight: The standard dimensions are 5.1cm x 25.4cm x 11.4cm (height x width x depth), with some models measuring 300 x 180 x 80mm; the weight is approximately 0.5kg (1.37lbs), with some models weighing 5kg.

-Environmental adaptability: The working temperature range is 0 ℃ to+55 ℃ (some models are -10 ℃ to+55 ℃), and the relative humidity is 5% to 95% (no condensation); Protection level IP20, suitable for industrial dust environment.

-Programming and Installation: Supports ladder diagram and Sequential Function Diagram (SFC) programming; Adopting CP-9200SH rack slot installation, modular structure facilitates integration and maintenance.

Performance characteristics

The YASKAWA CP-9200SH/MVA servo controller, with its core technological advantages, exhibits significant features such as high precision, high response, high reliability, and convenient operation

-High precision vector control: using advanced vector control technology and high-precision encoder feedback, the position, speed, and torque of the motor can be accurately controlled in real time, effectively reducing torque fluctuations during low-speed operation. Even under low-speed conditions of 0.1r/min, it can still operate smoothly without crawling phenomenon, meeting the strict requirements of precision machining for motion accuracy.

-High speed dynamic response: Equipped with a high-performance digital signal processor (DSP) as the control core, it achieves a high response frequency of 2kHz and millisecond response time, ensuring that the motor can maintain stable operation in fast start stop, variable speed, and load mutation scenarios, with excellent dynamic adjustment performance.

-Multi axis synchronous linkage: A single module supports independent control of 4 axes, and 44 axis synchronous linkage can be achieved through multi module expansion, which can accurately match the multi axis coordination requirements of complex equipment, such as robot joint linkage, CNC machine tool multi axis feed and other scenarios.

-Comprehensive security protection: Integrated intelligent power module (IPM), built-in fault detection and protection circuits for overvoltage, overcurrent, overheating, undervoltage, etc; Add a soft start circuit to the main circuit to reduce startup impact and quickly cut off output under abnormal working conditions, protecting the safety of the driver, motor, and the entire equipment.

-Convenient debugging and maintenance: equipped with an intuitive operation panel and dedicated debugging software, supporting parameter settings, status monitoring, fault diagnosis, and parameter copying functions, making it easy to batch debug multiple devices and greatly improving debugging efficiency; Modular design simplifies installation and post maintenance processes, reducing operation and maintenance costs.

-Wide compatibility: Supports multiple communication protocols and command input methods, and can be flexibly adapted to different brands of servo motors, upper control systems, external sensors, and actuators. It has strong adaptability and a wide range of applications.

Working principle

The core working logic of YASKAWA CP-9200SH/SVA servo controller is to achieve precise control of servo motors through a closed-loop control process of "instruction reception signal processing power drive feedback adjustment". The specific principle is as follows:

1. Instruction reception and processing: The controller receives position, speed, or torque control instructions sent by the upper computer (such as PLC, motion controller) through communication interfaces such as Ethernet and CANopen; The control core composed of ARM Cortex-A9 dual core CPU and DSP performs real-time parsing and computation of instruction signals, and generates drive control signals based on preset parameters.

2. Power conversion and driving: The power driving unit first converts the input 200-240VAC AC power into DC power through a three-phase full bridge uncontrolled rectification circuit; Then, through a three-phase sine PWM voltage type inverter, the DC power is converted into AC power with adjustable frequency and voltage, driving the three-phase permanent magnet synchronous AC servo motor to complete the energy conversion process of "AC-DC-AC".

3. Feedback detection and closed-loop regulation: Real time acquisition of motor rotor position and speed signals through high-precision encoders, and transmission of feedback signals to the control core; The control core compares the deviation between the feedback signal and the instruction signal of the upper computer, compensates for the deviation through advanced vector control algorithms, dynamically adjusts the output voltage and frequency parameters until the motor operating state fully matches the instruction requirements, and forms a stable closed-loop control to ensure control accuracy and operational stability.

4. Protection mechanism triggering: The Intelligent Power Module (IPM) monitors the voltage, current, and operating temperature of the main circuit in real-time; When abnormal conditions such as overvoltage, overcurrent, overheating, and undervoltage are detected, the protection circuit is immediately triggered to quickly cut off power output and send a fault signal to the upper computer to avoid equipment damage.

Precautions

To ensure the safe and stable operation of YASKAWA CP-9200SH/SVA servo controller and extend its service life, the following precautions should be taken during installation, commissioning, operation, and maintenance:

-Preparation before installation: Confirm that the voltage and phase of the input power supply are consistent with the requirements of the controller to avoid equipment burnout caused by voltage mismatch; Check the installation environment to ensure that the temperature and humidity meet the specified range, and that the ventilation is good, with sufficient heat dissipation space reserved (avoiding close contact with heating equipment); Clean the dust and debris on the surface and installation area of the controller, and check if the connectors are intact and undamaged.

-Wiring specifications: strictly follow the wiring diagram to connect motor, encoder cables, and communication lines, avoiding reverse connection, short circuit, or poor contact; Encoder cables and power cables need to be wired separately to reduce the impact of electromagnetic interference on feedback signals; After the wiring is completed, check the correctness of the circuit again and confirm that there are no errors before powering on.

-Debugging operation: During the first debugging, parameter initialization should be performed first, and then key parameters such as position proportional gain and position feedforward gain should be gradually set according to the application scenario to avoid system oscillation or overshoot caused by excessively high parameter settings; During the debugging process, monitor the indicator lights and display information on the controller panel in real-time, promptly detect any abnormalities, and shut down for troubleshooting.

-Operation monitoring: Regularly observe the working status of the controller during operation, including whether the temperature, current, voltage, and feedback signals are normal; Avoid long-term overload operation of the motor (it is recommended that the overload factor does not exceed 4-6 times the rated torque, and the duration does not exceed a few minutes), to prevent overheating and damage to the controller and motor.

-Maintenance: Regularly clean the dust on the controller's cooling fan and fins to ensure smooth heat dissipation; Check the firmness of cable connections, especially paying attention to the motor and encoder cables, to avoid poor contact caused by vibration; Regularly backup controller parameters for quick recovery of settings in case of failure; Maintenance operations must be carried out after cutting off the power and waiting for the internal capacitor to discharge completely (it is recommended to wait for 5-10 minutes) to ensure safe operation.

-Other precautions: Avoid the controller from being subjected to severe impact, vibration, moisture, or corrosive gases; If the equipment is idle for a long time, it needs to be thoroughly tested before being put back into use to confirm that there are no faults; Strictly follow the load range specified by the manufacturer and operate within the rated parameters.

Application scenarios

The YASKAWA CP-9200SH/MVA servo controller is widely used in various fields of industrial automation due to its high precision, high response, and multi axis control capabilities. It is particularly suitable for scenarios that require strict precision and stability in motion control, including:

-Precision machining field: used for driving the spindle and feed axis of CNC machine tools and machining centers, ensuring the dimensional accuracy and surface quality of parts machining through precise position and speed control; Suitable for precision machining equipment such as grinding machines and milling machines, meeting the needs of complex surface machining and high-precision hole machining.

-In the field of electronic manufacturing, servo motors are used to drive equipment such as surface mount machines, wire bonding machines, and chip packaging machines, achieving high-precision positioning, picking, soldering, and packaging of electronic components, ensuring consistency and reliability in electronic component assembly, and improving the production efficiency and quality of electronic products.

-In the field of robotics, as a joint drive unit for industrial robots and collaborative robots, it provides precise torque and position control for robot joint movements, supports multi joint synchronous linkage, and meets the needs of robot operations such as welding, handling, assembly, and palletizing; Compatible with Yaskawa HC series collaborative robots and other products, ensuring job safety and motion stability.

-In the field of packaging printing, control the paper feeding mechanism, cutting device, and feeding and sealing mechanism of the printing machine to ensure the accuracy of printing patterns and cutting and sealing dimensions; Adapt to high-speed packaging production lines to improve packaging efficiency and product packaging consistency.

-Other industrial fields: In food processing machinery, controlling material conveying, measuring, and processing mechanisms to ensure the accuracy and stability of food processing; In logistics automation equipment, drive the servo system of sorting machines and conveyors to optimize logistics sorting and conveying efficiency; It is also suitable for special industries such as semiconductor manufacturing equipment and medical devices that require extremely high motion control.
