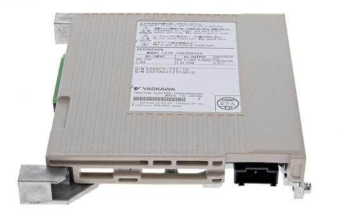

YASKAWA JACP-317120 Power Supply Unit

YASKAWA JACP-317120 Power Supply Unit

Product Overview

The YASKAWA JACP-317120 power supply module is an industrial grade specialized power supply module launched by Yaskawa Electric. It is mainly suitable for automation control platforms such as CP-9200SH, providing stable and reliable power input guarantee for core control components such as servo controllers and PLCs. This product adopts industrial grade hardware design, integrates multiple safety protection mechanisms and efficient energy conversion circuits, and can achieve stable output and precise distribution of electrical energy in complex industrial environments. It is a key basic equipment to ensure the continuous and safe operation of automation control systems. Its modular structure can be seamlessly integrated into the corresponding rack system, with good compatibility and scalability, and can be flexibly matched according to system load requirements. It is widely used in industrial automation production scenarios that rely on stable power supply.

Specification parameters

The specification parameters of YASKAWA JACP-317120 power supply focus on electrical performance, physical characteristics, and environmental adaptability. The core parameters are as follows:

-Electrical parameters: The input voltage supports a wide voltage range of AC 200V-240V, with a frequency of 50/60Hz; the output voltage is DC 24V (standard industrial control supply voltage), and the rated output power is suitable for the load requirements of the CP-9200SH platform. The maximum output current can meet the simultaneous power supply needs of multiple modules; The power conversion efficiency meets industrial high standards, and the low-power design reduces power loss.

-Physical dimensions and weight: Adopting a standardized rack design, the dimensions are perfectly compatible with the CP-9200SH platform rack, with specific dimensions of 5.1cm x 25.4cm x 11.4cm (height x width x depth), which can be directly inserted into the corresponding slot; Weighing approximately 0.6kg, the lightweight design facilitates installation and system integration.

-Environmental adaptability: The working temperature range is 0 ℃ to+55 ℃, and the relative humidity is 5% to 95% (without condensation); Protection level IP20, with good dustproof performance, can adapt to conventional industrial site environments; The ability to resist electromagnetic interference meets industrial standards, ensuring stable operation in high-frequency equipment coexistence environments.

-Interface and Connection: Equipped with standardized backplane power supply interface, it can be directly connected to the CP-9200SH rack backplane to achieve centralized power supply to various modules inside the rack; Reserved external power input interface, supporting quick wiring and fixation; Equipped with a power status indicator interface for real-time monitoring of power supply status.

Performance characteristics

The YASKAWA JACP-317120 power supply relies on Yaskawa's mature industrial power supply technology and has core characteristics such as stability, reliability, comprehensive safety protection, and strong adaptability

-Efficient and stable power supply: Advanced energy conversion circuits and voltage stabilization technology are used to effectively suppress the impact of input voltage fluctuations on output, ensuring high output voltage accuracy and small ripple, providing stable power support for precision control components such as servo controllers, and avoiding equipment operation abnormalities caused by voltage fluctuations.

-Multiple safety protections: Built in overvoltage, overcurrent, overheating, undervoltage, and short circuit protection circuits. When abnormal power supply conditions or load faults are detected, the power supply circuit can be quickly cut off to prevent equipment damage and safety accidents; At the same time, it has anti surge function and can withstand the impact of power grid surges on internal circuits.

-Precise load adaptation: Specially designed for the load characteristics of the CP-9200SH platform, the output power and current can accurately match the operational requirements of the multi axis servo controller. A single module can meet the centralized power supply of multiple components in the rack without the need for additional power supply equipment, simplifying the system structure.

-Convenient integration and maintenance: Adopting a modular slot design consistent with the CP-9200SH platform, it can be directly inserted into the rack for installation without complex wiring and debugging; Equipped with clear power status indicator lights, it can provide intuitive feedback on the normal and faulty power supply status, making it easy for operation and maintenance personnel to quickly troubleshoot problems.

-Strong environmental adaptability: Industrial grade wide temperature design and dust-proof structure enable it to operate stably for a long time in complex industrial environments such as high temperature and high dust; Excellent anti electromagnetic interference performance, can effectively resist electromagnetic interference generated by high-frequency equipment in industrial sites, and ensure power supply stability.

Working principle

The core working logic of YASKAWA JACP-317120 power supply is to convert industrial AC power into stable DC power, and provide reliable power supply for automation control components through precise regulation and protection mechanisms. The specific principle is as follows:

1. Input rectification and filtering: After the external AC 200V-240V enters the power supply module through the input interface, the AC is first converted into pulsating DC through the rectification circuit, and then the pulsating components are filtered out through the filtering circuit to obtain smooth DC, laying the foundation for the subsequent voltage stabilization process.

2. Voltage regulation output: Smooth DC power enters the core voltage regulation circuit, and the output voltage is precisely regulated through PWM (Pulse Width Modulation) technology to stabilize the voltage at the standard industrial control voltage of DC 24V; At the same time, real-time monitoring of the output voltage and current status is carried out through a feedback circuit. If fluctuations occur, the PWM signal duty cycle is immediately adjusted to ensure stable output parameters.

3. Power distribution and supply: Stable DC 24V power is transmitted to the CP-9200SH rack through the backplane interface, achieving centralized power distribution and supply to various components such as servo controllers and CPU modules inside the rack; At the same time, provide independent power supply circuits for each component to avoid the impact of a single component failure on the overall power supply.

4. Safety protection trigger: The protection circuit monitors the input voltage, output current, and module operating temperature in real time. When abnormal conditions such as overvoltage, overcurrent, overheating, and short circuit are detected, the protection mechanism is immediately triggered to quickly cut off the power supply circuit and feedback the fault status through the status indicator light, ensuring the safety of equipment and personnel.

Precautions

To ensure the safe and stable operation of YASKAWA JACP-317120 power supply and extend its service life, the following precautions must be strictly followed during installation, commissioning, operation, and maintenance:

-Preparation before installation: Confirm that the input power voltage and frequency are consistent with the product requirements to avoid module burnout caused by voltage mismatch; Check the installation environment to ensure that the temperature and humidity meet the specified range, and that the ventilation is good. Reserve sufficient heat dissipation space and avoid close contact with heating equipment; Clean the dust and debris on the surface of the module and installation slots, and check if the interfaces are intact and undamaged.

-Wiring and installation specifications: strictly follow the wiring diagram in the product manual to connect the input power supply to the backplane interface, ensuring firm wiring, good contact, and avoiding looseness or short circuits; During installation, the module should be smoothly inserted into the CP-9200SH rack slot to ensure that the buckle is locked in place and prevent poor contact caused by vibration; Input and output cables need to be wired separately to reduce electromagnetic interference.

-Operational safety control: External safety circuits (such as emergency stop circuits and overload protection circuits) need to be configured before operation to ensure that even if the power supply module fails, the entire control system can be safely shut down to avoid accidents; During operation, avoid the load exceeding the rated output power of the module to prevent long-term overload and overheating damage to the module.

-Maintenance requirements: Regularly clean the dust on the module cooling fins and ventilation openings to ensure smooth heat dissipation; Check the firmness of cable connections, especially paying attention to input power cables, to avoid loosening caused by vibration; Maintenance operations must be carried out after cutting off the input power and waiting for the internal capacitor to discharge completely (it is recommended to wait for 5-10 minutes) to prevent electric shock; If the module malfunctions, it needs to be repaired by professional technicians, and non professional personnel are prohibited from disassembling and assembling it.

-Other safety precautions: Avoid modules from being subjected to severe impact, vibration, moisture, or corrosive gases; If the module is idle for a long time, it needs to undergo a comprehensive inspection before being put back into use to confirm that there are no faults; Do not place conductors that run high-frequency currents near the module, as this may cause the module temperature to rise and damage the equipment.
