  • GE D20 EME 2400-21004 Substation Controller
    ❤ Add to collection

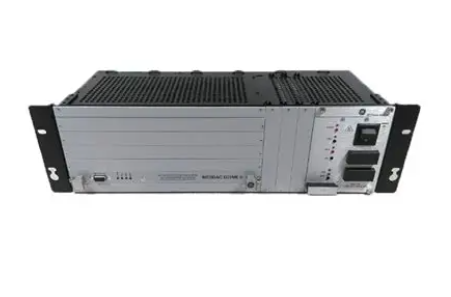

  • GE D20 EME 2400-21004 Substation Controller

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    This controller belongs to the GE D20 series of automation products, positioned as the "central nervous system of substation automation", with "stability, reliability, flexibility, compatibility, intelligence, and efficiency" as the design core. In response to the characteristics of dispersed equipment, complex working conditions, and diverse operation and maintenance requirements of medium and low voltage substations, a modular hardware architecture and layered control logic are adopted, which can achieve independent and automated operation of a single station, and seamlessly integrate into the regional power grid dispatch system, constructing a dual management mode of "local control+remote monitoring". The design fully complies with international standards such as IEC 61850, ensuring the interoperability and future scalability of the equipment, and meeting the needs of modern power system digital transformation.

    • ¥30576.00
      ¥36544.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.057KG
    • Quantity:
    • (Inventory: 99999)
Description

This controller belongs to the GE D20 series of automation products, positioned as the "central nervous system of substation automation", with "stability, reliability, flexibility, compatibility, intelligence, and efficiency" as the design core. In response to the characteristics of dispersed equipment, complex working conditions, and diverse operation and maintenance requirements of medium and low voltage substations, a modular hardware architecture and layered control logic are adopted, which can achieve independent and automated operation of a single station, and seamlessly integrate into the regional power grid dispatch system, constructing a dual management mode of "local control+remote monitoring". The design fully complies with international standards such as IEC 61850, ensuring the interoperability and future scalability of the equipment, and meeting the needs of modern power system digital transformation.




GE D20 EME 2400-21004 Substation Controller

Core positioning and design philosophy of the product

This controller belongs to the GE D20 series of automation products, positioned as the "central nervous system of substation automation", with "stability, reliability, flexibility, compatibility, intelligence, and efficiency" as the design core. In response to the characteristics of dispersed equipment, complex working conditions, and diverse operation and maintenance requirements of medium and low voltage substations, a modular hardware architecture and layered control logic are adopted, which can achieve independent and automated operation of a single station, and seamlessly integrate into the regional power grid dispatch system, constructing a dual management mode of "local control+remote monitoring". The design fully complies with international standards such as IEC 61850, ensuring the interoperability and future scalability of the equipment, and meeting the needs of modern power system digital transformation.


Analysis of Core Functional System

The functions of the GE D20 EME 2400-21004 substation controller cover the entire process of substation automation, forming a complete closed loop of "data acquisition logic control communication interaction fault handling". The specific core functions are as follows:

1. Comprehensive data collection and monitoring functions

-Electrical quantity collection: Accurately collect core electrical parameters such as three-phase current, voltage, active power, reactive power, power factor, frequency, etc. of transformers, circuit breakers, isolating switches and other equipment in the substation through analog input modules. The collection accuracy can reach 0.2 level, providing reliable data for operation monitoring and energy metering.

-State quantity collection: Real time monitoring of switch status such as circuit breaker opening and closing position, isolation switch status, equipment alarm signals, and protection action information, supporting anti shake processing and status change recording to ensure real-time control of equipment operation status.

-Non electrical quantity collection: supports the integration of environmental sensors such as temperature, humidity, and pressure, as well as equipment status sensor signals, to achieve comprehensive monitoring of the operating environment and equipment health status of the substation.

2. Precise logic control and operational functions

-Remote control operation: Receive remote control instructions from the backend monitoring system or dispatch center to remotely open and close circuit breakers, isolating switches, and other equipment. The operation process has multiple safety mechanisms such as permission verification, operation return to campus, and anti misoperation to ensure operation safety.

-Remote adjustment function: supports remote adjustment of the tap position of on load tap changers, the switching capacity of reactive power compensation devices, etc., to achieve precise control of substation voltage quality and optimization of reactive power balance.

-Local logic control: Built in programmable logic controller (PLC) function, customizable logic control can be achieved through graphical or imperative programming, such as backup automatic switching (BZT) logic, interlocking control logic, fault self recovery logic, etc., to enhance the autonomous operation capability of the substation.

3. Efficient communication and interaction functions

-Multi protocol compatibility: Supports multiple mainstream power communication protocols such as IEC 61850 MMS/GOOSE/SV, Modbus RTU/TCP, DNP3.0, IEC 101/104, etc. It can seamlessly communicate with protection devices, measurement and control devices, smart meters, backend monitoring systems, and dispatch centers.

-Rich communication interfaces: equipped with multiple Ethernet interfaces, RS-485/RS-232 serial interfaces, supporting fiber optic communication module expansion, meeting the access requirements of different communication links, and achieving high-speed transmission and reliable forwarding of data.

-Data forwarding and aggregation: With data aggregation function, it can centrally process the data of various devices in the substation and upload it to the higher-level system. At the same time, it can distribute the higher-level instructions to the corresponding executing devices, achieving efficient collaboration between the upper and lower level systems.

4. Comprehensive fault handling and recording functions

-Fault detection and alarm: Real time monitoring of electrical quantity exceeding limits, equipment status abnormalities, communication interruptions and other fault information, timely notification to operation and maintenance personnel through sound and light alarms, remote signaling and other methods, and linkage with relevant equipment to perform preliminary fault handling actions.

-Event recording and fault waveform recording: Equipped with SOE (Sequence of Events) function, it can accurately record the time and type of event occurrence, with a time resolution of milliseconds; Support fault recording function, which can collect electrical data before and after the occurrence of faults, providing key basis for fault analysis and troubleshooting.

-Data Storage and Traceability: Equipped with a large capacity storage module, it can store operational data, event records, and fault waveform data for a long time. It supports local data export and remote query, meeting the requirements of power system operation traceability and compliance.


Technical characteristics and performance advantages

1. High reliability and stability

Adopting industrial grade embedded processors and high anti-interference components, the hardware architecture has undergone rigorous environmental adaptability testing and has a wide temperature working range (-40 ℃~+70 ℃) and wide voltage power supply capability (85V~264V AC/110V~300V DC), which can adapt to harsh on-site operating environments. Support dual power redundancy backup and automatic fault switching, ensuring stable operation of equipment in extreme situations, with an average time between failures (MTBF) of over 100000 hours.

2. Flexible modularity and scalability

Adopting a modular design concept, the core control module, input/output module, communication module, etc. can be independently configured and replaced. Users can flexibly add or remove modules according to the size and functional requirements of the substation, reducing initial investment costs. The "2400-21004" model code corresponds to specific module configuration combinations and supports upgrading functions through adding I/O modules, expanding communication interfaces, and other methods in the future to meet the expansion and renovation needs of substations.

3. Convenient operation and debugging functions

Equipped with a Chinese graphical user interface and dedicated debugging software, it supports local button operation and remote network debugging. Operations personnel can intuitively view device operating status, configuration parameters, event records, and other information. Equipped with self diagnostic function, it can monitor module faults, communication abnormalities, power failures and other issues in real time, and locate the fault point through clear alarm information, greatly reducing the time for fault diagnosis and maintenance. Support online parameter configuration and remote firmware upgrade to reduce on-site operation and maintenance workload.

4. Powerful anti-interference and security performance

The electromagnetic compatibility performance complies with the IEC 61000-4 series standards and has strong resistance to electromagnetic radiation and conducted interference, which can avoid misoperation and data loss in the complex electromagnetic environment of substations. Equipped with a comprehensive security protection mechanism, supporting hierarchical management of operation permissions, encrypted data transmission, SQL injection prevention and other security measures to prevent unauthorized access and data leakage, ensuring the information security of the substation automation system.


Typical application scenarios

The GE D20 EME 2400-21004 substation controller is widely used in various medium and low voltage substation scenarios due to its reliable performance and flexible configuration

1. Urban distribution network substation: used for automatic control of 10kV~35kV distribution network substations, realizing remote monitoring and lean management of distribution network equipment, and improving the reliability and quality of power supply in the distribution network.

2. Industrial enterprise substation: a factory substation suitable for industrial scenarios such as steel, chemical, and automobile manufacturing, meeting the high requirements of industrial production for power supply continuity and stability, and achieving linkage with enterprise production management systems.

3. New energy grid connected power stations: used for wind and photovoltaic power stations, as well as for boosting stations and collection line substations, to collect and upload new energy generation data, and coordinate and control grid connected equipment to meet the requirements of new energy grid connected scheduling.

4. Railway and rail transit substations: Suitable for railway traction substations and urban rail transit substations, ensuring the stable operation of the traction power supply system and supporting real-time communication with the rail transit dispatch system.


Installation and operation precautions

-Before installation, it is necessary to verify whether the controller model matches the design requirements of the substation automation system, and confirm that the module configuration, communication protocol, power parameters, etc. meet the on-site requirements.

-The installation location should be chosen in a well ventilated area away from strong magnetic fields and interference sources. The cabinet installation should be firm and reliable to ensure that the equipment operates without vibration during operation; When wiring, it is necessary to strictly distinguish between strong and weak electrical circuits, avoid cross wiring, and insulation treatment should be done for power and communication wiring.

-Before operation, it is necessary to complete parameter configuration, communication link testing, logic control verification, telemetry and remote control joint debugging, etc., to ensure that the controller communicates normally with the upper and lower level equipment and the control logic is accurate and error free.

-In daily operation and maintenance, it is necessary to regularly check the operation status of equipment, indicator light display, interface connection, clean equipment dust regularly, and check the operation status of the cooling fan; Regularly backup device configuration parameters and historical data to prevent data loss.

-When replacing modules or upgrading firmware, it is necessary to first disconnect the device power supply to ensure that there is no current surge during the operation process; After the upgrade is completed, functional testing needs to be conducted again to confirm that the device is working properly before it can be put into operation.
