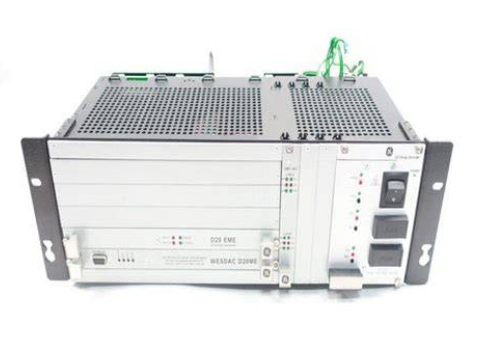

GE D20EME 0526-21170-1 PLC module

GE D20EME 0526-21170-1 PLC module

Product Overview

The GE D20EME 0526-21170-1 PLC module is a high-performance core control unit developed by General Electric (GE) for the industrial automation control field. It belongs to the GE D20 series PLC product matrix and is designed specifically for the signal processing and logic control requirements of medium to large industrial control systems. This module integrates advanced microprocessor technology and reliable industrial grade hardware architecture, with powerful instruction execution capabilities, rich I/O interface expansion potential, and excellent anti-interference performance. It can accurately achieve start stop control, parameter adjustment, and fault diagnosis of various equipment in industrial production processes.

Its core value lies in enhancing system integration flexibility through modular design, seamlessly compatible with GE D20 series power modules, I/O modules, communication modules, etc., quickly building a stable and efficient automation control system, widely used in industries such as power, metallurgy, chemical, water treatment, etc. that require strict control accuracy and system reliability. It is a key core component to ensure the continuous, safe, and efficient operation of industrial production processes.

Specification parameters

Basic Parameters

model

GE D20EME 0526-21170-1

Product Series

GE D20 series PLC core control module

Processor model

32-bit industrial grade RISC processor

Dimensions (length x width x height)

160mm × 100mm × 80mm (standard DIN rail installation size)

performance parameters

Instruction execution speed

Basic instructions ≤ 0.1 μ s, complex operation instructions ≤ 1 μ s

User program storage capacity

8MB (expandable to 32MB)

Data storage capacity

4MB RAM (with battery backup, data retention time ≥ 1000 hours)

Maximum I/O points

Support extension to 1024 points (digital+analog)

Electrical parameters

power supply voltage

DC 24V (allowable fluctuation range: DC 18V~30V)

Rated power consumption

≤ 15W (without expansion module)

Input/output voltage

Digital quantity: DC 24V; Analog quantity: 4mA~20mA/0V~10V

isolation performance

Isolation voltage between power supply and I/O ≥ 2500V AC, isolation between channels ≥ 500V AC

environmental parameters

Operating Temperature

-20℃~60℃

Operating Humidity

10%~90% RH (non condensing)

Protection level

IP20 (module itself), can reach IP54 after adapting to the control cabinet

Anti-interference performance

Compliant with IEC 61000-4 standard, anti surge ± 2kV, anti-static ± 8kV

Communication parameters

Built in communication interface

1 Ethernet interface (RJ45, supports Modbus TCP), 2 RS485 interfaces (supports Modbus RTU)

communication rate

Ethernet: 10/100Mbps adaptive; RS485: 9600~115200bps adjustable

Supported Protocols

Modbus TCP, Modbus RTU, PROFINET (optional extension)

Performance characteristics

-High speed computing and processing capabilities: Equipped with a 32-bit RISC industrial grade processor, the basic instruction execution speed is as low as 0.1 μ s, which can quickly respond to complex logic control requirements and a large number of I/O signal processing tasks. Even under multi module expansion and high load conditions, it can maintain stable control cycles and meet the real-time control requirements of high-speed production lines.

-Flexible modular expansion: Adopting a standardized bus interface design, it can seamlessly integrate with GE D20 series digital input/output modules, analog acquisition/control modules, and special function modules (such as pulse output and temperature acquisition), supporting up to 1024 I/O expansion points, easily adapting to automation systems of different scales, and reducing system upgrade costs.

-High reliability and stability: The hardware uses industrial grade components, and the power supply and I/O channels have high-strength electrical isolation. The anti surge and anti-static performance meets international standards, which can effectively resist electromagnetic interference in industrial sites; The data storage is equipped with battery backup to ensure that user programs and critical data are not lost in case of sudden power outages, thereby enhancing the safety of system operation.

-Rich communication functions: Built in Ethernet and RS485 dual type communication interfaces, supporting mainstream industrial communication protocols such as Modbus, can quickly achieve interconnection and intercommunication with HMI (human-machine interface), SCADA (data acquisition and monitoring system), other PLCs or intelligent instruments, facilitating the construction of centralized monitoring and management networks.

-Convenient programming and maintenance: Supports the use of professional programming software such as GE Proficy Machine Edition, compatible with various programming methods such as ladder diagram (LD), functional block diagram (FBD), structured text (ST), etc., to meet the usage habits of different engineers; The module comes with status indicator lights (power, operation, fault, communication), which can quickly locate faults and simplify maintenance processes.

-Wide environmental adaptability: It can work stably within a wide temperature range of -20 ℃~60 ℃ and adapt to various complex environments such as high-temperature workshops and outdoor control cabinets; The IP20 protection level, when used in conjunction with standard control cabinets, can effectively prevent dust and accidental contact, ensuring long-term reliable operation of the module.

Working principle

The GE D20EME 0526-21170-1 PLC module, as the core of industrial control systems, operates based on a "cyclic scanning" mechanism to achieve precise control of industrial equipment through three core processes: receiving input signals, executing user programs, and outputting control signals. The specific process is as follows:

1. System initialization and self-test: After the module is powered on, it first enters the initialization phase. The processor performs self-test on core components such as internal memory, I/O interfaces, and communication modules to confirm that each component is working properly; Simultaneously load battery backup data and user programs to complete system parameter configuration. If a fault is detected, an alarm will be triggered through the fault indicator light.

2. Input signal acquisition: After passing the self-test, the module enters the cyclic scanning cycle. Firstly, signals from various external devices such as sensors, buttons, and travel switches are collected through the input interface circuit (digital signals such as on/off status, analog signals such as electrical signals corresponding to pressure and temperature). These signals are converted into recognizable digital signals within the PLC and stored in the input image register.

3. User program execution: The processor executes user written control programs (such as ladder diagrams and functional block diagrams) in order from top to bottom and left to right. Based on the signal status in the input image register, combined with the logical relationships in the program (such as AND, OR, NOT, timer, counter, etc.), it performs arithmetic processing, generates corresponding control logic results, and stores the results in the output image register.

4. Output control signal: After the program execution is completed, the module converts the control result in the output image register into an electrical signal that can be recognized by external devices through the output interface circuit, driving the contactor, solenoid valve, indicator light, frequency converter and other executing mechanisms to achieve control functions such as start stop and parameter adjustment of production equipment.

5. Communication and monitoring interaction: During the cyclic scanning process, the module simultaneously interacts with external devices such as HMI and SCADA systems through its built-in communication interface to upload device operating status, input and output signals, and receive control instructions or parameter modification signals issued by the upper system, achieving remote monitoring and centralized management; If there is any fault information, it will be uploaded to the monitoring system in real time and trigger a local alarm.
