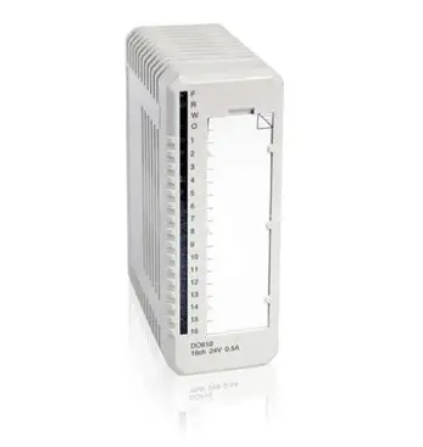

  • ABB DO810 3BSE008510R1 Digital Output Module
    ❤ Add to collection
  • ABB DO810 3BSE008510R1 Digital Output Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    ABB DO810 3BSE008510R1 is a high reliability digital output module launched by ABB Group, belonging to the I/O module family of AC 800M control system, designed for precise output of digital signals in industrial process control. As a key bridge connecting the process controller and on-site actuators, this module can convert the digital control instructions issued by the controller into electrical signals that can drive external devices, achieving start stop control or state switching of actuators such as valves, pumps, and indicator lights.

    • ¥57272.00
      ¥52636.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.630KG
    • Quantity:
    • (Inventory: 99999)
Description

ABB DO810 3BSE008510R1 is a high reliability digital output module launched by ABB Group, belonging to the I/O module family of AC 800M control system, designed for precise output of digital signals in industrial process control. As a key bridge connecting the process controller and on-site actuators, this module can convert the digital control instructions issued by the controller into electrical signals that can drive external devices, achieving start stop control or state switching of actuators such as valves, pumps, and indicator lights.


ABB DO810 3BSE008510R1 Digital Output Module

Core Overview

ABB DO810 3BSE008510R1 is a high reliability digital output module launched by ABB Group, belonging to the I/O module family of AC 800M control system, designed for precise output of digital signals in industrial process control. As a key bridge connecting the process controller and on-site actuators, this module can convert the digital control instructions issued by the controller into electrical signals that can drive external devices, achieving start stop control or state switching of actuators such as valves, pumps, and indicator lights.

This module adopts standardized modular design and can seamlessly adapt to ABB AC 800M series controllers and corresponding I/O racks. It has the characteristics of easy installation, flexible configuration, and strong anti-interference ability. Its stable output performance and comprehensive fault diagnosis function make it widely used in industrial fields such as petrochemicals, power metallurgy, water treatment, and intelligent manufacturing, providing solid signal output guarantee for precise control and stable operation of industrial processes.


Key characteristics

2.1 Multi channel high integration design

The ABB DO810 module adopts a highly integrated circuit design, with a single module equipped with 16 independent digital output channels, each of which can be independently configured and controlled. It can simultaneously drive multiple external actuators, effectively reducing the space occupied by I/O racks and lowering system hardware costs. Electrical isolation design is adopted between each channel, with an isolation voltage of up to 250V AC, avoiding signal interference between channels and ensuring the independence and stability of each output signal, especially suitable for complex industrial scenarios with multi device collaborative control.

2.2 Flexible output configuration and driving capability

This module supports a wide range of output voltages and load types, compatible with multiple power supply specifications such as 24V DC/48V DC/125V DC/230V AC, and can be flexibly selected according to the power requirements of on-site actuators. Each output channel has strong driving capability, with a maximum load current of 2A (resistive load), which can directly drive common industrial actuators such as small motors, solenoid valves, contactors, etc. without the need for additional power amplification modules, simplifying the system hardware architecture. Meanwhile, the module supports normally open (NO)/normally closed (NC) output mode configuration, adapting to different control logic requirements.

2.3 Comprehensive fault diagnosis and protection functions

To enhance the reliability and ease of operation of the system, the DO810 module is equipped with comprehensive fault diagnosis and hardware protection mechanisms:

-Channel level diagnosis: It can monitor the short circuit, overload, and disconnection faults of each output channel in real time. When abnormalities are detected, the fault information is immediately uploaded to the controller through the communication interface. At the same time, the module panel indicator lights synchronously feedback the fault status, making it easy for operation and maintenance personnel to quickly locate the faulty channel.

-Hardware protection: Each output channel is equipped with overcurrent protection and surge suppression circuits, which can effectively resist damage to the module caused by abnormal situations such as load short circuits and voltage surges, and extend the service life of the module.

-Power monitoring: Equipped with a built-in power status monitoring circuit, when the module's power supply voltage is abnormal (overvoltage, undervoltage), an alarm signal is promptly issued to ensure stable operation of the module.

2.4 High anti-interference and environmental adaptability

In response to the complex electromagnetic environment of industrial sites, the DO810 module has been specially optimized for anti-interference, complying with the IEC 61000-4 series electromagnetic compatibility standards. It has strong resistance to electromagnetic radiation (EMI) and electromagnetic sensitivity (EMS), and can withstand electromagnetic interference generated by motor start stop and frequency converter operation in industrial sites. In terms of environmental adaptability, the working temperature range of the module covers -25 ℃~70 ℃, and supports a working environment with a relative humidity of 5%~95% (no condensation). It can adapt to harsh working conditions such as high temperature, low temperature, and humidity, ensuring stable operation in various industrial sites.

2.5 Convenient Installation and Maintenance

The module adopts ABB standard I/O module packaging form, supporting rail and rack installation. The installation process is simple and efficient, and can quickly complete the assembly with AC 800M system. The module is equipped with clear panel indicator lights, including power indicator lights, module operation indicator lights, and output status indicator lights for each channel. Operation and maintenance personnel can intuitively judge the operation status of the module and each channel through the indicator lights. At the same time, the module supports online hot swapping function, which allows module replacement and maintenance to be completed without shutting down the system, greatly improving the system's operation and maintenance efficiency and reducing production interruption time.


Core technical parameters

Module Type

Digital Output Module (DO)

Number of output channels

16 independent channels

Output voltage range

24V DC/48V DC/125V DC/230V AC

Maximum load current per circuit

2A (resistive load), 1A (inductive load)

Channel isolation method

Electrical isolation between channels, isolation voltage 250V AC

output mode

Normally open (NO)/normally closed (NC) configurable

communication interface

Communicate with AC 800M controller through I/O bus

Diagnostic function

Diagnosis of short circuit, overload, disconnection, and abnormal power supply

power supply voltage

Unified power supply from I/O rack (usually 24V DC)

Operating Temperature

-25℃~70℃

relative humidity

5%~95%, no condensation

Installation method

Rail mounted/rack mounted (compatible with AC 800M I/O rack)

certification standard

IEC 61131-2, UL 508, ATEX Zone 2, etc


Typical application scenarios

4.1 Petrochemical Process Control

In refineries and chemical plants, the DO810 module can serve as the core connecting component between the controller and on-site actuators, enabling start stop control of equipment such as solenoid valves, regulating valves, and explosion-proof fans. For example, in the control system of a chemical reaction kettle, the module receives controller instructions, accurately outputs signals to control the on/off status and opening degree of the feed valve, and monitors the integrity of the valve control signal in real time through fault diagnosis function to ensure accurate material ratio in the reaction process and avoid production accidents caused by valve failures. Its explosion-proof certification and anti-interference performance can adapt to the flammable, explosive, and strong electromagnetic interference environment in chemical sites.

4.2 Power Production and Auxiliary Systems

In the auxiliary control systems of thermal power plants and hydropower stations, this module is widely used in coal conveying systems, ash removal systems, water treatment systems, and other links to control the operation of equipment such as belt conveyors, vibrating screens, sewage pumps, solenoid valves, etc. For example, in the coal conveying system of a thermal power plant, the DO810 module outputs signals to start or stop the conveying equipment in each link according to the interlocking control logic of the controller, achieving automated control of the coal conveying process; When a certain device experiences overload or short circuit faults, the module promptly feedbacks fault information, and the controller quickly executes shutdown protection instructions to ensure the safe operation of the coal transportation system.

4.3 Intelligent Manufacturing and Production Line Control

In intelligent manufacturing production lines such as automobile manufacturing and electronic component production, the DO810 module is used to control the actions and status display of equipment such as conveyor belts, robotic arms, clamping devices, and indicator lights on the assembly line. For example, on an electronic component assembly line, modules receive instructions from PLC controllers to accurately control the grasping, movement, placement, and other actions of the robotic arm. At the same time, they control the on/off of the workstation indicator light through output signals to indicate the current working status of the operator's workstation. Its multi-channel design and fast response capability can meet the high cycle and high-precision control requirements of the production line.

4.4 Water Treatment and Environmental Protection Engineering

In the control systems of sewage treatment plants and water treatment plants, the DO810 module is used to control the operation of equipment such as dosing pumps, aeration fans, drainage pumps, and grid cleaning machines. For example, in the aeration process of sewage treatment, the module outputs signals to adjust the start stop or speed of the aeration fan (in conjunction with a frequency converter) based on the dissolved oxygen concentration control instructions issued by the controller, ensuring that the dissolved oxygen content in the reaction tank is maintained within a reasonable range; When the dosing pump experiences an overload fault, the module promptly diagnoses and reports it to avoid affecting the sewage treatment effect due to dosing interruption. Its wide environmental adaptability can cope with the humid and corrosive gas environment of water treatment sites.


Precautions for use

-Before installing the module, it is necessary to confirm the power supply voltage of the I/O rack and the compatibility of the module, ensure that the rack is well grounded (grounding resistance ≤ 4 Ω), and avoid static electricity and electromagnetic interference affecting module performance.

-When wiring, it is necessary to strictly distinguish between the output terminals and power terminals of each channel, and select the corresponding output voltage level according to the power specifications of the on-site actuator to avoid module or actuator damage caused by incorrect voltage connections; It is recommended to use shielded cables for wiring, with one end of the shielding layer grounded to enhance anti-interference ability.

-When configuring the module, it is necessary to use ABB Control Builder M software to set appropriate output modes and fault diagnosis parameters based on the actuator type (resistive, inductive), ensuring that the module matches the actuator and improving the accuracy of fault diagnosis.

-For inductive loads such as motors and solenoid valves, it is recommended to parallel freewheeling diodes at both ends of the load to absorb the reverse electromotive force generated when the load is powered off and protect the module output circuit.

-In daily operation and maintenance, it is necessary to regularly check the status of the module panel indicator lights, and view the operating status and fault logs of the module and each channel through the control system monitoring software; Regularly clean the dust on the surface of the module to ensure good heat dissipation and avoid high temperature environments affecting the module's lifespan.

-When performing module hot plugging operations, it is necessary to first confirm that the system supports hot plugging function, and avoid touching the metal pins of the module during the operation to prevent short circuits; After replacing the module, it is necessary to reconfigure and calibrate the parameters to ensure that the module works properly.
