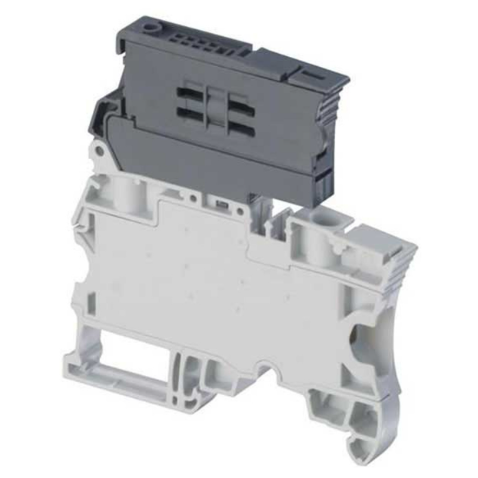

ABB E-UK terminal fixing components

ABB E-UK terminal fixing components

Core positioning and design philosophy of the product

The ABB E-UK terminal fixing component is a specialized accessory for the UK series wiring terminals. Its core function is to firmly fix the terminal module on the installation guide rail (such as TH35 standard guide rail), preventing the terminal from displacement and loosening due to vibration, external collision, or wire tension during transportation, installation, and long-term operation, thereby avoiding safety hazards such as poor contact, circuit interruption, and even short circuit.

The product design follows the concept of "user centeredness", adopting a modular structure and standardized dimensions, which ensures perfect compatibility with ABB UK series terminals and is also compatible with similar terminals that meet standards in the market. At the same time, it simplifies the installation and maintenance process, greatly improving the efficiency and standardization of electrical cabinet wiring.

Core advantages

As a key supporting component of the connection system, ABB E-UK terminal fittings demonstrate multiple advantages in performance and user experience, accurately matching the demanding requirements of industrial scenarios.

1. Super strong fixing performance ensures reliable connection

The product is made of high-strength flame-retardant engineering plastic (PA66), which not only has excellent mechanical strength and can effectively resist external impact and long-term stress deformation, but also has good high temperature and aging resistance. It can work stably in a wide temperature environment from -40 ℃ to 100 ℃ and is suitable for industrial sites with alternating high and low temperatures. The internal design of the fixed parts has a precise buckle structure that tightly engages with the TH35 guide rail, and there is no loose gap after installation. Even on high vibration equipment such as machine tools and fans, the terminal position can be kept stable, fundamentally ensuring the continuity of the circuit connection.

2. Standardized design, efficient installation and maintenance

E-UK fasteners strictly follow international electrical standards, with precise and uniform dimensions, and can be installed without the need for additional tools - simply clip the fasteners into the designated position on the guide rail, and then push the terminal module into the positioning slot of the fasteners to achieve quick terminal fixation; When disassembling, the terminal can be easily removed by gently tapping the dedicated unlocking buckle, greatly simplifying the wiring debugging and post maintenance process. In addition, its modular design supports flexible addition, subtraction, and position adjustment of terminals, meeting the needs of different circuit layouts and enhancing the flexibility of electrical cabinet design.

3. Comprehensive security protection, adapted to harsh environments

In addition to its mechanical performance advantages, E-UK fasteners also have excellent electrical insulation performance, with insulation resistance greater than 100M Ω and a withstand voltage of up to 2500V, effectively avoiding safety risks such as leakage and creepage. At the same time, PA66 material meets the UL94 V-0 flame retardant standard, which can quickly self extinguish in case of fire, preventing the spread of fire and providing additional safety protection for electrical systems. Whether it is a damp and dusty industrial workshop or inside a precision control cabinet, this fixture can function stably.

4. Brand quality assurance, long service life

ABB's quality control of products runs through the entire production process, from raw material screening to finished product testing. Each process is strictly monitored to ensure that the service life of E-UK fasteners matches that of terminal modules, reducing maintenance costs caused by accessory damage. Its stable performance and reliable quality have been validated in numerous industrial projects worldwide, winning widespread trust from users.

Applicable scenarios

With its wide adaptability and stable performance, ABB E-UK terminal fittings are widely used in various electrical connection scenarios, especially in fields that require high connection reliability, including:

-In the field of industrial automation, such as PLC control cabinets, frequency converter wiring, sensor and actuator connections, etc., provide basic guarantees for the stable operation of automation equipment;

-Power distribution system: Terminal fixation in low-voltage distribution cabinets and distribution boxes, suitable for power distribution in commercial buildings, industrial plants, data centers and other places;

-In the field of rail transit, the terminals of train electrical cabinets and signal control systems are fixed to adapt to the vibration and temperature and humidity changes of rail transit scenes;

-In the field of new energy, the terminal connections of photovoltaic inverters and energy storage systems are fixed to meet the stringent requirements for long-term outdoor operation of new energy equipment;

-Mechanical equipment manufacturing: internal wiring of industrial equipment such as machine tools, printing equipment, packaging machinery, etc., to enhance the reliability of equipment electrical systems.

Key technical parameters

Compatible terminal series

ABB UK series terminals and similar terminals that comply with standards

Adapt to rail types

TH35 standard guide rail (width 35mm)

material

PA66 engineering plastic (flame retardant grade UL94 V-0)

Working temperature range

-40℃ ~ 100℃

insulation resistance

≥100MΩ（DC 500V）

Withstand Voltage

2500V AC， 1 minute without breakdown

mechanical life

≥ 500 insertions and removals

Installation and usage precautions

To ensure optimal performance of E-UK terminal fasteners, the following points should be noted during installation and use:

1. Before installation, it is necessary to confirm that the guide rail model is TH35 standard guide rail, and that the guide rail is installed smoothly and without deformation to avoid loose clamping of the fixing parts due to guide rail problems;

2. The fixing components should be installed at both ends and in the middle of the terminal block (it is recommended to add one fixing component for every 10 terminals) to ensure uniform force distribution throughout the terminal block;

3. When pushing in the terminal module, it is necessary to confirm that it is fully inserted into the positioning slot of the fixing part. After hearing a "click" sound, it is considered to be installed in place;

When disassembling the terminal, it is necessary to use a special tool to gently press and unlock the buckle to avoid violent pulling that may damage the fixing parts or terminals;

5. The usage environment should avoid long-term exposure to highly corrosive gases or liquids to prevent material aging from affecting performance.
