  • Alstom ESVI1 INPUT/OUTPUT BOARD FOR CURRENT AND VOLTAGE SIGNALS
    ❤ Add to collection
  • Alstom ESVI1 INPUT/OUTPUT BOARD FOR CURRENT AND VOLTAGE SIGNALS

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The Alstom ESVI1 current and voltage signal input/output board is a high-performance signal conversion and conditioning module designed by Alstom specifically for industrial automation control systems, rail transit traction systems, and power equipment monitoring systems. The core responsibility of this product is to achieve precise acquisition, isolation and conditioning, standardized conversion, and stable output of current and voltage signals in industrial sites, and to build a reliable signal transmission bridge between sensors/actuators and core control units. Integrating high-precision signal isolation, anti-interference conditioning, and multi-channel signal processing functions, it has core advantages such as precise signal transmission, reliable isolation protection, and strong environmental adaptability. It can provide stable current and voltage signal interaction guarantee for the system in complex industrial working conditions. It is a key signal switching component in Alstom series automation equipment and large-scale industrial control systems.

    • ¥21262.00
      ¥23844.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.280KG
    • Quantity:
    • (Inventory: 99999)
Description

The Alstom ESVI1 current and voltage signal input/output board is a high-performance signal conversion and conditioning module designed by Alstom specifically for industrial automation control systems, rail transit traction systems, and power equipment monitoring systems. The core responsibility of this product is to achieve precise acquisition, isolation and conditioning, standardized conversion, and stable output of current and voltage signals in industrial sites, and to build a reliable signal transmission bridge between sensors/actuators and core control units. Integrating high-precision signal isolation, anti-interference conditioning, and multi-channel signal processing functions, it has core advantages such as precise signal transmission, reliable isolation protection, and strong environmental adaptability. It can provide stable current and voltage signal interaction guarantee for the system in complex industrial working conditions. It is a key signal switching component in Alstom series automation equipment and large-scale industrial control systems.

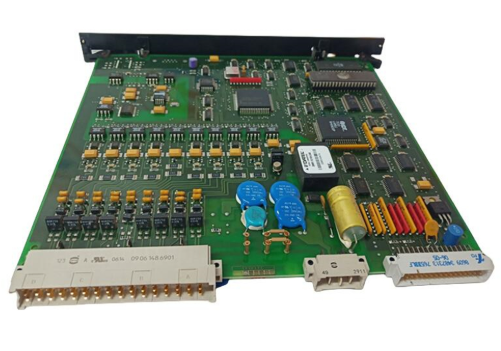

Alstom ESVI1 INPUT/OUTPUT BOARD FOR CURRENT AND VOLTAGE SIGNALS

Product Overview

The Alstom ESVI1 current and voltage signal input/output board is a high-performance signal conversion and conditioning module designed by Alstom specifically for industrial automation control systems, rail transit traction systems, and power equipment monitoring systems. The core responsibility of this product is to achieve precise acquisition, isolation and conditioning, standardized conversion, and stable output of current and voltage signals in industrial sites, and to build a reliable signal transmission bridge between sensors/actuators and core control units. Integrating high-precision signal isolation, anti-interference conditioning, and multi-channel signal processing functions, it has core advantages such as precise signal transmission, reliable isolation protection, and strong environmental adaptability. It can provide stable current and voltage signal interaction guarantee for the system in complex industrial working conditions. It is a key signal switching component in Alstom series automation equipment and large-scale industrial control systems.

As the core carrier of industrial grade current and voltage signal interaction, the ESVI1 signal input/output board strictly follows international industrial electrical standards and Alstom's strict quality control specifications. It is suitable for harsh operating environments such as high and low temperatures and strong electromagnetic interference, and is widely used in fields such as power plants, rail transit, and industrial manufacturing that require high accuracy and reliability in current and voltage signal transmission. It provides core signal support for precise monitoring and stable control of the system.

Core functions

1. Accurate acquisition of multi-channel current and voltage signals

Integrated multi-channel independent current and voltage acquisition interfaces can accurately collect various current signals (such as 4~20mA, 0~1A, 0~5A) and voltage signals (such as 0~10V, ± 10V, 0~220V AC) in industrial sites. Equipped with high-precision sampling circuit, it has high sampling accuracy and fast response speed, and can capture the dynamic changes of current and voltage signals in real time, providing real and accurate raw signal data for the core control unit, ensuring the accuracy of system monitoring and control.

2. Signal isolation conditioning and anti-interference protection

Built in high-performance optoelectronic or magnetic isolation modules achieve full isolation design between input, output, and power supply. The isolation voltage is high, which can effectively block common mode interference, differential mode interference, and signal distortion caused by potential difference in industrial sites. Equipped with professional signal filtering circuits, it can further suppress interference signals such as electromagnetic radiation and voltage surges, ensuring the stability and integrity of signal transmission.

3. Standardized signal conversion and flexible output

The collected non-standard current and voltage signals can be accurately converted into standardized signals compatible with the core control unit (such as 4-20mA current signals, 0-10V voltage signals), supporting flexible configuration of signal range. Equipped with multiple types of output interfaces, it can achieve stable output of current or voltage signals according to downstream device requirements, adapt to the signal reception needs of different control modules, and improve system compatibility.

4. Full link signal monitoring and fault alarm

Equipped with full link signal monitoring function, it can detect input signal exceeding range, signal loss, signal distortion, and abnormal operation of the board itself (such as overheating, overvoltage, circuit faults, etc.) in real time. When an abnormality occurs, it can quickly trigger a fault alarm signal and feedback it to the main control unit, while executing corresponding signal locking or protection actions to avoid the fault signal affecting the normal operation of the system and ensure the safety of equipment and the system.

5. Industrial grade stable design and convenient adaptation

Adopting industrial grade reinforced design, it has a wide temperature working range and high protection level, and can operate stably for a long time in harsh industrial environments. Support standardized installation methods and convenient terminal connections, adapt to different specifications of wires, facilitate on-site installation, debugging, and later maintenance; At the same time, reserved configuration interfaces can be used to flexibly adjust signal acquisition range, output type and other parameters according to on-site working conditions, improving scene adaptability.


Key technical parameters

Product Model

Alstom ESVI1

Product Type

Industrial grade current and voltage signal input/output board (signal conversion and conditioning module)

input channel

Current input: 8 channels (supporting 4~20mA, 0~1A, 0~5A); Voltage input: 8 channels (supporting 0~10V, ± 10V, 0~220V AC)

output channel

Current output: 6 channels (4~20mA, load resistance ≤ 500 Ω); Voltage output: 6 channels (0~10V, output impedance ≤ 10 Ω)

sampling precision

Current signal: ≤± 0.1% F.S; Voltage signal: ≤± 0.1% F.S

Isolation level

Isolation between input/output/power supply, isolation voltage ≥ 2500V AC (1min)

response time

≤ 1ms (stable signal from input to output)

power supply parameters

DC 24V (typical value), operating voltage range: DC 18~32V; Rated power consumption ≤ 6W

Working temperature range

-30 ℃~+70 ℃ (no condensation, no freezing)

Storage temperature range

-40 ℃~+85 ℃ (no condensation, no freezing)

relative humidity

≤ 95% (non condensing)

Protection level

IP20 (terminal section); IP30 (main body of the board)

Electromagnetic compatibility standards

Compliant with DIN EN 61000-6-4 (emission) and DIN EN 61000-6-2 (immunity) standards

Installation method

DIN rail installation (compliant with IEC 60715 standard)

connection method

Screw terminal connection, compatible with wire specifications: 0.2~2.5mm ² (rigid/flexible)

Dimensions (length x width x height)

Approximately 110mm × 90mm × 45mm (excluding terminals and installation components)


Product advantages

-Accurate signal transmission and high sampling accuracy: Equipped with high-precision sampling and conditioning circuits, the sampling accuracy of current and voltage signals is within ± 0.1% F.S, with fast response speed and the ability to accurately capture dynamic changes in signals, ensuring the authenticity and accuracy of signal transmission.

-Fully isolated design, strong anti-interference ability: input, output, and power supply are fully isolated layout, with an isolation voltage of up to 2500V AC. Combined with professional filtering circuits, it can effectively suppress complex interference in industrial sites and ensure stable signal transmission.

-Flexible channel configuration and wide adaptability: supports input and output of various specifications of current and voltage signals, flexible range configuration, adapts to different types of sensors, actuators, and control units, and is compatible with diverse industrial scene requirements.

-Safe and reliable, timely fault warning: equipped with full chain signal monitoring and fault alarm functions, it can quickly identify abnormal working conditions and trigger protection actions, avoid the expansion of faults, and ensure the safe operation of the system.

-Industrial grade stability, convenient operation and maintenance: wide temperature working range, high protection level, suitable for harsh industrial environments; Standardized installation and terminal connection design facilitate on-site installation, debugging, and later maintenance, reducing operation and maintenance costs.


Application scenarios

The Alstom ESVI1 current and voltage signal input/output board, as an industrial grade core signal conversion component, is widely used in fields that require strict reliability of current and voltage signal interaction due to its high-precision signal transmission capability and stable operating performance. Typical scenarios include:

1. Power industry: current and voltage monitoring system for power plant generator sets, signal conversion for substation distribution equipment, power signal acquisition and transmission for new energy power stations (photovoltaic/wind power);

2. In the field of rail transit: current and voltage signal conversion of traction converters for subways and high-speed trains, transmission of pressure signals (current type) for braking systems, and signal monitoring for on-board power supply systems;

3. Industrial automation: current and voltage monitoring of production line transmission equipment in metallurgy, chemical industry, cement and other industries, power signal conditioning of precision instruments, and interaction of frequency converter current and voltage signals;

4. Intelligent manufacturing: signal acquisition for energy consumption monitoring system of intelligent factory equipment, monitoring of power parameters during production process, power signal conversion and protection for industrial robots;

5. Other industrial scenarios: large industrial pump/fan current monitoring system, special equipment (lifting equipment, elevators) voltage signal acquisition, industrial measurement and control instrument signal conversion module.
