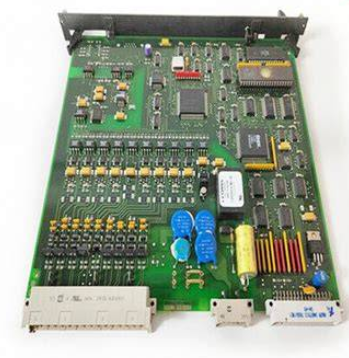

Alstom CPRM1 SINGLE-PHASE POWER REGULATION BOARD

Alstom CPRM1 SINGLE-PHASE POWER REGULATION BOARD

Product Overview

The Alstom CPRM1 single-phase power regulation board is a high-performance power regulation module designed by Alstom specifically for industrial automation control systems, rail transit auxiliary power supply systems, and precision power control equipment. This product is based on advanced power semiconductor devices, integrating precise phase control, real-time power monitoring, and comprehensive safety protection functions. Its core responsibility is to achieve precise regulation of voltage, current, and power of single-phase AC power supply, providing stable and controllable power supply for loads. Having core advantages such as high adjustment accuracy, fast response speed, strong anti-interference ability, and stable and reliable operation, it can accurately match the power requirements of different loads in complex industrial conditions. It is a key power regulation component in Alstom series power control equipment and large-scale industrial automation systems.

As the core carrier of industrial grade single-phase power control, the CPRM1 single-phase power regulation board strictly follows international industrial electrical standards and Alstom's strict quality control specifications. It is suitable for harsh operating environments such as high and low temperatures and strong electromagnetic interference, and is widely used in fields such as rail transit, industrial manufacturing, and precision instrument power supply that require high power regulation accuracy and reliability. It provides core power support for the efficient and energy-saving operation of the system and load stability control.

Core functions

1. High precision single-phase power regulation

By adopting advanced phase control technology and accurately adjusting the conduction angle of power semiconductor devices, continuous smooth adjustment of single-phase AC voltage within the range of 0-100% is achieved, thereby achieving precise power control. Supports multiple standard control signal inputs such as 4-20mA, 0-5V, 0-10V, etc., with an adjustment accuracy of ≤± 1% F.S, which can accurately match the power adjustment requirements of different loads, ensuring the stability and consistency of load operation.

2. Multi mode control and flexible adaptation

Supports multiple working modes such as phase adjustment, constant voltage control, constant current control, and constant power control, which can be flexibly switched through dip switches or upper system commands. Adapt to various load types such as resistive, inductive, capacitive, etc., automatically optimize adjustment algorithms for different load characteristics, ensure stable and efficient power regulation under various load conditions, and improve scene adaptability.

3. Full link monitoring and multiple security protections

Equipped with real-time monitoring of full chain parameters such as power, voltage, current, temperature, etc., it can accurately capture changes in operating status. Built in multiple protection mechanisms such as overcurrent, overvoltage, undervoltage, overtemperature, phase loss, and load short circuit. When abnormal working conditions are detected, the power output can be quickly cut off or an alarm signal can be triggered, maximizing the protection of the board and upstream and downstream equipment safety and reducing fault losses.

4. Strong anti-interference and isolation protection design

The control signal and main circuit adopt high-performance optoelectronic isolation design, with an isolation voltage of ≥ 2500V AC, effectively blocking electromagnetic interference and potential difference between the main circuit and the control circuit. Equipped with professional EMI filtering circuits, it has excellent electromagnetic compatibility performance, which can effectively suppress electromagnetic radiation and conducted interference in industrial sites, ensuring the stability of power regulation and the integrity of control signals.

5. Industrial grade stable design and convenient operation and maintenance

Adopting industrial grade reinforced design, integrating efficient heat dissipation structure, adapting to a wide temperature working range, and capable of long-term stable operation in harsh industrial environments. Support standardized DIN rail installation and screw terminal connection, with simple wiring and convenient installation; Equipped with status indicator lights, it can intuitively display the operating status and fault types, making it easy for on-site operation and maintenance personnel to quickly troubleshoot problems and reduce operation and maintenance costs.

Key technical parameters

Product Model

Alstom CPRM1

Product Type

Industrial grade single-phase power regulation board (phase control type)

input power

Single phase AC 220V/380V (optional), frequency 50/60Hz

Rated output current

40A/60A/80A (optional, continuous operation)

adjustment range

Voltage regulation: 0-100% rated input voltage; Power regulation: 0~100% rated output power

adjustment accuracy

≤±1% F.S

Control signal input

Supports 4~20mA/0~5V DC/0~10V DC (photoelectric isolation)

response time

≤ 5ms (control signal changes to output stability)

Isolation level

Isolation voltage between control end and power end ≥ 2500V AC (1min)

Working temperature range

-30 ℃~+70 ℃ (no condensation, no freezing)

Storage temperature range

-40 ℃~+85 ℃ (no condensation, no freezing)

relative humidity

≤ 95% (non condensing)

Protection level

IP20 (terminal section); IP30 (main body of the board)

Electromagnetic compatibility standards

Compliant with DIN EN 61000-6-4 (emission) and DIN EN 61000-6-2 (immunity) standards

Installation method

DIN rail installation (compliant with IEC 60715 standard)

connection method

Screw terminal connection, compatible with wire specifications: 1.5~4mm ² (rigid/flexible)

Dimensions (length x width x height)

Approximately 112mm × 100mm × 51mm (excluding terminals and installation components)

Application scenarios

-Accurate adjustment and rapid response: Advanced phase control technology is adopted, with an adjustment accuracy of up to ± 1% F.S and a response time of ≤ 5ms. It can achieve smooth and continuous adjustment of voltage and power, accurately matching the dynamic requirements of the load.

The Alstom CPRM1 single-phase power regulation board, as an industrial grade core power control component, is widely used in fields with strict requirements for power control accuracy and reliability due to its high-precision regulation capability and stable operating performance. Typical scenarios include:

-Multiple protection, safe and reliable: integrating full link parameter monitoring and multiple security protection mechanisms, it can quickly identify and respond to abnormal working conditions such as overcurrent, overtemperature, overvoltage, etc., comprehensively ensuring the safe operation of equipment and systems.

-Flexible mode and wide adaptability: Supports multiple control modes and load types, can be flexibly configured to adapt to different application scenarios, compatible with various loads such as resistive, inductive, capacitive, etc., with a wide range of applications.

-Industrial grade design, convenient operation and maintenance: wide temperature range and efficient heat dissipation design suitable for harsh industrial environments; Standardized installation and intuitive status indication simplify on-site installation, debugging, and later operation and maintenance processes, reducing operation and maintenance costs.

-Strong anti-interference ability and stable operation: The control end and power end are designed with high isolation, combined with professional EMI filtering circuits, effectively resisting complex electromagnetic interference in industrial sites and ensuring stable and reliable regulation performance.
