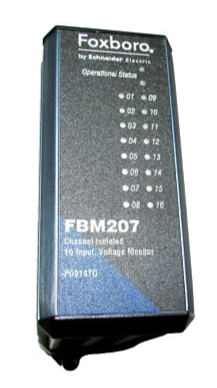

FOXBORO FBM207 P0914TD Voltage Monitor

FOXBORO FBM207 P0914TD Voltage Monitor

Product Overview

The FOXBORO FBM207 P0914TD voltage monitor is a core module in the Foxboro I/A Series distributed control system (DCS) that focuses on voltage parameter monitoring and safety warning. P0914TD is its core hardware identifier. This device is designed with high-precision voltage acquisition and real-time abnormal warning as its core functions, specifically for monitoring the voltage status of various power systems, equipment power supply circuits, and key signal circuits in industrial sites. It is an important safeguard component to ensure the stable power supply of industrial control systems and the safe operation of equipment.

The module adopts industrial grade chips and reinforced circuit design, with wide range voltage adaptation capability, which can accurately monitor DC and AC voltage signals, and integrate multi-level alarm mechanism and fault diagnosis function. It can work continuously and stably in high-temperature and high electromagnetic interference environments in industries such as petrochemicals, power, and metallurgy. Through seamless linkage with the I/A Series system, it can achieve real-time uploading of voltage data, abnormal alarms, and linkage control triggers, providing full time guarantee for electrical safety in the production process.

Specification parameters

core functionality

Multi channel voltage signal acquisition, real-time monitoring, threshold alarm, fault diagnosis, data uploading

Input channel specifications

Number of channels: 8/16 channels available for selection; Signal type: DC/AC compatible; Voltage range: DC 0-1000V, AC 0-690V (multi range configurable)

Measurement performance

Accuracy level: ± 0.05% FS; Resolution: 16 bits; Sampling rate: 100Hz/channel; Response time: ≤ 1ms; Input impedance: ≥ 10M Ω (DC), ≥ 1M Ω (AC)

alarm function

Support four levels of alarms: upper limit, lower limit, upper limit, and lower limit; The alarm threshold can be configured through software; Alarm output: dry contact signal (2 channels), system bus signal

communication interface

Compatible with Foxboro I/A Series backplane bus; Support Modbus RTU protocol; Communication speed: adjustable from 1200bps to 115200bps; Interface type: Terminal block/RS485

working power supply

Power supply mode: system bus power supply+independent redundant power supply; Voltage range: 24VDC ± 15%, 110/220V AC ± 10%; Maximum power consumption: ≤ 12W (16 full loads)

environmental parameters

Working temperature: -20 ℃ -70 ℃; Storage temperature: -40 ℃ -85 ℃; Relative humidity: 5% -95% (no condensation); Protection level: IP20 (module), IP65 (with protective casing)

Physics and Authentication

Dimensions: 160mm (width) x 100mm (height) x 220mm (depth); Installation method: I/A Series standard rack card mounting; Certification: UL 61010-1, IEC 61326-1, ATEX Zone 2

Performance characteristics

-High precision and high stability measurement: using a 16 bit high-precision AD conversion chip and temperature compensation technology, maintaining a measurement accuracy of ± 0.05% FS over a wide temperature range, avoiding the influence of environmental temperature changes on measurement results; The 100Hz high sampling rate can accurately capture the details of voltage fluctuations, making it suitable for scenarios such as power systems that require extremely high voltage stability.

-Comprehensive voltage protection mechanism: supports four level alarm threshold customization. When the monitored voltage exceeds the set range, it can quickly trigger local sound and light alarms and system alarms. At the same time, emergency protection devices (such as circuit breakers) are linked through dry contact outputs to prevent damage to load equipment caused by overvoltage/undervoltage.

-Strong anti-interference and electrical isolation design: Each input channel independently adopts photoelectric isolation and surge protection circuits, with an isolation voltage of ≥ 2500VAC, which can effectively resist electromagnetic interference and voltage surges in industrial sites; The communication channel has built-in harmonic filtering function, which can filter out the impact of power grid harmonics on measurement accuracy.

-Deep system integration and redundancy guarantee: specially designed for Foxboro I/A Series DCS, it can seamlessly communicate with system controllers and HMI through backplane bus, support real-time uploading of voltage data and linkage display of alarm information; Equipped with independent redundant power supply interfaces to avoid monitoring interruptions caused by a single power failure.

-Convenient configuration and maintenance: supports online configuration of channel range, alarm threshold, and data sampling period through Control Builder configuration software, and parameter modification can be completed without stopping the machine; The module panel is equipped with channel status and alarm indicator lights, combined with system diagnostic functions, which can quickly locate the fault point.

Working principle

The FOXBORO FBM207 P0914TD voltage monitor uses the core workflow of "signal acquisition signal processing data calculation alarm output data upload" to achieve full process monitoring of industrial voltage signals. The specific mechanism is as follows:

1. Voltage signal access and conditioning: The voltage signal of the industrial field power supply circuit or equipment power supply is connected to the corresponding channel of the module through a dedicated voltage transformer (AC) or voltage divider circuit (DC), and is subjected to voltage reduction and filtering processing by the signal conditioning circuit. The high voltage signal is converted into a standard weak signal (0-5V) that the module can handle, while removing high-frequency interference and spike pulses.

2. Signal conversion and data operation: The conditioned standard signal is sent to a 16 bit AD conversion chip to convert the analog voltage signal into a digital signal; The core microprocessor performs real-time operations on digital signals, calculates the actual voltage value based on the preset range parameters of the channel, and compares it with the configured alarm threshold for judgment.

3. Alarm judgment and output control: When the calculated actual voltage value exceeds the set alarm threshold, the microprocessor immediately triggers the alarm logic, and the alarm indicator light on the drive module panel lights up. At the same time, it controls the dry contact output module to send control signals to the on-site protection equipment to achieve emergency power-off or voltage regulation operations; If the voltage returns to normal, the system will automatically reset the alarm state.

4. Data communication and status feedback: The microprocessor uploads real-time voltage data, alarm status, and module's own working status (power, communication) to the I/A Series system controller through the backplane bus, which synchronizes with the HMI for display and data storage; Simultaneously receiving configuration parameters and control instructions issued by the system, achieving remote parameter modification and status query.
