GE WES5120 5120-1506 High Performance Field Controller

GE WES5120 5120-1506 High Performance Field Controller

Product Overview

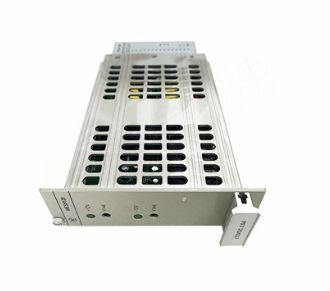

The GE WES5120 5120-1506 high-performance field controller is a core control device launched by General Electric (GE) for the industrial automation field, designed for real-time data processing, precise control execution, and reliable communication interaction in complex industrial scenarios. This controller integrates GE's years of technical accumulation in the field of industrial control, and can adapt to the on-site control needs of multiple industries such as power, metallurgy, chemical, and intelligent manufacturing. As a key node connecting on-site equipment with upper level management systems, it achieves efficient control of the entire process from equipment level data acquisition to control instruction issuance, providing solid support for the stability, safety, and intelligent upgrading of industrial production.

Core advantages

1. Super powerful computing performance to meet complex control requirements

This controller is equipped with a high-performance embedded processor, which has excellent parallel computing capabilities and can simultaneously handle multiple real-time control tasks. Whether it is PID regulation in continuous process control, logical judgment in discrete control, or multivariable coupling control in complex processes, millisecond level response can be achieved, effectively avoiding production fluctuations caused by control delays. Its built-in dedicated computing unit has also been hardware optimized for industrial control algorithms, providing more efficient support for advanced control algorithms such as fuzzy control and predictive control, and meeting the strict requirements for control accuracy in high-precision production processes.

2. High reliability design, suitable for harsh industrial environments

Considering the complex environment of industrial sites, WES5120 5120-1506 adopts a high-level hardware protection design. The device supports a wide temperature operating range and can operate stably in extreme temperature environments ranging from -40 ℃ to 70 ℃. It also has strong resistance to electromagnetic interference and can withstand common interference factors such as electromagnetic radiation and voltage fluctuations in industrial sites. In terms of structural design, a dust-proof and vibration proof sealed shell is adopted, with a protection level of IP30 or above. It can be directly installed in the on-site control cabinet near the equipment, reducing attenuation and interference caused by signal transmission distance and improving the overall reliability of the system.

3. Rich interface configuration to achieve flexible interconnection

The controller is equipped with rich built-in interfaces and expandable modules, catering to the communication needs of both traditional industrial buses and modern industrial Ethernet. It comes standard with multiple RS485/RS232 serial interfaces and supports mainstream serial communication protocols such as Modbus RTU, allowing direct connection to field devices such as sensors, actuators, and instruments; Simultaneously integrating industrial Ethernet interfaces such as EtherNet/IP, Profinet, Modbus TCP, etc., it can seamlessly connect to the factory automation network and achieve data exchange with PLC, SCADA system, MES system, and cloud platform. In addition, by expanding the module, the number of analog and digital I/O points or special communication interfaces can be increased to adapt to the device access requirements of different scenarios.

4. Convenient configuration and operation, reducing usage costs

Equipped with GE's dedicated industrial control configuration software, WES5120 5120-1506 provides a graphical programming interface and rich functional libraries, supporting various programming methods such as ladder diagrams, functional block diagrams, structured text, etc. Engineers can quickly complete control logic development according to their habits. The software has built-in functions such as fault diagnosis, online monitoring, and data logging, which can monitor the real-time operation status of the controller, I/O point signals, and control parameters. When abnormalities occur, it can promptly issue an alarm and locate the fault point, greatly reducing the time for troubleshooting. At the same time, it supports remote configuration and firmware upgrades, without the need for on-site shutdown operations, reducing operation and maintenance costs and production interruption risks.

5. Security protection mechanism to ensure the security of production data

In response to industrial network security threats, the controller has multiple built-in security protection functions. By supporting hierarchical management of user permissions, precise control of access permissions for different operators can be achieved to prevent unauthorized operations; At the communication level, support data encryption transmission and access authentication mechanisms to prevent control instructions from being tampered with or production data from being stolen. In addition, its fault safety output function can automatically switch the output point to a preset safety state in the event of hardware failure or communication interruption of the controller, such as closing the motor, cutting off the valve, etc., to prevent safety accidents from occurring.

Key technical parameters

processor

High performance 32-bit embedded processor with a clock speed of ≥ 1GHz

Memory configuration

RAM≥512MB，Flash≥2GB， Support SD card expansion

I/O interface (standard)

Digital input: 16 points; Digital output: 16 points (relay/transistor optional); Analog input: 8 points (4-20mA/0-10V); Analog output: 4-point (4-20mA/0-10V)

communication interface

Industrial Ethernet: 2 Gigabit Ethernet ports (supporting EtherNet/IP, Profinet, etc.); Serial interface: 4 RS485/RS232 interfaces

working environment

Temperature: -40 ℃~70 ℃; Humidity: 5%~95% (no condensation); Protection level: IP30

Power requirements

DC 24V ± 20%, supporting redundant power input

Control cycle

Minimum control cycle ≤ 1ms

certification standard

Compliant with industrial standards such as IEC 61131-2 and UL 508

Typical application scenarios

1. Process industry control: used in production lines of chemical, petroleum, pharmaceutical and other industries for real-time monitoring and closed-loop control of key process parameters such as temperature, pressure, flow rate, liquid level, etc., to ensure that the production process is stable within the process requirements and improve product quality consistency.

2. Intelligent manufacturing production line: In automated production lines such as automotive parts manufacturing and electronic component assembly, as a distributed control node, it realizes collaborative control of robots, conveyors, sorting equipment, etc., completes tasks such as process connection and cycle control, and improves production efficiency of the production line.

3. Power system operation and maintenance: In scenarios such as substations and distribution rooms, it is used for monitoring the operation status of power equipment, load regulation, fault alarms, etc., to ensure the stability and safety of power supply, and to cooperate with the upper level energy management system to achieve energy-saving optimization.

4. Metallurgical steel production: In the sintering, ironmaking, steelmaking and other processes of the steel plant, it can withstand harsh environments such as high temperature and high dust, achieve precise control of smelting equipment and adjustment of process parameters, and improve smelting efficiency and product qualification rate.
