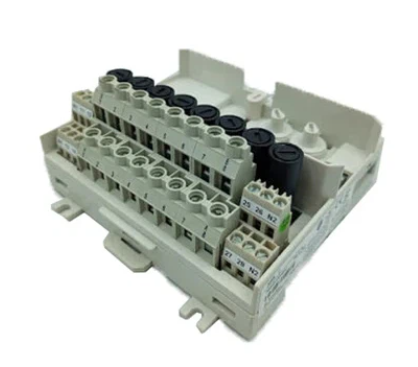

ABB GRBTU-01 3BSE01317R1 DC motor inverter module

ABB GRBTU-01 3BSE01317R1 DC motor inverter module

Product positioning and core values

GRBTU-01 3BSE01317R1 is a DC motor inverter module based on IGBT (Insulated Gate Bipolar Transistor) technology, belonging to the power unit family of ABB ACS series transmission products. Its core positioning is as the power conversion core of the DC transmission system, efficiently converting AC input electrical energy into adjustable DC electrical energy, providing stable and accurate armature power supply and excitation control for the DC motor, and receiving instructions from the upper level controller to achieve closed-loop control of motor speed, torque, and steering.

The core value of this product is reflected in three dimensions: firstly, it achieves efficient conversion of electrical energy through advanced IGBT driving technology and pulse width modulation (PWM) algorithm, with a conversion efficiency of over 98%, significantly reducing energy loss; Secondly, it is equipped with multiple precision protection mechanisms to resist real-time risks of overcurrent, overvoltage, overheating and other faults, ensuring the safe operation of the motor and module itself; The third is to adopt standardized modular design, which not only simplifies the integration and maintenance process of the transmission system, but also seamlessly integrates with control systems such as ABB AC800M and DCS, improving the overall control performance and scalability of the system.

Core technical functions

The GRBTU-01 inverter module integrates ABB's mature technologies in power electronics, motor control, and industrial reliability design. The functional design closely meets the core requirements of industrial transmission, and the core technical functions are as follows:

1. Efficient energy conversion and precise speed control

The module adopts a three-phase bridge rectifier+PWM inverter topology structure. The input side collects AC power grid parameters in real time through high-precision current and voltage detection units. After rectification and filtering by IGBT power bridge arms, stable DC bus voltage is output; The inverter side uses advanced space vector PWM (SVPWM) algorithm to accurately adjust the amplitude and ripple of the output DC voltage, achieving continuous adjustable armature voltage of the DC motor and precise control of motor speed and torque. The speed control accuracy can reach ± 0.1% of the rated speed, and the torque control accuracy can reach ± 1% of the rated torque, which can meet the requirements of high-precision transmission scenarios. At the same time, it supports four quadrant operation mode, which can achieve forward and reverse rotation switching and energy feedback of the motor. Under braking conditions, the kinetic energy of the motor is converted into electrical energy and fed back to the grid, improving energy utilization efficiency.

2. Comprehensive fault protection and safe operation mechanism

To cope with complex fault risks in industrial transmission scenarios, the module is equipped with multi-level and multi-dimensional protection functions. In terms of electrical protection, it has overcurrent protection (including short circuit protection, locked rotor protection), overvoltage protection (DC bus overvoltage, input overvoltage), undervoltage protection, over temperature protection (IGBT junction temperature protection, radiator temperature protection) and insulation monitoring protection. When abnormal parameters are detected, the power device can be triggered to shut down within microseconds, cutting off the fault circuit; In terms of control and protection, it supports motor demagnetization protection, speed deviation protection, and communication fault protection to ensure that the transmission system can safely shut down or switch to standby mode in case of abnormalities in the control system or motor. All protective actions will be fed back to the controller in real-time and fault information will be recorded, providing a basis for troubleshooting.

3. High reliability and strong environmental adaptability design

GRBTU-01 has undergone comprehensive reliability optimization in response to the harsh operating environment of industrial sites. The power device adopts ABB's independently developed high-voltage IGBT chip, which has excellent switching characteristics and surge resistance. The junction temperature working range covers -40 ℃~+175 ℃; The module shell is made of high-strength metal material, and the interior is designed with a sealed structure, with a protection level of IP20, which can effectively resist the invasion of dust and oil in the control cabinet; The cooling system adopts high-efficiency aluminum radiators and forced air cooling design, with a heat dissipation efficiency more than three times higher than traditional natural heat dissipation. It can operate stably in ambient temperatures ranging from -10 ℃ to+50 ℃, and is suitable for use in high-temperature and dusty scenarios such as metallurgical workshops and mines.

4. Flexible control and communication capabilities

The module supports multiple control modes, including speed control, torque control, position control, and voltage control. Users can flexibly switch through the upper level controller according to actual working conditions; The control signal interface supports analog (0-10V, 4-20mA) and digital inputs, and is compatible with signal outputs from third-party sensors and controllers. In terms of communication, it has a built-in RS485 communication interface and supports mainstream industrial communication protocols such as PROFIBUS-DP and Modbus RTU. It can achieve real-time data exchange with ABB AC800M PLC, HMI human-machine interface, and SCADA system, making it easy for operators to remotely monitor module operation status, modify control parameters, and obtain fault information, achieving centralized control of the transmission system.

5. Modular integration and convenient maintenance design

Adopting standardized power module design, the module size and installation interface comply with IEC industrial standards, and can be directly installed on 35mm DIN rails or control cabinet mounting boards. It supports parallel operation of multiple modules to meet the needs of higher power transmission. The front of the module is equipped with clear LED status indicator lights, which can intuitively display information such as power status, operating status, fault type, etc; The terminal block adopts a plug-in design, which facilitates quick wiring and module replacement; The internal key components adopt a modular layout, and when a fault occurs, the faulty module can be replaced targetedly without disassembling the entire power unit, greatly reducing maintenance time and costs.

Key technical parameters

Product Model

GRBTU-01 3BSE013175R1

Product Type

IGBT type DC motor inverter module

input power

Three phase AC 380V/400V/480V ± 10%, 50/60Hz

Output DC voltage

0~1000V DC continuously adjustable

Rated output current

200A (rated condition), 400A (peak condition, lasting for 10 seconds)

power level

200kW (rated output)

conversion efficiency

≥ 98% (under rated load)

control accuracy

Speed control: ± 0.1% rated speed; Torque control: ± 1% rated torque

switching frequency

Adjustable from 2kHz to 10kHz

protection function

Overcurrent, overvoltage, undervoltage, overtemperature, demagnetization, short circuit, insulation monitoring

communication interface

RS485， Supports PROFIBUS-DP and Modbus RTU protocols

Control signal input

Analog quantity: 0-10V/4-20mA; Digital quantity: dry contact input

Working temperature range

-10 ℃~+50 ℃ (operating); -40 ℃~+70 ℃ (storage)

Protection level

IP20 (module body)

cooling method

Forced air cooling+aluminum radiator

Installation method

35mm DIN rail installation/bolt fixed installation

Overall dimensions

Width 180mm, height 320mm, depth 280mm (typical value)

Installation and usage precautions

To ensure the operational stability, control accuracy, and service life of the GRBTU-01 inverter module, the following specifications must be strictly followed during installation, commissioning, and use:

-Installation environment specifications: The module should be installed in a dry and well ventilated control cabinet, which should have a good heat dissipation and ventilation structure to avoid heat accumulation around the module; The installation location should be far away from strong magnetic field equipment (such as large transformers, welding machines) and high-frequency interference sources to prevent communication and control signals from being interfered with; It is prohibited to install it exposed in environments with high dust concentration, humidity, and corrosive gases. If the environment is harsh, a dedicated control cabinet for dust, moisture, and corrosion prevention should be equipped.

-Electrical wiring specifications: Before wiring, the input power and control power must be disconnected to ensure personal safety; The input side needs to be equipped with circuit breakers, fuses, and surge protectors that meet the specifications to avoid damage to the module caused by power grid surges and short-circuit currents; The output side wiring should use copper core cables with sufficient cross-sectional area (recommended ≥ 50mm ²), and ensure that the wiring terminals are firmly tightened to prevent poor contact and high temperature; The control signal line and the power line need to be wired separately. The control signal line adopts shielded twisted pair, and the shielding layer is grounded at one end to reduce electromagnetic interference.

-Cooling System Configuration Specification: A suitable cooling system should be configured based on the power level of the module and the installation environment to ensure that the surface temperature of the radiator does not exceed+80 ℃; The forced air cooling fan needs to be linked with the temperature detection signal of the module to achieve automatic temperature control of the fan start and stop, reducing energy consumption; Regularly clean the dust and oil stains on the surface of the radiator to avoid blockage of the heat dissipation channel, which may affect the heat dissipation effect.

-Parameter configuration and debugging specifications: Before debugging, it is necessary to configure the output voltage, current limit, speed setting and other parameters of the module through the upper computer software according to the rated parameters (rated voltage, rated current, rated speed) and transmission requirements of the DC motor; During the debugging process, a no-load test run is required to check the stability of the motor direction, speed, and module operation status. After no abnormalities are found, a load test run can be carried out; During load debugging, it is necessary to gradually increase the load and monitor the output current, temperature, and motor operating parameters of the monitoring module to ensure that all indicators meet the design requirements.

-Daily maintenance standards: Regularly (recommended weekly) check the status of the LED indicator lights on the surface of the module to confirm normal operation; Clean the dust on the module casing and radiator every month, check for loose wiring terminals and damaged cables; Quarterly reading of module operation data and fault records through upper computer software, analyzing module operation trends; Conduct a comprehensive inspection of the module once a year, including IGBT performance testing, protection function verification, and communication link testing, to ensure stable module performance.

-Fault handling specification: When the module triggers a protective action to shut down, the fault code should be checked through the upper computer software first to clarify the fault type; If it is an overcurrent or short circuit fault, it is necessary to check whether the motor is blocked and whether the output cable is short circuited; If it is an overheating fault, it is necessary to check whether the cooling system is normal and whether the ambient temperature is too high; Fault handling should be carried out by professional electrical engineers. When replacing modules, the same model of product should be selected, and parameter reproduction and debugging should be carried out. It is prohibited to disassemble the internal structure of the module without authorization.
