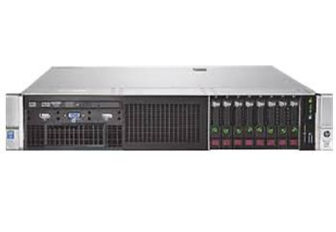

FOXBORO H92A049E0700 server module

FOXBORO H92A049E0700 server module

Product Overview

Category: Industrial grade multi-purpose workstation, compatible with Foxboro Evo control core service software, supports third-party and user-defined applications, runs Windows 7/10 64 bit system.

Core positioning: Responsible for DCS control stations, I/O data communication, HMI display, file services, and network interconnection, adapting to the process monitoring and control needs of process industries.

Model coding logic (typical): H92 (series)+A049 (configuration code, including processor/memory/storage/interface)+E0700 (version/batch identification), specific to manufacturer data.

Specifications

Project specifications

Processor Intel Xeon series (specific model according to configuration)

8GB DDR4 ECC registered memory (expandable to 16GB)

Store 1-3 1TB SATA hard drives, with optional RAID1 and hot spare disks; Built in DVD+RW optical drive

Display up to 4 monitors (23/24 inch LCD with touch screen option), Mini DP 1.4 interface, supporting 1920 × 1080 resolution

Network integration with Gigabit Ethernet, optional expansion to 3 network cards

Interface USB (mouse/keyboard/touch screen/alarm keyboard), video output, audio (optional)

Power supply 100-240V AC adaptive, 50/60Hz, maximum 525W output

Dimensions: 386mm in height, 169mm in width, and 445mm in depth

Weight 10.2-17.3kg (depending on configuration)

Working environment temperature is 5-40 ° C, humidity is 8% -85% (no condensation); When the altitude exceeds 1524m, the temperature will decrease by 1 ° C for every 305m increase

Performance Characteristics

High reliability: ECC memory, RAID redundancy, wide temperature and voltage power supply, suitable for harsh industrial environments.

Strong scalability: Supports memory expansion, multiple hard drives and RAID, multiple network cards and displays, and adapts to complex system architectures.

System compatibility: Deeply compatible with Foxboro Evo software, while supporting third-party and custom applications, compatible with the Windows ecosystem.

Security Enhancement: Optional McAfee antivirus/intrusion protection/data leak prevention components, compliant with industrial network security standards.

Easy to maintain: Modular design, supporting hot swappable (some components) for easy on-site replacement and maintenance.

working principle

Hardware layer: CPU handles control and computing tasks, ECC memory ensures data integrity, RAID improves storage reliability, and multiple I/O interfaces connect field devices and operation terminals.

System layer: The Windows operating system provides the operating environment, and Foxboro Evo software implements the core functions of DCS (control logic, data acquisition, graphical display).

Communication layer: Connected to DCS control network and enterprise network through Ethernet, supporting cross regional data exchange and human-machine operation.

Interaction layer: HMI software presents process screens, alarms, and trends, and operators complete monitoring and control operations through keyboard/mouse/touch screen.

Precautions

Installation: The cabinet needs good ventilation to avoid dust/oil pollution/vibration, with a grounding resistance of ≤ 4 Ω, and the power supply needs to be stabilized and surge protected.

Configuration: Expanding memory/hard disk/network card requires the use of manufacturer certified components to avoid compatibility issues; RAID configuration needs to be completed during system initialization.

Maintenance: Regularly check the health of the hard drive and fan status, and export and analyze system logs regularly; Software updates must follow the vendor compatibility matrix to avoid version conflicts.

Security: Enable user permission management, regularly update system patches and antivirus software, configure firewalls at network boundaries, and comply with ISA 62443 standards.

Environment: Avoid condensation and corrosive gases. High altitude/high temperature environments require reduced usage or enhanced heat dissipation.

Application scenarios

Petrochemical industry: DCS operation stations and control servers for refining, ethylene, and coal chemical plants.

Electric energy: Unit monitoring, data collection, and process optimization for thermal power/nuclear power/new energy.

Metallurgical building materials: centralized control and human-machine interaction of steel and cement production lines.

Pharmaceutical food: Batch control, parameter recording, and compliance traceability that comply with GMP requirements.

Water treatment/papermaking: HMI and data nodes for process monitoring, water quality analysis, and energy consumption optimization.
