  • FOXBORO RH931RQ cable terminal
    ❤ Add to collection

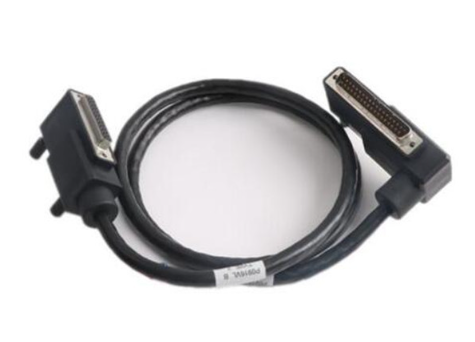

  • FOXBORO RH931RQ cable terminal

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0931RQ is an industrial grade cable terminal launched by the Foxboro brand under Schneider Electric. It belongs to the I/A series DCS (distributed control system) supporting components and is positioned as a DIN FBM (Field Bus Module) dedicated Type 4 cable terminal. This product is designed specifically for industrial automation control systems, primarily to achieve reliable electrical connections between field devices and Foxboro FBM series modules, serving as a bridge for signal transmission and ensuring stable and efficient data exchange between sensors, actuators, and other field devices and control systems. It originates from the United States and has undergone strict quality testing and certification. It has a structural design that is suitable for complex industrial environments and can be directly integrated into existing control panels. At the same time, it supports customized processing to meet the installation needs of different scenarios. It is one of the key components for ensuring the signal link of Foxboro DCS system.

    • ¥2068.00
      ¥22745.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.220KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0931RQ is an industrial grade cable terminal launched by the Foxboro brand under Schneider Electric. It belongs to the I/A series DCS (distributed control system) supporting components and is positioned as a DIN FBM (Field Bus Module) dedicated Type 4 cable terminal. This product is designed specifically for industrial automation control systems, primarily to achieve reliable electrical connections between field devices and Foxboro FBM series modules, serving as a bridge for signal transmission and ensuring stable and efficient data exchange between sensors, actuators, and other field devices and control systems. It originates from the United States and has undergone strict quality testing and certification. It has a structural design that is suitable for complex industrial environments and can be directly integrated into existing control panels. At the same time, it supports customized processing to meet the installation needs of different scenarios. It is one of the key components for ensuring the signal link of Foxboro DCS system.


FOXBORO RH931RQ cable terminal

Product Overview

FOXBORO P0931RQ is an industrial grade cable terminal launched by the Foxboro brand under Schneider Electric. It belongs to the I/A series DCS (distributed control system) supporting components and is positioned as a DIN FBM (Field Bus Module) dedicated Type 4 cable terminal. This product is designed specifically for industrial automation control systems, primarily to achieve reliable electrical connections between field devices and Foxboro FBM series modules, serving as a bridge for signal transmission and ensuring stable and efficient data exchange between sensors, actuators, and other field devices and control systems. It originates from the United States and has undergone strict quality testing and certification. It has a structural design that is suitable for complex industrial environments and can be directly integrated into existing control panels. At the same time, it supports customized processing to meet the installation needs of different scenarios. It is one of the key components for ensuring the signal link of Foxboro DCS system.


Specification parameters

Product Model

P0931RQ (Type 4 DIN FBM Cable Terminal)

Brand and Series

Foxboro, I/A series DCS supporting components

place of origin

the United States

Working Voltage

220V AC

output frequency

50kHz

Overall dimensions

24cm × 19.8cm × 5.5cm

Product weight

0.46kg

Protective design

Rugged shell packaging, with strong environmental corrosion resistance

Adaptation module

Foxboro FBM series fieldbus module


Performance characteristics

-High reliability and stability: Adopting advanced electronic design and rugged housing packaging technology, it can effectively resist various interferences such as dust, humidity, vibration, etc. in industrial environments. It can operate stably without additional protection under harsh working conditions. After strict quality testing, the failure rate is extremely low, and it supports long-term continuous work.

-Strong anti-interference ability: Optimized circuit and wiring design can effectively shield electromagnetic interference (EMI) in industrial sites, ensure the integrity of signal transmission, and avoid data distortion or control instruction delay caused by interference.

-Convenient installation and integration: With a compact exterior design, it occupies a small installation space and can be directly adapted to standard DIN rail installation. It is easy to integrate into existing control panels, simplifying on-site wiring and system expansion processes.

-Flexible adaptability: Supports customized processing, and can adjust adaptation parameters according to different users' on-site equipment types, wiring specifications, and other needs. It is also compatible with multiple system architectures of Foxboro I/A series DCS, and can adapt to automation control scenarios of different scales.

-Safety Compliance: As a certified product, it complies with safety regulations and quality standards in the field of industrial automation, and can be safely applied to various industrial control environments to ensure the safety and compliance of system operation.


Working principle

The FOXBORO P0931RQ cable terminal serves as the signal transfer core between field devices and Foxboro FBM modules. Its working principle is based on reliable electrical connections and signal transmission mechanisms: firstly, standardized access of cables for field sensors, actuators, and other equipment is achieved through the terminal's wiring terminals, completing the fixation and conduction of cable cores; Secondly, with the help of internally optimized conductive structures, the analog signals (such as temperature, pressure, flow rate) or digital signals (such as switch status) collected by the on-site equipment are stably transmitted to the FBM module, and the control instructions issued by the FBM module are accurately transmitted to the on-site execution equipment; Finally, through the enclosure and internal insulation design, external environmental interference and circuit short circuit risks are isolated to ensure the continuity and safety of signal transmission. Throughout the process, the terminal plays the role of a "signal relay station", ensuring electrical compatibility between different devices and modules through standardized interface design, and providing stable signal link support for real-time monitoring and precise control of the DCS system.


Precautions

-Pre installation inspection: Before installation, it is necessary to confirm that the product packaging is complete, and check that the terminal housing and wiring terminals are not damaged or deformed; At the same time, verify that the product model matches the FBM module model to avoid connection failures caused by model mismatch.

-Installation environment requirements: It should be installed in a dry and ventilated control cabinet, avoiding direct exposure to dust, oil, corrosive gases, or strong vibration environments; The installation location should be away from high-temperature heat sources and strong electromagnetic interference sources (such as frequency converters and high-power motors) to ensure that the environmental temperature and humidity meet the operating standards of industrial equipment.

-Wiring specifications: Before wiring, the power supply of the relevant equipment must be cut off to avoid arcing or equipment damage caused by live operation; The cable core wire should be accurately connected to the corresponding terminal according to the terminal identification, ensuring that the wiring is firm and avoiding loose connections that may cause poor contact; The shielding layer of the shielded cable needs to be grounded according to the specifications to enhance anti-interference ability. The grounding terminals of different grounding systems cannot be mixed.

-Process adaptation requirements: In situations with large pressure fluctuations, it is necessary to install pressure buffering devices in conjunction; If connecting cables involving high-temperature media equipment, it is necessary to ensure a safe distance between the terminal and the high-temperature area. If necessary, indirect connections can be made through pressure pipes or cooling devices to avoid high temperatures affecting terminal performance.

-Maintenance and inspection: Regular checks on the fastening status of wiring terminals and the integrity of the casing are required for daily maintenance, and any looseness or damage should be promptly addressed; During maintenance, the corresponding module of the DCS system must first be forced to a forced state, and the power supply on both sides of the terminal must be cut off. It is strictly prohibited to disassemble or replace the terminal while it is live.

-Precautions for explosion-proof areas: If used in explosive hazardous areas, it is necessary to ensure that the terminal installation complies with explosion-proof regulations, the control cabinet cover must be tightened, and it is strictly prohibited to open the cover when powered on to avoid safety accidents.
