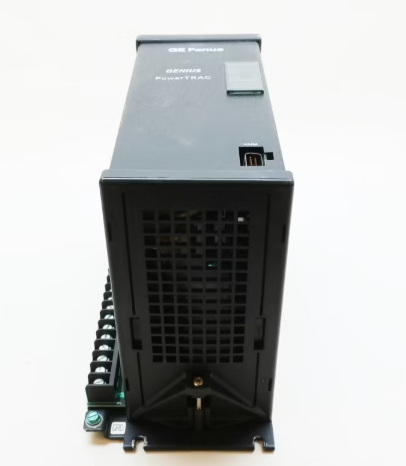

  • GE IC660EPM100J Power Monitoring and Control Module
    ❤ Add to collection
  • GE IC660EPM100J Power Monitoring and Control Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    GE IC660EPM100J is a high-precision and highly integrated power monitoring and control module for industrial power systems, belonging to the core expansion component of GE Fanuc Series 90-30/70 PLC system. This module is designed specifically for real-time monitoring of power parameters, energy consumption statistical analysis, and precise control requirements. It can collect key parameters such as voltage, current, power, frequency, etc. of AC/DC power systems in milliseconds, and has logic control, fault protection, and data upload functions, providing core support for the safe operation, energy efficiency optimization, and intelligent management of industrial power systems.

    • ¥8563.00
      ¥8845.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.180KG
    • Quantity:
    • (Inventory: 99999)
Description

GE IC660EPM100J is a high-precision and highly integrated power monitoring and control module for industrial power systems, belonging to the core expansion component of GE Fanuc Series 90-30/70 PLC system. This module is designed specifically for real-time monitoring of power parameters, energy consumption statistical analysis, and precise control requirements. It can collect key parameters such as voltage, current, power, frequency, etc. of AC/DC power systems in milliseconds, and has logic control, fault protection, and data upload functions, providing core support for the safe operation, energy efficiency optimization, and intelligent management of industrial power systems.




GE IC660EPM100J Power Monitoring and Control Module

Product Overview

GE IC660EPM100J is a high-precision and highly integrated power monitoring and control module for industrial power systems, belonging to the core expansion component of GE Fanuc Series 90-30/70 PLC system. This module is designed specifically for real-time monitoring of power parameters, energy consumption statistical analysis, and precise control requirements. It can collect key parameters such as voltage, current, power, frequency, etc. of AC/DC power systems in milliseconds, and has logic control, fault protection, and data upload functions, providing core support for the safe operation, energy efficiency optimization, and intelligent management of industrial power systems.

As an industrial grade power management equipment, IC660EPM100J is widely used in industrial plant power distribution systems, data center UPS power supply systems, new energy generation grid connected equipment, rail transit power supply networks and other scenarios due to its strong anti-interference ability and environmental adaptability. It is a key equipment for achieving closed-loop management of power systems through "monitoring analysis control protection".


Core technical characteristics

1. High precision multi parameter monitoring, comprehensive and reliable data collection

The module adopts a 24 bit high-precision AD conversion chip and supports various power system wiring methods such as 3-phase 4-wire and 3-phase 3-wire. It can simultaneously collect more than 20 power parameters, including voltage (AC 0-690V), current (AC 0-5A/DC 0-10A), active power, reactive power, apparent power, power factor, frequency (45-65Hz), and energy accumulation. The voltage measurement accuracy reaches ± 0.2% FS, and the current measurement accuracy reaches ± 0.3% FS, ensuring the accuracy and reliability of data acquisition. The module is equipped with a built-in data filtering algorithm, which can effectively suppress electromagnetic interference in industrial sites and avoid measurement errors caused by factors such as harmonics and surges.

2. Integrate control and protection functions to achieve closed-loop management

IC660EPM100J integrates dual functions of power monitoring and logic control, supporting threshold setting through PLC main controller or local programming. When abnormal situations such as voltage overvoltage/undervoltage, current overcurrent, power overload are detected, relay output can be triggered within 10ms to achieve control actions such as load shedding and circuit protection, avoiding fault expansion. The module is equipped with 4 programmable digital output interfaces, which can directly drive actuators such as contactors and circuit breakers. It also supports seamless linkage with GE PLC systems, enabling rapid deployment of complex power control logic.

3. Flexible communication and data management, adapted to intelligent requirements

The module supports multiple industrial communication protocols, including Modbus RTU, EtherNet/IP, PROFINET, etc. It can upload real-time power data, device status, and fault information to SCADA systems, energy management platforms (EMS), or cloud monitoring platforms through RS-485 or Ethernet interfaces. It supports timed data upload, on-demand testing, and breakpoint continuation functions. Built in 16MB local storage unit, capable of caching historical data and fault logs for over 1 year, facilitating later data analysis, fault tracing, and energy consumption statistics report generation.

4. Industrial grade reliability design, suitable for harsh environments

The module is encapsulated in a full metal shell, with good electromagnetic shielding performance and anti-interference level up to IEC 61000-4-2/3/4 standard, which can resist static electricity, pulse group and surge interference in industrial sites. The working environment has a wide temperature range of -20 ℃~70 ℃ and a humidity adaptation range of 5%~95% (without condensation), supporting stable operation in high dust and high vibration industrial scenarios. The average time between failures (MTBF) exceeds 200000 hours.

5. Convenient configuration and maintenance, reducing usage costs

The module supports parameter configuration, logic programming, and firmware upgrades through specialized configuration software such as GE Proficy Machine Edition. The graphical user interface is intuitive and easy to understand, and deployment can be completed without professional knowledge of power programming. The module comes with LED status indicator lights, which can display power, communication, measurement, and fault status in real time. It also supports remote diagnosis function. Maintenance personnel can remotely troubleshoot equipment faults through the monitoring platform, reducing on-site maintenance workload.


Key technical parameters

Product Model

IC660EPM100J

Compatible Systems

AC 3-phase 4-wire/3-phase 3-wire/DC system

Voltage measurement range

AC 0-690V; DC 0-1000V

Current measurement range

AC 0-5A (direct input)/0-1000A (with transformer); DC 0-10A

measurement accuracy

Voltage ± 0.2% FS; Current ± 0.3% FS; Power ± 0.5% FS

Frequency measurement range

45-65Hz, Accuracy ± 0.01Hz

input power

DC 24V (± 10%) or AC 110/220V (± 15%)

power consumption

≤15W

communication interface

1 RS-485, 1 Ethernet (RJ45)

Supported Protocols

Modbus RTU、EtherNet/IP、PROFINET

digital output

4-channel relay output (AC 250V/5A, DC 30V/10A)

storage capacity

16MB local data storage

working environment

Temperature: -20 ℃~70 ℃; Humidity: 5%~95% (no condensation)

Protection level

IP20 (panel)

MTBF

≥ 200000 hours

Dimensions (length x width x height)

140mm×80mm×120mm


Installation and maintenance precautions

1. Installation specifications

-The module should be installed in a well ventilated location away from heat sources and strong electromagnetic interference sources (such as frequency converters and high-power motors), avoiding direct sunlight;

-Before wiring, it is necessary to confirm the system voltage level and module compatibility. The current input circuit must not be open circuited, and the voltage input circuit must not be short circuited. The wiring terminals must be securely fastened to prevent poor contact;

-When using a 3-phase system wiring, it is necessary to strictly distinguish the phases of A, B, and C phases to ensure the correct wiring sequence and avoid phase errors that may cause abnormal measurement data;

-Communication lines should use shielded twisted pair cables, with the shielding layer grounded at one end. Ethernet lines should be kept away from strong electrical cables to avoid signal interference;

-After installation, insulation testing is required to ensure that the insulation resistance between the module and the ground is greater than 50M Ω to avoid the risk of leakage.

2. Daily maintenance

-It is recommended to conduct a visual inspection of the module every 6 months, clean the dust at the terminal block and heat dissipation holes to ensure good heat dissipation;

-Regularly verify the consistency between measurement data and actual power parameters through the monitoring platform, and calibrate in a timely manner if any deviation occurs;

-Check the stability of the communication link every month to see if there are any issues such as data loss or communication interruption, and promptly troubleshoot any faults in the line or protocol configuration;

-When a module malfunctions, it is necessary to first cut off the input power and communication lines before conducting maintenance. When replacing the module, it is necessary to ensure that the firmware version of the new module matches the system;

-Regularly backup module configuration parameters and historical data to avoid data loss caused by module failures.
