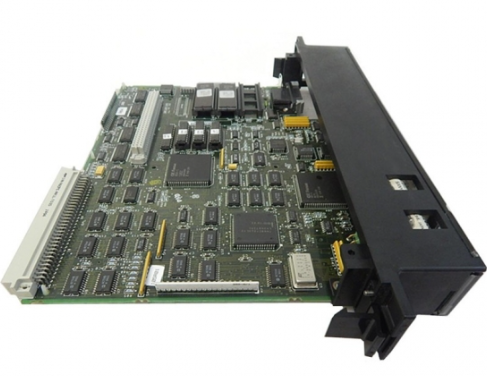

GE IC697VDD100 Digital Input Module

GE IC697VDD100 Digital Input Module

Core Basic Parameters

The parameter design of this module is in line with the stringent requirements of industrial sites, with outstanding performance in signal compatibility, power supply stability, and other aspects. The specific core parameters are as follows:

-Module model: IC697VDD100

-Series: GE Fanuc Series 90-70

-Input type: Direct Current (DC) digital input

-Number of input channels: 16 channels, designed in groups for easy signal management and troubleshooting

-Rated input voltage: 24V DC, compatible with a wide voltage range of 18V DC to 30V DC, suitable for different on-site power supply conditions

-Input current: Typical value of 7mA per channel (under 24V DC operating conditions), low-power design reduces system energy consumption

-Response time: ≤ 1ms (default setting), supports fast signal acquisition, meets high-speed control requirements, and can fine tune response parameters through software according to actual applications

-Isolation method: Optical isolation between channels, isolation voltage ≥ 500V AC (rms), effectively suppressing electromagnetic interference (EMI) and common mode interference, ensuring signal transmission stability

-Module size: Complies with the standard dimensions of Series 90-70 series, with a width x height x depth of approximately 35mm x 130mm x 150mm (subject to actual product), making it easy to install and layout in a standard rack

-Working temperature range: 0 ℃ -60 ℃, suitable for high and low temperature environments in industrial sites; Storage temperature range: -40 ℃ -85 ℃, convenient for transportation and inventory management

-Humidity requirement: 5% -95% non condensing, capable of stable operation in humid industrial environments

Core functions and features

1. High reliability signal acquisition

The module adopts photoelectric isolation technology to electrically isolate the on-site input signal from the internal circuit of the PLC, effectively avoiding damage to the core circuit caused by strong electrical interference and surge voltage on site, while reducing the impact of interference signals on acquisition accuracy, ensuring the accuracy of digital signal (high-level "1"/low-level "0") acquisition. Each channel has an independent signal processing circuit, which can prevent the failure of one channel from affecting other channels and improve the overall operational reliability of the module.

2. Wide adaptability and flexibility

Supports a wide voltage input range of 18V DC to 30V DC, and can adapt to common 24V DC standard power supply systems in industrial sites without the need for additional dedicated power supplies, reducing system integration costs. The 16 channel design can meet the signal acquisition needs of small and medium-sized control scenarios, and the module supports seamless compatibility with various CPU modules and expansion modules of Series 90-70 series, making it easy to expand and upgrade the system according to control requirements.

3. Rapid response and real-time control

Fast response time of ≤ 1ms, able to capture changes in on-site signals in a timely manner (such as switch on/off, sensor status switching), transmit signals in real time to the CPU for processing, ensuring that the control system can respond quickly, suitable for scenarios with high real-time requirements such as pipeline speed regulation and equipment start stop control.

4. Convenient installation and maintenance

The module adopts the Series 90-70 series standard rack installation method, which is quickly fixed through buckles and positioning pins, and the installation process is simple and efficient. The front of the module is equipped with clear channel status indicator lights (each channel corresponds to an LED light). When there is a valid input signal in the channel, the indicator lights will light up, making it easy for on-site staff to intuitively judge the working status of each channel, quickly locate the faulty channel, and reduce maintenance difficulty and time costs.

5. Stable industrial grade design

Adopting industrial grade components and reinforced casing design, it has good anti vibration and anti impact performance (in accordance with relevant IEC standards), and can adapt to the complex environment of industrial sites. The adaptability to wide temperature and humidity ensures the long-term stable operation of modules in special scenarios such as high-temperature workshops and humid factories, reducing equipment failures caused by environmental factors.

Typical application scenarios

IC697VDD100, with its stable performance and flexible adaptability, plays a core role in signal acquisition in various industrial automation systems. Typical applications include:

-Manufacturing assembly line control: Collecting signals from photoelectric sensors and proximity switches in the assembly line to determine the position, quantity, and other information of workpieces, providing input basis for CPU control of conveyor belt start stop and robotic arm action.

-Mechanical equipment status monitoring: Collect signals from limit switches, emergency stop buttons, temperature switches, etc. of the equipment, monitor the operating status of the equipment in real time, and timely feedback to the control system when abnormal signals (such as emergency stop triggering, exceeding limits) occur, triggering shutdown protection and other actions.

-Energy and power system: Collect the on/off status signals of circuit breakers and contactors in distribution cabinets to achieve real-time monitoring and fault alarm of the operating status of power equipment.

-Chemical and metallurgical scenarios: In peripheral auxiliary systems for special environments such as explosion prevention and high temperature, valve switch status and liquid level sensor signals are collected to provide data support for precise control of production processes (with corresponding explosion prevention measures).

Installation and wiring specifications

1. Installation precautions

-The module needs to be installed on the Series 90-70 standard rack. Before installation, ensure that the rack is well grounded with a grounding resistance of ≤ 4 Ω to enhance anti-interference capability.

-Avoid severe collisions during installation to prevent damage to internal components of the module; Appropriate heat dissipation space should be reserved between modules to avoid excessive temperature caused by stacked installation.

-The installation environment should be kept away from strong magnetic and electric fields (such as large transformers and welding machines) to avoid interference signals that may affect the normal operation of the module.

2. Wiring specifications

-The module power terminal (V+, GND) needs to be connected to a 24V DC power supply to ensure the correct polarity of the power supply. Reverse connection is strictly prohibited as it may damage the module.

-Digital input signal wiring: The "IN" terminal of each channel is connected to the signal output terminal of the on-site sensor or switch, and the "COM" terminal is the common terminal, which needs to be reliably connected to the negative terminal (or common terminal) of the sensor or switch to form a complete signal circuit.

-Shielded wire or twisted pair should be used for wiring, with one end of the shielding layer grounded to reduce interference during signal transmission; The wiring terminals need to be tightened to prevent loosening and poor contact, which may cause signal abnormalities.

Common faults and troubleshooting methods

The indicator light of a certain channel is not on, and there is no signal input

1. On site sensor/switch malfunction; 2. Loose or disconnected wiring; 3. Abnormal power supply voltage; 4. Channel damage

1. Check if the sensor/switch is working properly; 2. Check if the wiring terminals of the channel are tightened and if the circuit is conductive; 3. Measure whether the power supply voltage is within the range of 18V DC to 30V DC; 4. Replace the channel test to determine if it is a channel fault

Multi channel signal abnormality

1. Module power failure; 2. Loose common terminal (COM) wiring; 3. External strong interference; 4. Internal module malfunction

1. Check if the module power input is normal; 2. Secure the common terminal wiring; 3. Check if the grounding is good and keep away from interference sources; 4. Replace the module and test to determine if it is a module failure

Module unable to communicate with CPU

1. The module is not installed correctly; 2. Rack bus failure; 3. CPU module malfunction

1. Reinstall the module to ensure that the buckle is securely fastened; 2. Check if the rack bus connectors are clean and in good contact; 3. Check the running status of the CPU module
