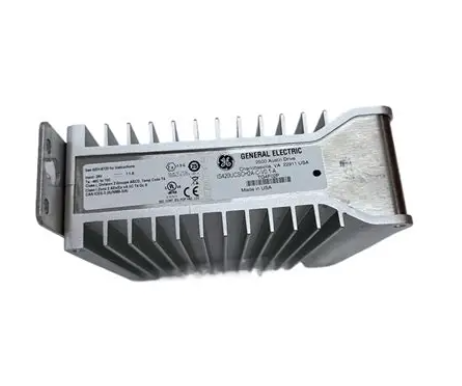

  • GE UCSC H1 IS420UCSCH1A-B Communication Processing Module
    ❤ Add to collection
  • GE UCSC H1 IS420UCSCH1A-B Communication Processing Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    GE UCSC H1 IS420UCSCH1A-B (hereinafter referred to as "IS420UCSCH1A-B module") is a high-performance communication processing module launched by General Electric (GE), mainly used in industrial automation control systems, especially in GE's Mark VIe and other distributed control systems, undertaking core communication interaction and data processing tasks. This module serves as a "communication bridge" between various devices, controllers, and upper computers in the system, enabling the conversion, transmission, and integration of multi protocol data, ensuring real-time, reliable, and secure data transmission in industrial control processes, and providing critical support for the stable operation of industrial production.

    • ¥20547.00
      ¥23684.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.560KG
    • Quantity:
    • (Inventory: 99999)
Description

GE UCSC H1 IS420UCSCH1A-B (hereinafter referred to as "IS420UCSCH1A-B module") is a high-performance communication processing module launched by General Electric (GE), mainly used in industrial automation control systems, especially in GE's Mark VIe and other distributed control systems, undertaking core communication interaction and data processing tasks. This module serves as a "communication bridge" between various devices, controllers, and upper computers in the system, enabling the conversion, transmission, and integration of multi protocol data, ensuring real-time, reliable, and secure data transmission in industrial control processes, and providing critical support for the stable operation of industrial production.




GE UCSC H1 IS420UCSCH1A-B Communication Processing Module

Basic overview of module

GE UCSC H1 IS420UCSCH1A-B (hereinafter referred to as "IS420UCSCH1A-B module") is a high-performance communication processing module launched by General Electric (GE), mainly used in industrial automation control systems, especially in GE's Mark VIe and other distributed control systems, undertaking core communication interaction and data processing tasks. This module serves as a "communication bridge" between various devices, controllers, and upper computers in the system, enabling the conversion, transmission, and integration of multi protocol data, ensuring real-time, reliable, and secure data transmission in industrial control processes, and providing critical support for the stable operation of industrial production.

Its design strictly follows industrial standards, with strong anti-interference ability, wide temperature operating range, and high stability. It can adapt to complex and harsh industrial site environments such as metallurgy, power, petrochemicals, and papermaking, and is one of the indispensable core components in GE industrial control systems.


Core functions and roles

2.1 Multi protocol communication conversion and adaptation

The core function of the IS420UCSCH1A-B module is to achieve compatibility and conversion of multiple industrial communication protocols. In industrial sites, different devices (such as sensors, actuators, controllers, frequency converters, etc.) may use different communication protocols, such as Modbus, Profibus, EtherNet/IP, TCP/IP, etc. This module can serve as a protocol conversion gateway to parse, convert, and encapsulate data streams of different protocols, ensuring "barrier free" communication between various devices. For example, the Modbus protocol data output by the sensor can be converted into EtherNet/IP protocol data, transmitted to the Mark VIe controller, and the control instructions of the controller can be converted into corresponding protocols and sent to the actuator to achieve bidirectional data exchange.

2.2 Data Collection and Real time Transmission

The module has efficient data collection capabilities, which can collect real-time operating parameters (such as temperature, pressure, flow rate, speed, etc.), status information (such as operation, shutdown, faults, etc.), and control instruction execution of various equipment on the industrial site. The data is quickly transmitted to the upper computer monitoring system or controller through a stable communication link. Its data transmission delay is low, which can meet the strict real-time requirements of industrial control, ensure that control decisions can be based on the latest on-site data, and improve the control accuracy and response speed of the system.

2.3 Communication link management and redundant backup

To ensure the continuity and reliability of communication, the IS420UCSCH1A-B module has comprehensive communication link management functions. It can monitor the connection status, signal quality, and data transmission status of communication links in real time. When a link fault (such as disconnection, signal interference, etc.) is detected, an alarm mechanism can be quickly triggered to send fault information to the upper computer or controller. At the same time, it supports automatic switching of redundant communication links. In the scenario of configuring redundant links, the module can switch to the backup link in milliseconds when the main link fails, ensuring uninterrupted data transmission and avoiding production downtime or safety accidents caused by communication failures.

2.4 Data Processing and Filtering

The module is equipped with an efficient processor and has certain data processing capabilities, which can screen, filter, summarize, and perform preliminary analysis on the collected raw data. For example, invalid data caused by device interference can be filtered out, abnormal data beyond a reasonable range can be removed, and similar data can be summarized and statistically analyzed (such as average, maximum, minimum, etc.), reducing the amount of data uploaded to the upper computer, lowering the computational load on the upper computer, and improving the overall operational efficiency of the control system.

2.5 System Diagnosis and Status Monitoring

The IS420UCSCH1A-B module supports self diagnosis and external device diagnosis functions. The module can monitor its own operating status in real time, such as power supply voltage, processor load, communication port status, etc. When it malfunctions, it can output fault codes through indicator lights or communication interfaces, making it easy for operation and maintenance personnel to quickly locate the problem. At the same time, the module can also diagnose the communication status of downstream connected devices, timely detect communication abnormalities of devices, and provide a basis for preventive maintenance of devices.


Key technical parameters

communication interface

EtherNet/IP、TCP/IP、RS-485、RS-232

Supports multiple mainstream industrial communication interfaces and can be flexibly configured according to on-site needs

Supported Protocols

Modbus RTU/TCP、Profibus-DP、EtherNet/IP、GE SRTP

Compatible with GE proprietary protocols and mainstream industrial standard protocols, compatible with multiple brands of equipment

power input

24V DC ±10%

Industrial grade wide voltage input, adaptable to on-site power fluctuations

Working temperature range

-40℃ ~ +70℃

Meet the stable operation requirements in extreme industrial environments

Processor performance

32-bit high-performance industrial processor with a clock frequency of ≥ 500MHz

Ensure the efficiency of multi protocol data processing and real-time transmission

Data transmission rate

EtherNet interface: 10/100Mbps adaptive; RS-485: up to 115200bps

Provide different rates according to the type of communication link to meet the needs of different scenarios

redundant function

Support dual link redundancy and power redundancy

Improve system reliability and avoid communication interruptions caused by single point failures

Installation method

DIN rail installation

Meets the standardized installation requirements of industrial sites, facilitating integration and maintenance


Typical application scenarios

4.1 Power Industry - Generator Unit Control

In the control system of power generation units in thermal and hydroelectric power plants, the IS420UCSCH1A-B module can be integrated into the GE Mark VIe control system, responsible for connecting various monitoring devices (such as vibration sensors, temperature sensors, speed sensors), actuators (such as speed control valves, fuel valves), and upper computer monitoring systems of the power generation units. The module transmits real-time operation data collected by sensors to the controller, and at the same time issues control instructions from the controller to the executing mechanism, achieving precise control of the start stop, load adjustment, fault protection and other processes of the generator set, ensuring the stable and efficient operation of the generator set.

4.2 Metallurgical Industry - Steel Production Process Control

In the sintering, ironmaking, steelmaking, and rolling stages of steel production, various production equipment (such as sintering machines, blast furnaces, converters, and rolling mills) are widely distributed and use different communication protocols. The IS420UCSCH1A-B module can serve as a regional communication hub, enabling data exchange between various devices and the central control system. For example, it converts rolling force and temperature data from the rolling mill into a unified protocol and transmits it to the central controller. At the same time, it issues rolling parameter adjustment instructions from the central controller to the rolling mill control system, ensuring the continuity of the steel production process and the stability of product quality.

4.3 Petrochemical Industry - Chemical Plant Monitoring

In petrochemical facilities such as refining units and chemical reaction vessels, the on-site environment is complex and there are risks of flammability, explosiveness, and strong corrosion, which require extremely high reliability and safety of the equipment. The IS420UCSCH1A-B module, with its industrial grade protection performance and stable communication capability, can connect devices such as pressure transmitters, level gauges, flow sensors, safety valves, etc., to collect real-time operating parameters and safety status of the device, and transmit them to the emergency shutdown system (ESD) and distributed control system (DCS). When parameter abnormalities are detected, it assists the system in quickly triggering alarms and emergency shutdown instructions to avoid safety accidents.


Installation and maintenance precautions

5.1 Installation specifications

-The module should be installed in a well ventilated location away from heat sources (such as high-temperature pipelines, heaters) and strong electromagnetic interference sources (such as frequency converters, high-power motors) to avoid high temperatures or electromagnetic interference affecting module performance.

-When installing with DIN rails, it is necessary to ensure that the rails are firmly fixed, and at least 5cm of heat dissipation space should be reserved between the module and other devices to prevent module failure caused by poor heat dissipation.

-When wiring, it is necessary to strictly follow the module pin definition for connection, especially for the positive and negative poles of the power supply and the communication line, to avoid module burnout caused by reverse connection; The communication line should use shielded wire and be grounded with a shielding layer to reduce signal interference.

5.2 Maintenance points

-Regularly check the operation status of the module, and determine whether the module is working properly through the module indicator lights (power light, communication light, fault light). If the fault light stays on, it is necessary to promptly query the cause of the fault through diagnostic software.

-Regularly clean the dust and debris on the surface of the module, keep the heat dissipation channel unobstructed, and avoid dust accumulation that may cause the module temperature to rise.

-Avoid frequent plugging and unplugging of modules and wiring to prevent loose or damaged interfaces; Before replacing or maintaining the module, it is necessary to cut off the power supply of the module to ensure safe operation.

-Regularly backup the configuration parameters of the module so that it can be quickly restored in case of module failure and reduce downtime.
