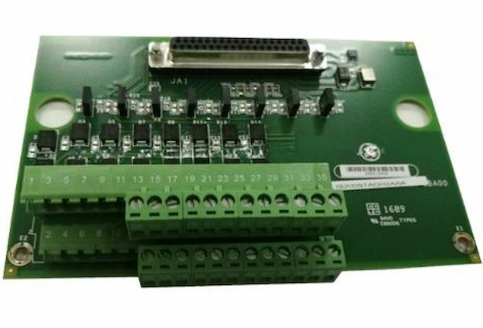

GE IS200TSVCH1AED servo input/output terminal board

GE IS200TSVCH1AED servo input/output terminal board

Product Overview

The GE IS200TSVCH1AED servo input/output terminal board (hereinafter referred to as the "TSVCH1AED board") is a core interface component designed specifically for servo drive system signal transmission and terminal connection within the General Electric (GE) Speedtronic Mark VIe control system architecture. This board uses standardized terminals as its core carrier, undertaking key tasks such as regular acquisition of input signals in servo systems, precise conversion of output instructions, and safety protection of signal links. It is a "signal relay station" that connects servo sensors/actuators with the main control unit.

It is compatible with the servo control module of GE Mark VIe system and widely used in high-precision servo control scenarios in thermal power, metallurgy, high-end manufacturing and other fields, such as turbine speed control system, large motor drive system, precision transmission equipment, etc. With industrial grade structural design and signal processing capabilities, it can work stably in complex on-site environments such as strong electromagnetic interference, vibration, and wide temperature range, providing reliable signal transmission guarantee for closed-loop control of servo systems.

Core functions and roles

2.1 Core functions of signal regulation and conversion

The TSVCH1AED board, as the terminal interface hub of the servo system, has the core value of achieving standardized signal access and precise transfer, solving the matching problem between scattered signals on site and centralized interfaces of control units, including:

-Centralized input signal collection: Various feedback signals of the servo system are centrally connected through standardized wiring terminals on the board, including position/velocity signals (differential signals or collector signals) of the servo motor encoder, motor stator temperature sensor signals (PT100/thermocouple), servo driver status feedback signals (such as ready, fault, alarm), etc. The board performs physical level regulation and preliminary electrical matching on these dispersed analog and digital signals to ensure stable signal transmission to the main control module.

-Accurate distribution of output commands: Receive servo control commands issued by the main control module, such as motor speed setting, torque control signals, forward and reverse commands, emergency stop signals, etc., and accurately distribute command signals to executing components such as servo drives, braking units, and cooling systems through terminals. At the same time, the board can enhance the driving capability of output signals to ensure that instructions can reliably drive field actuators.

2.2 Signal protection and anti-interference function

-Multi dimensional electrical isolation: adopting a "input-output power supply" triple isolation design, the signal circuit is electrically isolated from the internal circuit of the board through an optoelectronic isolation chip, with an isolation voltage of up to 2500Vrms, effectively blocking the influence of common mode interference and differential mode interference on the control unit on site; At the same time, it prevents signal backflow caused by on-site equipment failures (such as short circuits and overvoltage), and protects the safety of the main controller and the circuit of the board itself.

-Overcurrent and overvoltage protection: A fuse and transient suppression diode (TVS) are built-in in the digital output terminal circuit. When overcurrent or transient overvoltage occurs in the output circuit, the fuse quickly melts and the TVS clamps instantly, avoiding damage to the board drive circuit and connected servo equipment caused by excessive current/voltage, and reducing the risk of fault expansion.

-Signal filtering optimization: For high-frequency signals that are susceptible to interference in servo systems (such as encoder pulse signals), the board is equipped with an RC low-pass filtering circuit, which effectively filters out high-frequency noise, improves the signal-to-noise ratio of the signal, ensures the transmission accuracy of key feedback signals such as position and speed, and avoids the decrease in servo control accuracy caused by signal distortion.

2.3 Status monitoring and fault diagnosis functions

-Terminal connection status monitoring: Real time monitoring of the connection status of key input and output terminals through onboard signal detection circuits. When problems such as loose cables or poor terminal contact occur, status prompts can be quickly identified and triggered.

-Fault signal feedback: The board converts its own working status (such as power status, isolation circuit status) and terminal circuit faults (such as overcurrent, signal loss) into standard digital signals, which are uploaded to the main control module through a dedicated channel. At the same time, the onboard LED indicator lights display different types of faults, making it easier for operation and maintenance personnel to intuitively determine the fault location and shorten the troubleshooting time.

2.4 System adaptation and installation convenience functions

As a dedicated terminal board for the GE Mark VIe system, the TSVCH1AED board has seamless compatibility with the IS200 series servo control module and communication module within the system. It enables high-speed data exchange with the control unit through the backplane bus, without the need for additional communication protocols, simplifying the system integration process. At the same time, the board adopts a modular terminal design that supports plug-in installation of terminals. After wiring is completed, it can be fixed as a whole, which not only improves wiring efficiency but also facilitates cable disassembly and replacement during later maintenance.

Key technical parameters

Power parameters

Working power supply:+5V DC ± 5%, maximum working current 1A; auxiliary power supply: 24V DC ± 10%

+5V is used to power the internal circuit of the board, 24V is used to drive the terminal circuit, and supports power status monitoring

input terminal

Analog input terminals: 8 channels, corresponding to 4-20mA/0-10V signals

Adapt temperature, pressure sensors, and servo drivers for analog feedback

Digital input terminal: 16 channels, optically isolated

Support NPN/PNP input, compatible with digital signals such as encoders and limit switches

Pulse input terminal: 4-channel, differential signal

Support 5V/24V differential pulses, compatible with servo motor encoder feedback

output terminal

Analog output terminals: 4 channels, output 4-20mA/0-10V

Used to issue speed and torque control commands to servo drives

Digital output terminal: 12 channels, relay output (capacity 2A/250VAC)

Adapt to servo brake units, solenoid valves, and other actuator controls

isolation performance

Input output isolation: 2500Vrms/1min; Input power isolation: 2500Vrms/1min

Compliant with IEC 61010-1 safety standard, strong anti-interference ability

working environment

Working temperature: 0 ℃ -60 ℃; Storage temperature: -40 ℃ -85 ℃; Relative humidity: 10% -90% (no condensation)

Adapt to the requirements of wide temperature and high humidity environments in industrial sites

terminal specifications

Using Phoenix terminals, the wire diameter is suitable for 0.5-2.5mm ²; Insertion and extraction force: 5-10N/terminal

The wiring is firm, the contact resistance is ≤ 10m Ω, and it supports long-term stable operation

Mechanical dimensions

3U rack mounted, dimensions: 152mm (width) x 100mm (height) x 180mm (depth)

Compatible with GE Mark VIe standard control cabinet, with installation hole spacing in accordance with IEC standards

communication interface

System backplane bus interface, compatible with GE Mark VIe bus protocol

The data transmission rate with the main control module is ≥ 1Mbps, and the delay is ≤ 1ms

Applicable scenarios and application areas

The TSVCH1AED board, with its high reliability signal switching capability, comprehensive protection mechanism, and good system compatibility, is widely used in industrial fields that require high-precision servo control. Typical scenarios include:

1. Servo control of power generation equipment: In the speed control system of gas turbines and steam turbines, speed sensors are connected through terminal boards to adjust valve position feedback signals, and the valve opening control instructions issued by the main controller are transferred to achieve precise adjustment of turbine speed and ensure stable operation of the generator set; In wind turbines, signal switching is used for the pitch servo system to ensure dynamic adjustment of blade angles with wind speed.

2. Metallurgical industry servo drive: In the pressing servo system of the steel rolling mill and the straightening servo system of the continuous casting machine in the steel plant, the terminal board collects signals such as roll position and motor speed, and transfers control instructions to the servo drive to achieve precise control of rolling accuracy and continuous casting speed; The transmission system of non-ferrous metal smelting equipment also widely uses it for signal regulation.

3. High end manufacturing precision control: In the feed axis servo system of CNC machine tools and the joint drive system of industrial robots, the terminal board is responsible for the stable transmission of encoder pulse signals and the precise distribution of control instructions, ensuring the machining accuracy of machine tools and the accuracy of robot motion trajectories; The servo feeding system of injection molding machines and printing machines also relies on reliable signal interaction.

4. Heavy machinery servo execution: In the lifting and amplitude servo system of cranes and the loading and unloading drive system of port machinery, weight sensors and position limit signals are connected to the terminal board, and brake control and speed adjustment instructions are transferred to ensure the safety and stability of heavy equipment operation.

Installation and usage precautions

5.1 Installation specifications

-The board needs to be installed in the 3U installation position of the GE Mark VIe system dedicated cabinet. Before installation, the dust and debris inside the cabinet should be cleaned to ensure a flat installation surface; M4 stainless steel bolts should be used for fixing the board, with a tightening torque controlled between 1.5-2N · m to avoid damaging the board shell due to over tightening or causing vibration displacement due to over loosening.

-The terminal wiring must strictly follow the principle of "power off before wiring". Before wiring, the board terminal definition diagram should be checked to distinguish between analog, digital, and pulse signal terminals. It is strictly prohibited to connect strong electrical signals to weak electrical terminals; Differential signals such as encoders require twisted pair shielded wires, with the shielding layer grounded at one end of the terminal, with a grounding resistance of ≤ 4 Ω, and a cable bending radius of not less than 8 times the cable diameter.

-The wiring of the board power supply should distinguish between positive and negative poles, and the+5V and 24V power supplies should be connected to the corresponding terminals separately. Reverse connection is strictly prohibited; Suggest connecting a 1A fuse (+5V circuit) and a 3A fuse (24V circuit) in series in the power supply circuit to further enhance power supply safety; The power cable should use flame-retardant cable with a wire diameter of not less than 1.5mm ².

5.2 Key points of use and maintenance

-Before the system is put into operation, the board needs to be initialized and configured through the GE Mark VIe engineer station, including terminal signal type matching, isolation circuit detection, fault threshold setting, etc. At the same time, signal transmission testing should be conducted to ensure accurate input signal acquisition, normal output command issuance, and no signal delay or distortion issues.

-During operation, it is necessary to regularly (recommended once a month) check the status of the board: observe whether the power, communication, and terminal circuit status are normal through the cabinet indicator lights; Use an infrared thermometer to detect the surface temperature of the board, ensuring that it does not exceed 60 ℃; Check if the terminal wiring is loose, and promptly deal with any cable detachment or terminal oxidation found.

-When troubleshooting, it is necessary to first obtain the fault code through the main controller and preliminarily locate the fault range. If it is a terminal circuit fault, the corresponding terminal cable can be disconnected for separate testing; If it is an internal fault of the board, it is necessary to power off and replace the board. When replacing, the same model TSVCH1AED board should be selected, and after replacement, parameter configuration and signal calibration should be carried out again.

-Daily maintenance should avoid touching the circuit and terminal contacts of the board directly with hands to prevent static electricity from damaging electronic components; The cabinet needs to maintain good ventilation to avoid dust accumulation. When the environmental humidity is high, the cabinet dehumidification device can be turned on to extend the service life of the board.
