  • GE IS200JPDMG1ACC S1AT005 Digital Input/Output (I/O) Module
    ❤ Add to collection
  • GE IS200JPDMG1ACC S1AT005 Digital Input/Output (I/O) Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The GE IS200TSVCH1AED servo input/output terminal board (hereinafter referred to as the "TSVCH1AED board") is a core interface component designed specifically for servo drive system signal transmission and terminal connection within the General Electric (GE) Speedtronic Mark VIe control system architecture. This board uses standardized terminals as its core carrier, undertaking key tasks such as regular acquisition of input signals in servo systems, precise conversion of output instructions, and safety protection of signal links. It is a "signal relay station" that connects servo sensors/actuators with the main control unit.

    • ¥16346.00
      ¥17483.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.540KG
    • Quantity:
    • (Inventory: 99999)
Description

The GE IS200TSVCH1AED servo input/output terminal board (hereinafter referred to as the "TSVCH1AED board") is a core interface component designed specifically for servo drive system signal transmission and terminal connection within the General Electric (GE) Speedtronic Mark VIe control system architecture. This board uses standardized terminals as its core carrier, undertaking key tasks such as regular acquisition of input signals in servo systems, precise conversion of output instructions, and safety protection of signal links. It is a "signal relay station" that connects servo sensors/actuators with the main control unit.

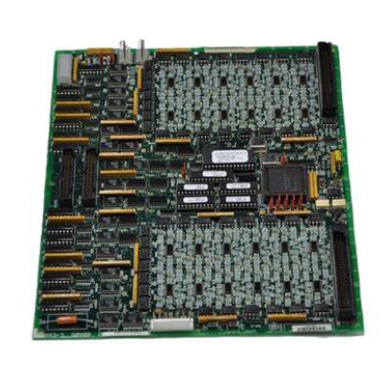

GE IS200JPDMG1ACC S1AT005 Digital Input/Output (I/O) Module

Basic overview of module

This module is one of the core I/O components of the GE Speedtronic Mark VIe control system. It adopts a modular design and can be easily integrated into the system rack to achieve high-speed data exchange with the controller. The "IS200" series identification in its model indicates that it belongs to the standard I/O product line of GE Industrial Control Systems. "JPDMG1ACC" is the specific model code of the module, covering core parameter information such as input and output channel configuration, signal type, interface specifications, etc. "S1AT005" is the production batch and configuration identification, ensuring the traceability and compatibility of the module.

The core positioning of the module is as a "relay station" for digital signals: on the one hand, it collects, isolates, and converts the digital signals (such as equipment operating status, fault signals, position signals, etc.) output by on-site sensors (such as photoelectric switches, proximity switches, limit switches, etc.), and transmits them to the controller for logical operations; On the other hand, it receives control instructions issued by the controller and converts them into digital signals that can be recognized by on-site actuators (such as contactors, solenoid valves, indicator lights, etc.) to achieve control functions such as start stop and action switching of industrial equipment.


Core performance parameters

The performance parameters of GE IS200JPDMG1ACC S1AT005 module are the core basis for its adaptation to industrial scenarios. The following is a detailed explanation of key technical indicators:

1. Input/output channel configuration

The module adopts an independent design of input and output channels, with a typical configuration of 16 digital inputs and 16 digital outputs (the specific number of channels depends on the actual product specification). The channels are isolated from each other, which can effectively avoid signal crosstalk and improve system stability. The input channel supports various signal types such as dry contacts and wet contacts, while the output channel usually uses relay output or transistor output to adapt to field devices with different load characteristics.

2. Signal specifications

-Digital input: Supports DC 24V standard signals, with a typical input current range of 5mA-10mA. It has signal filtering function, which can effectively suppress signal fluctuations caused by on-site electromagnetic interference. The input response time is ≤ 1ms, ensuring real-time capture of rapidly changing on-site signals.

-Digital output: The contact capacity of relay output mode is usually AC 250V/5A or DC 30V/5A, which can directly drive low and medium power actuators; The transistor output supports DC 24V, with an output current of up to 0.5A-2A, suitable for control scenarios with high-frequency actions. The output response time is ≤ 0.5ms, ensuring fast execution of control instructions.

3. Communication and Data Transmission

The module communicates with the controller through GE's proprietary backplane bus, with a bus speed of over 100Mbps, achieving high-speed real-time transmission of input and output signals, meeting the stringent real-time requirements of industrial control systems. At the same time, the module supports hot swapping function, which allows for module replacement and maintenance without shutting down the system, greatly reducing system downtime and improving production continuity.

4. Environmental adaptability

In response to the complex environment of industrial sites, the module has excellent environmental adaptability: the working temperature range is -40 ℃~70 ℃, which can adapt to extreme high and low temperature working conditions; The relative humidity range is 5%~95% (no condensation), suitable for humid environments; Equipped with IP20 protection level (module itself), combined with rack protection, it can meet the usage needs of different dust and oil pollution environments. In addition, the module also has the characteristics of anti vibration (compliant with IEC 60068-2-6 standard) and anti impact (compliant with IEC 60068-2-27 standard), ensuring stable operation in harsh industrial environments.

5. Power supply and power consumption

The module is powered by a redundant DC 24V power supply, with a power input range of DC 20V~30V. It has overvoltage and overcurrent protection functions, and can automatically cut off the power supply when there is an abnormality in the power supply to avoid module damage. Under normal working conditions, the module power consumption is ≤ 10W, which belongs to low-power design and can effectively reduce the overall energy consumption of the system.


Functional features and advantages

1. High reliability isolation design

The input and output channels of the module, as well as the communication between the channel and the backplane bus, are all equipped with optoelectronic isolation technology. The isolation voltage can reach 2500V AC (1 minute), which can effectively block the interference of high voltage and surge signals on the control system on site, and prevent internal faults of the module from spreading to other components, significantly improving the anti-interference ability and operational reliability of the system.

2. Flexible diagnosis and fault alarm function

The module has a complete self diagnostic function, which can monitor its own power status, channel signal status, communication status, etc. in real time. When there is an abnormal situation such as power failure, channel short circuit, communication interruption, etc., the fault information will be immediately uploaded to the controller through the backplane bus, and local alarm will be triggered through the LED indicator lights on the module panel (such as power light, fault light, channel status light), which is convenient for operation and maintenance personnel to quickly locate the fault point and shorten the fault investigation time.

3. Convenient configuration and maintenance

The module supports parameter configuration through GE's Proficy Machine Edition and other configuration software. Operations personnel can flexibly set the signal type, filtering time, fault threshold and other parameters of input and output channels according to on-site needs, and the configuration process is simple and intuitive. At the same time, the module adopts a standardized plug-in design, which does not require professional tools for installation and disassembly. With the hot plug function, it greatly simplifies the maintenance process of the module.

4. Powerful compatibility and scalability

As a standard component of the GE Speedtronic Mark VIe control system, this module is seamlessly compatible with other I/O modules, controllers, human-machine interfaces, and other components within the system, supporting flexible expansion of the system. When the industrial production process changes, the system configuration can be adjusted by adding or replacing modules, without the need to restructure the entire control system, reducing the cost of system


Typical application scenarios

The GE IS200JPDMG1ACC S1AT005 digital I/O module is widely used in various industrial fields due to its high reliability and flexible configuration characteristics. Typical scenarios include:

1. Power industry: used in the control system of thermal power units and gas units to collect signals from temperature switches, pressure switches, liquid level switches, etc. of steam turbines and boilers, control the start and stop of equipment such as fans, pumps, valves, etc., and achieve stable operation and safety protection of the units.

2. Metallurgical industry: applied to the smelting production lines of steel and non-ferrous metals, collecting the deviation signals of conveyor belts and the material level signals of silos, controlling the actions of equipment such as rolling mills and furnaces, and ensuring the continuity and stability of the production process.

3. Chemical industry: In the control system of chemical reaction vessels and storage tanks, safety monitoring signals such as pressure, temperature, and liquid level are collected to control equipment such as solenoid valves and regulating valves, achieving precise control and safety protection of the chemical production process.

4. Manufacturing: A control system used for automated production lines to collect workpiece position signals and equipment operation status signals, control the actions of robotic arms, conveyors, sorting equipment, etc., and improve production efficiency and product quality.


Installation and usage precautions

-The module should be installed in a control cabinet with good ventilation, no severe vibration, and no corrosive gases, avoiding direct sunlight and rainwater erosion, and ensuring that the working environment meets the environmental adaptability requirements of the module.

-When wiring, it is necessary to strictly follow the wiring diagram of the module, distinguish the wiring terminals of the input channel and the output channel, and avoid module damage or on-site equipment misoperation caused by wrong wiring; At the same time, ensure that the wiring is secure to prevent signal abnormalities caused by poor contact.

-The module power supply needs to use a DC 24V power supply that meets the specifications, and ensure that the power supply has good stability and redundancy capabilities to avoid affecting the normal operation of the module due to power fluctuations.

-When performing hot plugging operations on modules, it is necessary to first confirm that the system supports hot plugging functionality and follow the operating procedures to avoid plugging during peak module data transmission periods and prevent data loss or system failures.

-Regularly maintain and inspect the module, clean the dust on the surface of the module, check the fastening of the wiring terminals and the status of the LED indicator lights, and promptly identify and address potential faults and hazards.
