  • YASKAWA JACP-317802 AC servo drive
    ❤ Add to collection
  • YASKAWA JACP-317802 AC servo drive

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The YASKAWA JACP-317802 AC servo driver is a high-performance drive module developed by Yaskawa Electric specifically for the CP-9200SH automation platform. Its core function is to receive upper control commands and drive servo motors to achieve high-precision motion control. The product integrates advanced vector control technology, high-speed signal processing unit and reliable power drive circuit, which can accurately realize three mode closed-loop control of servo motor position, speed and torque, and has excellent dynamic response performance and system coordination ability. Its modular design can be seamlessly integrated into the CP-9200SH rack system, and efficiently linked with modules such as power supply and process controllers within the platform. It is widely used in scenarios such as automated production lines, industrial robots, and precision machining equipment that require strict precision and stability in motion control, providing core driving support for the efficient and accurate operation of equipment.

    • ¥20658.00
      ¥21905.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.283KG
    • Quantity:
    • (Inventory: 99999)
Description

The YASKAWA JACP-317802 AC servo driver is a high-performance drive module developed by Yaskawa Electric specifically for the CP-9200SH automation platform. Its core function is to receive upper control commands and drive servo motors to achieve high-precision motion control. The product integrates advanced vector control technology, high-speed signal processing unit and reliable power drive circuit, which can accurately realize three mode closed-loop control of servo motor position, speed and torque, and has excellent dynamic response performance and system coordination ability. Its modular design can be seamlessly integrated into the CP-9200SH rack system, and efficiently linked with modules such as power supply and process controllers within the platform. It is widely used in scenarios such as automated production lines, industrial robots, and precision machining equipment that require strict precision and stability in motion control, providing core driving support for the efficient and accurate operation of equipment.

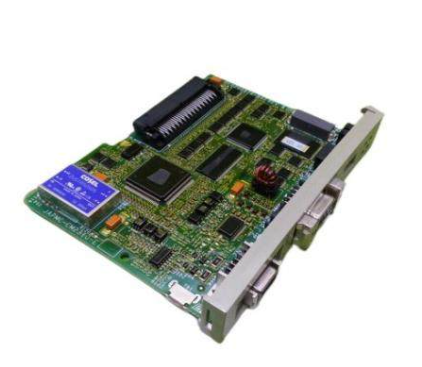

YASKAWA JACP-317802 AC servo drive

Product Overview

The YASKAWA JACP-317802 AC servo driver is a high-performance drive module developed by Yaskawa Electric specifically for the CP-9200SH automation platform. Its core function is to receive upper control commands and drive servo motors to achieve high-precision motion control. The product integrates advanced vector control technology, high-speed signal processing unit and reliable power drive circuit, which can accurately realize three mode closed-loop control of servo motor position, speed and torque, and has excellent dynamic response performance and system coordination ability. Its modular design can be seamlessly integrated into the CP-9200SH rack system, and efficiently linked with modules such as power supply and process controllers within the platform. It is widely used in scenarios such as automated production lines, industrial robots, and precision machining equipment that require strict precision and stability in motion control, providing core driving support for the efficient and accurate operation of equipment.


Specification parameters

The specification parameters of YASKAWA JACP-317802 AC servo drive focus on drive performance, electrical characteristics, adaptability, and environmental adaptability. The core parameters are as follows:

-Drive performance parameters: Supports three control modes: position, speed, and torque, with a switching response time of ≤ 1ms; position control accuracy of ± 1 pulse, speed control accuracy of ± 0.02% of rated speed; Suitable for Yaskawa servo motors with a power range of 0.1kW-5.5kW, maximum output frequency of 50kHz, overload capacity of 150% rated current (for 60 seconds).

-Electrical parameters: Input voltage AC 200V-240V (three-phase), frequency 50/60Hz; Control power supply DC 24V (compatible with CP-9200SH platform unified power supply); Has excellent electromagnetic compatibility, complies with the IEC 61800-3 electromagnetic compatibility standard, and matches the input and output impedance of industrial servo system specifications.

-Physical dimensions and weight: Adopting the CP-9200SH platform standardized slot design, the dimensions are 5.1cm × 25.4cm × 11.4cm (height × width × depth), which can be directly inserted into the rack for integration; Weighing approximately 0.7kg, the lightweight design facilitates modular assembly and maintenance of the system.

-Environmental adaptability: Operating temperature range from 0 ℃ to+55 ℃, relative humidity from 5% to 95% (non condensing); Protection level IP20, with basic dust prevention capability, can adapt to conventional industrial site environments; The storage temperature range is -20 ℃ to+65 ℃, meeting the storage and transportation needs of different regions.

-Communication and Interface: High speed data exchange with the upper controller is achieved through the CP-9200SH platform backplane bus; Supports EtherCAT and CANopen industrial communication protocols, equipped with one RJ45 Ethernet interface; Reserved encoder interfaces (supporting incremental/absolute encoders) and digital I/O interfaces (8 inputs/4 outputs), which can directly interface with servo motors and on-site sensors.


Performance characteristics

YASKAWA JACP-317802 AC servo drive relies on Yaskawa's advanced servo control technology and industrial grade hardware design, with core advantages such as high-precision drive, high dynamic response, and high reliability. The specific characteristics are as follows:

-High precision vector drive: adopting advanced magnetic field oriented vector control technology, it can accurately separate the excitation current and torque current of the motor, achieving independent and precise control of torque; Paired with high-precision encoder feedback, it effectively suppresses torque fluctuations during low-speed operation, ensuring smooth operation even at low speeds (0.1r/min). The position control accuracy reaches ± 1 pulse, meeting the requirements of precision motion control.

-High dynamic response performance: equipped with a high-performance 32-bit DSP digital signal processor, with a control cycle as low as 250 μ s, it can quickly respond to upper level control instructions; Equipped with automatic gain adjustment function, it can optimize control parameters in real time according to load changes. In scenarios such as rapid motor start stop, variable speed, and sudden load changes, it can effectively suppress overshoot and oscillation, ensuring operational stability.

-Efficient system collaboration: Through the CP-9200SH platform backplane bus, millisecond level data exchange is achieved with the upper controller and process controller, enabling precise linkage between motion control and process control. For example, in industrial robot operations, joint motion trajectories and work pressure can be synchronously regulated; Supporting multi driver collaborative control, it can achieve complex motion control functions such as multi axis synchronization, electronic cam, electronic gear, etc.

-Comprehensive safety protection and diagnosis: Built in multiple protection functions such as overcurrent, overvoltage, undervoltage, overheating, overload, motor stalling, encoder failure, etc., can quickly cut off output and issue alarm signals under abnormal working conditions; Equipped with comprehensive fault diagnosis functions, it can monitor the working status, current and voltage parameters of the drive in real time, record fault codes, and facilitate quick troubleshooting by operation and maintenance personnel.

-Convenient debugging and operation: supports parameter configuration, status monitoring, waveform recording, and parameter backup/recovery through upper computer debugging software, facilitating batch debugging of multiple devices; The module panel is equipped with status indicator lights and buttons, which can visually view the operating status. It supports easy local operation and fault reset, reducing the difficulty of operation and maintenance.

-Industrial grade reliable design: using industrial grade high-voltage components and anti-interference circuit design, it can effectively resist the effects of electromagnetic interference, voltage fluctuations, and other factors in industrial sites; Wide temperature range and dust-proof structure design ensure long-term stable operation of the module in complex industrial environments, with an average time between failures (MTBF) of over 100000 hours.


Working principle

The core working logic of YASKAWA JACP-317802 AC servo drive is to achieve precise motion control of servo motors through a closed-loop process of "instruction reception signal processing power drive feedback adjustment". The specific principle is as follows:

1. Control instruction reception: The driver receives position, speed, or torque control instructions sent by the upper controller through the CP-9200SH platform backplane bus or industrial communication interface (such as EtherCAT), and also receives position and speed feedback signals from the servo motor encoder.

2. Signal processing and computation: The built-in DSP processor performs real-time analysis on the received control instructions and feedback signals, and calculates the excitation current and torque current instructions required for the motor stator through magnetic field oriented vector control algorithm; Simultaneously compare the deviation between the feedback signal and the control command, and generate accurate driving control signals through PID adjustment algorithm.

3. Power conversion and driving: The power driving unit converts the input AC 200V-240V AC power into DC power through a rectifier circuit, and then inverts the DC power into three-phase AC power with adjustable frequency and voltage through a three-phase PWM inverter; According to the control signal generated by DSP, accurately adjust the parameters of the output AC power to drive the servo motor to operate according to the instruction requirements.

4. Motion status feedback: The encoder built into the servo motor collects real-time position and speed information of the motor rotor, and transmits the feedback signal to the driver; After processing the feedback signal, the driver is used for closed-loop adjustment by comparing it with the control instructions, and uploads the status information to the upper controller to achieve real-time monitoring of the motion status.

5. Protection mechanism triggering: The driver monitors the input voltage, output current, working temperature, and motor operating status in real time. When abnormal conditions such as overcurrent, overvoltage, overheating, and motor stalling are detected, the protection circuit is immediately triggered to quickly cut off power output and send a fault alarm signal to the upper controller to avoid damage to the driver and motor.


Precautions

To ensure the safe and stable operation of YASKAWA JACP-317802 AC servo drive, and to guarantee the accuracy of motion control and system reliability, the following precautions must be strictly followed during installation, commissioning, operation, and maintenance:

-Preparation before installation: Confirm that the input voltage and phase of the driver are consistent with the product requirements, and that the control power supply matches the CP-9200SH platform power supply standard to avoid module burnout caused by voltage mismatch; Check the installation environment to ensure that the temperature and humidity meet the specified range, the ventilation is good, and sufficient heat dissipation space is reserved (with a distance of ≥ 10cm from the heating equipment), avoiding close installation with strong electromagnetic interference equipment; Clean the dust and debris on the surface of the drive and the rack slot, and check whether the interface pins are intact, without bending or oxidation.

-Wiring specifications: strictly follow the wiring diagram in the product manual to connect the motor power cable, encoder cable, and communication line; The power cable and encoder cable need to be wired separately (with a spacing of ≥ 30cm). The encoder cable should use shielded cables and the shielding layer should be grounded at one end to reduce the impact of electromagnetic interference on the feedback signal; When wiring, ensure that the terminals are securely fastened to avoid loose connections and poor contact. Pay special attention to the positive and negative polarity of the motor to prevent the motor from being burnt out due to reverse connection; After the wiring is completed, check the correctness of the circuit again and confirm that there are no errors before powering on.

-Debugging operation requirements: Parameter initialization is required before the first debugging, and motor parameters (such as rated power, rated speed, stator resistance, etc.) should be entered according to the adapted motor model, and the corresponding control mode should be selected; Gradually configure key parameters such as position loop gain and velocity loop gain to avoid system oscillation caused by excessively high parameter settings; Real time monitoring of motor operation status (speed, current, temperature) and driver status during debugging, and recording of motion waveforms through upper computer software for parameter optimization; It is recommended to conduct no-load debugging first, confirm that there are no abnormalities, and then connect to load operation.

-Operational safety control: Before operation, it is necessary to configure a complete safety protection logic, set overload protection thresholds, and emergency stop signal interfaces to ensure timely shutdown under abnormal working conditions; During operation, it is prohibited to modify key control parameters arbitrarily. If adjustments are needed, they must be tested and verified first to confirm that there is no impact before formal application; Regularly check the stability of the communication link to avoid control failure caused by communication interruption; Prohibit long-term overload operation of the motor to avoid overheating and damage to the drive.

-Maintenance requirements: Regularly clean the dust on the drive's cooling fins and ventilation openings to ensure smooth heat dissipation; Check the fastening of the wiring terminals once a quarter, paying special attention to the motor cables and encoder cables to avoid looseness caused by vibration; Maintenance operations must be carried out after cutting off the power supply and waiting for the internal capacitor to discharge completely (it is recommended to wait for 5-10 minutes) to prevent electric shock; If the driver malfunctions, it needs to be repaired by professional technicians. The fault code can be read through debugging software to accurately locate the problem. Non professionals are prohibited from disassembling or modifying the internal circuit.

-Other safety precautions: Avoid the driver from being subjected to severe impact, vibration, moisture, or corrosive gases, and prevent damage to internal circuits; If the drive is idle for a long time, a comprehensive inspection, including appearance inspection, insulation testing, and parameter verification, should be carried out before being put back into use again, to confirm that there are no faults; Flammable and explosive materials, as well as conductors carrying high-frequency currents, are prohibited from being placed near the driver to avoid equipment damage or safety accidents.
