Product Overview

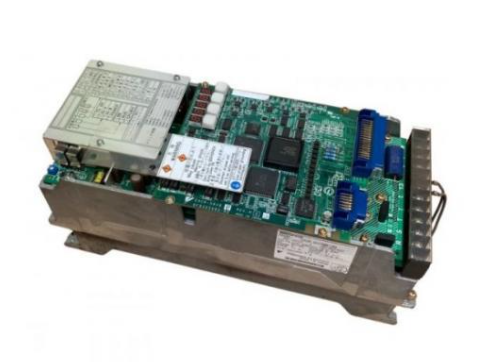

YASKAWA JACP-317801 Advanced Process Controller is a core control module developed by Yaskawa Electric for complex industrial process control scenarios. It is specifically designed for the CP-9200SH automation platform and is a key component for achieving high-precision process parameter control and system collaborative management. This product integrates high-performance processors and advanced process control algorithms, which can real-time collect, analyze, and accurately regulate various industrial process parameters such as temperature, pressure, flow rate, and liquid level. At the same time, it has strong system linkage and data exchange capabilities, and can seamlessly integrate with servo controllers, power supplies, and other modules within the platform to form a complete automation control loop. Its modular design is compatible with the CP-9200SH rack system, making it easy to install and highly scalable. It is widely used in industrial production fields that require strict precision and stability in process control, providing core control guarantees for the efficient and safe operation of complex process flows.

Specification parameters

The specification parameters of YASKAWA JACP-317801 advanced process controller focus on control performance, electrical characteristics, physical adaptability, and environmental adaptability. The core parameters are as follows:

-Control performance parameters: Supports 8 analog inputs (compatible with 4-20mA/0-10V standard signals) and 4 analog outputs; Integrating multiple process control algorithms such as PID and fuzzy control, the control cycle can be as low as 1ms, and the adjustment accuracy can reach ± 0.1% FS; supporting multi loop collaborative control, up to 8 independent control loops can be managed, meeting the multi parameter synchronous regulation requirements of complex process flows.

-Electrical parameters: The power supply voltage is DC 24V (compatible with the CP-9200SH platform unified power supply standard), the working current is ≤ 0.8A; the input impedance is ≥ 1M Ω (analog input), and the output load capacity is ≤ 500 Ω (analog output); Has good electromagnetic compatibility and complies with the IEC 61000-6-2 industrial electromagnetic compatibility standard.

-Physical dimensions and weight: Adopting the CP-9200SH platform standardized slot design, the dimensions are 5.1cm × 25.4cm × 11.4cm (height × width × depth), which can be directly inserted into the rack for integration; The weight is about 0.55kg, and the lightweight design does not increase the overall system load, making it easy for modular assembly of the platform.

-Environmental adaptability: Operating temperature range from 0 ℃ to+55 ℃, relative humidity from 5% to 95% (non condensing); Protection level IP20, with basic dust prevention capability, can adapt to conventional industrial site environments; The storage temperature range is -20 ℃ to+65 ℃, meeting the storage and transportation needs of different regions.

-Communication and Interface: High speed data exchange with other modules is achieved through the CP-9200SH platform backplane bus; Supports industrial Ethernet protocols such as EtherNet/IP and Modbus TCP, equipped with one RJ45 Ethernet interface; Reserve 8 digital input/output interfaces, which can directly interface with on-site sensors and actuators.

Performance characteristics

The YASKAWA JACP-317801 advanced process controller relies on Yaskawa's advanced control technology and industrial grade hardware design, and has core advantages such as high-precision regulation, multi-mode adaptation, and strong collaborative capabilities. The specific features are as follows:

-High precision process control: Equipped with a high-performance 32-bit processor, combined with optimized PID control algorithm and adaptive adjustment mechanism, the control parameters can be optimized in real time according to the dynamic changes of process parameters, effectively suppressing overshoot and steady-state errors, ensuring that key parameters such as temperature and pressure are stable within the set range, and the control accuracy reaches ± 0.1% FS, meeting the control requirements of precision industrial processes.

-Multi algorithm and multi loop support: Built in PID, fuzzy control, cascade control and other process control algorithms, which can be flexibly switched according to different process requirements; Support parallel management of 8 independent control loops, with independent configuration of parameters for each loop, capable of adapting to complex control scenarios with multiple parameters and processes simultaneously, enhancing system control flexibility.

-Efficient System Collaboration: Through the CP-9200SH platform backplane bus, millisecond level data exchange is achieved with servo controllers, power supplies, and other modules, enabling precise linkage between motion control and process control. For example, in precision machining, the machining position and cutting temperature are synchronously regulated to ensure product machining quality; Support seamless integration with the upper computer system to achieve full process automation control.

-Rich data exchange and diagnostic functions: equipped with multiple industrial communication interfaces, it can upload process parameters, control status and other data to the monitoring system in real time, and receive control instructions from the upper computer; Built in comprehensive fault diagnosis function, capable of real-time monitoring of input and output signals, communication links, and module working status. When abnormalities occur, an alarm signal is immediately issued and fault information is recorded, making it easy for operation and maintenance personnel to quickly troubleshoot.

-Convenient debugging and operation: Supports parameter configuration, algorithm selection, and control logic editing through upper computer debugging software, with parameter backup and recovery functions, facilitating batch debugging of multiple devices; The module panel is equipped with status indicator lights and buttons, which can visually view the operating status. It supports easy local operation and fault reset, reducing the difficulty of operation and maintenance.

-Industrial grade reliable design: using industrial grade components and anti-interference circuit design, it can effectively resist the effects of electromagnetic interference, voltage fluctuations, and other factors in industrial sites; Wide temperature range and dust-proof structure design ensure long-term stable operation of the module in complex industrial environments, with an average time between failures (MTBF) of over 100000 hours.

Working principle

The core working logic of YASKAWA JACP-317801 advanced process controller is to achieve precise control of industrial process parameters through a closed-loop process of "parameter acquisition signal processing algorithm operation execution regulation state feedback". The specific principle is as follows:

1. Process parameter collection: On site sensors (such as temperature sensors, pressure transmitters) convert the collected process parameters such as temperature and pressure into standard analog signals of 4-20mA/0-10V, which are transmitted to the controller through the analog input interface; At the same time, the digital input interface receives status signals from devices such as limit switches and photoelectric sensors, completing comprehensive status perception of the process flow.

2. Signal processing and analysis: The signal conditioning circuit inside the controller filters, amplifies, and converts the input analog signal into a digital signal that can be recognized by the processor; The processor performs noise reduction and data analysis on digital signals, extracting key process parameters and equipment status information.

3. Control algorithm calculation: The processor compares and analyzes the actual parameters with the target parameters based on the preset control objectives (such as set temperature and target pressure) and the selected control algorithm (such as PID algorithm), and calculates the deviation value; Generate corresponding control instructions through algorithmic calculations, such as adjusting the opening of actuators, controlling the power of heating equipment, etc.

4. Control instruction output and execution: The controller converts the generated control instructions into analog signals through digital to analog conversion (D/A conversion), and transmits them to actuators (such as regulating valves and frequency converters) through analog output interfaces; At the same time, auxiliary control signals are sent out through digital output interfaces to drive relevant equipment actions and achieve precise control of process parameters.

5. State feedback and closed-loop optimization: The controller receives real-time feedback signals from actuators and updated process parameters collected by sensors through the backplane bus and communication interface; The processor continuously compares actual parameters with target parameters, dynamically optimizes control algorithm parameters, adjusts control instructions, forms stable closed-loop control, and ensures that process parameters remain stable within the set range; At the same time, real-time monitoring of the system status triggers alarms and protection mechanisms in case of abnormalities.

Precautions

To ensure the safe and stable operation of YASKAWA JACP-317801 advanced process controller, and to guarantee process control accuracy and system reliability, the following precautions must be strictly followed during installation, commissioning, operation, and maintenance:

-Preparation before installation: Confirm that the power supply voltage of the controller is DC 24V, consistent with the CP-9200SH platform power supply standard, to avoid module damage caused by voltage mismatch; Check the installation environment to ensure that the temperature and humidity meet the specified range, the ventilation is good, and sufficient heat dissipation space is reserved to avoid close installation with strong electromagnetic interference equipment (such as frequency converters); Clean the dust and debris on the surface of the controller and the rack slot, and check whether the interface pins are intact, without bending or oxidation.

-Wiring specifications: strictly follow the wiring diagram in the product manual to connect sensors, actuators, and communication lines. Shielded cables should be used for analog signal lines, with the shielding layer grounded at one end and separated from power cables (spacing ≥ 30cm) to reduce the impact of electromagnetic interference on signal acquisition; Ensure that the terminals are securely fastened during wiring to avoid loose connections and poor contact. After wiring is completed, recheck the correctness of the circuit and confirm that there are no errors before powering on.

-Debugging operation requirements: Parameter initialization is required before the first debugging, and appropriate control algorithms should be selected according to the process requirements. Key parameters such as PID parameters and control cycles should be gradually configured to avoid system oscillation or decreased control accuracy caused by improper parameter settings; During the debugging process, real-time monitoring of process parameter changes and controller operation status is required. Data can be recorded through upper computer software for parameter optimization; It is recommended to conduct no-load debugging first, confirm that there are no abnormalities, and then connect to load operation.

-Operational safety control: Before operation, it is necessary to configure a complete alarm and protection logic, clarify the safety thresholds of temperature, pressure and other parameters, ensure that alarms and shutdown protection can be triggered in a timely manner when parameters exceed the standard, and avoid equipment damage and production accidents; During operation, it is prohibited to modify key control parameters arbitrarily. If adjustments are needed, they must be tested and verified first to confirm that there is no impact before formal application; Regularly check the stability of the communication link to avoid control failure caused by communication interruption.

-Maintenance requirements: Regularly clean the dust in the controller's heat dissipation channel and interface to ensure smooth heat dissipation and good contact; Check the tightness of the wiring terminals once a quarter, paying special attention to the wiring of analog signals to avoid looseness caused by vibration; Maintenance operations must be carried out after cutting off the power supply and waiting for the internal capacitor to discharge completely (it is recommended to wait for 5-10 minutes) to prevent electric shock; If the controller malfunctions, it needs to be repaired by professional technicians. The fault code can be read through debugging software to accurately locate the problem. Non professionals are prohibited from disassembling or modifying the internal circuit.

-Other safety precautions: Avoid the controller from being subjected to severe impacts, vibrations, moisture, or corrosive gases, and prevent damage to internal circuits; If the controller is idle for a long time, a comprehensive inspection, including appearance inspection, insulation testing, and parameter verification, should be carried out before being put back into use. After confirming that there are no faults, it can be put back into use; Do not stack flammable and explosive materials near the controller to ensure a safe usage environment.
