  • YASKAWA LASC-100SUB high-precision motion control module
    ❤ Add to collection

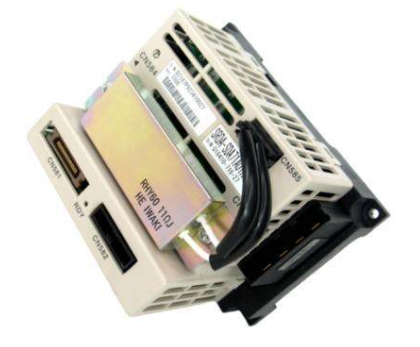

  • YASKAWA LASC-100SUB high-precision motion control module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    YASKAWA LASC-100SUB is a high-performance and high-precision motion control module launched by Yaskawa (YASKAWA) brand, positioned as the precise control core unit for multi axis collaborative motion in industrial automation scenarios. This module integrates integrated functions such as multi axis synchronous control, high-precision positioning calculation, motion trajectory planning, encoder signal acquisition, and fault monitoring and alarm. It can achieve precise linkage control between the upper controller and multiple servo motors. Through industrial grade high reliability components and strong anti-interference design, it has nanometer level positioning accuracy, fast trajectory response, and excellent multi axis collaborative synchronization performance. Its standardized installation interface and wide compatibility can be seamlessly integrated into various mainstream industrial automation control systems, suitable for scenarios such as precision machining, high-end equipment manufacturing, and automated testing that require strict precision and synchronization of motion control, providing core technical support for the ultra-high precision motion control of the system.

    • ¥19544.00
      ¥19945.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.370KG
    • Quantity:
    • (Inventory: 99999)
Description

YASKAWA LASC-100SUB is a high-performance and high-precision motion control module launched by Yaskawa (YASKAWA) brand, positioned as the precise control core unit for multi axis collaborative motion in industrial automation scenarios. This module integrates integrated functions such as multi axis synchronous control, high-precision positioning calculation, motion trajectory planning, encoder signal acquisition, and fault monitoring and alarm. It can achieve precise linkage control between the upper controller and multiple servo motors. Through industrial grade high reliability components and strong anti-interference design, it has nanometer level positioning accuracy, fast trajectory response, and excellent multi axis collaborative synchronization performance. Its standardized installation interface and wide compatibility can be seamlessly integrated into various mainstream industrial automation control systems, suitable for scenarios such as precision machining, high-end equipment manufacturing, and automated testing that require strict precision and synchronization of motion control, providing core technical support for the ultra-high precision motion control of the system.




YASKAWA LASC-100SUB high-precision motion control module

Product Overview

YASKAWA LASC-100SUB is a high-performance and high-precision motion control module launched by Yaskawa (YASKAWA) brand, positioned as the precise control core unit for multi axis collaborative motion in industrial automation scenarios. This module integrates integrated functions such as multi axis synchronous control, high-precision positioning calculation, motion trajectory planning, encoder signal acquisition, and fault monitoring and alarm. It can achieve precise linkage control between the upper controller and multiple servo motors. Through industrial grade high reliability components and strong anti-interference design, it has nanometer level positioning accuracy, fast trajectory response, and excellent multi axis collaborative synchronization performance. Its standardized installation interface and wide compatibility can be seamlessly integrated into various mainstream industrial automation control systems, suitable for scenarios such as precision machining, high-end equipment manufacturing, and automated testing that require strict precision and synchronization of motion control, providing core technical support for the ultra-high precision motion control of the system.


Specification parameters

Based on the technical standards of Yaskawa Industrial Motion Control Series products and the general design specifications for high-precision motion control modules, the core specification parameters of YASKAWA LASC-100SUB are as follows:

-Job Description: High precision motion control module, integrating multi axis synchronous control, positioning calculation, trajectory planning, encoder signal acquisition, and fault alarm functions

-Adaptation device type: Yaskawa series servo motors (such as ∑ - V series environment resistant servo motors), supporting incremental/absolute high-precision encoder signal access

-Control mode: Supports position control, speed control, torque control, and multi axis synchronous control modes, and supports electronic gear ratio adjustment function

-Number of control axes: Supports multi axis collaborative control (standard 4 axes, expandable to 8 axes), meeting the needs of complex multi axis motion scenarios

-Positioning accuracy: Nano level positioning control (positioning error ≤± 1 μ m), supporting mechanical gap compensation (adjustable from 0.0~9.9 μ m)

-Input power supply: DC 24V (± 10%), current ≤ 0.8A, ensuring stable power supply for the control circuit

-Encoder interface: Supports A/B/Z phase signal input, compatible with high-precision encoders of 17 bits and above (resolution ≥ 131072 pulses/rev)

-Control signal input: supports digital input signals such as run/stop, forward and reverse, mode selection, reset, emergency stop, etc

-Status signal output: including digital output signals for positioning completion, synchronization completion, alarm, brake control, etc

-Motion trajectory planning: supports multiple trajectory planning such as straight lines, arcs, and S-curves, with adjustable trajectory smoothness

-Working environment: temperature from 0 ℃ to+55 ℃, relative humidity from 30% to 90% RH (non condensing); Installation altitude ≤ 1000m

-Storage temperature: -20 ℃~+70 ℃

-Mechanical strength: anti vibration ability ≤ 0.3g (5~55Hz), suitable for precision industrial site mechanical vibration environment

-Electromagnetic compatibility: Complies with the IEC 61000-4 series of industrial electromagnetic compatibility standards and has strong resistance to electromagnetic interference

-Protection features: equipped with overcurrent protection, overvoltage protection, overheating protection, overload protection, and protection against excessive position deviation

-Installation method: Standard rail installation (compliant with IEC 60715 specification), suitable for general industrial control cabinet layout


Performance characteristics

-Nano level high-precision positioning: positioning error ≤ ± 1 μ m, coupled with high-precision encoders of 17 bits or more, can achieve nano level motion control, meeting strict precision requirements such as precision machining and high-end detection; Built in mechanical clearance compensation function effectively offsets the influence of transmission mechanism clearance and improves positioning stability.

-Excellent multi axis collaborative performance: Supports 4-axis standard configuration and 8-axis extended multi axis synchronous control, adopts advanced synchronous control algorithms, multi axis synchronization error ≤ 5 μ s, can achieve precise execution of complex multi axis linkage trajectories, and is suitable for multi axis collaborative work scenarios.

-Flexible trajectory planning and control: supports multiple trajectory planning modes such as straight lines, arcs, and S-shaped curves, and trajectory parameters can be flexibly configured to balance motion speed and trajectory smoothness, reducing the impact of motion impact on precision equipment.

-Comprehensive protection and alarm: integrating multiple protection functions such as overcurrent, overvoltage, overheating, and excessive position deviation, quickly cutting off the control circuit and outputting alarm signals under abnormal working conditions; Accurate feedback of fault status facilitates quick positioning and handling by operation and maintenance personnel, ensuring system safety.

-Strong environmental adaptability and reliability: Adopting industrial grade high specification components and reinforced structural design, it can work stably for a long time in a wide temperature range of 0 ℃~+55 ℃ and high humidity environment. The low vibration sensitivity design ensures high-precision control without being affected by on-site vibration.

-Convenient integration and adaptation: Standardized guide rail installation and signal interface, can seamlessly adapt to Yaskawa series servo motors and various upper controllers (PLC, CNC systems), with high integration efficiency; Support multiple control mode switching and adapt to diverse motion control scenarios.


Working principle

The YASKAWA LASC-100SUB core is based on the working logic of "instruction reception trajectory planning multi axis collaboration position feedback closed-loop control". As the core control unit of high-precision multi axis motion control system, its core function is to convert the motion instructions of the upper controller into accurate multi axis control signals, drive multiple servo motors to cooperate to complete the preset motion trajectory, and achieve motion state closed-loop control through high-precision encoder signal acquisition, ensuring nanometer level positioning accuracy.

The specific workflow is as follows: Firstly, the upper controller issues motion control instructions (including control mode, target position, motion speed, trajectory type, and other parameters) to the control signal input terminal of YASKAWA LASC-100SUB according to the job requirements; The internal control unit of the module parses the received instructions and generates the optimal motion trajectory through the built-in high-precision trajectory planning algorithm. Combined with multi axis synchronous control logic, the control signal is distributed to the servo drive interface of the corresponding axis; Each axis servo motor starts running according to the control signal, and the accompanying high-precision encoder feeds back real-time motion status signals (position, speed, phase) to the encoder interface of the module; The module synchronously collects and analyzes multi axis feedback signals, compares them in real-time with preset target trajectory parameters, and dynamically adjusts the control signals of each axis through closed-loop control algorithms to ensure the synchronization and positioning accuracy of multi axis motion; Throughout the entire working process, the built-in protection monitoring module continuously monitors the power supply status, output signals, and its own temperature rise. When abnormal working conditions such as overcurrent, overvoltage, and excessive position deviation are detected, the control circuit is immediately cut off, and an alarm signal is output and fed back to the upper controller; In addition, the enhanced anti-interference design of the module ensures stable transmission of control signals and feedback signals in the strong electromagnetic environment of industrial sites, avoiding signal distortion and reducing control accuracy, ensuring the ultra-high precision and stable operation of the system.
