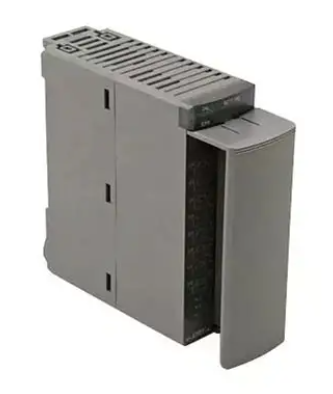

  • FUJI NP1AYH4I-MR PLC module/rack

    As a classic product line of Fuji PLC, the NP1 series has the core advantages of "high cost-effectiveness, strong environmental adaptability, and easy integration and deployment". The NP1AYH4I-MR module/rack further enhances the accuracy of input and output control and the stability of system operation based on this series, mainly targeting mid to low end industrial control scenarios. It can meet the independent control needs of small and medium-sized equipment, and can also serve as a distributed control unit for large automation systems, achieving a control mode of decentralized control and centralized management.

    • ¥7954.00
      ¥8455.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.560KG
    • Quantity:
    • (Inventory: 99999)
Description

As a classic product line of Fuji PLC, the NP1 series has the core advantages of "high cost-effectiveness, strong environmental adaptability, and easy integration and deployment". The NP1AYH4I-MR module/rack further enhances the accuracy of input and output control and the stability of system operation based on this series, mainly targeting mid to low end industrial control scenarios. It can meet the independent control needs of small and medium-sized equipment, and can also serve as a distributed control unit for large automation systems, achieving a control mode of decentralized control and centralized management.




FUJI NP1AYH4I-MR PLC module/rack

Core positioning and advantages of the product

As a classic product line of Fuji PLC, the NP1 series has the core advantages of "high cost-effectiveness, strong environmental adaptability, and easy integration and deployment". The NP1AYH4I-MR module/rack further enhances the accuracy of input and output control and the stability of system operation based on this series, mainly targeting mid to low end industrial control scenarios. It can meet the independent control needs of small and medium-sized equipment, and can also serve as a distributed control unit for large automation systems, achieving a control mode of decentralized control and centralized management.


Key technical characteristics

1. Flexible rack structure design

NP1AYH4I-MR adopts a standardized rack structure, supporting flexible splicing and expansion of multiple modules. Its rack interface follows the unified specifications of the Fuji NP1 series and is compatible with digital input/output modules, analog modules, and special function modules (such as positioning control modules, communication modules, etc.) of the same series. Users can freely combine modules according to their actual control needs to build personalized control systems, effectively reducing system integration costs and later upgrade difficulties.

2. Stable input-output control capability

This module/rack has precise digital input processing capabilities and can quickly respond to signal inputs from external sensors, buttons, and other devices. The input signal acquisition delay is low, ensuring real-time control instructions. At the same time, its output circuit adopts reliable circuit design, with overcurrent and overvoltage protection functions, which can effectively avoid damage to the module caused by external load abnormalities, and improve the safety and service life of the system operation.

3. Strong environmental adaptability

NP1AYH4I-MR has been specially designed and optimized for the complex operating environment of industrial sites. The module has a wide working temperature range (usually 0 ℃ -55 ℃, please refer to the product manual for details), which can adapt to industrial scenarios with alternating high and low temperatures; At the same time, it has a certain ability to resist electromagnetic interference, which can withstand the electromagnetic radiation interference generated by industrial field motors, frequency converters and other equipment, ensuring the stable operation of PLC systems in complex electromagnetic environments.

4. Convenient programming and debugging

This product is compatible with Fuji's dedicated PLC programming software (such as FLEX PC Programmer) and supports multiple programming methods such as ladder diagrams and structured text, meeting the programming habits of different engineers. The programming software has a rich instruction library built-in, covering common instructions such as logic control, data processing, and motion control, which can greatly improve programming efficiency. In addition, the software also has online monitoring and fault diagnosis functions. Engineers can view the real-time operation status of modules, input and output signal changes, and quickly locate and solve system faults.


Main technical parameters

Power Specifications

DC 24V ±10%

Compliant with industrial standard DC power input, with wide voltage adaptation capability

input type

Leakage type/source type optional

Compatible with NPN and PNP sensor signal inputs, with stronger adaptability

Input points

four o'clock

Single module supports 4-channel digital input signal acquisition

output type

relay output

The relay output method has the characteristics of good isolation and strong load capacity, which is suitable for controlling equipment such as contactors and solenoid valves

Output points

four o'clock

Single module supports 4-channel digital output signal control

Output load capacity

AC 250V/2A,DC 30V/2A

Can directly drive low to medium power industrial loads without the need for additional power amplification modules

insulation resistance

≥100MΩ(500V DC)

The insulation performance between each circuit of the module is excellent, effectively avoiding the risk of leakage

Anti-interference performance

Compliant with IEC 61131-2 standard

Strong resistance to common mode interference and differential mode interference, suitable for complex industrial electromagnetic environments


Typical application scenarios

1. Mechanical equipment control: It can be used for logical control of small and medium-sized equipment such as packaging machinery, printing machinery, textile machinery, etc., to achieve functions such as start stop, process switching, fault alarm, etc., and improve the automation level of equipment.

2. Production line automation: In scenarios such as electronic component assembly lines and automotive parts production lines, as a distributed control unit, it is responsible for signal acquisition and action control of a single workstation, and cooperates with the main controller to achieve coordinated operation of the entire production line.

3. HVAC control: used for air conditioning system control in industrial plants and commercial buildings, automatically adjusting the operating status of air conditioning units based on environmental temperature, humidity and other parameters, achieving the dual goals of energy conservation and comfort.

4. Water treatment system: In sewage treatment and water supply systems, control the operation of equipment such as water pumps and valves, and automatically start, stop, and switch the system based on signals such as water quality and level to ensure the stability and reliability of the water treatment process.


Installation and usage precautions

-The installation environment should be kept dry and ventilated, avoiding direct sunlight, rainwater erosion, and dust accumulation. At the same time, it should be kept away from strong magnetic fields and vibration sources to ensure stable module operation.

-Before wiring, it is necessary to confirm that the power supply voltage level is consistent with the module specifications. The input and output circuit wiring should be firm and reliable to avoid signal abnormalities or module damage caused by poor contact.

-During module installation, a certain amount of heat dissipation space should be reserved to avoid close contact with other heating devices and prevent module performance from being affected by high temperatures.

-During the programming and debugging process, it is necessary to follow the programming specifications of Fuji PLC to avoid illegal instructions or erroneous logic that may cause abnormal system operation; Comprehensive signal testing and logic verification are required before the first operation.

-Regularly maintain and inspect the module, clean surface dust, check for loose wiring terminals, and ensure long-term stable operation of the module.
