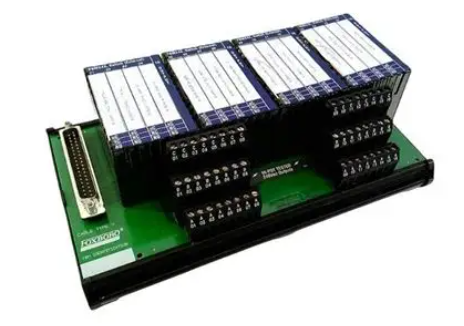

FOXBORO P0800DA Industrial Control Module

FOXBORO P0800DA Industrial Control Module

Basic overview of module

FOXBORO P0800DA is an industrial grade high-performance multi-core control module, positioned as the "core computing and control node" of medium-sized distributed control systems (DCS). Its main functions include receiving real-time monitoring data uploaded by distributed I/O modules (such as FBM231, FBM232), performing logical operations, process optimization, and control decisions through the built-in control algorithm engine, generating precise control instructions and issuing them to the executing agencies, while achieving high-speed communication with other control modules, operator stations, and third-party intelligent devices in the system. This module is equipped with a dual core industrial grade high-performance processor, coupled with FOXBORO optimized real-time operating system (RTOS), with control response latency as low as microseconds, and can stably process thousands of signals and complex control loops. It adopts modular redundancy design, supports redundant configuration of key links such as power supply and communication, and with a perfect fault self diagnosis mechanism, can effectively reduce the risk of production interruption caused by sudden failures, providing core guarantee for the safe and stable production of medium-sized industrial equipment.

Core functional characteristics

1. Dual core efficient computing and precise control capabilities

The P0800DA module is equipped with a dual core industrial grade Intel Core i3 processor with a main frequency of 1.6GHz, combined with 2GB of high-speed cache and 8GB of industrial grade flash memory (supporting expansion to 32GB), forming efficient parallel computing capabilities. It can simultaneously process 1800 analog signals and 3000 switch signals, and supports various mainstream control algorithms such as PID, cascade PID, ratio control, and logic interlocking. The module optimizes the algorithm scheduling mechanism for the control requirements of medium-sized industrial scenarios, reducing resource consumption while ensuring control accuracy. For example, in the temperature control scenario of chemical reaction vessels, temperature fluctuations can be accurately controlled within ± 0.4 ℃. In the pressure control of building materials kilns, the control error can be stabilized within 1%, fully meeting the process requirements of medium-sized production equipment.

2. Flexible redundant configuration and high reliability design

The module adopts the flexible design concept of "on-demand redundancy" and can be configured with different levels of redundancy according to the reliability requirements of the scenario: firstly, power redundancy, with dual independent 24V DC power input as standard, and the switching time between the main and backup power supplies is ≤ 8ms to ensure power continuity; The second is communication redundancy, equipped with 2 Gigabit Ethernet redundant interfaces and 1 redundant Node Bus interface, supporting industrial Ethernet ring network architecture to avoid signal interruption caused by a single communication link failure; The third option is optional module thermal redundancy, which achieves real-time synchronization of main and backup module data through a dedicated redundant bus, with a switching time of ≤ 30ms, meeting the continuous operation requirements of critical control circuits. The mean time between failures (MTBF) of the module is as high as 350000 hours, suitable for the reliability requirements of most medium-sized industrial scenarios.

3. Multi protocol compatibility and efficient communication capability

The module is equipped with a variety of industrial communication interfaces, including 2 Gigabit Ethernet interfaces, 2 RS485 interfaces, 1 PROFINET interface, and 1 redundant Node Bus interface, supporting multiple mainstream industrial communication protocols such as Modbus RTU/TCP, PROFINET, EtherNet/IP, FOXBORO Node Bus, OPC UA, etc. The Gigabit Ethernet interface supports adaptive rates of 100Mbps/1Gbps, ensuring high-speed data exchange with distributed I/O units and upper computer systems, with signal update cycles as low as 2ms. The support of OPC UA protocol enables standardized data docking with MES systems and production management platforms, facilitating centralized management and analysis of production data for enterprises. The module also supports PTP IEEE 1588 v2 time synchronization protocol, which can achieve millisecond level time synchronization between multiple modules, ensuring the collaborative accuracy of production processes.

4. Intelligent diagnosis and rapid fault location

The module is equipped with an intelligent diagnostic unit, which collects more than 20 key parameters such as processor load, memory usage, communication link status, power supply voltage, module temperature, etc. in real time to achieve real-time monitoring and early warning of faults. When a fault is detected, the operation and maintenance personnel can be notified through a triple mechanism: the module panel LED indicator light (red/yellow/green) displays an alarm locally, the relay output triggers an external sound and light alarm, and detailed fault information is uploaded to the upper computer through the communication interface (such as "RS485 interface 2 communication interruption" and "low main power supply voltage"), shortening the fault troubleshooting time from the traditional hourly level to less than 10 minutes and greatly improving operation and maintenance efficiency.

5. Convenient configuration and engineering application

The module supports visual programming through FOXBORO Control Builder EP configuration software, providing a general function block library and specialized templates for medium-sized industrial scenarios (such as reactor control templates and kiln control templates). Operations personnel can quickly build control circuits by dragging and dropping function blocks without writing complex underlying code. The software supports online modification, download, and debugging of control logic, combined with parameter batch import/export functions, greatly improving system configuration and debugging efficiency. For example, for a medium-sized chemical plant containing 20 P0800DA modules, configuration time can be reduced to half of traditional modules.

6. Industrial grade protection and environmental adaptability

For the complex environment of industrial sites, the module adopts a comprehensive protection design: at the hardware level, it is equipped with electromagnetic shielding metal shell (shielding efficiency ≥ 90dB), anti surge circuit (withstand ± 3kV voltage surge) and wide temperature components, which can effectively resist electromagnetic interference generated by frequency converters, motors and other equipment, and adapt to a wide temperature working range of -40 ℃~70 ℃; At the software level, CRC-32 data verification, program watchdog mechanism, and error retransmission function are used to ensure the integrity of data transmission and the stability of program operation. The module protection level reaches IP20 and supports centralized installation in 19 inch standard cabinets. It can operate stably for a long time in industrial sites with high temperature, high humidity, and high dust.

Key technical parameters

Core processor

Dual core Intel Core i3 industrial grade processor with a clock speed of 1.6GHz

storage capacity

2GB high-speed cache, 8GB flash memory (supports expansion up to 32GB)

operating system

FOXBORO Optimized Real Time Operating System (RTOS)

Control cycle

1 μ s~1s (software continuously adjustable)

Signal processing capability

Maximum 1800 analog signals, 3000 switch signals

Support control algorithms

PID、 Cascade PID, ratio control, logic interlocking, data filtering, etc

communication interface

Gigabit Ethernet x 2, Node Bus redundant interface x 1, RS485 x 2, PROFINET x 1

Supported Protocols

Modbus RTU/TCP，PROFINET，EtherNet/IP，Node Bus，OPC UA，PTP 1588 v2

redundant function

Power redundancy (standard), communication redundancy (standard), module thermal redundancy (optional), switching time ≤ 30ms

power supply

24V DC dual input (± 15%), typical power consumption ≤ 25W, maximum power consumption ≤ 40W

Working environment temperature

-40℃~70℃

relative humidity

5%~95% (no condensation)

Protection level

IP20， Support installation of 19 inch standard cabinets

Dimensions (length x width x height)

200mm × 150mm × 230mm (typical value, subject to actual product)

Anti-interference performance

Electromagnetic shielding effectiveness ≥ 90dB, surge tolerance ± 3kV, electrostatic protection ± 15kV

MTBF

≥ 350000 hours

Applicable scenarios and supporting applications

The P0800DA industrial control module, with its efficient computing capability, flexible redundant configuration, and high cost-effectiveness, is widely used in various medium-sized industrial automation control systems. The core applicable scenarios and supporting equipment include:

1. Downstream equipment in petrochemical industry: equipped with FOXBORO FBM231 analog I/O module and P0400ZG node bus module, used for temperature and pressure control of reaction vessels in chemical intermediate synthesis and oil refining units. Precise control of process parameters is achieved through cascade PID algorithm, and power redundancy configuration ensures continuous production.

2. Production lines in the building materials industry: In cement and glass production lines, FBM232 switch I/O modules and P0400GH power modules are used to achieve control of kiln temperature and slurry flow rate, as well as logical interlocking of conveying equipment, to adapt to high temperature and high dust production environments.

3. Large scale production of food and beverage: equipped with weighing modules and liquid level sensors, used for filling volume control and sterilization temperature adjustment in beverage filling and dairy processing production lines. Through logical interlocking, the production process is automatically connected, supporting full process traceability of production data.

4. Auxiliary control system for medium-sized thermal power plants: Connect sensors and actuators of boiler auxiliary equipment (feed water pump, induced draft fan) to achieve start stop control and operation status monitoring of auxiliary equipment. Communicate with the main control system through PROFINET interface to ensure stable operation of the generator set.

5. Water Treatment and Environmental Protection Engineering: In medium-sized sewage treatment plants and industrial wastewater treatment systems, water quality analysis instruments and pump control modules are equipped to achieve dissolved oxygen control in aeration tanks and automatic adjustment of dosing systems. Data exchange with the upper computer monitoring system is achieved through Modbus protocol.

6. Batch production in the pharmaceutical industry: Combined with batch control modules and sterile sensors, it is used for intermittent production control of pharmaceutical raw materials. Through flexible configuration functions, it can quickly switch between different batch production processes, meeting the strict compliance requirements of the pharmaceutical industry.
