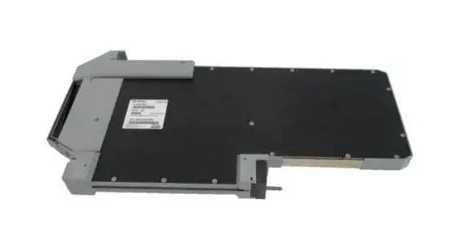

  • FOXBORO P0911VJ high-precision control module
    ❤ Add to collection
  • FOXBORO P0911VJ high-precision control module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0911VJ is an industrial grade high-precision control module launched by Schneider Electric's FOXBORO brand. Based on FOXBORO's technical accumulation in the field of distributed control systems (DCS), this module belongs to the I/A series core control components. Its core positioning is precise control and real-time response of key parameters in industrial sites, designed for automation scenarios with strict requirements for control accuracy and stability. It can achieve closed-loop control of process parameters such as flow rate, pressure, and temperature. Through built-in high-precision signal processing units and anti-interference mechanisms, it ensures accurate output and execution of control instructions in complex industrial environments. It is the core control component of key production links in industries such as petrochemicals, energy and power. The module adopts a standardized modular structure, which facilitates seamless integration with existing I/A series systems while reducing installation and maintenance costs.

    • ¥23626.00
      ¥26346.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.560KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0911VJ is an industrial grade high-precision control module launched by Schneider Electric's FOXBORO brand. Based on FOXBORO's technical accumulation in the field of distributed control systems (DCS), this module belongs to the I/A series core control components. Its core positioning is precise control and real-time response of key parameters in industrial sites, designed for automation scenarios with strict requirements for control accuracy and stability. It can achieve closed-loop control of process parameters such as flow rate, pressure, and temperature. Through built-in high-precision signal processing units and anti-interference mechanisms, it ensures accurate output and execution of control instructions in complex industrial environments. It is the core control component of key production links in industries such as petrochemicals, energy and power. The module adopts a standardized modular structure, which facilitates seamless integration with existing I/A series systems while reducing installation and maintenance costs.




FOXBORO P0911VJ high-precision control module

Product Overview

FOXBORO P0911VJ is an industrial grade high-precision control module launched by Schneider Electric's FOXBORO brand. Based on FOXBORO's technical accumulation in the field of distributed control systems (DCS), this module belongs to the I/A series core control components. Its core positioning is precise control and real-time response of key parameters in industrial sites, designed for automation scenarios with strict requirements for control accuracy and stability. It can achieve closed-loop control of process parameters such as flow rate, pressure, and temperature. Through built-in high-precision signal processing units and anti-interference mechanisms, it ensures accurate output and execution of control instructions in complex industrial environments. It is the core control component of key production links in industries such as petrochemicals, energy and power. The module adopts a standardized modular structure, which facilitates seamless integration with existing I/A series systems while reducing installation and maintenance costs.

Specification parameters

Based on the publicly available data from suppliers and the general standards of FOXBORO I/A series products, the core specification parameters of P0911VJ module are as follows, which are subject to the official manual:

-Power parameters: The rated working voltage is 280V (specific types are adapted according to working conditions, supporting wide voltage fluctuation compensation); The typical power consumption of a single module is ≤ 10W, and it has a low-power operation mode to adapt to long-term continuous work requirements.

-Control performance: output frequency stable at 50Hz, compatible with industrial standard control cycles; The control accuracy level reaches 0.1 level, supporting 4-20mA standard analog control signal output, and some configurations are compatible with digital control interfaces.

-Communication and Adaptation: Supports high-speed communication with FOXBORO I/A series DCS systems and is compatible with FBM series dedicated communication cables; Equipped with a standard RS-485 communication interface, it can achieve data exchange with third-party PLCs or monitoring devices.

-Physics and Environment: Adopting a compact design, the module size is compatible with products in the same series (reference approximately 14.5cm × 5cm × 11cm), making it easy to install cabinets densely; The working temperature range is 0-60 ℃, the storage temperature is -40 ℃ to 85 ℃, and the humidity adaptation range is 5% -95% (non condensing), meeting the environmental requirements of industrial sites.

-Certification and Compliance: Through industrial equipment safety certification, it complies with international industrial control equipment standards to ensure safe use in hazardous conditions.


Performance characteristics

As a high-precision control module, P0911VJ exhibits significant advantages in control accuracy, environmental adaptability, and system compatibility, with core features including:

1. Ultra high control accuracy: Equipped with a high-precision AD/DA conversion unit and digital filtering algorithm, the control error can be controlled within 0.1%. It can accurately capture small fluctuations in process parameters and quickly output adjustment instructions, suitable for scenarios with strict parameter control requirements such as chemical reactions and precision filling.

2. Strong anti-interference ability: Adopting a dual protection design of photoelectric isolation and electromagnetic shielding, it effectively blocks strong electromagnetic radiation, voltage pulses and other interference signals in industrial sites, and can maintain stable output of control signals in strong interference environments such as substations and steel plants.

3. Quick response mechanism: The optimized signal processing flow ensures that the module response time is ≤ 10ms. When the process parameters deviate from the set values, signal acquisition, calculation, and adjustment instruction output can be completed in a very short time, avoiding production risks caused by continuous parameter deviation.

4. High system compatibility: Designed specifically for FOXBORO I/A series DCS systems, it can be directly integrated into existing control systems without the need for additional adaptation modules; Simultaneously supporting standardized communication protocols, facilitating collaboration with third-party monitoring devices and executing agencies.

5. High reliability design: using industrial grade temperature resistant components and redundant circuit design, supporting 24-hour continuous operation, with an average time between failures (MTBF) of over 100000 hours, reducing equipment failure rates in critical production processes.


Working principle

The working core of P0911VJ module revolves around the closed-loop control process of "parameter acquisition signal operation precise output state feedback", and the specific principle is as follows:

1. Parameter acquisition and transmission: The module receives process parameter signals from on-site sensors (such as pressure sensors and temperature transmitters) through a dedicated signal interface. After preliminary filtering, the signals are transmitted to the internal processing unit, and the interference path is cut off through an isolation circuit.

2. Data operation and logical judgment: The internal microprocessor calls preset control algorithms (such as PID adjustment algorithm), compares the collected real-time parameters with the system set values, and calculates the accurate adjustment amount; During the calculation process, historical data and environmental compensation coefficients are combined to ensure the rationality of the adjustment instructions.

3. Precise output of control signals: The calculated adjustment instructions are converted into 4-20mA analog control signals or digital control signals by a high-precision DA conversion unit, and stably transmitted to the actuator (such as regulating valves and variable pumps) at an output frequency of 50Hz, achieving precise adjustment of process parameters.

4. Status feedback and self-monitoring: The module monitors its own working status (power supply voltage, internal temperature) and output signal accuracy in real time, while receiving feedback signals from the actuator; When there are situations such as parameter deviation or signal abnormalities, the local alarm is immediately triggered and the abnormal information is uploaded to the control system for timely processing by operation and maintenance personnel.


Precautions

To ensure the accuracy of module control and operational safety, the following specifications must be strictly followed during use and maintenance:

-Installation specifications: It needs to be installed in a standard cabinet in the control room, using a vertical installation method to ensure good heat dissipation; Avoid installation near high-power equipment, heat sources, or areas susceptible to vibration, and stay away from areas with dust, corrosive gases, and liquid splashes.

-Power configuration: Strictly connect the power supply according to the rated voltage requirement of 280V. The power circuit should be equipped with independent air switches and surge protectors to avoid voltage fluctuations or lightning damage to the module; Power wiring needs to be laid separately from signal cables to reduce electromagnetic interference.

-Wiring operation: Use shielded cables recommended by the manufacturer for wiring, and the shielding layer of the sensor and actuator cables should be grounded at one end; When wiring, ensure that the pins correspond accurately, especially the positive and negative poles of the 4-20mA signal channel, to avoid reverse connection and damage to the internal circuit of the module.

-Accuracy calibration: The module needs to undergo accuracy calibration before being put into use, and the recommended calibration cycle is once every 6 months; Calibration requires the use of certified standard instruments, and calibration data must be recorded and archived.

-Maintenance taboos: During daily maintenance or troubleshooting, the module power must be cut off first, and it is forbidden to plug or unplug the module with power on or change the wiring; When cleaning the surface of the module, use a dry soft cloth and strictly prohibit the use of corrosive cleaning agents such as alcohol and gasoline.

-Fault handling: When the module experiences a decrease in control accuracy, no signal output, or other faults, priority should be given to checking the integrity of the wiring, power stability, and sensor status; Fault repair should be carried out by professional technicians with FOXBORO I/A series system operation qualifications to avoid disassembling modules without authorization.
