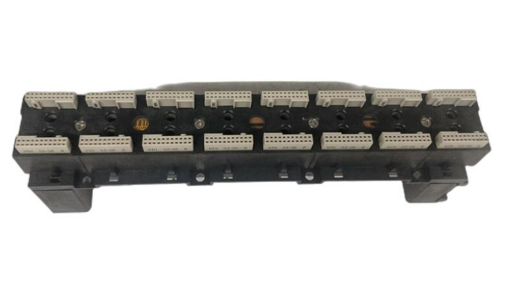

  • FOXBORO P0912CB I/O Terminal Module
    ❤ Add to collection
  • FOXBORO P0912CB I/O Terminal Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0912CB is an industrial grade I/O terminal module launched by Schneider Electric's FOXBORO brand. As a key connecting component between distributed control systems (DCS) and field equipment, it mainly undertakes the core functions of signal conversion, hub integration, and interface adaptation. This module is originally from the United States and serves as a bridge for "control system field device" signal interaction in the FOXBORO automation system. It can centralize and organize scattered field sensor and actuator signals, transmit them to the DCS host through standardized interfaces, and accurately distribute system control instructions to various execution units. Its modular structure design not only facilitates installation and deployment in the control room cabinet, but also improves the standardization of system wiring and the convenience of later maintenance, widely adapting to industrial automation scenarios in multiple industries such as power, petroleum, and chemical.

    • ¥23626.00
      ¥26346.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:2.560KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0912CB is an industrial grade I/O terminal module launched by Schneider Electric's FOXBORO brand. As a key connecting component between distributed control systems (DCS) and field equipment, it mainly undertakes the core functions of signal conversion, hub integration, and interface adaptation. This module is originally from the United States and serves as a bridge for "control system field device" signal interaction in the FOXBORO automation system. It can centralize and organize scattered field sensor and actuator signals, transmit them to the DCS host through standardized interfaces, and accurately distribute system control instructions to various execution units. Its modular structure design not only facilitates installation and deployment in the control room cabinet, but also improves the standardization of system wiring and the convenience of later maintenance, widely adapting to industrial automation scenarios in multiple industries such as power, petroleum, and chemical.




FOXBORO P0912CB I/O Terminal Module

Product Overview

FOXBORO P0912CB is an industrial grade I/O terminal module launched by Schneider Electric's FOXBORO brand. As a key connecting component between distributed control systems (DCS) and field equipment, it mainly undertakes the core functions of signal conversion, hub integration, and interface adaptation. This module is originally from the United States and serves as a bridge for "control system field device" signal interaction in the FOXBORO automation system. It can centralize and organize scattered field sensor and actuator signals, transmit them to the DCS host through standardized interfaces, and accurately distribute system control instructions to various execution units. Its modular structure design not only facilitates installation and deployment in the control room cabinet, but also improves the standardization of system wiring and the convenience of later maintenance, widely adapting to industrial automation scenarios in multiple industries such as power, petroleum, and chemical.


Specification parameters

Based on the technical standards of FOXBORO's I/O module series and publicly available information from suppliers, the core specifications of P0912CB module are as follows, which are subject to the official technical manual:

-Power parameters: Suitable for industrial standard DC power supply, rated working voltage of 24VDC, supporting a wide voltage fluctuation range of 18-36VDC, typical power consumption of a single module ≤ 5W, meeting the requirements of long-term continuous operation.

-Signal adaptation: Supports multiple types of I/O signal conversion, compatible with 4-20mA analog signals, switch digital signals, and can match commonly used industrial sensor output signals such as temperature, pressure, and flow.

-Interface and Communication: Equipped with standard Phoenix terminal interface, supporting quick plugging and unplugging of cables on site; The FOXBORO DCS system adopts dedicated bus communication, and some configurations are compatible with RS-485 interfaces to achieve high-speed data transmission.

-Physics and Environment: Adopting a compact design, the module size is approximately 12cm × 4.5cm × 10cm according to the same series of products, suitable for installation in standard 19 inch cabinets; The working temperature range is -10 ℃ to 65 ℃, the storage temperature is -40 ℃ to 85 ℃, the humidity adaptation range is 5% -95% (non condensing), and it can withstand complex environments in industrial sites.

-Safety and Certification: Through industrial equipment safety certification, it has overcurrent and overvoltage protection functions, complies with international industrial control equipment electromagnetic compatibility (EMC) standards, and ensures the stability and operational safety of signal transmission.


Performance characteristics

As a key component connecting the control system and on-site equipment, the P0912CB module exhibits significant advantages in signal processing, system adaptation, and reliability. Its core features include:

1. Signal centralization and regularity capability: It can centrally access and integrate multiple scattered on-site equipment signals, reduce the number of cables in the cabinet, optimize the wiring structure, and reduce signal interference and troubleshooting difficulties caused by cable clutter.

2. Strong anti-interference performance: adopting signal isolation technology and electromagnetic shielding design, effectively blocking the interference of electromagnetic radiation and voltage fluctuations on signals in industrial sites, ensuring that the transmission error of analog signals is ≤ 0.2% and digital signals are transmitted without errors.

3. High system compatibility: Designed specifically for FOXBORO DCS systems, it can seamlessly integrate with core control modules such as FBM series without the need for additional adaptive components; Simultaneously supporting third-party standard I/O device access, enhancing system expansion flexibility.

4. Convenient installation and maintenance: Modular plug-in design combined with standardized terminal interfaces enables quick module replacement and cable connection; The terminal identification is clear, making it easy for on-site personnel to verify wiring and locate faults.

5. High reliability guarantee: adopting industrial grade temperature resistant components and anti oxidation terminal design, with good environmental adaptability; Built in fault diagnosis circuit, which can monitor the signal on/off status in real time and provide timely feedback to the control system in case of abnormalities.


Working principle

The working core of the P0912CB module revolves around the process of "centralized signal access isolation processing transfer transmission status feedback", achieving bidirectional signal interaction between the control system and field devices. The specific principle is as follows:

1. On site signal centralized access: The module connects multiple analog signals from on-site sensors (such as temperature transmitters and pressure sensors) and digital feedback signals from actuators through the Phoenix terminal interface, completing the physical concentration of dispersed signals.

2. Signal isolation and conditioning: The incoming on-site signal first passes through an internal isolation circuit and is cut off from external interference paths through optoelectronic isolation; Subsequently, the analog signal is subjected to filtering, amplification, and other conditioning processes to ensure that the signal meets the receiving standards of the control system.

3. Signal transfer and transmission: The conditioned signal is transmitted to the FOXBORO DCS host through a dedicated bus interface, enabling the upload of on-site data to the control system; Simultaneously receive control commands issued by the host and accurately distribute them to corresponding actuators (such as regulating valves and water pumps) through terminal interfaces.

4. Operation status monitoring feedback: The module monitors its own power supply status and signal transmission link integrity in real time. When abnormal situations such as cable looseness or signal interruption occur, it immediately generates a fault signal and uploads it to the control system, triggering an alarm prompt for timely processing by operation and maintenance personnel.


Precautions

To ensure the stability and operational safety of module signal transmission, the following specifications must be strictly followed during use and maintenance:

-Installation specifications: It needs to be installed in a standard cabinet in the control room, using a horizontal installation method to ensure good heat dissipation; Avoid installing near strong interfering equipment such as high-power frequency converters and welding machines, and keep away from heat sources, water sources, and corrosive gas areas.

-Power configuration: Strictly connect the power supply according to the rated voltage of 24VDC. The power circuit should be equipped with a 1A independent fuse to avoid module burnout caused by overcurrent; The positive and negative wiring of the power supply must be accurate, and reverse connection is strictly prohibited.

-Wiring operation: Before connecting cables on site, it is necessary to confirm the correspondence between signal types and terminals. Analog and digital signal cables need to be separately connected to different terminal groups; The cable stripping length should be moderate to avoid short circuits caused by exposed copper wires. After wiring, the terminal screws should be tightened to prevent loosening.

-Cable selection: Shielded twisted pair cables are required for analog signal transmission, with the shielding layer grounded at one end; Digital signals can use ordinary industrial cables, but they need to maintain a distance of ≥ 30cm from power cables to reduce electromagnetic interference.

-Maintenance taboos: During daily maintenance or troubleshooting, the power supply of the module must be cut off first, and it is forbidden to plug or unplug the module with power on or change the wiring; When cleaning the surface dust of the module, use a dry soft brush or compressed air, and it is strictly prohibited to use liquid cleaning agents.

-Fault handling: When signal transmission abnormalities occur, priority should be given to checking cable connections, terminal tightness, and power supply voltage; If a module needs to be replaced, it is necessary to choose the same model of original factory product to avoid using compatible modules that may cause system mismatch.
