  • FOXBORO P0916AC I/A series module
    ❤ Add to collection

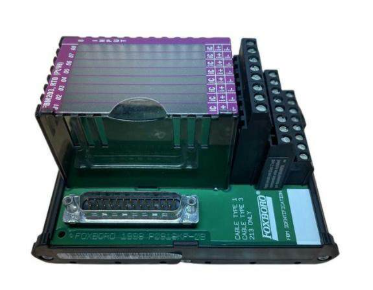

  • FOXBORO P0916AC I/A series module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0916AC is the core module of the Foxboro brand I/A series under Schneider Electric. As a high-performance analog signal processing component in the field of industrial automation, its design intention is to achieve seamless integration between on-site signals and distributed control systems (DCS), providing accurate and reliable signal conversion and transmission functions for process control. This module has both input signal acquisition and analog output control capabilities, supporting various commonly used industrial signal types such as thermocouples and millivolt level signals. It can convert the physical quantity signals of on-site sensors into digital signals recognizable by DCS, and output standard control signals to drive actuators. It is a key bridge connecting on-site instruments and control systems. Based on the modular design concept of the I/A series, P0916AC has good compatibility and scalability, and can be quickly integrated into existing industrial control architectures, widely serving fields such as petrochemicals and power energy that require strict control accuracy and stability.

    • ¥17945.00
      ¥19457.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.300KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0916AC is the core module of the Foxboro brand I/A series under Schneider Electric. As a high-performance analog signal processing component in the field of industrial automation, its design intention is to achieve seamless integration between on-site signals and distributed control systems (DCS), providing accurate and reliable signal conversion and transmission functions for process control. This module has both input signal acquisition and analog output control capabilities, supporting various commonly used industrial signal types such as thermocouples and millivolt level signals. It can convert the physical quantity signals of on-site sensors into digital signals recognizable by DCS, and output standard control signals to drive actuators. It is a key bridge connecting on-site instruments and control systems. Based on the modular design concept of the I/A series, P0916AC has good compatibility and scalability, and can be quickly integrated into existing industrial control architectures, widely serving fields such as petrochemicals and power energy that require strict control accuracy and stability.


FOXBORO P0916AC I/A series module

Product Overview

FOXBORO P0916AC is the core module of the Foxboro brand I/A series under Schneider Electric. As a high-performance analog signal processing component in the field of industrial automation, its design intention is to achieve seamless integration between on-site signals and distributed control systems (DCS), providing accurate and reliable signal conversion and transmission functions for process control. This module has both input signal acquisition and analog output control capabilities, supporting various commonly used industrial signal types such as thermocouples and millivolt level signals. It can convert the physical quantity signals of on-site sensors into digital signals recognizable by DCS, and output standard control signals to drive actuators. It is a key bridge connecting on-site instruments and control systems. Based on the modular design concept of the I/A series, P0916AC has good compatibility and scalability, and can be quickly integrated into existing industrial control architectures, widely serving fields such as petrochemicals and power energy that require strict control accuracy and stability.


Specification parameters

signal processing

8-channel input/output; Support multiple types of thermocouples such as J, K, T, etc; Millivolt input range 0-100mV to 10-500V; output type 4-20mA or 0-10V

Channel independent configuration, can switch signal types as needed

Accuracy and Resolution

Accuracy ± 0.1% of full scale; Resolution of 16 bits; Signal processing speed 100kHz

Meet the stringent requirements of high-precision process control for data acquisition

Electrical performance

Power supply voltage 24VDC (maximum power 5W) or 220V; communication protocol supports RS-485, MODBUS RTU; Data transmission rate 2Mbps

RS-485 supports long-distance transmission and is suitable for complex industrial wiring environments

physical properties

Dimensions 35mm × 25mm × 15mm; Weight approximately 0.02kg; Installation method: DIN rail installation

Compact design saves control cabinet space and is easy to install

environmental adaptability

Working temperature -40 ° C to+85 ° C; protection level IP65/IP67; Relative humidity ≤ 85% (no condensation)

Can withstand high temperature, high humidity, and corrosive industrial environments


Performance characteristics

The FOXBORO P0916AC module integrates Foxboro's years of industrial control technology accumulation, and its core performance characteristics are reflected in three dimensions: precision control, safety protection, and convenient operation and maintenance

-High precision signal processing capability: Using a 16 bit resolution signal conversion chip and enhanced signal conditioning technology, the measurement error is controlled within ± 0.1% of the full range. Coupled with a high-speed signal processing speed of 100kHz, it can capture subtle changes in on-site signals in real time, providing accurate data support for closed-loop control. In response to the nonlinear characteristics of thermocouple signals, the module is equipped with a temperature compensation algorithm to further improve temperature measurement accuracy.

-Fully isolated safety design: The module achieves triple electrical isolation between input, output, and power supply, with each channel independently isolated, effectively suppressing electromagnetic interference (EMI) and common mode interference in industrial sites, avoiding control misoperations caused by signal crosstalk, and ensuring the safety of operators and equipment. IP65 and above protection level can isolate dust and splashing liquids, suitable for outdoor and harsh workshop environments.

-Convenient operation and high compatibility: Supports hot swapping function, allowing module replacement and maintenance to be completed without shutting down the system, significantly reducing downtime losses. Adopting DIN rail standardized installation, compatible with Foxboro I/A series full spectrum DCS systems, and achieving seamless integration with third-party PLC and SCADA systems through MODBUS RTU protocol, simplifying the system integration process.

-Low consumption and stable operation: The maximum power of the module is only 5W, which reduces energy consumption while achieving high performance, meeting industrial energy-saving needs. Its high-strength insulation shell and anti vibration design ensure long-term stable operation in the extreme temperature range of -40 ° C to+85 ° C, with an average time between failures (MTBF) of over 100000 hours.


Working principle

The FOXBORO P0916AC module achieves precise processing of industrial signals through a closed-loop process of "signal acquisition isolation processing conversion transmission feedback control". The core working mechanism is divided into four stages:

1. Signal acquisition stage: The module is connected to field instruments through 8 independent channels, such as thermocouples (collecting temperature signals), pressure transmitters (outputting millivolt signals), etc. The analog electrical signals converted from physical quantities such as temperature and pressure are connected to the internal signal conditioning circuit of the module. This circuit can amplify and filter weak signals, removing high-frequency noise interference in industrial environments.

2. Isolation protection stage: The conditioned signal enters the optoelectronic isolation unit and is electrically isolated from the module core circuit through an optocoupler, cutting off the common mode interference path and preventing strong electrical signals from entering the control system and causing equipment damage. At the same time, the power isolation unit provides independent power supply for each part of the module, further enhancing its anti-interference ability.

3. Conversion and transmission stage: The isolated analog signal is sent to a 16 bit A/D converter, converted into a digital signal, and then transmitted to the module microprocessor. After the microprocessor calibrates and compensates for the digital signal (such as thermocouple cold end compensation), the data is uploaded to the DCS main controller through the RS-485 bus following the MODBUS RTU protocol; Simultaneously receive control instructions issued by the controller and convert them into 4-20mA/0-10V standard output signals through a D/A converter.

4. Execution and feedback stage: The output signal drives the on-site actuator (such as regulating valve, servo motor) to complete the control action. The module collects the real-time output signal status and feeds it back to the controller to form a closed-loop control, ensuring accurate execution of control instructions. If there is a signal abnormality, the module will trigger a fault alarm signal, which is convenient for operation and maintenance personnel to handle in a timely manner.


Precautions

To ensure the stable operation and safe operation of the module, the following precautions should be followed during installation, use, and maintenance:

This module is an industrial grade control component that requires installation and debugging by professional technicians. Non professionals are strictly prohibited from operating it without authorization.

-Installation environment requirements: Avoid installing directly under equipment with high heat generation (such as frequency converters), and ensure that at least 5cm of ventilation space is reserved around the module; Stay away from strong vibration sources (10-55Hz) and install shock absorbers if necessary; It is prohibited to install it in an environment with corrosive gases such as hydrogen chloride and hydrogen sulfide or high dust concentration, and a sealed control cabinet should be selected.

-Electrical connection specifications: Before connecting the power supply, it is necessary to confirm the voltage level (24VDC or 220V), and it is strictly prohibited to connect the power supply incorrectly; Signal cables should use shielded twisted pair cables, with a distance of not less than 30cm from power cables, to avoid parallel wiring; The RS-485 bus terminal needs to be equipped with a 120 Ω matching resistor to reduce signal reflection interference.

-Key points for hot plugging operation: Wear an anti-static wristband during hot plugging, disconnect the module signal cable first, and then plug in and unplug the power interface; The single hot plug operation time should not exceed 30 seconds to avoid frequent hot plugs affecting system stability.

-Calibration and maintenance standards: Before the module is put into operation, it needs to be calibrated for accuracy using specialized calibration equipment. The recommended calibration cycle is once every 6 months; Regularly check the tightness of the wiring terminals during daily maintenance to avoid looseness and poor contact; If the module malfunctions, it should be powered off for troubleshooting first and disassembly with power on is prohibited.

-Compatibility precautions: When connecting with third-party devices, it is necessary to confirm that the communication protocol parameters (baud rate, parity check, etc.) match; The module load current should not exceed 1A to avoid overloading and damaging the output circuit.
