  • FOXBORO P0924JH Control System Module
    ❤ Add to collection

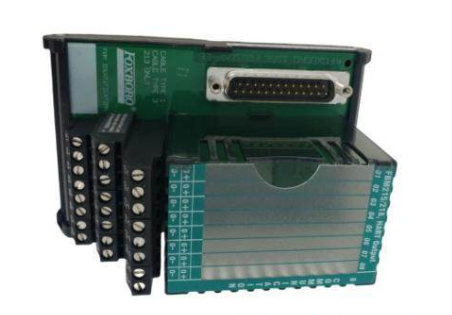

  • FOXBORO P0924JH Control System Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0924JH is a high-performance control system module designed specifically for precise control in industrial sites. It belongs to the FOXBORO I/A Series system core supporting component series and is positioned as the on-site control unit for small and medium-sized industrial automation systems. It is responsible for receiving input signals from various sensors and transmitters on site, completing data processing and logical operations through built-in control algorithms, outputting precise control signals to drive actuators, and achieving efficient data interaction with the upper computer system. This module has a compact modular structure, rich signal adaptation capabilities, and reliable fault safety design, which complies with relevant standards in the industrial control field. It can be widely adapted to various harsh industrial scenarios such as power, chemical, oil and gas, providing core guarantees for process parameter monitoring and equipment precision control.

    • ¥14845.00
      ¥15663.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.560KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0924JH is a high-performance control system module designed specifically for precise control in industrial sites. It belongs to the FOXBORO I/A Series system core supporting component series and is positioned as the on-site control unit for small and medium-sized industrial automation systems. It is responsible for receiving input signals from various sensors and transmitters on site, completing data processing and logical operations through built-in control algorithms, outputting precise control signals to drive actuators, and achieving efficient data interaction with the upper computer system. This module has a compact modular structure, rich signal adaptation capabilities, and reliable fault safety design, which complies with relevant standards in the industrial control field. It can be widely adapted to various harsh industrial scenarios such as power, chemical, oil and gas, providing core guarantees for process parameter monitoring and equipment precision control.


FOXBORO P0924JH Control System Module

Brand background and product positioning

FOXBORO, as a core industrial control brand under Schneider Electric, has built a deep technical barrier and market reputation in key industrial fields such as energy, chemical, and power worldwide with a century long accumulation of process automation technology. The I/A Series distributed control system (DCS) and supporting module products launched by it have the core advantages of high reliability, strong anti-interference ability, and flexible system adaptability, providing stable on-site data acquisition, logical operation, and execution control support for industrial automation control systems.

FOXBORO P0924JH is a high-performance control system module designed specifically for precise control in industrial sites. It belongs to the FOXBORO I/A Series system core supporting component series and is positioned as the on-site control unit for small and medium-sized industrial automation systems. It is responsible for receiving input signals from various sensors and transmitters on site, completing data processing and logical operations through built-in control algorithms, outputting precise control signals to drive actuators, and achieving efficient data interaction with the upper computer system. This module has a compact modular structure, rich signal adaptation capabilities, and reliable fault safety design, which complies with relevant standards in the industrial control field. It can be widely adapted to various harsh industrial scenarios such as power, chemical, oil and gas, providing core guarantees for process parameter monitoring and equipment precision control.


Core product features and technological advantages

1. Multi type signal adaptation and integrated data processing

The P0924JH control system module adopts an integrated signal processing architecture, supporting the access and processing of multiple industrial standard signal types. It can directly interface with temperature sensors such as J, K, S thermocouples, Pt100 thermal resistors, as well as analog signal sensors such as 4-20mA and 0-10V. It is also compatible with digital input/output signals and does not require additional signal conversion components. The module is equipped with a high-precision data conversion unit, which can accurately filter and linearly correct the collected on-site signals, effectively suppress process noise and power interference in industrial sites, ensure the accuracy and stability of signal transmission, and provide reliable data support for precise control decisions.

2. Flexible control algorithms to adapt to diverse process requirements

The module is equipped with three core control modes: conventional PID, self-tuning PID, and fuzzy adaptive PID, which can be flexibly switched according to different process characteristics. The self-tuning PID mode can automatically identify the dynamic characteristics of the controlled object, intelligently optimize PID parameters, and significantly reduce the difficulty of on-site debugging; The fuzzy adaptive PID mode has excellent adaptability to complex process objects with nonlinearity, large lag, and time-varying characteristics, which can effectively improve control accuracy and system stability. Simultaneously supporting multi-stage program control and temperature rise slope control functions, it can meet complex control requirements such as intermittent production and multi-stage process switching, such as multi-stage temperature regulation of chemical reaction vessels and temperature rise and insulation process control of industrial kilns.

3. High reliability communication interconnection, convenient system integration

The module is equipped with standardized communication interfaces and supports mainstream industrial communication protocols such as Modbus and Ethernet. It can seamlessly interface with FOXBORO I/A Series system upper computer, PLC, and other on-site control devices to achieve high-speed data exchange and interconnection. By adapting the 2Mbps fieldbus of the system, redundant communication configuration can be supported. When the main communication path fails, it can automatically switch to the backup path to ensure communication continuity. This multi protocol compatibility and redundant communication design breaks down communication barriers between different devices, simplifies system integration processes, and facilitates centralized monitoring and management of industrial automation systems.

4. Modular design, efficient installation and maintenance

The product adopts a standardized modular structure design, with a compact and lightweight volume. It is compatible with the DIN rail mounting substrate of FOXBORO I/A Series system and can be directly installed in standard industrial cabinets. The installation process is simple and fast, and the substrate supports centralized installation of multiple modules, which facilitates system expansion and layout optimization. The module supports hot plugging function, which can complete module plugging and replacement without interrupting the overall operation of the system. There is no need to disassemble the on-site equipment wiring terminal cables, power and communication cables, greatly reducing system downtime and maintenance costs.

5. Industrial grade protection with strong environmental adaptability

The module adopts a high-strength pressed aluminum shell design, which has excellent physical protection performance and can effectively resist environmental influences such as dust and vibration in industrial sites, protecting the safety and stability of internal electronic circuits. The product has undergone rigorous anti electromagnetic interference testing and possesses highly reliable anti electromagnetic interference capabilities, capable of stable operation in strong electromagnetic interference environments such as frequency converters and large motors; At the same time, it can adapt to a wide temperature range of -20 ° C to 60 ° C and a relative humidity environment of 5% to 95% (no condensation), meeting the requirements of harsh industrial environments defined in ISA standard S71.04, and widely adapting to various complex industrial site conditions.

6. Comprehensive fault safety design for more reliable operation

The module supports rich fault safety configuration functions, and can flexibly set fault safety modes (hold/return) and fault return data for different output channels. When the module experiences signal interruption, power failure, or communication abnormalities, it can automatically execute preset safety protection actions to avoid production accidents caused by equipment loss of control and ensure the safety and continuity of the production process. In addition, the module is equipped with panel type light-emitting diode (LED) indicator lights, which can intuitively display the module's working status, communication status, and channel operation status, making it easy for operation and maintenance personnel to quickly identify fault status and improve fault troubleshooting efficiency.


Detailed explanation of key technical parameters

1. Core signal parameters

-Input signal: Supports J, K, S-type thermocouples, Pt100 thermistor, 4-20mA DC analog input, 0-10V DC analog input, digital input

-Output signal: 4-20mA DC analog output (load resistance ≤ 500 Ω), 0-10V DC analog output (load resistance ≥ 1k Ω), relay contact output (AC250V/5A, DC30V/5A)

-Input accuracy: ± 0.2% FS ± 1digit (under standard working conditions)

-Signal processing: Integrated Sigma Delta data conversion technology, channel signal scanning period ≤ 25 milliseconds

-Filtering function: configurable moving average filter, effectively suppressing process noise and power interference

2. Communication interface parameters

-Communication protocol: Supports mainstream industrial protocols such as Modbus and Ethernet

-Bus interface: compatible with FOXBORO I/A Series system 2Mbps fieldbus, supporting redundant configuration

-Communication speed: The fieldbus communication component (FCM) can achieve conversion and adaptation to the 10Mbps rate of Ethernet fieldbus

-Redundancy feature: Supports redundant Ethernet fieldbus connections, can automatically switch communication paths (A/B paths), ensuring communication continuity

3. Power supply and power consumption parameters

-Power supply method: Independent DC power supply is obtained through DIN rail mounted substrate, compatible with 24VDC industrial standard power supply

-Power consumption: Low power design, typical power consumption ≤ 8W (subject to actual configuration)

4. Control performance parameters

-Control modes: conventional PID, self-tuning PID, fuzzy adaptive PID

-Program control: Supports 8 segments of program control, with a set time range of 0-999 minutes per segment

-Heating slope: adjustable from 0.1 to 99.9 ° C/minute

-Control cycle: adjustable from 0.1 to 10 seconds

-Switching feature: Supports manual/automatic undisturbed switching, with 0-60 second adjustable slow start function at the output end

5. Environmental and physical parameters

-Shell material: pressed aluminum shell, with excellent physical protection and heat dissipation performance

-Installation method: DIN rail mounted substrate installation, supporting cabinet rack mounting

-Working temperature: -20 ° C~60 ° C, suitable for harsh industrial temperature environments

-Storage temperature: -30 ° C~70 ° C

-Relative humidity: 5%~95% (no condensation)

-Protection level: Complies with ISA S71.04 standard for protection against harsh environments

-Vibration adaptability: can withstand 5-150Hz sine vibration, acceleration ≤ 2g

-Impact adaptability: can withstand a peak impact of 30g (lasting for 11ms)

6. Fault safety parameters

-Fault configuration: supports fault safe hold/return mode, and can set fault return data based on each channel

-Status indication: Panel LED indicator light, displaying module operation status, communication status, and channel fault status


Installation and commissioning precautions

1. Preparation before installation

Before installation, it is necessary to verify that the module model (P0924JH) is consistent with the order requirements, check that the module appearance is not damaged, the housing is not deformed, and the LED indicator lights and interfaces are intact. The site preparation needs to ensure that the installation environment meets the working conditions of the product, is away from high-temperature heat sources, strong electromagnetic interference sources, and corrosive media, and reserves sufficient space according to the cabinet layout and substrate installation requirements. Prepare suitable installation tools, substrates, connecting cables, and other auxiliary materials, and provide professional training for installation personnel to familiarize themselves with the installation specifications of the FOXBORO I/A Series system.

2. Installation and wiring specifications

The module needs to be installed on the FOXBORO standard DIN rail mounting substrate, aligned with the substrate interface during installation, smoothly pushed in and locked to ensure good contact between the module and the substrate. When wiring, it is necessary to strictly distinguish between power terminals, signal terminals, and communication terminals, and accurately connect cables according to the system wiring diagram. On site I/O cables need to be connected through dedicated sockets on the substrate, and power and communication cables need to be wired separately to reduce signal interference; The shielding layer of the shielded cable needs to be grounded at one end to enhance its anti-interference ability. If configuring redundant communication, it is necessary to ensure that both A/B communication paths are correctly connected and tested for smoothness.

3. Key points of debugging process

Before debugging, first connect the power supply to the substrate, observe whether the module LED indicator lights up normally, and confirm that the module power supply and communication status are normal. Configure the parameters of the module through the upper computer system or configuration software, including channel signal type, filtering parameters, control mode, fault safety mode, and communication protocol. Test the signal acquisition accuracy of each input channel one by one, connect the standard signal to the input channel, and verify whether the data uploaded by the module to the upper computer is accurate; Test the control accuracy of the output channel, send control instructions through the upper computer, and check whether the actuator action meets the requirements. Simultaneously test the fault safety function, simulate scenarios such as communication interruption and signal abnormalities in the module, and verify whether the module executes the preset safety actions. After debugging is completed, record all configuration parameters and generate a debugging report.

4. Key points of daily maintenance

During daily operation, it is necessary to regularly check the status of the module LED indicator lights to confirm that the module is running normally and there are no fault alarms. Regularly clean the dust inside the module and cabinet using a dry brush or compressed air to prevent dust accumulation from affecting heat dissipation and signal transmission. Check the connection status between the module and the substrate once a week, ensure that the cable terminals are secure, calibrate the module channel accuracy once a month, and adjust parameters promptly if there are deviations. Avoid randomly plugging and unplugging modules during system operation. If maintenance is required, cut off the power supply in the corresponding area first to ensure safe operation; When replacing modules, it is necessary to choose original products of the same model to ensure compatibility with the system.
