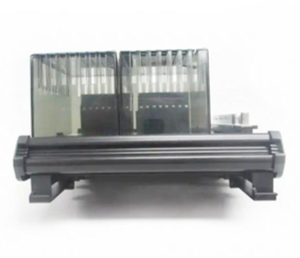

  • FOXBORO PO916JS Input/Output Module
    ❤ Add to collection
  • FOXBORO PO916JS Input/Output Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    FOXBORO P0916JS is a high-performance input/output (I/O) module developed by FOXBORO specifically for the I/A Series (Intelligent Automation Series) distributed control system (DCS). As the core interaction unit between the control layer and field devices, its core function is to achieve bidirectional transmission of analog and digital signals in industrial production processes. It not only collects monitoring signals from field sensors and transmitters, but also accurately outputs control instructions issued by the controller to actuators, building a complete link of "perception control execution". This module adopts modular and redundant design, with characteristics such as signal isolation and strong anti-interference ability. It can operate stably in harsh industrial environments such as petrochemicals, power energy, metallurgy and steel, and is a key equipment to ensure efficient collaboration of DCS systems.

    • ¥26236.00
      ¥28457.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.450KG
    • Quantity:
    • (Inventory: 99999)
Description

FOXBORO P0916JS is a high-performance input/output (I/O) module developed by FOXBORO specifically for the I/A Series (Intelligent Automation Series) distributed control system (DCS). As the core interaction unit between the control layer and field devices, its core function is to achieve bidirectional transmission of analog and digital signals in industrial production processes. It not only collects monitoring signals from field sensors and transmitters, but also accurately outputs control instructions issued by the controller to actuators, building a complete link of "perception control execution". This module adopts modular and redundant design, with characteristics such as signal isolation and strong anti-interference ability. It can operate stably in harsh industrial environments such as petrochemicals, power energy, metallurgy and steel, and is a key equipment to ensure efficient collaboration of DCS systems.




FOXBORO PO916JS Input/Output Module

Product Overview

FOXBORO P0916JS is a high-performance input/output (I/O) module developed by FOXBORO specifically for the I/A Series (Intelligent Automation Series) distributed control system (DCS). As the core interaction unit between the control layer and field devices, its core function is to achieve bidirectional transmission of analog and digital signals in industrial production processes. It not only collects monitoring signals from field sensors and transmitters, but also accurately outputs control instructions issued by the controller to actuators, building a complete link of "perception control execution". This module adopts modular and redundant design, with characteristics such as signal isolation and strong anti-interference ability. It can operate stably in harsh industrial environments such as petrochemicals, power energy, metallurgy and steel, and is a key equipment to ensure efficient collaboration of DCS systems.

Compared with conventional I/O modules, P0916JS achieves mixed processing of analog and digital signals, supports hot plugging and online configuration, and can complete module maintenance and parameter adjustment without interrupting system operation. At the same time, it deeply adapts to the general database and engineering environment of FOXBORO I/A series, greatly improving system integration efficiency and operational flexibility, providing strong support for the precision and intelligence of industrial control.


Specification parameters

Basic Information

Brand/Model: FOXBORO P0916JS; Series: I/A Series; Type: Hybrid I/O Module

Exclusive adaptation to I/A series DCS, supporting analog and digital signal processing

Power supply parameters

Input voltage: 24V DC ± 15%; Rated power consumption: ≤ 12W; supports dual power redundancy

Wide voltage adaptability to industrial power supply fluctuations, redundant design enhances operational reliability

signal interface

Analog input (AI): 8 channels, 4-20mA/0-10V optional; Analog output (AO): 4 channels, 4-20mA; Digital input (DI): 8 channels, dry contact/PNP; Digital output (DO): 4 channels, relay output

Multi type signal interface, compatible with mainstream industrial sensors and actuators

performance metrics

AI measurement accuracy: ± 0.05% FS; AO output accuracy: ± 0.1% FS; sampling period: 50ms/channel; Communication protocol: FOXBORO FBM bus/Modbus RTU

High precision signal processing, fast response to on-site parameter changes

Physics and Environment

Dimensions: 100mm × 80mm × 40mm; Installation method: DIN rail/backplate installation; Working temperature: -20 ℃~+70 ℃; Protection level: IP20

Modular design suitable for dense installation of cabinets, wide temperature adaptability to complex environments

Safety and anti-interference

Explosion proof grade: Exia Ⅱ CT5; Insulation resistance: ≥ 1000M Ω; EMC standard: IEC 61000-4-2/3/4

Meet the requirements of explosion-proof scenarios and have excellent anti-interference performance


Performance characteristics

FOXBORO P0916JS relies on FOXBORO's technological accumulation in the field of industrial control, combined with the functional requirements of hybrid I/O modules, and has multiple core performance advantages for adapting to complex industrial scenarios:

1. Mixed signal processing capability: integrated with 8-way AI, 4-way AO, 8-way DI, 4-way DO interfaces, it can simultaneously process analog parameters such as temperature and pressure, and digital signals such as equipment switches and valve status, to achieve "one module with multiple functions", reduce the number of modules in the cabinet and wiring complexity, and reduce system integration costs.

2. High precision and fast response: The AI channel adopts a 24 bit high-precision A/D conversion chip, with a measurement accuracy of ± 0.05% FS, which can accurately capture small fluctuations in process parameters; AO channel output accuracy ± 0.1% FS, ensuring precise actuator action; The sampling period of 50ms/channel enables real-time signal acquisition and output, improving control timeliness.

3. Hot plugging and online maintenance: Supports I/A series system hot plugging function, which can safely complete module plugging and replacement under live operation of the system. With online configuration function, signal type, range and other parameters can be modified without interrupting production, greatly reducing unplanned downtime.

4. Omnidirectional signal isolation and anti-interference: Adopting channel level full isolation design - AI/AO channels are isolated from power circuits, DI/DO channels are isolated from control circuits, with an isolation voltage of up to 2500V AC; The metal shielding shell and EMC filtering circuit effectively resist electromagnetic interference generated by industrial motors and frequency converters, ensuring stable signal transmission.

5. Flexible redundancy and fault-tolerant design: Supports dual power redundant input, automatically switches to backup power within 5ms in case of main power failure; The module supports dual machine redundancy configuration and achieves data synchronization between the main and backup modules through the FBM bus. In the event of a main module failure, the backup module seamlessly takes over the signal processing function, improving system reliability.

6. Convenient system integration and configuration: Deeply adapted to the one-stop engineering environment of FOXBORO I/A series, it can directly access the system's general database and support graphical configuration tools to configure parameters; Simultaneously compatible with Modbus RTU protocol, it can be interconnected with third-party PLC and SCADA systems, enhancing system expansion flexibility.

7. Wide range environment and explosion-proof adaptation: The working temperature range of -20 ℃~+70 ℃ is suitable for cold outdoor and high-temperature computer room environments; The Exia II CT5 explosion-proof rating enables it to be directly used in chemical Zone 0 hazardous areas without the need for additional explosion-proof protection, expanding its application scenarios.


Working principle

The core of the FOXBORO P0916JS input/output module is a closed-loop process of "signal acquisition data processing instruction output communication interaction". Through modular circuit design and protocol parsing, it achieves bidirectional data transmission between the control layer and field devices. The specific working mechanism is as follows:

1. Multi type signal acquisition: AI channels receive 4-20mA/0-10V analog signals output by on-site sensors (such as pressure transmitters and temperature sensors), filter and denoise them through signal conditioning circuits, and transmit them to A/D converters; The dry contact or PNP signal of the DI channel acquisition equipment is converted into a digital logic signal through a photoelectric isolation circuit to avoid external interference intrusion.

2. Data processing and protocol conversion: After the A/D converter converts the analog signal into a digital signal, the core MCU corrects the measurement error through linearization and temperature compensation algorithms, and converts it into actual physical quantities; The MCU encapsulates the processed analog data and DI digital status according to the FOXBORO FBM bus protocol format, and uploads them to the controller through the backplane bus.

3. Control instruction reception and output: The MCU receives control instructions issued by the controller through the FBM bus, analyzes and processes them separately - the AO channel converts digital control signals into 4-20mA analog signals through a D/A converter, and outputs them to actuators such as regulating valves and frequency converters; The DO channel controls the relay to open/close according to instructions, achieving actions such as equipment start stop and valve switching.

4. Communication and Redundancy Control: The module communicates in real-time with the controller through the FBM bus, uploads collected data and module operating status, and receives configuration parameters and control instructions; When there is dual module redundancy, the main and backup modules synchronize data and configuration information in real time through a dedicated synchronization link. When the main module fails, the backup module immediately takes over the signal acquisition and output functions, with a switching time of less than 10ms.

5. Self diagnosis and fault alarm: The built-in self diagnosis module monitors the integrity of each channel signal, the working status of A/D/D/A converters, power supply voltage, and bus communication in real time; When faults such as signal disconnection, output short circuit, and communication interruption are detected, the status indicator light will immediately trigger an alarm, and the fault code will be uploaded to the controller for engineers to quickly locate the problem.

6. Power redundancy guarantee: The dual power monitoring circuit detects the main and backup power supply voltages in real time. When the main power supply voltage is lower than 21.6V DC, it automatically switches to the backup power supply without signal interruption during the switching process; The power circuit has overcurrent and overvoltage protection functions to prevent abnormal power supply from damaging the internal circuits of the module.


Precautions

To ensure the safe and stable operation of the FOXBORO P0916JS input/output module, and to fully utilize its signal processing and control functions, the following precautions should be followed during installation, use, and maintenance:

-Installation and wiring specifications: Module installation requires a reserved heat dissipation space of ≥ 5cm to avoid close contact with high-power heating equipment; The analog signal cable adopts shielded twisted pair, with a distance of ≥ 50cm from the power cable and a bending radius of not less than 8 times the cable diameter; DI/DO cables should be kept away from high-frequency interference sources, and relay output circuits should be equipped with freewheeling diodes to prevent arc damage to the module.

-Signal access and configuration: Before connecting AI/AO signals, it is necessary to confirm that the signal type is consistent with the channel configuration. It is strictly prohibited to connect high-voltage signals such as 220V AC; When configuring, the range of the AI channel should be accurately set according to the sensor range, and the AO channel should match the rated signal of the actuator to avoid measurement or control errors caused by parameter mismatch.

-Power and grounding operation: The dual redundant power supply needs to be connected to an independent power supply circuit to ensure that there are no related faults between the main and backup power supplies; The module casing and signal shielding layer need to be reliably grounded (grounding resistance ≤ 4 Ω) to enhance anti-interference performance; The positive and negative poles of the power supply cannot be reversed, otherwise it will trigger overvoltage protection and burn out the power circuit.

-Hot plugging and maintenance points: Before hot plugging, it is necessary to confirm that the module is in an "offline" state to avoid plugging during peak data read and write periods; Regularly (quarterly) check the tightness of the wiring terminals to prevent poor contact caused by vibration; Perform accuracy calibration on the module every six months, and preheat for 30 minutes before calibration to ensure measurement accuracy.

-Explosion proof and environmental protection: When installing in explosion-proof areas, explosion-proof sealed joints should be used to connect cables, with a thread engagement length of ≥ 6 threads. It is strictly prohibited to disassemble the module housing without authorization; Regular cleaning of module ventilation openings is required in high dust environments, and anti salt spray treatment should be applied to modules in coastal areas to prevent corrosion of metal components.

-Fault handling specification: When a fault occurs, first check the fault code through the controller to distinguish whether it is a channel fault or an overall module fault; Single channel failure can be disabled through configuration and replaced with a backup channel; If the module fails as a whole, the backup module should be activated. The faulty module should be returned to the factory for repair, and unauthorized disassembly is prohibited.

-Safe operation: Insulated gloves should be worn during live maintenance to avoid direct contact with module pins and wiring terminals; When conducting maintenance in explosion-proof areas, it is necessary to strictly follow the hot work regulations, use explosion-proof tools, and ensure that there is no leakage of flammable and explosive media on site.


Application scenarios

The FOXBORO P0916JS input/output module, with its mixed signal processing capability, high reliability, and wide environmental adaptability, is widely used in various on-site signal interaction scenarios of industrial control systems. Its core applications include:

1. Reaction control in the petrochemical industry: In the reaction kettle control system of the refining unit, the module AI channel collects reaction temperature, pressure, and liquid level signals, and the DI channel collects safety valve status and stirring motor operation signals, and uploads the data to the I/A series controller; The control instructions issued by the controller are output to the feed control valve through the AO channel, and the DO channel controls the start and stop of the mixing motor, achieving closed-loop control of the reaction process and adapting to explosion-proof environmental requirements.

2. Unit monitoring in the power industry: In the boiler feedwater system of thermal power plants, the module AI channel collects feedwater flow rate, water temperature, and steam drum water level signals, while the DI channel collects feedwater pump status and valve switch signals; The AO channel controls the opening of the feedwater regulating valve, and the DO channel realizes the interlocking start stop of the feedwater pump. With redundant configuration, it ensures the stability of the power generation process and avoids boiler water shortage or full water accidents.

3. Rolling mill control in the metallurgical and steel industry: In the rolling mill control system of the hot rolling production line, the AI channel collects rolling mill temperature and rolling pressure signals, and the DI channel collects rolling mill speed and steel plate position signals; The AO channel controls the cylinder for adjusting the roll pressing amount, while the DO channel controls the start and stop of the steel plate conveyor roller, achieving precise control of steel rolling thickness and adapting to high temperature and high vibration environments.

4. GMP production control in the pharmaceutical industry: In the drug fermentation workshop, the module AI channel collects the temperature, pH value, and dissolved oxygen concentration of the fermentation tank, and the DI channel collects the status of the sterilization equipment; The AO channel controls the steam regulating valve and stirring speed, while the DO channel controls the start and stop of the feed pump. Its high-precision measurement and data recording functions meet GMP certification requirements, ensuring stable drug quality.

5. Process control in the water treatment industry: In the aeration system of sewage treatment plants, the AI channel collects dissolved oxygen and sewage flow signals from the aeration tank, and the DI channel collects the operating status of the fan; The AO channel controls the frequency adjustment of the fan frequency converter to regulate the air volume, while the DO channel controls the start and stop of the sludge reflux pump, achieving automation of the sewage treatment process and improving treatment efficiency.

6. Old DCS system upgrade: In the I/A series old system upgrade project, P0916JS can directly replace multiple independent AI, AO, DI, and DO modules, simplify the system architecture through mixed signal processing capabilities, without the need for large-scale renovation of cabinets and backboards, reduce upgrade costs, and improve system integration and reliability.
