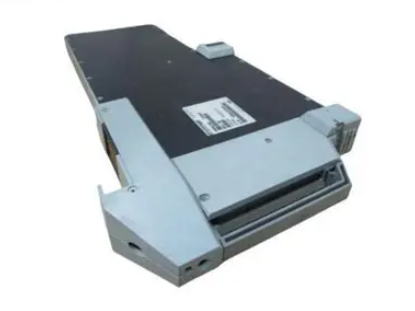

FOXBORO PO961BC/CP40B control module

FOXBORO PO961BC/CP40B control module

Product Overview

FOXBORO P0961BC/CP40B is a high-performance control module launched by FOXBORO for mid to high end industrial control scenarios. As the core computing unit of the I/A Series distributed control system (DCS), its core function is to receive monitoring data uploaded by on-site I/O modules (such as P0916JS), perform logical operations and process control through built-in complex control algorithms, and ultimately issue precise control instructions to actuators to achieve closed-loop regulation of industrial production processes. This module integrates the CP40B high-performance processor core and adopts a dual core architecture of "control computation+communication management". It has the characteristics of strong computing capability, high redundancy level, and wide compatibility. It can operate stably in harsh and critical industrial scenarios such as large-scale petrochemical plants and power unit control, and is a core equipment that ensures safe, efficient, and accurate production processes.

Unlike the P0916JS I/O module that focuses on signal interaction, P0961BC/CP40B has the core advantage of control operations and supports advanced algorithms such as multivariable predictive control and fuzzy control. It can simultaneously control more than 32 I/O modules and achieve collaborative control of complex processes; Its enhanced redundancy design and fault self-healing capability make it an indispensable control center for large industrial devices, providing powerful computing support for I/A Series systems.

Specification parameters

Brand/Model: FOXBORO P0961BC/CP40B; Series: I/A Series; Core: CP40B processor; Type: Central Control Module

Exclusive adaptation to I/A series DCS, with CP40B high-performance computing unit as the core

Power supply parameters

Input voltage: 5V DC ± 5% (powered by the system power module); Rated power consumption: ≤ 35W; supports triple redundant power supply access

Adapt to centralized power supply of the system, with three redundant designs to enhance power supply reliability

Computational performance

Processor: 32-bit dual core CP40B; Main frequency: 800MHz; Calculation cycle: ≤ 1ms; maximum number of control circuits: 64

Dual core architecture supports multi loop parallel control to meet complex process requirements

communication interface

System bus: 2-channel FBM high-speed bus (redundant); Ethernet interface: 2-channel 1000Mbps RJ45; Expansion interface: 4-way PCIe slot

Redundant bus ensures data transmission, PCIe slot supports functional expansion

Storage and Algorithm

Memory: 2GB DDR4; Flash memory: 16GB eMMC; Supporting algorithms: PID/PI, multivariable predictive control, fuzzy control

Large capacity storage adapted to complex programs, multiple algorithms supporting different control scenarios

Environment and Safety

Working temperature: -15 ℃~+65 ℃; Protection level: IP20; Redundancy level: TMR the third mock examination redundancy is optional; EMC standard: IEC 61000-4-6

Support high reliability redundant configuration, with better anti-interference performance than conventional modules

Performance characteristics

FOXBORO P0961BC/CP40B, relying on the high-performance CP40B processor core and FOXBORO high-end control technology, has multiple core performance advantages that are suitable for key industrial scenarios, forming functional complementarity with I/O modules:

1. Super powerful computing and multi loop control: With an 800MHz dual core CP40B processor and 2GB of memory, the computing cycle is shortened to less than 1ms, and 64 independent control loops can run simultaneously, supporting collaborative control of multi variable coupling processes; Compared to the signal processing capability of P0916JS, this module focuses on complex logical operations and can quickly process concurrent data from multiple I/O modules, improving the overall control efficiency of the system.

2. Advanced control algorithm support: In addition to the basic PID/PI algorithm, advanced algorithms such as multivariable predictive control, fuzzy control, and adaptive control are built-in, which can establish precise control models for complex processes such as chemical reaction coupling and power unit coordination, solve problems such as parameter coupling and large lag that conventional control cannot cope with, and improve control accuracy and process stability.

3. High level redundancy and fault tolerance capability: support two configurations of hot standby redundancy and TMR the third mock examination redundancy - the data synchronization delay of the main and standby modules under the hot standby mode is less than 1ms, and the failover is undisturbed; The TMR mode uses a "two out of three" voting mechanism to shield single module faults, ensuring error free output of control instructions and meeting the extremely high safety requirements of scenarios such as nuclear industry and large-scale chemical industry.

4. High speed redundant communication architecture: Two redundant FBM high-speed buses enable real-time data exchange with I/O modules, with a bus transmission rate of 100Mbps and support for centralized access of 128 I/O modules; Two Gigabit Ethernet interfaces support high-speed communication with the upper computer and engineer station, combined with flow control mechanisms to avoid control delays caused by data congestion.

5. Flexible expansion and system compatibility: 4-way PCIe slots support expanding communication modules, dedicated control cards, etc., and can add bus interfaces such as Profibus DP and Profinet as needed; Deeply adapt the I/A Series full series of I/O modules and software systems, and support OPC UA, MQTT and other industrial Internet protocols to facilitate the docking of enterprise cloud platforms and big data systems.

6. Fault self-healing and intelligent diagnosis: Built in hardware level self diagnosis module, real-time monitoring of key component status such as processor, memory, bus interface, etc., can provide early warning of potential faults; Support automatic recording and uploading of fault data, combined with the I/A series diagnostic platform, can quickly locate the fault point and generate repair suggestions, shortening the fault handling time.

7. High reliability and environmental adaptability: Industrial grade military components are used, which have undergone rigorous tests such as temperature cycling and vibration impact, with an average time between failures (MTBF) of over 200000 hours; -The working temperature range of 15 ℃~+65 ℃ is suitable for various industrial computer room environments and can operate stably without the need for additional temperature control equipment.

Working principle

The FOXBORO P0961BC/CP40B control module serves as the "control center" of the I/A Series system. Its core work is the closed-loop control process of "data reception algorithm operation instruction issuance status feedback", which cooperates with the I/O module to achieve precise control of industrial processes. The specific working mechanism is as follows:

1. Centralized reception of multi-source data: The module receives real-time analog monitoring data (temperature, pressure, etc.) and digital status signals (equipment start stop, valve status, etc.) uploaded by multiple I/O modules (such as P0916JS) through redundant FBM bus interfaces; After being filtered and verified by the bus interface circuit, the data is stored in a dedicated data buffer to ensure data integrity.

2. Control algorithm operation processing: The CP40B dual core processor reads data from the buffer and processes it in parallel - Core 1 is responsible for basic logical operations, comparing measured values with system set values, and generating preliminary control instructions through basic algorithms such as PID; Core 2 focuses on complex processes, utilizing advanced algorithms such as multivariable predictive control to optimize control instructions based on historical data and process models, eliminating parameter coupling interference.

3. Redundant issuance of control instructions: After optimization, the control instructions are verified and sent to the corresponding I/O modules through the redundant channel of the FBM bus; At the same time, backup the instructions to the backup module (in redundant configuration) to ensure that the backup module can directly reuse the instructions in case of a main module failure; The instruction format is converted according to the I/O module adaptation requirements to ensure that the actuator can accurately recognize and act.

4. Redundant collaboration and fault switching: The main and backup modules synchronize real-time operation data, control instructions, and configuration parameters through a dedicated synchronization link, with a synchronization delay of less than 1ms. When the self diagnostic module detects a fault in the main module (such as processor abnormality or bus interruption), it immediately triggers a switching signal, and the backup module takes over the control function within 5ms, achieving uninterrupted control.

5. Status feedback and system interaction: The module transmits the execution status of control instructions and its own operating parameters (CPU load, memory usage) to the upper computer monitoring system and engineer station through a gigabit Ethernet network; Receive configuration parameters (such as set values and algorithm parameters) and control instructions issued by the upper computer, achieve remote monitoring and intervention, and form a complete human-machine interaction link.

6. Data storage and logging: 16GB eMMC flash memory real-time records key control data, alarm information, and fault logs, with a log retention time of up to 1 year, supporting offline export analysis; The real-time database in memory dynamically updates process parameters, providing data support for algorithm operations and ensuring control continuity.
