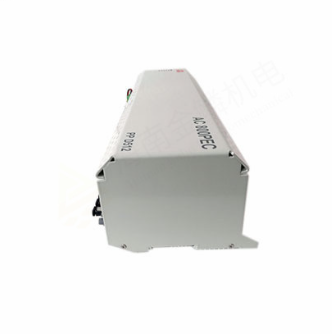

ABB PPD512A10-150000 Controller



ABB PPD512A10-150000 Controller

Product core positioning

The PPD512A10-150000 controller is an intelligent measurement and control controller designed by ABB specifically for medium and high voltage power systems. Its core function is to achieve real-time monitoring, logic control, fault diagnosis, and data upload of power equipment (such as circuit breakers, isolating switches, transformers, etc.), and is a key node connecting on-site equipment with upper level monitoring systems. This controller can not only independently complete local control tasks, but also integrate into the entire factory automation network through communication interfaces, supporting intelligent production management in the context of Industry 4.0.

Core functional features

1. Precise measurement and logic control

The controller has multi-channel analog data acquisition (such as voltage, current, power, temperature, etc.) and switch input/output functions, with a sampling accuracy of up to 0.2 level, and can capture subtle changes in power parameters in real time. Based on the built-in programmable logic controller (PLC) module, it supports user-defined control logic to meet the chain control requirements in different scenarios, such as load regulation of transformers, opening and closing control of circuit breakers, emergency tripping protection in case of faults, etc. The response time can reach up to 1ms, ensuring the immediate execution of control instructions.

2. Comprehensive fault diagnosis and protection

In response to common problems such as overcurrent, overvoltage, undervoltage, short circuit, and grounding faults in the power system, the controller is equipped with multiple protection algorithms that can quickly identify the type of fault and trigger protection actions. At the same time, it records key information such as the time of fault occurrence and fault parameters to form a fault report, providing a basis for subsequent operation and maintenance troubleshooting. In addition, the controller also has self diagnostic function, which can monitor its hardware status in real time (such as power supply, communication module, input and output channels, etc.), and issue alarm signals in a timely manner when module failures occur, reducing the risk of system shutdown.

3. Flexible communication and data exchange

Supports multiple industrial communication protocols, including Modbus RTU/TCP, IEC 61850, Profibus, etc., and can seamlessly integrate with mainstream PLCs such as ABB AC 800M and S7 series, as well as upper level management systems such as SCADA and MES. Through the communication interface, the controller can achieve bidirectional data transmission: on the one hand, it uploads the collected power parameters and equipment status on site to the monitoring center; On the other hand, it receives control instructions issued by the upper level system to achieve remote control and reduce on-site manual operation costs.

4. High reliability and environmental adaptability

Adopting industrial grade hardware design, the core chip uses highly anti-interference embedded processors, and the shell has an IP45 protection level, which can adapt to harsh environments such as dust, humidity, and electromagnetic interference in industrial sites. The working temperature range is wide up to -25 ℃~70 ℃, and the power input supports AC/DC 85V~265V wide voltage fluctuations, ensuring stable operation even in unstable grid voltage scenarios. The average time between failures (MTBF) exceeds 100000 hours.

Key technical parameters

power input

AC/DC 85V~265V

Wide voltage adaptation, suitable for different regional power grids

Analog input

8-way AI, 4~20mA/0~10V

Support voltage, current and other parameter acquisition, with an accuracy of 0.2 level

Discrete input

16 way DI, dry contact/wet contact

Collect device status (such as opening and closing positions)

Discrete output

8-way DO, relay output (5A/250VAC)

Control the actions of external devices

communication interface

2 RS485 channels, 1 Ethernet channel

Supports protocols such as Modbus and IEC 61850

Operating Temperature

-25℃~70℃

Adapt to high and low temperature industrial environments

Protection level

IP45

Dustproof and splash proof

size

140mm×180mm×80mm

Compact design, saving installation space

Applicable scenarios

The PPD512A10-150000 controller is widely used in the following fields due to its performance characteristics:

-Medium and high voltage distribution system: used for circuit breaker control, power parameter monitoring, and fault protection in substations and distribution rooms, achieving automated management of the distribution system.

-In the field of industrial transmission, in conjunction with ABB frequency converters, real-time monitoring and control of the motor's operating status are carried out to ensure the stable and efficient operation of the transmission system, suitable for industries such as metallurgy, chemical engineering, and papermaking.

-New energy power station: used for control and data acquisition of combiner boxes and inverters in new energy power stations such as photovoltaic and wind power, to achieve efficient grid connection and monitoring of new energy electricity.

-Large industrial plants: provide centralized control and protection for power equipment on production lines, ensure the continuity of the production process, and reduce production interruptions caused by power failures.

Product advantages

1. Brand guarantee: As a leading global industrial automation enterprise, ABB's products undergo strict quality testing, and their reliability and after-sales service are fully guaranteed.

2. High cost-effectiveness: Compared to similar imported products, this controller maintains high performance while being more competitive in price, making it suitable for mass applications in domestic industrial enterprises.

3. Strong usability: Supports parameter configuration and logic programming through upper computer software, with a simple and intuitive operation interface, reducing the learning cost of operation and maintenance personnel.

4. Good scalability: Input/output channels or communication interfaces can be added through expansion modules to meet the functional upgrade needs in different scenarios.

Installation and maintenance recommendations

1. When installing, choose a ventilated and dry location, avoid direct sunlight or close to high temperature and high humidity equipment, and ensure good heat dissipation of the controller.

2. When wiring, it is necessary to strictly follow the wiring diagram to ensure that the power supply and input/output signals are firmly connected, and to avoid faults caused by poor contact.

3. Regularly clean the controller, remove dust and debris from the surface, check the fastening status of the wiring terminals and the integrity of the communication lines.

4. It is recommended to regularly backup the parameter configuration and logic program of the controller in order to quickly restore operation in case of equipment failure.
