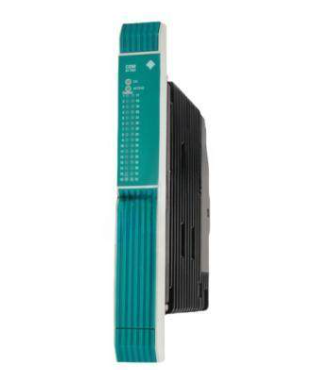

YOKOGAWA PSCDM024DCBAN Key Discrete Module

YOKOGAWA PSCDM024DCBAN Key Discrete Module

Module Core Overview

The PSCDM024DCBAN key discrete module is the core I/O component in the Yokogawa distributed control system (DCS) architecture, mainly responsible for the collection and transmission of key discrete signals (such as equipment start stop status, safety interlock contacts, valve switch positions, etc.) in industrial sites. Its core function is to convert on-site 24V DC specification ON/OFF discrete signals into digital signals recognizable by the control system through highly isolated signal processing circuits. It also has signal filtering, status monitoring, and fault feedback functions, providing reliable data support for precise control and safety interlocking of the system.

This module adopts a standardized modular design and can seamlessly adapt to the bus units of mainstream DCS systems such as Yokogawa CENTUM VP. It supports redundant configuration and hot plugging functions (corresponding bus units need to be matched), making it easy for system expansion and later maintenance. As a "key discrete" module, it adopts enhanced solutions in circuit design, component selection, and anti-interference protection, which can operate stably in harsh industrial environments, especially suitable for critical control links that require extremely high accuracy and real-time signal acquisition.

Key technical parameters

The technical parameters of the PSCDM024DCBAN module have been rigorously optimized to ensure the accuracy, stability, and reliability of key discrete signal acquisition. The core parameters are as follows:

1. Input channel specifications: Standard configuration includes 16 independent key discrete input channels, with fully isolated design (non common ground) between channels to effectively avoid signal interference and ensure the independence and accuracy of key signal acquisition; Support channel fault self diagnosis function, which can monitor abnormal states such as channel open circuit and short circuit in real time.

2. Voltage and current parameters: The rated input signal is a 24V DC discrete signal, supporting Sink Input mode; The input ON voltage range is 19~26.4V DC, and the input OFF voltage is ≤ 5V DC, ensuring accurate recognition of on-site signals; The rated input current of each channel is 3.5mA ± 20%, and the total current consumption of the module is ≤ 120mA (24V DC power supply), with excellent power consumption control and reduced system power supply load.

3. Voltage resistance and insulation performance: The voltage resistance level between the input signal and the system backplane is 2kV AC (for 1 minute), and the voltage resistance level between channels is 500V AC (for 1 minute); Insulation resistance ≥ 100M Ω (measured by a 500V DC megohmmeter), with strong resistance to industrial strong electrical interference, can effectively resist electromagnetic interference generated by on-site frequency converters, welding machines and other equipment.

4. Response and filtering performance: The standard response time is ≤ 2ms (adjustable through system parameter configuration), which can quickly capture the status changes of key signals and meet the real-time requirements of the safety interlock system; Built in configurable digital filtering function, the filtering time constant can be set within the range of 0.1~100ms, and the configuration can be optimized according to the on-site signal noise situation to improve the stability of signal acquisition.

5. Physical and connection parameters: Spring type pressure clamping terminals are used, which are easy to connect and firmly in contact, effectively preventing loose connections caused by vibration; The external dimensions of the module are 100mm x 35mm x 125mm (length x width x height), with a weight of approximately 0.28kg. The structure is compact and easy to install high-density in the control cabinet; Support Yokogawa standard bus connection, achieve data exchange and power supply through backplane and bus unit.

6. Environmental adaptability parameters: working temperature range is -10~60 ℃, storage temperature range is -40~85 ℃; The working humidity range is 5%~95% RH (no condensation); It can withstand industrial vibrations with a vibration level of 10~500Hz and an acceleration of 2g, and is suitable for most harsh industrial site environments.

Applicable scenarios and core advantages

1. Typical application scenarios

PSCDM024DCBAN, as a key discrete module, is mainly applied in critical links of industrial control systems that require extremely high signal reliability. Typical scenarios include:

-Petrochemical industry: used to collect key discrete signals such as reaction kettle safety interlock contact signals, emergency stop button status, combustible gas detection alarm signals, valve emergency cut-off status, etc., providing core data support for the safe operation of the device.

-Metallurgical industry: Monitor the limit switch signals, cooling water flow switch status, hydraulic system pressure switch signals, etc. of key equipment such as blast furnaces and converters to ensure the stability and safety of the smelting process.

-Power industry: Collect emergency stop signals from generator sets, temperature protection contact signals from transformers, status signals from switchgear doors, interlocking contact signals from transmission and transformation equipment, etc., to ensure the safety and reliability of power production and transmission.

-In the field of intelligent manufacturing, it is used for monitoring the status of safety doors in automated production lines, collecting emergency stop signals for robots, and detecting signals for key processes to achieve safety linkage control of production lines.

2. Core advantages

-High reliability design: using industrial grade high stability components, fully isolated channel design, and enhanced electromagnetic compatibility (EMC) protection, it can effectively resist on-site interference, with a long mean time between failures (MTBF), meeting the reliability requirements of key control links.

-Accurate and fast response: With a fast response time of ≤ 2ms, it can capture key signal changes in real time. Combined with configurable filtering function, it balances response speed and signal stability, providing accurate real-time data for safety interlock systems.

-Convenient operation and expansion: Supports hot swapping function (system support required), allowing for module replacement without interrupting system operation, reducing maintenance downtime; Standardized modular design, compatible with mainstream DCS systems in Henghe, easy to expand, and strong compatibility.

-Comprehensive fault diagnosis: equipped with channel level fault self diagnosis function, it can monitor channel open circuit, short circuit and other abnormalities in real time, and upload the fault status to the control system, making it easy for operation and maintenance personnel to quickly locate faults and improve system maintenance efficiency.

Key points for installation and debugging

The installation and debugging of the PSCDM024DCBAN module directly affect the reliability of key discrete signal acquisition, and the following specifications must be strictly followed:

1. Preparation before installation

-Technical document verification: Confirm the compatibility between the module model and the compatible DCS bus unit (such as Yokogawa CENTUM VP series bus unit); Verify installation drawings, wiring diagrams, and system configuration files to clarify module installation locations, signal links, power supply parameters, and redundancy configuration requirements.

-Environment and tool preparation: The installation site must meet the requirements of module environmental adaptability, and be away from strong heat sources, strong electromagnetic interference sources, and easily corroded areas; Prepare tools such as torque wrenches, multimeters, insulation resistance meters, signal generators, as well as consumables such as compatible cables, terminal blocks, shielding materials, etc.

-Module appearance inspection: Check that the module casing is not deformed or damaged, the wiring terminals are not loose, oxidized, or damaged, and the markings are clear; Verify that the module pins are not bent or oxidized, and confirm that there is no damage during transportation.

2. Installation Implementation Standards

-Fixed installation: Insert the module accurately into the corresponding slot of the bus unit to ensure good contact between the module and the bus unit. Lock it with buckles or fixing screws to avoid vibration causing the module to loosen; Modules and surrounding devices need to reserve a heat dissipation space of ≥ 50mm to avoid close installation with strong electromagnetic interference devices (such as frequency converters).

-Wiring operation: Before wiring, the system power supply and on-site signal power supply must be disconnected to prevent electric shock or module damage; Priority should be given to using shielded twisted pair cables for key discrete signal cables. The signal and power lines should be laid in separate slots with a spacing of ≥ 200mm to reduce electromagnetic interference; Accurately connect the 24V DC signal according to the wiring diagram, pay attention to the signal polarity (source input method), control the stripping length of the wire core insulation layer within 2-3mm, and confirm the clamping after inserting the spring terminal; Shielded cable single end grounding (grounding resistance ≤ 1 Ω), with the preferred grounding terminal being the control system grounding strip to enhance anti-interference capability.

-Power and bus inspection: Confirm that the power supply voltage provided by the bus unit to the module is stable and meets the power consumption requirements of the module; Check that the communication link connection between the module and the bus unit is normal, and confirm that the redundant configuration module has normal redundant link switching function.

3. Debugging and verification process

-Pre power on inspection: Use a multimeter to check the power supply voltage, signal line continuity and polarity, and confirm that there are no short circuits, virtual connections or reverse connections; Use an insulation resistance meter to measure the insulation resistance between the input channel of the module and ground, ensuring it is ≥ 100M Ω.

-Functional testing: After power on, simulate 24V DC ON/OFF signals through a signal generator, test the signal acquisition function of each channel one by one, confirm that the module can accurately identify the signal status and upload it to the DCS upper computer; Test the channel fault diagnosis function, simulate the open and short circuit states of the channel, confirm that the system can accurately alarm and display the faulty channel.

-Parameter configuration and optimization: Based on the characteristics of on-site signals, adjust the response time and filtering time constants of module channels through DCS system configuration software to balance response speed and signal stability; The module with redundant configuration needs to test the redundant switching function to confirm that there is no signal loss or delay during the switching process.

-Joint debugging verification: Conduct joint debugging with the DCS system to test the linkage function between key discrete signals and system interlocking logic. When triggering interlocking conditions, confirm that module signals can accurately drive subsequent control actions (such as emergency shutdown and alarm output); Continuous operation for 24 hours, monitoring the stability of signal acquisition in the module, without packet loss or false alarms.

-Record archiving: Detailed recording of module numbers, installation locations, test data, parameter configuration information, abnormal phenomena and handling solutions, generating debugging reports and archiving, providing a basis for later maintenance.
