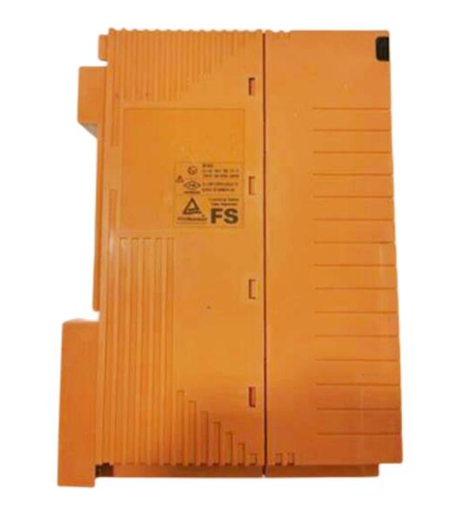

YOKOGAWA SCP451-11 processor module

YOKOGAWA SCP451-11 processor module

Product Overview

YOKOGAWA SCP451-11 is an industrial grade high-performance processor module developed by Yokogawa Electric Corporation in Japan, specifically designed for ProSafe-RS safety instrumented systems and CENTUM CS, CENTUM VP distributed control systems (DCS). It is one of the core members of the SCP451 series and is suitable for safety controllers such as SSC 50S and SSC 50D. As the core control unit of the system, this module undertakes key tasks such as control logic operations, I/O signal processing, data exchange, and safety monitoring. It can convert non electric signals from industrial field sensors (such as temperature, pressure, flow rate, etc.) into standard electrical signals and amplify them, providing reliable data support for remote measurement and control. Relying on the mature technology of Yokogawa Electric in the field of industrial control, the module has high reliability, strong environmental adaptability, and convenient installation and maintenance characteristics. It is widely used in industrial automation production lines, process control systems, energy management systems, and various industrial scenarios that require safety level control, helping enterprises achieve precise measurement and control, improve production efficiency, and reduce energy consumption.

Core technical parameters

2.1 Basic electrical parameters

-Processor performance: Equipped with a high-performance 32-bit RISC processor, the core computing speed is divided into a 25MHz basic version and a 1GHz enhanced version, which can be flexibly selected according to the complexity of the control scenario; Support multi task parallel processing, capable of efficiently executing complex control algorithms (such as PID regulation, fuzzy control) and real-time processing of large-scale data.

-Memory configuration: The basic memory capacity is 512KB, and the enhanced version can be expanded to 2GB. The program storage area and data storage area are independently divided, supporting online program modification and data power failure protection, ensuring the security of control logic and the integrity of data.

-Processor performance: Equipped with a high-performance 32-bit processor with a core computing frequency of 400MHz, it has powerful multitasking parallel processing capabilities and can efficiently execute complex control logic and safety interlock algorithms, ensuring fast response and precise execution of system control instructions.

-Memory configuration: The basic memory capacity is 128MB, supporting expansion to 512MB. The program storage area and data storage area are independently divided, with online program modification and data power failure protection functions to ensure the security of control logic and the integrity of data.

-Rated power supply: using 24V DC power supply, the allowable range of power fluctuation is 18V DC~30V DC, typical power consumption is 8W, standby power consumption is ≤ 2W; the power supply end integrates EMI filtering circuit and surge protection module, which can effectively resist industrial power grid interference and ensure stable operation in unstable power supply environment.

-I/O channel configuration: Equipped with 32 serial interfaces, 16 parallel interfaces, 8 analog input channels, and 8 analog output channels, it can flexibly adapt to various industrial sensors and actuators to meet the acquisition and control needs of multiple types of signals.

2.2 I/O interface characteristics

The module has rich I/O interface adaptation capabilities, which can directly connect to various sensor signals in the industrial field and output standard control signals, adapting to various industrial control scenarios. The specific characteristics are as follows:

-Support signal types: The analog input channel can receive analog signals converted from non electric sensors such as temperature, pressure, and flow, and is compatible with 4-20mA standard current signals and 0-10V standard voltage signals; The analog output channel can output 4-20mA current signals or 0-10V voltage signals for driving actuators; Serial and parallel interfaces support digital signal transmission and can interact with various intelligent devices and PLCs for data exchange.

-Signal processing characteristics: Built in high-precision signal conditioning circuit, analog signal acquisition error ≤ ± 0.1% FS, with good signal stability; Integrated digital filtering function can effectively suppress on-site interference signals and improve signal acquisition quality; It supports customized configuration of signal range and adapts to the signal output range of different sensors.

2.3 Communication Parameters

The module adopts industrial standard communication interface design to ensure stable data exchange with other units and external devices in the system. The specific parameters are as follows:

-Communication interface: standard Yokogawa dedicated V-net/IP bus interface and RS-485 serial communication interface; The V-net/IP bus supports high-speed data transmission, with a maximum communication distance of 10km (fiber optic transmission), and is suitable for the networking requirements of large-scale distributed control systems; The RS-485 interface supports multi-point communication, with a maximum communication distance of 1200m, and can connect various on-site intelligent instruments.

-Supporting protocols and data transmission: compatible with Yokogawa CENTUM VP and ProSafe RS system specific communication protocols, supporting Modbus RTU/ASCII communication protocols; The data transmission adopts CRC verification mechanism to ensure the integrity and reliability of data transmission; Support remote control command issuance and parameter configuration, and operation and maintenance personnel can remotely modify module control parameters through the upper computer to improve operation and maintenance efficiency.

2.4 Environmental and Physical Parameters

-Working environment: The working temperature range is -20 ℃~+60 ℃, which can adapt to low-temperature industrial site environments; The relative humidity tolerance range is 5%~95% (without condensation); Capable of resisting vibration (5-500Hz, peak to peak value of 0.5mm) and impact (5g, 20ms); Electromagnetic compatibility complies with the IEC 61000-4 series standards, with good anti-interference ability, and can adapt to complex industrial site environments.

-Storage environment: Storage temperature range is -40 ℃~+85 ℃, storage relative humidity is ≤ 95% (no condensation); The storage environment should be kept away from corrosive gases, strong electromagnetic fields, dust, and organic solvents. During transportation, the original buffer packaging box should be used to avoid severe collisions and bumps, and to prevent damage to components.

-Physical dimensions: Adopting Yokogawa standard module dimensions, specifically 140mm × 120mm × 65mm, designed for installation on standard DIN rails; The weight is about 0.7kg, with a compact structure that can save installation space for control cabinets and meet the requirements of dense module layout.

Core functions and features

3.1 High performance real-time control

The module is equipped with a 400MHz high-performance 32-bit processor, which has powerful real-time computing and control capabilities, and can efficiently process multi-channel I/O signals and complex control logic. Support safety interlock control algorithms, able to quickly respond to abnormal signals on site and execute interlock protection instructions, ensuring the safety and stability of industrial production processes. Built in high-precision signal processing circuit, capable of precise acquisition and conversion of various non electric signals such as temperature, pressure, flow rate, etc., with a signal acquisition delay of ≤ 10ms, providing timely and accurate data support for real-time control, suitable for industrial automation production lines, process control systems and other scenarios that require high real-time control requirements.

3.2 High reliability redundancy design

The module adopts a multi reliability design to ensure long-term stable operation. The power end integrates EMI filtering and surge protection circuits, which can resist voltage fluctuations and interference in industrial power grids; The I/O channel adopts electrical isolation design (isolation voltage ≥ 250V AC), effectively suppressing inter channel crosstalk and ground loop interference, and preventing single channel faults from affecting the operation of the entire system. As an adaptation module for the ProSafe-RS safety instrumented system, it has a redundant design that meets safety standards, supports hot backup of primary and backup modules, and has a switching delay of ≤ 5ms to ensure uninterrupted system control in the event of a fault; Adopting industrial grade high stability components and undergoing rigorous environmental aging testing, the mean time between failures (MTBF) is ≥ 100000 hours, meeting the continuous production needs of industry.

3.3 Diversified Communication and Interconnection Capability

The module is equipped with dedicated bus interfaces and serial communication interfaces to achieve flexible interconnection with distributed control systems and on-site intelligent devices. The V-net/IP bus interface supports long-distance high-speed data transmission and can be seamlessly integrated into large DCS systems such as CENTUM CS and CENTUM VP, achieving multi module collaborative work and centralized control; The RS-485 interface can directly connect to on-site intelligent instruments, actuators, and other devices, simplifying system wiring. Compatible with multiple industrial communication protocols, it can achieve cross device and cross system data sharing, support remote parameter configuration and firmware upgrade, and enable operation and maintenance personnel to complete parameter modification and system maintenance without dismantling the equipment on site, greatly improving operation and maintenance efficiency.

3.4 Comprehensive diagnostic and alarm functions

The module integrates comprehensive self diagnosis and fault alarm functions, which can monitor its own operating status in real time (such as power supply voltage, processor status, memory status, communication interface status) and I/O signal status (such as signal over range, signal open/short circuit, sensor failure). When an abnormality is detected, the local alarm is immediately triggered (the status indicator light flashes red) and detailed alarm information is sent to the upper computer. The alarm content includes the type of abnormality, the fault channel number, the occurrence time, etc., which facilitates the operation and maintenance personnel to quickly locate the fault point. Built in fault record buffer can store the last 100 alarm records, support historical fault data query, and provide data support for fault analysis and preventive maintenance.

3.5 Convenient Programming and Operations

The module supports parameter configuration and program development through the Yokogawa dedicated configuration software (CENTUM VP Engineering Environment). The software has a graphical programming interface that allows for intuitive configuration of I/O channel signal types, ranges, filtering parameters, and control logic. It supports multiple programming methods such as ladder diagrams and functional block diagrams, reducing development difficulty. Support parameter backup and recovery function, which can save configuration parameters and control programs as files for easy parameter copying and system maintenance of batch modules. The front of the module is equipped with clear status indicator lights (power light, running light, communication light, alarm light), which can intuitively reflect the overall operating status of the module, making it easy for on-site operation and maintenance personnel to quickly make initial fault judgments; Adopting standard DIN rail installation design, easy installation and disassembly, can significantly shorten on-site construction time.

Typical application scenarios

The YOKOGAWA SCP451-11 processor module is widely used in various industrial automation and process control scenarios due to its high reliability, strong adaptability, and precise control capabilities

-Industrial automation production line: used for equipment linkage control, material conveying control, and production process parameter monitoring of automated production lines. It can collect production process parameters such as temperature and pressure, execute precise control instructions, and improve production efficiency and product quality stability.

-Process control system: adapted to process control systems in industries such as petrochemicals, chemical engineering, metallurgy, etc., to achieve real-time monitoring and closed-loop control of key process parameters such as reactor temperature, pressure, pipeline flow rate, and liquid level, ensuring the safe and stable operation of the production process.

-Energy management system: used for monitoring and controlling factory energy consumption, collecting consumption data of energy media such as electricity, steam, water, etc., optimizing energy allocation through control logic, reducing enterprise energy consumption, and achieving energy-saving and consumption reduction goals.

-Safety Instrumented System: As the core processor module of the ProSafe-RS safety instrumented system, it is applied in industrial scenarios that require safety interlock protection (such as emergency shutdown systems in chemical plants), quickly responding to hazardous condition signals and executing interlock protection actions to reduce production safety risks.
