Product Overview

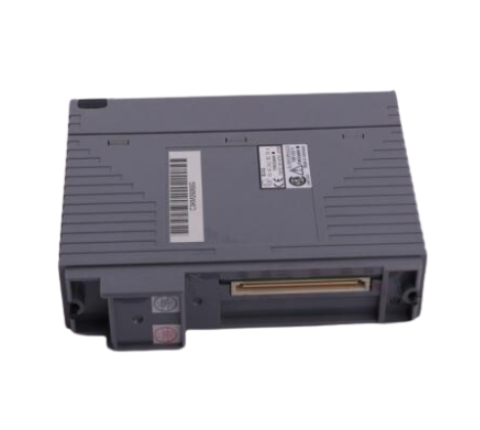

YOKOGAWA SR1030B62 is a high-precision analog input module developed by Yokogawa Electric Corporation in Japan, specifically designed for signal acquisition requirements in industrial automation control systems. It can be seamlessly integrated into mainstream distributed control systems (DCS) such as CENTUM VP. The core function of this module is to accurately collect, isolate, convert, and digitize various analog sensor signals (such as temperature, pressure, flow rate, liquid level, etc.) from industrial sites, providing stable and reliable raw data support for the system controller. Based on the technological accumulation of Yokogawa Electric in the field of process measurement and control, the module adopts industrial grade reinforced design, which has excellent anti electromagnetic interference ability, wide temperature working range and high stability. It is widely used in industrial scenarios such as petrochemicals, power energy, metallurgical building materials, water treatment, etc., which require strict signal acquisition accuracy and environmental adaptability.

Core technical parameters

2.1 Basic electrical parameters

-Processor performance: Equipped with a high-performance 32-bit RISC processor, the core computing speed is divided into a 25MHz basic version and a 1GHz enhanced version, which can be flexibly selected according to the complexity of the control scenario; Support multi task parallel processing, capable of efficiently executing complex control algorithms (such as PID regulation, fuzzy control) and real-time processing of large-scale data.

-Memory configuration: The basic memory capacity is 512KB, and the enhanced version can be expanded to 2GB. The program storage area and data storage area are independently divided, supporting online program modification and data power failure protection, ensuring the security of control logic and the integrity of data.

-Rated power supply: using 24V DC power supply, the allowable range of power fluctuation is 18V DC~30V DC, the typical power consumption is 8W, and the standby power consumption is ≤ 2W. The low-power design can effectively reduce the overall energy consumption of the system and ensure stable operation in industrial grade unstable power supply environments.

-Signal acquisition accuracy: Using a 16 bit high-precision A/D conversion chip, the conversion error is ≤± 0.05% FS (full range), and the temperature drift coefficient is ≤± 10ppm/℃, ensuring stable acquisition accuracy over a wide temperature range; Support software calibration function, which allows online correction of acquisition accuracy through upper computer software, further improving data reliability.

-Channel configuration: Standard configuration includes 16 single ended analog input channels (expandable to 32 channels), with electrical isolation design between channels (isolation voltage ≥ 250V AC), effectively avoiding signal interference between channels; Support channel grouping configuration, which can flexibly divide acquisition groups according to different signal types to improve signal processing efficiency.

2.2 I/O interface characteristics

The module has the ability to adapt to multiple analog signals and can directly connect to mainstream sensor output signals in industrial sites without the need for additional signal conversion equipment. The specific characteristics are as follows:

-Support signal types: fully compatible with 4~20mA standard current signals, 0~10V standard voltage signals, and -10V~+10V bipolar voltage signals; Supports thermistor signals (Pt100, Pt1000, Cu50, Cu100) and thermocouple signals (K-type, J-type, S-type, R-type, B-type, E-type, T-type), enabling direct acquisition and linear conversion of temperature signals.

-Signal processing characteristics: Built in digital filtering function, filtering frequency can be configured through software (0.1Hz~1kHz), which can effectively suppress high-frequency interference signals on site; The sampling period can be flexibly set, ranging from 10ms to 1s. Different channel groups can set independent sampling periods to adapt to measurement and control scenarios with different response speed requirements; Support preprocessing functions such as signal peak retention and average value calculation to reduce the data processing load on the upper computer.

2.3 Communication Parameters

The module adopts a dedicated system bus interface for high-speed data exchange with the controller, and also has complete communication diagnostic functions to ensure the reliability and timeliness of data transmission:

-Communication interface: Standard configuration of Yokogawa dedicated V-net/IP system bus interface, supporting 100Mbps high-speed data transmission, with a maximum communication distance of up to 10km (fiber optic transmission); Some versions support Ethernet/IP interface, which can be directly connected to industrial Ethernet to achieve interconnection with third-party control systems.

-Supporting protocols and data transmission: compatible with the dedicated communication protocol of Yokogawa CENTUM VP system, supporting batch data upload and instruction issuance; Supports Modbus TCP protocol (Ethernet version), seamlessly integrates with mainstream industrial upper computers and SCADA systems; The data transmission adopts CRC verification mechanism to ensure no packet loss or error, and the transmission delay is ≤ 1ms.

2.4 Environmental and Physical Parameters

-Working environment: The working temperature range is -10 ℃~+60 ℃, and the wide temperature version supports -40 ℃~+85 ℃; The relative humidity tolerance range is 5%~95% (without condensation); Capable of resisting vibration (0.5g RMS, 10-500Hz) and impact (10g, 11ms half sine wave); Electromagnetic compatibility meets the IEC 61000-4 standard, with the ability to resist electrostatic discharge, surges, and radio frequency interference, and can adapt to complex industrial site environments.

-Storage environment: Storage temperature range is -40 ℃~+85 ℃, storage relative humidity is ≤ 95% (no condensation); The storage environment should be kept away from corrosive gases, strong electromagnetic fields, dust, and organic solvents. During transportation, the original buffer packaging box should be used to avoid severe collisions and bumps.

-Physical dimensions: The standard dimensions are 150mm × 120mm × 70mm, designed for installation using standard DIN rails; The weight is about 0.8kg, with a compact structure that can save installation space for control cabinets and meet the requirements of dense module layout.

Core functions and features

3.1 High performance real-time control

The module adopts a high-precision signal acquisition and processing circuit design, combined with a 16 bit A/D conversion chip and optimized signal conditioning circuit, which can achieve precise acquisition of weak analog signals with conversion errors controlled within ± 0.05% FS. Supporting multi-channel parallel sampling, each channel works independently without interference, and the sampling period can be flexibly configured as needed. The fastest sampling period is as low as 10ms, which can quickly respond to on-site signal changes and provide timely and accurate data support for real-time control. Based on the characteristics of different types of signals, a dedicated signal processing algorithm is built-in, which can automatically linearize and compensate for thermal resistance and thermocouple signals, and directly output standardized digital signals.

3.2 High reliability redundancy design

The module adopts a multi reliability design to ensure long-term stable operation. Electrical isolation technology is used between channels, with an isolation voltage of ≥ 250V AC, effectively preventing the failure of one channel from affecting the normal operation of other channels; The power supply end is equipped with overvoltage, overcurrent, and reverse connection protection circuits, which can resist equipment damage caused by power fluctuations and misconnection. Support module level redundancy configuration, when the main module fails, the backup module can automatically switch seamlessly to ensure uninterrupted signal acquisition. Adopting industrial grade high stability components and undergoing rigorous environmental aging testing, the mean time between failures (MTBF) is ≥ 100000 hours, meeting the continuous production needs of industry.

3.3 Diversified Communication and Interconnection Capability

The module achieves high-speed data exchange with the CENTUM VP controller through a dedicated system bus, with a transmission rate of up to 100Mbps, ensuring real-time upload of a large amount of collected data. The Ethernet version supports Modbus TCP protocol, making it easy to connect to third-party industrial control systems and achieve cross system data sharing. Built in communication status monitoring function, real-time monitoring of bus connection status. When communication interruption, data transmission error and other abnormalities occur, an alarm is immediately triggered and fault information is recorded, making it easy to quickly troubleshoot communication faults. Support remote parameter configuration and firmware upgrade. Operations personnel can remotely modify module sampling period, filtering parameters, and other configurations through the upper computer software without the need for on-site equipment disassembly.

3.4 Comprehensive diagnostic and alarm functions

The module integrates comprehensive self diagnosis and signal diagnosis functions, which can monitor its own operating status in real time (such as power supply voltage, A/D conversion circuit, communication interface, memory status) and input signal status (such as signal over range, signal open circuit, short circuit). When an abnormality is detected, the local alarm is immediately triggered (the status indicator light flashes red) and detailed alarm information is sent to the upper computer. The alarm content includes the type of abnormality, the fault channel number, the occurrence time, etc., which facilitates the operation and maintenance personnel to quickly locate the fault point. Built in fault record buffer, capable of storing the last 100 alarm records, supporting historical fault data queries, and providing data support for preventive maintenance.

3.5 Convenient Programming and Operations

The module supports parameter configuration and management through Yokogawa dedicated configuration software (such as CENTUM VP Engineering Environment). The software interface is intuitive and friendly, and can quickly set channel signal types, sampling periods, filtering parameters, alarm thresholds, and other parameters. Support parameter backup and recovery function, which can save configuration parameters as files for easy parameter copying and system maintenance of batch modules. The front of the module is equipped with clear status indicator lights (power light, running light, communication light, channel alarm light), which can intuitively reflect the overall operating status of the module and the signal status of each channel, making it easy for on-site operation and maintenance personnel to quickly make initial fault judgments. Adopting standard DIN rail installation design, easy installation and disassembly, can significantly shorten on-site construction time.

Installation and commissioning specifications

4.1 Preparation before installation

-Environmental inspection: Confirm that the installation environment meets the working environment requirements of the module, and stay away from high temperatures, high humidity, strong magnetic fields, corrosive gases, and vibration sources; Reserve sufficient installation space inside the control cabinet to ensure good heat dissipation of the equipment and facilitate subsequent maintenance operations.

-Equipment inspection: After unpacking, check whether the appearance of the module is intact, whether there are any scratches or damage marks; Verify that the module model, specifications, and order requirements are consistent; Check if the interface terminals and indicator lights are intact, and if the accessories (such as fixing screws and wiring terminals) are complete.

-Tool preparation: Prepare suitable installation tools (such as screwdrivers, wrenches), wiring tools (such as wire strippers, crimping tools), and measuring tools (such as multimeters, oscilloscopes) to ensure smooth installation and debugging work.

4.2 Installation steps

1. Fixed installation: According to the module size and the installation hole position of the control cabinet, place the module steadily into the installation position, use matching screws to tighten symmetrically, and ensure that the module is firmly fixed without looseness; Avoid using metal tools to touch the module circuit board during installation to prevent static electricity from damaging components.

2. Wiring operation: Before wiring, the power must be disconnected to avoid module damage or personnel safety accidents caused by live wiring. Connect the power line, I/O signal line, and communication line in sequence according to the product wiring diagram:

-Power line: distinguish between positive and negative poles, ensure the correct connection of 24V DC power supply, and avoid reverse connection; Suggest installing a 2A fuse at the power input end to prevent module damage caused by overcurrent; The power supply line adopts copper core cables with an area of 1.5mm ² or more to reduce the voltage drop of the line.

-Analog input line: Use twisted pair shielded cables (recommended specification 22AWG), with a single ended grounding of the shielding layer (grounding resistance ≤ 4 Ω), to avoid parallel laying with power lines and digital lines. The parallel laying time distance should be ≥ 30cm, and vertical crossing should be used for cross laying to reduce electromagnetic interference; Thermistor and thermocouple signal lines need to be laid separately to avoid mixing with other analog signal lines; Ensure good contact of the circuit during wiring to avoid signal distortion caused by false connections.

-System bus/communication line: The V-net/IP bus uses dedicated shielded cables and is wired according to the bus topology requirements, with matching resistors added to the terminals; The Ethernet line adopts standard Cat5e and above Ethernet cables, with crystal heads firmly crimped and pins correctly matched; After the completion of bus/communication line wiring, insulation testing is required to ensure that there are no short circuits or open circuits in the line.

3. Grounding treatment: The module casing must be reliably grounded with a grounding resistance of ≤ 4 Ω. The grounding cable should be a copper core cable with a cross-sectional area of not less than 2.5mm ²; It is recommended to use an independent grounding method to avoid sharing the grounding body with power equipment and prevent grounding interference from affecting the normal operation of the module.

4.3 Debugging process and key points

1. Hardware debugging:

-Power debugging: After connecting the power supply, observe whether the module power indicator light is lit normally (usually green and always on), use a multimeter to measure the voltage at the power input terminal, and confirm that the voltage is stable at around 24V DC.

-Input signal testing: Input standard signals (such as 4mA and 20mA current signals, 0V and 10V voltage signals) to each channel through a standard signal generator, view the collected data through the upper computer software, and verify whether the collection accuracy meets the requirements; For thermistor and thermocouple channels, standard resistors or temperature calibration sources can be connected for testing; Test the signal over range and open circuit status channel by channel to verify whether the alarm function is triggered normally.

-Communication testing: Connect the module to the upper computer or other communication devices, test the communication link for smoothness through programming software, and confirm that data transmission is normal without packet loss or error.

2. Software debugging:

-Program loading: Download the pre written control program to the module memory through programming software, check the program integrity after downloading, and ensure that there are no program losses or errors.

-Single channel accuracy testing: Test the different signal ranges of each channel, record the deviation between the collected data and the standard signal, and if the deviation exceeds the allowable range, correct it through software calibration function; Test the acquisition effect under different sampling periods and filtering frequencies to determine the optimal parameters suitable for the on-site scene.

-Multi channel linkage testing: Simulate the scenario of multiple signals being input simultaneously on site, test the parallel acquisition performance of the module's multiple channels, and ensure that the data acquisition of each channel is interference free and the transmission is delay free; Conduct a primary backup switching test for redundant configuration modules to verify whether data collection is continuous during fault switching.

-Debugging with on-site equipment: Connect the module to the entire chain of on-site sensors (such as pressure transmitters, temperature sensors, flow meters), perform load debugging, run continuously for no less than 24 hours, observe the stability and consistency of the collected data, and troubleshoot on-site line interference, sensor matching, and other issues.
