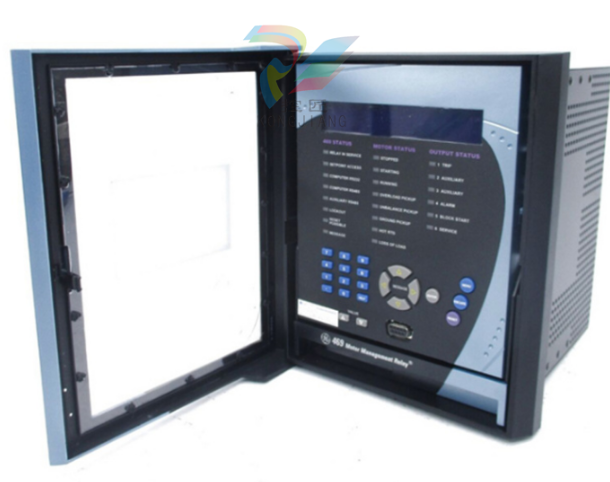

  • GE SR489-P5-H1-A20 Protection Relay
    ❤ Add to collection
  • GE SR489-P5-H1-A20 Protection Relay

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    As a representative product of GE's power protection series, SR489-P5-H1-A20 is positioned at the core of "precise protection, reliable action, and flexible adaptation". Its advantages are mainly reflected in the following four aspects, which can effectively solve the problems of protection blind spots and action delays in power system operation:

    -Multi dimensional protection coverage: integrates multiple protection functions such as overcurrent, overvoltage, undervoltage, overload, short circuit, ground fault, differential protection, etc., and can be flexibly configured according to the protection needs of different devices, achieving "one device, multiple protections" and reducing the number and investment cost of protection devices.


    • ¥8964.00
      ¥9057.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.680KG
    • Quantity:
    • (Inventory: 99999)
Description

As a representative product of GE's power protection series, SR489-P5-H1-A20 is positioned at the core of "precise protection, reliable action, and flexible adaptation". Its advantages are mainly reflected in the following four aspects, which can effectively solve the problems of protection blind spots and action delays in power system operation:

-Multi dimensional protection coverage: integrates multiple protection functions such as overcurrent, overvoltage, undervoltage, overload, short circuit, ground fault, differential protection, etc., and can be flexibly configured according to the protection needs of different devices, achieving "one device, multiple protections" and reducing the number and investment cost of protection devices.





GE SR489-P5-H1-A20 Protection Relay

Relay core positioning and core advantages

As a representative product of GE's power protection series, SR489-P5-H1-A20 is positioned at the core of "precise protection, reliable action, and flexible adaptation". Its advantages are mainly reflected in the following four aspects, which can effectively solve the problems of protection blind spots and action delays in power system operation:

-Multi dimensional protection coverage: integrates multiple protection functions such as overcurrent, overvoltage, undervoltage, overload, short circuit, ground fault, differential protection, etc., and can be flexibly configured according to the protection needs of different devices, achieving "one device, multiple protections" and reducing the number and investment cost of protection devices.

-High precision fault recognition: Using a 32-bit high-performance microprocessor with a data sampling frequency of up to 128 times per cycle, combined with advanced Fourier algorithm, it can accurately extract fault signal features, effectively distinguish fault current from normal load current, avoid misoperation or refusal caused by harmonic interference or load fluctuation, and protect accuracy error less than ± 1%.

-Quick action response: The protection action time can be precise to the millisecond level, with the shortest short-circuit protection action time reaching 10ms. It can quickly cut off the fault circuit before the fault expands, minimizing equipment damage and power outage range, and improving the system's power supply reliability.

-Strong environmental adaptability: Adopting an industrial grade sealed shell design, it has good dust, moisture, and electromagnetic interference resistance performance. The working temperature range covers -20 ℃~70 ℃, and can adapt to high temperature, high humidity, and dusty industrial site environments. The average time between failures (MTBF) exceeds 100000 hours.


Core protection functions and control characteristics

The SR489-P5-H1-A20 protection relay achieves deep collaboration between hardware circuits and embedded software to protect and monitor the entire lifecycle of power equipment. Its core functions can be divided into four categories: basic protection, special protection, status monitoring, and control operations, meeting the protection needs of different scenarios:

1. Basic protection function: covering core fault scenarios

The basic protection function is designed for the most common types of faults in the power system and is the first line of defense to ensure equipment safety. Each function supports flexible setting and delay adjustment of protection settings:

-Overcurrent protection: divided into two modes: timed overcurrent protection and inverse timed overcurrent protection. In timed mode, when the current exceeds the set value, it will take action after a fixed delay; In inverse time mode, the action delay shortens with the increase of fault current, which is more in line with the development law of faults and suitable for line and motor protection. Two overcurrent settings can be set, corresponding to different levels of fault severity.

-Voltage protection: including overvoltage, undervoltage, overvoltage quick break, and undervoltage quick break protection. When the system voltage exceeds or falls below the set threshold, the relay can trigger an alarm or trip action based on the degree and duration of voltage deviation, to prevent insulation damage or insufficient output caused by abnormal voltage of the equipment. The voltage protection setting adjustment range is 50%~120% of the rated voltage.

-Short circuit protection: Designed for severe short circuit faults, a quick break protection method is adopted. When the short circuit current exceeds the set value, there is no need to delay and the fault circuit is quickly cut off to avoid impact damage to the equipment caused by the fault current. The short-circuit protection action current can be accurately configured according to the rated current and short-circuit capacity of the equipment.

-Grounding fault protection: By detecting the zero sequence current or zero sequence voltage of the system, identify single-phase grounding, two-phase grounding and other grounding faults. Supporting multiple grounding methods such as direct neutral grounding and grounding through arc suppression coils, independent grounding fault settings and action delays can be set, effectively solving the problem of difficult identification of grounding faults in low current grounding systems.

2. Special protection function: adapted to the requirements of specialized equipment

Based on the characteristics of specialized power equipment such as transformers and motors, relays integrate customized special protection functions to enhance the safety and specificity of equipment operation

-Transformer protection: equipped with differential protection, gas protection (external contact input), and temperature protection functions. Differential protection accurately identifies internal faults by comparing the current difference between the high and low voltage sides of transformers; By combining gas relay and temperature sensor signals, comprehensive monitoring of transformer oil level, gas concentration, and winding temperature can be achieved to avoid the expansion of internal faults in transformers.

-Motor protection: including locked rotor protection, phase failure protection, unbalance protection, and overload protection. The locked rotor protection can detect the locked rotor current and act quickly when the motor is started or running; Phase failure and imbalance protection monitor the balance of three-phase currents to prevent winding burnout caused by phase loss or three-phase current imbalance in the motor; Overload protection adopts inverse time limit characteristics to avoid long-term overload operation of the motor.

-Backup power automatic switching function: Supports automatic switching control of backup power supply in dual power supply systems. When the main power supply fails, the relay can delay cutting off the main power switch and closing the backup power switch after detecting the disappearance of voltage, achieving seamless switching of power supply and improving the reliability of power supply for important loads.

3. Status monitoring and fault diagnosis

Relays not only have protective functions, but also integrate a comprehensive state monitoring and fault diagnosis system, providing data support for the operation and maintenance of power systems:

-Real time parameter monitoring: It can collect real-time power parameters such as three-phase current, three-phase voltage, power factor, active power, reactive power, frequency, etc., with a sampling accuracy of 0.2 level and a data update cycle of 100ms, making it easy for operation and maintenance personnel to grasp the system's operating status in real time.

-Fault recording and analysis: Equipped with fault waveform recording function, it can record current and voltage waveform data before, during, and after the fault occurs, with a recording length of up to 10 seconds; At the same time, it automatically stores information such as fault type, fault time, and fault parameters, and can store 100 historical fault records. It supports exporting and analyzing through communication interfaces.

-Self check and alarm function: Built in hardware and software self check mechanism, regularly self check the sampling circuit, outlet circuit, power module, etc. of the relay. When a fault is detected, a self check alarm signal is immediately issued; Simultaneously supporting external device fault alarms, such as sensor disconnection, communication failures, etc., to ensure the reliability of the protection system itself.

4. Control and Communication Characteristics

To achieve collaborative control and remote operation and maintenance with the power system, relays have flexible control methods and rich communication interfaces:

-Local and remote control: supports local operations such as closing, opening, resetting, etc. through panel buttons and external control contacts; At the same time, remote control instructions can be received through the communication network to achieve remote operation in unmanned scenarios, with a control response time of less than 50ms.

-Multi protocol communication support: equipped with RS485, Ethernet and other communication interfaces, supporting mainstream power communication protocols such as Modbus RTU, IEC 61850, DNP3.0, etc., it can seamlessly integrate into SCADA systems and power monitoring systems (PSMS), realizing remote configuration of protection settings, real-time uploading of operating parameters, and remote push of fault information.

-Fixed value management function: supports the storage and switching of 10 sets of protection fixed value areas, and can quickly switch the corresponding protection fixed values according to the system operation mode (such as normal operation, maintenance, backup, etc.), without the need for repeated configuration, improving operation and maintenance efficiency; Password verification is required for constant value modification to prevent accidental operation.


Key technical parameters

Power parameters

Type of working power supply

AC/DC universal

Power supply voltage range

AC 85V~265V; DC 85V~300V

Rated power consumption

≤10VA(AC); ≤8W(DC)

input parameters

Current input

Rated value 5A/1A, allowing overload of 20 times the rated current (1 second)

Voltage input

Rated value 100V/220V (line voltage/phase voltage)

frequency range

50Hz/60Hz adaptive, error ± 0.01Hz

sampling precision

Current and voltage ± 0.2 level; Power ± 0.5 level

Protect performance

Protection action time

Quick break protection ≤ 10ms; timed limit protection adjustable from 0.01s to 30s

Fixed value adjustment range

Current setting: 0.1In~20In; Voltage setting 50% Un~120% Un

Export contact capacity

AC 250V/10A; DC 220V/5A (resistive load)

Communication and Environment

communication interface

1 RS485, 1 RJ45 Ethernet

Operating Temperature

-20℃~70℃

Protection level

IP54 (panel); IP30 (terminal)

physical parameters

Dimensions (length x width x depth)

144mm × 144mm × 180mm (standard 19 inch panel installation)


Applicable scenarios and typical application cases

With its multi-dimensional protection functions and flexible configuration features, SR489-P5-H1-A20 relay can adapt to different power equipment and industry scenarios. Its typical applications include core equipment protection in medium and low voltage distribution systems, as follows:

1. Protection of power distribution systems in industrial enterprises

In the distribution rooms of industrial enterprises such as metallurgy, chemical industry, and manufacturing, this relay is mainly used for the protection of transformers and low-voltage lines. For example, a 10kV/0.4kV distribution transformer in a certain steel enterprise uses SR489-P5-H1-A20 to achieve differential protection, overcurrent protection, temperature protection, and ground fault protection. When an internal short circuit occurs in the transformer, the relay triggers a tripping action within 15ms, cutting off the high and low voltage side switches to prevent the transformer winding from burning out; At the same time, the fault information is uploaded to the enterprise power monitoring center through the communication interface. The operation and maintenance personnel can quickly locate the fault point through the fault recording data, shorten the power outage time to less than 30 minutes, and improve the operation and maintenance efficiency by 60% compared to traditional relays.

2. Protection scenarios for electric motor groups

In the motor control center (MCC) of large factories, this relay can provide centralized protection for high-power motors such as water pumps, fans, compressors, etc. The circulating water pump station in a certain chemical industrial park is equipped with 12 10kV high-voltage water pump motors, each of which is equipped with SR489-P5-H1-A20 relays to achieve special protection such as locked rotor, phase failure, overload, and imbalance. When a certain water pump motor experiences stalling due to mechanical jamming, the relay detects that the stalling current reaches 6 times the rated current, immediately cuts off the motor power supply within 8ms, and sends out an alarm signal; At the same time, through the automatic switching function of the backup power supply, the backup water pump is automatically started to ensure the continuous operation of the circulating water system and avoid economic losses caused by the interruption of chemical reactions due to pump shutdown.

3. Power supply protection for commercial buildings and data centers

In scenarios such as commercial complexes and data centers where high reliability of power supply is required, this relay is used for dual power switching systems and backup power protection. In the UPS power supply system of a certain data center, SR489-P5-H1-A20 serves as a backup power supply self switching controller to monitor the main power supply voltage and frequency in real time. When the main power supply experiences a voltage drop (below 80% of the rated voltage) due to grid fluctuations, the relay completes the switching action between the main power switch opening and the backup diesel generator power switch closing within 0.5 seconds, ensuring uninterrupted power supply to core equipment such as servers. Its high-precision voltage detection function can effectively avoid false switching caused by instantaneous voltage fluctuations, with a switching success rate of 100%.

4. Protection of supporting facilities for new energy

In new energy projects such as distributed photovoltaics and energy storage systems, this relay is used for grid protection of photovoltaic inverters and energy storage battery packs. In the 10kV grid connected cabinet of a distributed photovoltaic power station, SR489-P5-H1-A20 achieves protection functions such as overvoltage, undervoltage, frequency abnormality, and islanding effect. When the power grid malfunctions and the frequency exceeds the range of 50Hz ± 0.5Hz, the relay immediately cuts off the photovoltaic grid switch to prevent the photovoltaic system from reversing power to the faulty power grid and ensure the safety of power grid maintenance personnel; Simultaneously upload the fault information to the photovoltaic monitoring platform for remote monitoring and operation.
