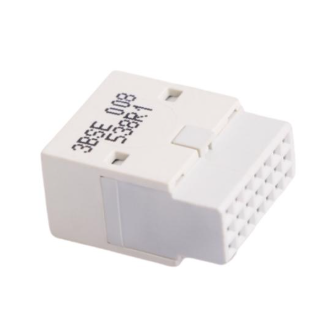

  • ABB TB807 3BSE008538R1 module bus terminator
    ❤ Add to collection
  • ABB TB807 3BSE008538R1 module bus terminator

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    In the modular architecture of the AC500 series PLC, processor modules (such as PM511) transmit data with various I/O modules and communication modules through a bus, forming a chain or star bus topology structure. When the bus signal reaches the topology end during transmission, if impedance matching is not performed, it is highly likely to generate standing waves due to signal reflection, resulting in signal distortion, reduced transmission rate, and even bus communication failures. The TB807 3BSE008538R1 module bus terminator is designed to solve this problem. It needs to be installed at the end of the bus topology, and through a built-in matching resistor network, the bus characteristic impedance is kept consistent with the transmission line impedance, effectively absorbing the end signal, avoiding reflection interference, and ensuring stable transmission of the bus signal.

    This terminal adopts a compact design compatible with AC500 series modules, which is easy to install, does not require complex configurations, and can quickly integrate into existing PLC systems. It is an indispensable supporting component of AC500 series bus systems, especially in long-distance bus transmission or complex electromagnetic environments, its role is more prominent.


    • ¥5588.00
      ¥6688.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:0.370KG
    • Quantity:
    • (Inventory: 99999)
Description

In the modular architecture of the AC500 series PLC, processor modules (such as PM511) transmit data with various I/O modules and communication modules through a bus, forming a chain or star bus topology structure. When the bus signal reaches the topology end during transmission, if impedance matching is not performed, it is highly likely to generate standing waves due to signal reflection, resulting in signal distortion, reduced transmission rate, and even bus communication failures. The TB807 3BSE008538R1 module bus terminator is designed to solve this problem. It needs to be installed at the end of the bus topology, and through a built-in matching resistor network, the bus characteristic impedance is kept consistent with the transmission line impedance, effectively absorbing the end signal, avoiding reflection interference, and ensuring stable transmission of the bus signal.

This terminal adopts a compact design compatible with AC500 series modules, which is easy to install, does not require complex configurations, and can quickly integrate into existing PLC systems. It is an indispensable supporting component of AC500 series bus systems, especially in long-distance bus transmission or complex electromagnetic environments, its role is more prominent.





ABB TB807 3BSE008538R1 module bus terminator

Basic positioning and function of the product

In the modular architecture of the AC500 series PLC, processor modules (such as PM511) transmit data with various I/O modules and communication modules through a bus, forming a chain or star bus topology structure. When the bus signal reaches the topology end during transmission, if impedance matching is not performed, it is highly likely to generate standing waves due to signal reflection, resulting in signal distortion, reduced transmission rate, and even bus communication failures. The TB807 3BSE008538R1 module bus terminator is designed to solve this problem. It needs to be installed at the end of the bus topology, and through a built-in matching resistor network, the bus characteristic impedance is kept consistent with the transmission line impedance, effectively absorbing the end signal, avoiding reflection interference, and ensuring stable transmission of the bus signal.

This terminal adopts a compact design compatible with AC500 series modules, which is easy to install, does not require complex configurations, and can quickly integrate into existing PLC systems. It is an indispensable supporting component of AC500 series bus systems, especially in long-distance bus transmission or complex electromagnetic environments, its role is more prominent.


Core functions and advantages

1. Impedance matching to suppress signal reflection

This is the core function of TB807 terminal. It has a built-in high-precision matching resistor that can accurately match according to the characteristic impedance of the AC500 series bus (usually 120 Ω, depending on the specific bus type). When the bus signal is transmitted to the terminal, the matching resistor can effectively absorb the signal energy instead of reflecting it back to the bus, thereby eliminating the distortion problem caused by signal superposition and ensuring the accuracy of data transmission. Both digital and analog signals can be stably transmitted through impedance matching, improving the reliability of bus communication.

2. Enhance the anti-interference capability of the bus

There are a large number of electromagnetic interference sources in industrial sites, such as electromagnetic radiation generated by equipment such as frequency converters and motors, which can easily interfere with bus signals. The TB807 terminator indirectly enhances the bus's resistance to external electromagnetic interference by optimizing signal transmission characteristics and reducing noise accumulation caused by signal reflection. At the same time, it adopts industrial grade shielding design, which can effectively isolate external interference signals from entering the bus, further ensuring the stability of bus communication.

3. Simplify system configuration, plug and play

This terminal adopts a non programming design, which does not require parameter configuration through software. It only needs to be installed on the end module according to the bus topology requirements to work normally. Its interface is fully compatible with the bus interface of the AC500 series module, and the plug-in connection design makes installation and disassembly extremely convenient, greatly reducing the workload of system debugging and maintenance. Even non professional technicians can quickly complete the installation operation according to the manual.

4. Enhance bus transmission distance and speed

Signal reflection is a key factor limiting the bus transmission distance and transmission rate. Through the impedance matching effect of TB807 terminator, the attenuation degree of bus signal is significantly reduced, and the transmission distance is extended; At the same time, after eliminating signal distortion, the bus can stably support higher transmission rates, meeting the real-time control requirements of PLC systems. For example, in a long-distance bus system with multi module expansion, the installation of TB807 can effectively avoid communication delay or data loss problems caused by long transmission distances.


Key technical parameters

The technical parameters of TB807 3BSE008538R1 directly determine its adaptability and performance. The core parameters are as follows:

1. Bus type adaptation: Designed specifically for the local bus of ABB AC500 series PLC, compatible with the bus interfaces of various AC500 series processor modules (such as PM511, PM554, etc.) and expansion modules, ensuring compatibility of bus signal transmission.

2. Impedance matching specifications: Built in 120 Ω precision matching resistor (± 5% error range), perfectly matched with the characteristic impedance of AC500 series bus, can effectively absorb end signals and suppress reflections.

3. Electrical characteristics: The working voltage range is consistent with the AC500 series module bus power supply, and no additional independent power supply is required. The working power is directly obtained through the bus interface; The supported bus transmission rate is synchronized with the matching processor module, and can adapt to the maximum transmission rate of the AC500 series bus, ensuring high-speed data transmission.

4. Mechanical structure: Adopting standard DIN rail installation method, compatible with the installation method of other modules in the AC500 series, saving installation space in the control cabinet; The module size is compact, with a length usually not exceeding 50mm and a width consistent with the AC500 series module. It can be seamlessly assembled and installed with other modules.

5. Environmental adaptability: The working temperature range is -25 ℃~70 ℃, which can adapt to high and low temperature environments in industrial sites; Equipped with IP20 protection level, suitable for installation inside control cabinets; The anti vibration performance meets the IEC 60068-2-6 standard, the anti impact performance meets the IEC 60068-2-27 standard, and meets the reliability requirements of industrial grade.

6. Model identification: 3BSE008538R1 is the official ordering number for this terminal, TB807 is the product series model, and the official model should be used for procurement and maintenance to avoid model confusion.


Applicable scenarios and supporting relationships

1. Core applicable scenarios

The application scenarios of TB807 terminal are highly bound to those of AC500 series PLC, mainly used in industrial automation systems that require stable bus transmission, including:

1. Multi module extended AC500 system: When there are a large number of I/O modules and communication modules extended in the AC500 series PLC system, forming a long bus link, TB807 terminal devices need to be installed at the end of the bus, such as distributed control nodes for manufacturing production lines, multi parameter monitoring systems for large equipment, etc.

2. Long distance bus transmission scenario: When the bus transmission distance between the processor module and the end expansion module exceeds 10 meters (the specific distance needs to be determined based on the bus type and transmission rate), the risk of signal attenuation and reflection increases, and TB807 must be installed to ensure signal quality, such as remote instrument control in chemical workshops, distributed pump group control in municipal sewage treatment systems, etc.

3. Complex electromagnetic interference environment: In industrial sites with strong electromagnetic interference such as steel, metallurgy, and automobile manufacturing, bus signals are susceptible to interference. TB807 improves the system's anti-interference ability and ensures communication stability by suppressing signal reflection and self shielding design.

4. High real-time control demand scenarios: such as precision machining, automated assembly lines, and other systems that require high real-time data transmission, TB807 can reduce signal delay and distortion, ensuring timely response to control instructions.

2. Matching relationship with AC500 series modules

The TB807 terminal needs to be used in conjunction with the bus system of the AC500 series PLC, and its core supporting logic is as follows:

-Matching with processor modules: It can be used with various models of AC500 series processor modules (such as PM511, PM513, PM550, etc.). Regardless of the performance of the processor, as long as the AC500 standard bus is used, the terminal must be installed at the end of the bus.

-Connection with expansion module: Installed on the terminal expansion module of the bus topology, usually directly plugged into the bus interface of the terminal I/O module or communication module, without additional wiring, to achieve terminal matching of bus signals.

-System quantity configuration: Each independent AC500 bus topology only requires the installation of one TB807 terminator, which must be installed at the end of the topology and cannot be installed in the middle of the bus, otherwise it will cause impedance mismatch and affect signal transmission.


Installation and usage specifications

1. Installation points

1. Determine installation location: It must be installed on the terminal module of the AC500 bus topology, that is, at the bus interface of the expansion module (such as I/O module, communication module) farthest from the processor module, and cannot be installed on the intermediate module or processor module of the bus.

2. Mechanical installation: DIN rail installation is adopted, which is fixed side by side with other AC500 modules on the rail to ensure a firm installation and avoid loosening of the terminal due to vibration; During installation, attention should be paid to the module direction, and the bus interface should correspond to the bus interface of the end expansion module. Reverse plugging is not allowed.

3. Electrical connection: Simply insert the bus plug of the terminal into the bus socket of the end expansion module to achieve dual mechanical and electrical connection, without the need for additional power or signal lines, relying on the bus interface to obtain the required power supply.

2. Usage and maintenance standards

1. Pre commissioning inspection: Before powering on and commissioning the PLC system, it is necessary to confirm that the TB807 terminal has been correctly installed at the end of the bus and securely plugged in; Visual inspection of the bus topology structure can be used to ensure that the terminal position is correct and avoid bus communication failures caused by missing or incorrect installation.

2. Key points for troubleshooting: If there is a bus communication failure in the system (such as module recognition failure or abnormal data transmission), it is necessary to first check the installation status of the terminal to confirm whether it is loose and installed in the correct position; If the terminal is damaged (such as burnt appearance or deformed plug), it should be replaced with a terminal of the same model in a timely manner and cannot be replaced with other models.

3. Daily maintenance: Regularly inspect the appearance of the terminal, clean the dust on the module surface and bus interface to prevent dust accumulation and poor contact; Check if the terminal and expansion module are securely plugged in. If there is any looseness, it should be re plugged in promptly; No software configuration or parameter adjustment is required for the terminal, resulting in extremely low maintenance costs.

4. Replacement precautions: When replacing the terminal, the main power supply of the PLC system should be disconnected first to avoid abnormal bus signals or module damage caused by live plugging and unplugging; After replacement, it is necessary to recheck the installation position and plug status, and only after confirming that there are no errors can it be powered on for operation.

5. Spare parts management: For industrial systems using AC500 series PLCs, it is recommended to equip a certain number of TB807 terminals as spare parts, especially on critical production lines, which can be quickly replaced in case of terminal failure, reducing system downtime.
