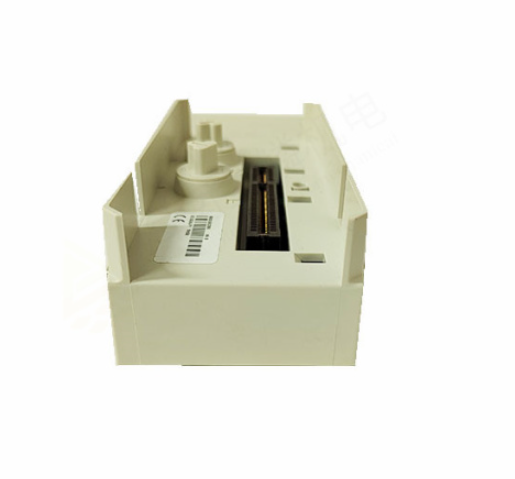

ABB TP858 3BSE018138R1 Industrial Control Module

Core positioning and basic parameters of the product

1. Core attributes

Product type: Industrial grade process control module (belonging to ABB Advant OCS system family, mainly used for signal processing and logic control of distributed control systems)

Model identification: TP858 (product series code, representing high-performance process control unit), 3BSE018138R1 (globally unique product code, used for precise traceability and after-sales verification)

Physical specifications: Adopting a standard 19 inch rack installation design, the module size is 160mm (width) x 250mm (height) x 300mm (depth), with a net weight of 2.8kg, suitable for the standardized layout of industrial control cabinets, and can be installed in conjunction with I/O modules of the same series.

2. Key electrical and performance parameters

Power supply demand

DC 24V ± 10%, typical power consumption 15W, maximum power consumption 20W

It is recommended to connect a stable industrial power supply and pair it with ABB dedicated power modules (such as SD800 series) to ensure power supply reliability

Control signal interface

8 analog inputs (AI, 4-20mA/0-10V optional), 4 analog outputs (AO, 4-20mA), 8 digital inputs (DI, 24V DC), 4 digital outputs (DO, 24V DC/5A)

Support multiple types of signal acquisition and control output, covering most industrial process monitoring needs

Processing performance

32-bit microprocessor with a processing speed of 100 MIPS, program storage capacity of 16MB, and data storage capacity of 8MB

Can quickly handle complex control logic, support concurrent multitasking, and meet real-time control requirements

Communication interface

1 Ethernet (TCP/IP) interface, 2 RS485 (Modbus RTU) interfaces, 1 Profibus DP master interface

Support multi protocol communication with upper computer, other control modules, and field devices, adapted to industrial network architecture

Working environment

Temperature -20 ℃ to+60 ℃, humidity 5% -95% (no condensation), protection level IP20 (module body)

Suitable for harsh environments such as high and low temperatures, high humidity, etc. in industrial sites, it needs to be installed in a closed control cabinet for use


Core functions and technological advantages

1. High precision process control

Multi algorithm support: Built in PID (proportional integral derivative), fuzzy control, adaptive control and other algorithms can be flexibly selected according to different industrial scenarios (such as temperature, pressure, flow control), with a control accuracy error of ≤ 0.1%, meeting the requirements of high-precision production processes.

Signal processing capability: Analog input supports hardware filtering and software calibration functions, which can effectively suppress electromagnetic interference in industrial sites (such as interference generated by motor start stop and frequency converter operation), ensuring the stability of collected signals; The digital input has a photoelectric isolation design, with an isolation voltage of ≥ 2500V AC, to avoid damage to the module caused by external circuit faults.

2. High reliability and fault-tolerant design

Redundancy support: Supports module level hot redundancy configuration. When the main module fails, the backup module can automatically switch within ≤ 100ms, ensuring uninterrupted control process. It is suitable for industries such as petrochemicals and nuclear power that require extremely high system continuity.

Fault self diagnosis: With comprehensive self diagnosis function, it can monitor the status of module power supply, communication, I/O interface, etc. in real time. When abnormalities occur (such as input signal exceeding range, communication interruption), it will send fault alarm information to the upper computer through indicator lights (LED) and communication protocol, making it easy to quickly locate the problem.

Anti interference performance: Complies with the IEC 61000-6-2 industrial anti-interference standard, and has the ability to suppress interference such as electrostatic discharge (ESD), radio frequency interference (RFI), and electrical fast transient burst (EFT) to meet the industrial level four standard, ensuring stable operation of the module in complex electromagnetic environments.

3. Flexible system integration and ease of use

Compatible with multiple systems: It can be seamlessly integrated into control systems such as ABB Advant OCS and 800xA, and supports interconnection with third-party systems (such as Siemens S7 series and Rockwell ControlLogix series) through standard communication protocols (Modbus, Profibus), reducing the difficulty of system upgrades and modifications.

Configuration and debugging: Supports graphical programming (ladder diagram, functional block diagram, structured text) through ABB Control Builder software, and control logic configuration can be completed without professional programming knowledge; During the debugging process, real-time monitoring of module operating parameters (such as input and output values, CPU usage) can be achieved through software, and online parameter modification is supported without the need for power outages or restarts.

Maintenance convenience: The module adopts a modular design, and both the I/O interface and the power interface are plug-in. When replacing the module, there is no need to disassemble a large number of wiring, and the maintenance time can be shortened to less than 15 minutes; The module surface is equipped with status indicator lights (power, operation, fault, communication), which can intuitively judge the working status of the module and reduce troubleshooting time.


Application scenarios and system compatibility

1. Typical application areas

Petrochemical industry: used for temperature, pressure, and liquid level control in refining units and chemical reaction vessels, such as reaction temperature regulation in catalytic cracking units and liquid level stability control in distillation towers. High precision PID algorithms are used to ensure the safety of production processes and product quality stability.

Power industry: Suitable for auxiliary system control of thermal power plants and hydropower stations, such as boiler feedwater flow control, condenser water level regulation, and chemical dosing control of desulfurization and denitrification systems. It can work in conjunction with the power plant DCS system to improve energy utilization efficiency.

Water treatment industry: used for dissolved oxygen control in aeration tanks of sewage treatment plants, dosage adjustment of chemical agents in dosing systems, liquid level control of sedimentation tanks in water plants, supporting multi parameter linkage control to ensure water treatment meets discharge standards.

Manufacturing industry: suitable for automotive parts production (such as temperature control of welding equipment), food and beverage processing (such as synchronous control of sterilization tank temperature and pressure), pharmaceutical industry (such as synergistic control of fermentation tank pH value and dissolved oxygen), meeting the process control needs of different manufacturing industries.

2. Key points of system integration

Wiring specifications: Shielded cables should be used for analog input/output signals, with the shielding layer grounded at one end (grounding resistance ≤ 4 Ω) to avoid signal interference; If digital output is used to control high-power equipment such as contactors and solenoid valves, surge suppressors (such as varistors) need to be connected in parallel at the output end to prevent damage to the module caused by reverse electromotive force.

Communication configuration: When configuring Profibus DP communication, it is necessary to ensure that the module address does not conflict with the slave device address, and a 120 Ω terminal resistor should be installed at the communication bus terminal; Ethernet communication requires setting a fixed IP address and being on the same network segment as the upper computer to ensure real-time data transmission (communication delay ≤ 10ms).

Redundant configuration: During redundant configuration, the primary and backup modules need to use the same version of firmware program and be connected through dedicated redundant cables. The redundant switching logic needs to be pre configured in the Control Builder software to ensure that there is no data loss during the switching process.


Selection and maintenance precautions

1. Key indicators for selection

I/O point matching: Determine module specifications based on the type and quantity of signals (analog/digital) that need to be collected on site. If the I/O points are insufficient, remote I/O modules (such as ABB AI810 and DO810 modules) can be extended through Profibus DP.

Control accuracy requirements: If the application scenario requires extremely high control accuracy (such as temperature control error in the pharmaceutical industry requiring ≤ 0.5 ℃), it is necessary to confirm the analog input resolution of the module (TP858 resolution is 16 bits, which can meet high-precision requirements); If it is a regular switch control (such as motor start stop), there is no need to pay extra attention to accuracy indicators.

Communication protocol compatibility: Confirm the communication protocol supported by the upper computer or third-party device. If Modbus TCP protocol is required, it can be directly connected through the Ethernet interface of the module; If it is a Profibus PA protocol, it needs to be used with a Profibus PA/DP coupler.

2. Maintenance and troubleshooting

Regular maintenance: Conduct maintenance on the module once a quarter, including cleaning the surface dust of the module (using a dry soft cloth), checking whether the wiring terminals are loose (using a torque wrench to tighten according to the specified torque value of 0.8-1.2 N · m), and testing the module power supply voltage (ensuring it is within the range of 24V ± 5%).

Common troubleshooting

The power indicator light is not on

Power supply failure, loose power interface, damaged internal power supply of module

1. Check if the external power supply is normal (measure voltage with a multimeter); 2. Re plug and unplug the power interface; 3. Replace the spare module for testing

Analog input without signal

Sensor malfunction, wiring error, module input channel damage

1. Check the sensor output signal (such as 4-20mA signal); 2. Confirm whether the wiring meets the "positive and negative pole" requirements; 3. Replace the input channel for testing

Communication interruption

Communication cable failure, IP address conflict, communication protocol configuration error

1. Check if the communication cable is broken (test with a network cable tester); 2. Confirm that the module IP address does not conflict with the upper computer; 3. Reconfigure communication protocol parameters
