Product Overview

The ABB UAD149A1501 controller module (order number: 3BHE014135R1501) is a high-performance core control unit designed by ABB specifically for industrial process control and large-scale equipment monitoring systems. It belongs to the ABB Advance OCS or Freelance control system series. This module integrates high-performance microprocessors and real-time control algorithms, with multi task processing capabilities, rich I/O interface expansion characteristics, and high reliability. It mainly undertakes core functions such as control logic operations, signal acquisition and processing, actuator driving, and system communication coordination. It can accurately respond to changes in on-site process parameters, achieve closed-loop control of complex industrial processes, and is widely used in large-scale unit control, process automation production lines, and key equipment monitoring systems in thermal power, chemical, cement, metallurgy, and other fields. It is a key core component to ensure the continuous, stable, and efficient operation of industrial production.

Core technical parameters

2.1 Basic Parameters

-Product model: UAD149A1501

-Order number: 3BHE014135R1501

-Product Type: Programmable Logic Controller Module (PLC Module)

-System: ABB Advance OCS/Freelance 2000/800F control system

-Installation method: System rack mounted (compatible with ABB standard I/O rack)

-Enclosure protection level: IP20 (compliant with IEC 60529 standard, suitable for cabinet installation)

-Dimensions: Width 48.3mm, Height 177.8mm, Depth 266.7mm (standard rack module dimensions)

2.2 Core Performance Parameters

Processor configuration

32-bit high-performance microprocessor with a main frequency of 400MHz

Support multitasking parallel processing, with flexible configuration of control cycles

Memory configuration

Program memory: 8MB Flash; Data memory: 2MB RAM (with backup battery)

Flash memory supports permanent storage of programs, and the power-off retention time of RAM data is ≥ 72 hours

control cycle

Basic control cycle: adjustable from 10ms to 1000ms

The high-speed control circuit supports a quick response time of 10ms, meeting the requirements of high-precision control

I/O interface capability

Supports up to 8 I/O module extensions, maximum I/O points: 256 digital points/64 analog points

Communicate with I/O modules through the system backplane bus at a communication rate of 10Mbps

programming language

Supports IEC 61131-3 standard languages: LD, FBD, ST, IL, SFC

Compatible with ABB dedicated control algorithm library, can directly call industry-specific function blocks

Redundant configuration

Support hot standby redundancy configuration (1+1 redundancy), switching time ≤ 100ms

Real time monitoring of redundant status, automatic and uninterrupted switching in case of failure, ensuring system continuity

2.3 Power Supply and I/O Parameters

-Working power supply: DC 24V (allowable fluctuation range: 19.2V~28.8V), power consumption ≤ 15W

-Digital input support: compatible with PNP/NPN dry/wet contacts, input voltage DC 24V, response time ≤ 1ms

-Digital output support: Relay output/transistor output optional, relay output capacity AC 250V/5A, transistor output DC 24V/2A

-Analog input support: 4~20mA DC/0~10V DC, input accuracy ± 0.1% FS, sampling rate 100 times/second

-Analog output support: 4~20mA DC/0~10V DC, output accuracy ± 0.1% FS, load capacity ≤ 500 Ω

-Internal power supply: Integrated DC 5V/2A power supply to provide power for expanding I/O modules

2.4 Communication and Environmental Parameters

-Communication interface: 2 RS485 interfaces, 1 Ethernet interface (RJ45), 1 system bus interface

-Communication protocol: Supports Modbus RTU/TCP, Profibus DP, ABB AC 800M dedicated protocol

-Network speed: Ethernet 10/100Mbps adaptive, RS485/Profibus DP 9.6kbps~12Mbps adjustable

-Working temperature range: 0 ℃~+60 ℃

-Storage temperature range: -40 ℃~+85 ℃

-Relative humidity: 5%~95% (no condensation, at a temperature of 40 ℃)

-Anti electromagnetic interference: Complies with IEC 61000-4-2/-3/-4/-5 standards, electrostatic anti-interference 4kV, surge anti-interference 2kV

-Vibration and Shock: Vibration (10~55Hz) ≤ 0.5g, Shock (Peak) ≤ 10g (11ms)

Structural features and installation requirements

3.1 Structural Design

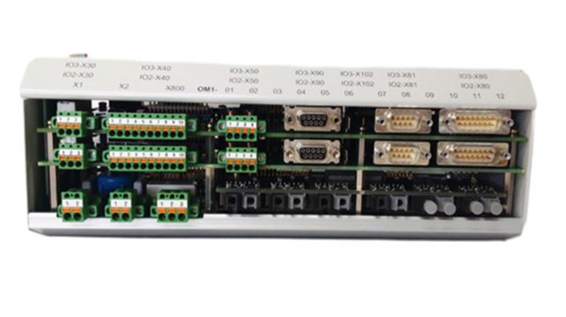

The controller module adopts a standardized rack structure, equipped with a status indicator panel and operation buttons on the front, including power indicator lights, operation indicator lights, fault indicator lights, and redundant status indicator lights, which can intuitively reflect the working status of the module; There are memory expansion slots and communication interfaces on the side for easy on-site debugging and maintenance. Internally, a modular circuit design is adopted, which is divided into power module, CPU core module, communication module, and I/O interface module. Each module is tightly connected through an internal bus and has complete electromagnetic shielding measures to effectively reduce interference between modules. The bottom of the module is equipped with standardized guide rail buckles and fixing screw holes, which can be quickly installed into ABB standard I/O racks and support hot plugging (in redundant configuration). When replacing the module, there is no need to interrupt the system operation.

3.2 Installation specifications

1. Before installation, it is necessary to confirm the module model, order number, and compatibility with the system to ensure compatibility with the on-site control system (such as Freelance 800F). Check the appearance of the module for any damage and ensure that the interface is not bent or oxidized.

2. The installation of the rack must comply with ABB standard dimensions, with flat and deformation free rack rails. The installation environment should be away from strong magnetic fields, high temperature heat sources, and corrosive gases. The cabinet should be well ventilated, and the ambient temperature should be controlled within the range of 0 ℃~60 ℃.

3. When installing the module, it should be smoothly pushed along the rack guide rail to ensure that the bottom interface of the module is fully engaged with the rack bus, and fastened with fixing screws to prevent loosening and poor contact. The screw torque should be controlled between 1.5N · m~2N · m.

4. When wiring, it is necessary to distinguish between power circuits, I/O signal circuits, and communication circuits. Strong and weak electrical circuits should be wired separately, with a spacing of not less than 20cm. Analog circuits should use shielded twisted pair cables, with the shielding layer grounded at one end to reduce interference.

When configuring redundancy, two modules need to be installed in adjacent slots of the same rack and connected through dedicated redundant cables to ensure stable transmission of redundant signals. After installation, redundant parameters need to be configured through system software.

6. After installation, check the correct polarity connection of the module power supply to avoid module damage caused by reverse connection. Then, conduct an insulation resistance test before powering on. The insulation resistance between the power circuit and the ground should be ≥ 50M Ω (500V megohmmeter).

Typical application scenarios

-Unit control in the thermal power industry: used for boiler feedwater control system, steam temperature control system, and combustion control system of thermal power units, to achieve precise control of equipment such as feedwater pumps and regulating valves, ensuring stable operation of the unit.

-Chemical process control: In chemical production equipment, such as reaction kettle temperature and pressure control, material ratio control system, by collecting on-site sensor signals, executing control logic, ensuring that chemical process parameters are stable within the set range.

-Cement production control: applied to the control of key equipment such as raw material mills and rotary kilns in cement production lines, achieving closed-loop control of equipment speed, load, temperature and other parameters, and improving cement production efficiency and quality.

-Metallurgical industry control: Used in the smelting process of steel and non-ferrous metals, it is used for blast furnace injection control system and continuous casting crystallizer control system to cope with harsh environments such as high temperature and high dust, ensuring the continuous and stable smelting process.

-Large scale equipment monitoring system: a distributed control system used for large industrial equipment such as paper machines and steel mills. As a local control unit, it realizes collaborative control and status monitoring of various components of the equipment, and cooperates with the central control system to complete overall production scheduling.
