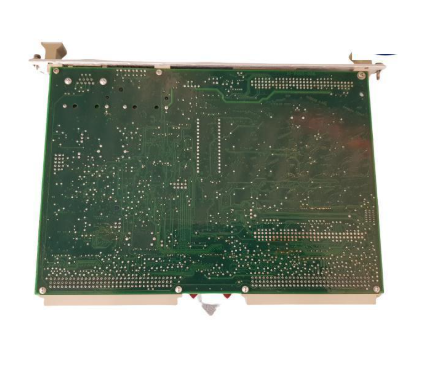

  • GE WESDAC D20 PS Industrial Power Module
    ❤ Add to collection
  • GE WESDAC D20 PS Industrial Power Module

    110V-380V
    5W-130W
    1A-30A
    1 year
    30
    United States, France, Japan, Viet Nam, Australia, Russia, Germany, Italy, Arabia

    The GE WESDAC D20 PS industrial power module is the core power supply component in the General Electric (GE) WESDAC D20 series automation system, designed specifically for complex industrial environments. Its main function is to stably convert AC input power to DC output, providing continuous and reliable DC power support for automation equipment such as D20 series controllers, I/O modules, and communication modules. This module integrates GE's mature power conversion technology and industrial grade redundancy design concept, with high stability, wide input voltage range, complete protection functions, and good compatibility. It is widely used in industrial fields such as power, chemical, petroleum, and metallurgy that require high power supply reliability. It is the "power heart" that ensures the continuous and stable operation of automation systems.

    • ¥13563.00
      ¥15346.00
    • Satisfaction:

      Sales: 0

      Review: 0

    Weight:1.450KG
    • Quantity:
    • (Inventory: 99999)
Description

The GE WESDAC D20 PS industrial power module is the core power supply component in the General Electric (GE) WESDAC D20 series automation system, designed specifically for complex industrial environments. Its main function is to stably convert AC input power to DC output, providing continuous and reliable DC power support for automation equipment such as D20 series controllers, I/O modules, and communication modules. This module integrates GE's mature power conversion technology and industrial grade redundancy design concept, with high stability, wide input voltage range, complete protection functions, and good compatibility. It is widely used in industrial fields such as power, chemical, petroleum, and metallurgy that require high power supply reliability. It is the "power heart" that ensures the continuous and stable operation of automation systems.




GE WESDAC D20 PS Industrial Power Module

Module Overview

The GE WESDAC D20 PS industrial power module is the core power supply component in the General Electric (GE) WESDAC D20 series automation system, designed specifically for complex industrial environments. Its main function is to stably convert AC input power to DC output, providing continuous and reliable DC power support for automation equipment such as D20 series controllers, I/O modules, and communication modules. This module integrates GE's mature power conversion technology and industrial grade redundancy design concept, with high stability, wide input voltage range, complete protection functions, and good compatibility. It is widely used in industrial fields such as power, chemical, petroleum, and metallurgy that require high power supply reliability. It is the "power heart" that ensures the continuous and stable operation of automation systems.


Core functional characteristics

2.1 High stability output and wide input adaptation

The module adopts advanced switching power supply technology and high-precision voltage stabilization circuit, with an output DC voltage ripple factor of less than 0.5%, ensuring smooth power supply for load devices and effectively avoiding interference from voltage fluctuations on sensitive electronic components. At the same time, its AC input voltage range is wide up to 85V AC~264V AC (50/60Hz), which is compatible with power grid standards in different countries and regions, and can also adapt to complex working conditions with large voltage fluctuations in industrial sites, without the need for additional voltage regulation equipment, reducing system deployment costs.

2.2 Multiple Redundancy and Fault Tolerant Design

In response to the high reliability requirements of industrial critical control systems, this module supports multiple parallel redundant operation modes. When multiple modules form a redundant power supply system, the system can automatically balance the output current of each module. If one module fails, the other modules can seamlessly take over the load within milliseconds, ensuring uninterrupted output voltage and improving power supply reliability to over 99.99%. In addition, the module adopts a dual independent heat dissipation channel design internally. When a single heat dissipation channel fails, the other channel can maintain basic heat dissipation function, reducing the risk of downtime caused by heat dissipation problems.

2.3 Comprehensive security protection mechanism

The module integrates comprehensive fault protection functions, including input overvoltage/undervoltage protection, output overvoltage protection, overcurrent protection, short circuit protection, over temperature protection, and over power protection. When abnormal working conditions are detected, the module will quickly activate protective measures, such as limiting current, shutting down output, or issuing alarm signals, to protect the module itself and backend load equipment from damage. Among them, the short-circuit protection adopts a "hiccup mode" design, which can automatically restore normal output after the short-circuit fault is eliminated, reducing manual intervention.

2.4 Intelligent monitoring and communication capabilities

The module is equipped with intuitive LED status indicator lights, which can display key information such as input status, output status, and fault status of the power supply in real time, making it easy for on-site personnel to quickly troubleshoot problems. At the same time, the module supports RS485 industrial bus communication function, which can exchange data with the upper computer monitoring system through Modbus communication protocol, upload operating parameters such as output voltage, output current, module temperature of the power supply, support remote monitoring, parameter configuration and fault alarm, and improve the intelligent management level of the system.

2.5 Strong environmental adaptability and long-life design

The module adopts industrial grade components and reinforced housing structure, which can adapt to a wide temperature working environment of -20 ℃~70 ℃. It can operate stably in industrial sites with humidity ≤ 95% (no condensation), altitude ≤ 3000m, and slight vibration and dust. Internally, an efficient cooling fan and heat sink combination are used for heat dissipation. The fan speed can be automatically adjusted according to the module temperature, ensuring both heat dissipation effect and extending the fan life. In addition, the average time between failures (MTBF) of the module exceeds 100000 hours, meeting the long-term continuous operation requirements of industrial equipment.


Key technical parameters

Input voltage range

85V AC~264V AC (single-phase/three-phase optional, default single-phase)

input frequency

47Hz~63Hz (broadband adaptation)

inrush current

≤ 50A (at 25 ℃, rated input voltage)

output parameters

Rated output voltage

24V DC (adjustable range: 22V DC~26V DC)

Rated output current

10A/20A/30A (subdivided according to specific models)

Output Ripple and Noise

≤ 100mVp-p (under full load conditions)

Load adjustment rate

≤± 0.5% (from 0% to 100% load)

protection parameters

Overcurrent protection threshold

110%~150% of rated output current (configurable)

Over temperature protection threshold

85 ℃± 5 ℃ (internal temperature of module)

Physical and environmental parameters

Dimensions (length x width x height)

190mm × 100mm × 220mm (typical value, subject to actual product)

working environment

Temperature: -20 ℃~70 ℃; Humidity: 10%~95% (no condensation); Altitude ≤ 3000m


Typical application scenarios

4.1 Automation System in the Power Industry

In the comprehensive automation system of substations and the DCS control system of power plants, the GE WESDAC D20 PS module provides stable power supply for core equipment such as monitoring units, relay protection devices, and data acquisition modules. Its wide input voltage range can adapt to fluctuations in the power grid, and its redundant design ensures uninterrupted operation of the system in the event of power module failure, avoiding power accidents caused by power supply issues and ensuring the safe and stable operation of the power grid.

4.2 Chemical and Petrochemical Industry

In chemical production process control systems and petroleum refining equipment monitoring systems, modules are used to supply power to PLC controllers, valve positioners, sensors, and other equipment. The chemical field environment is complex, with problems such as dust, corrosive gases, and temperature fluctuations. The strong environmental adaptability and comprehensive protection functions of this module can effectively resist the impact of harsh environments, prevent production interruptions or safety hazards caused by power failures, and ensure the continuity and safety of the production process.

4.3 Metallurgical Industry Control System

In the blast furnace control system and steel rolling production line automation system of the steel plant, modules provide DC power for various control modules, actuators, and monitoring equipment. There is strong electromagnetic interference and voltage fluctuation in the metallurgical site. The EMC enhanced design adopted by the module can effectively resist electromagnetic interference. The wide input range and stable output ensure that the control equipment is not affected by grid fluctuations, ensuring precise control and efficient operation of metallurgical production.

4.4 Rail Transit Signal System

In the station signal system and train operation monitoring system of urban rail transit, this module serves as the core power supply component, providing reliable power for signal machines, switch machines, data transmission equipment, etc. Its redundant operation mode and high MTBF characteristics can meet the power supply demand of "zero interruption" in rail transit signal systems, ensuring the safety and efficiency of train operation, and avoiding operational delays or safety accidents caused by power supply failures.

4.5 Industrial Robots and Automated Production Lines

In industrial robot workstations and automated assembly production lines, modules provide stable power supply for robot controllers, visual inspection equipment, conveyor line drive modules, etc. Its low ripple output can ensure the accuracy of robot motion control, and overcurrent and short-circuit protection functions can effectively protect valuable equipment such as robot servo systems, improving the stability of production line operation and equipment service life.
